Lumi Sys

TAZYIN

Application inspiration · not a project reference

TAZYIN is part of Lumi Sys. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.

Magnetic Light

33 product lines·133 total variants·luminaire·magnetic

TAZYIN is a magnetic light family within the LUMIBRIGHT Lumi Sys collection. Explore 33 models, including LBMG405, LBMG406, LBMG407, with model-specific specifications and configuration choices. LBMG405 specifications include power: 6W; colour temperature: 3000K; IP rating: IP20; dimensions: 122x26x24mm. Compare the TAZYIN range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.

Model specifications

Article	Wattage	CCT	IP	Dimensions	Cut-out

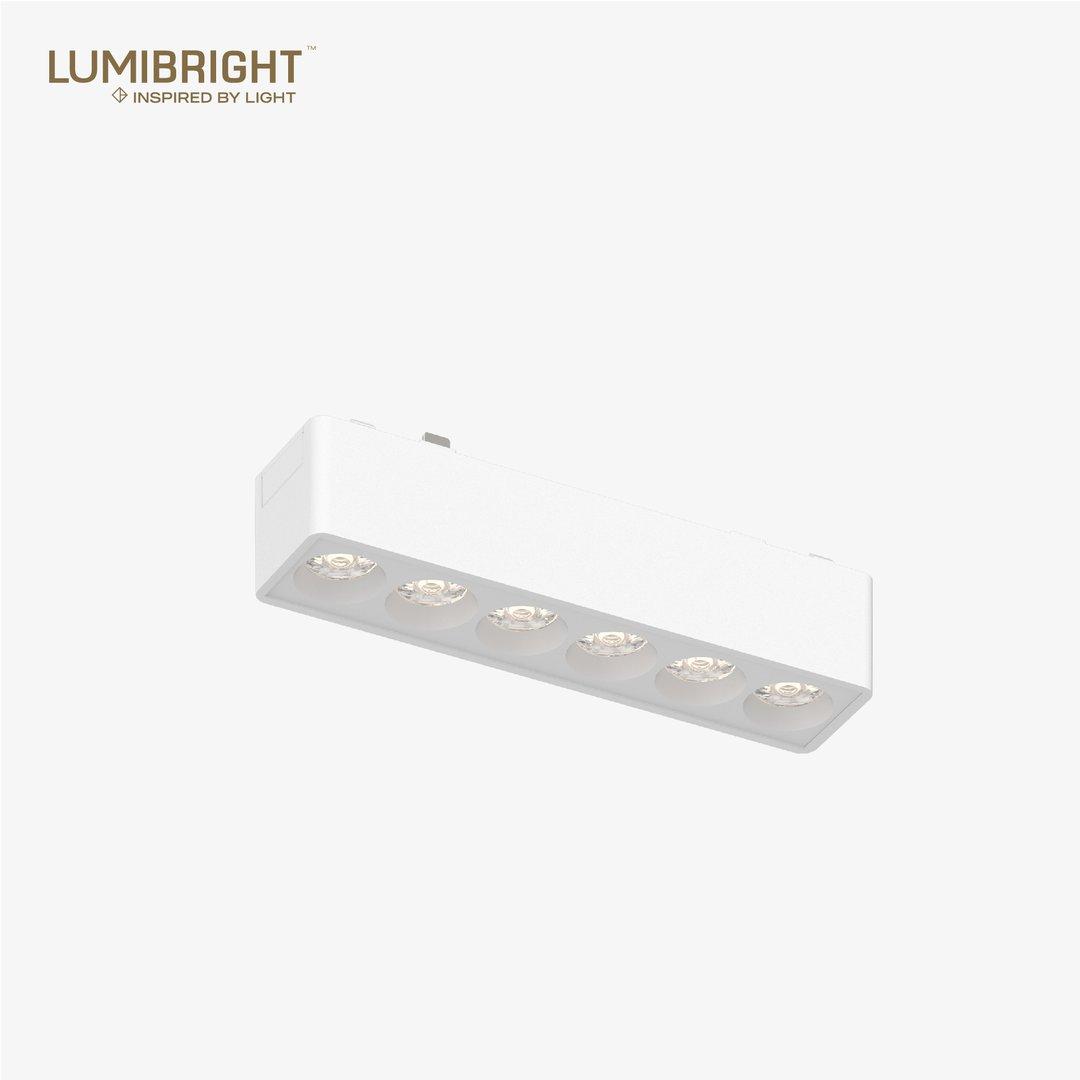

LBMG405	Wattage6W	CCT3000K	IPIP20	Dimensions122x26x24mm	Cut-outNot published

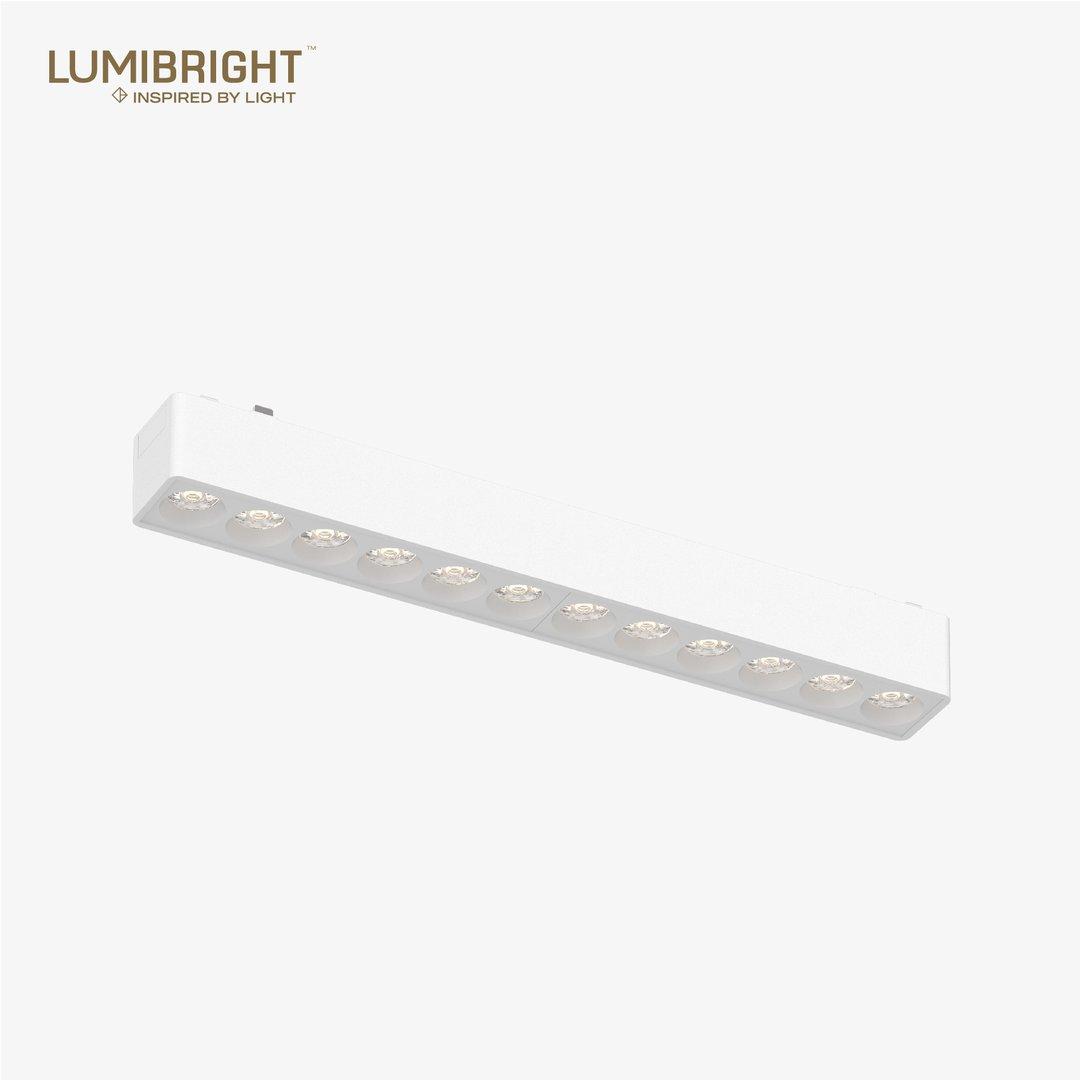

LBMG406	Wattage12W	CCT3000K	IPIP20	Dimensions230x26x24mm	Cut-outNot published

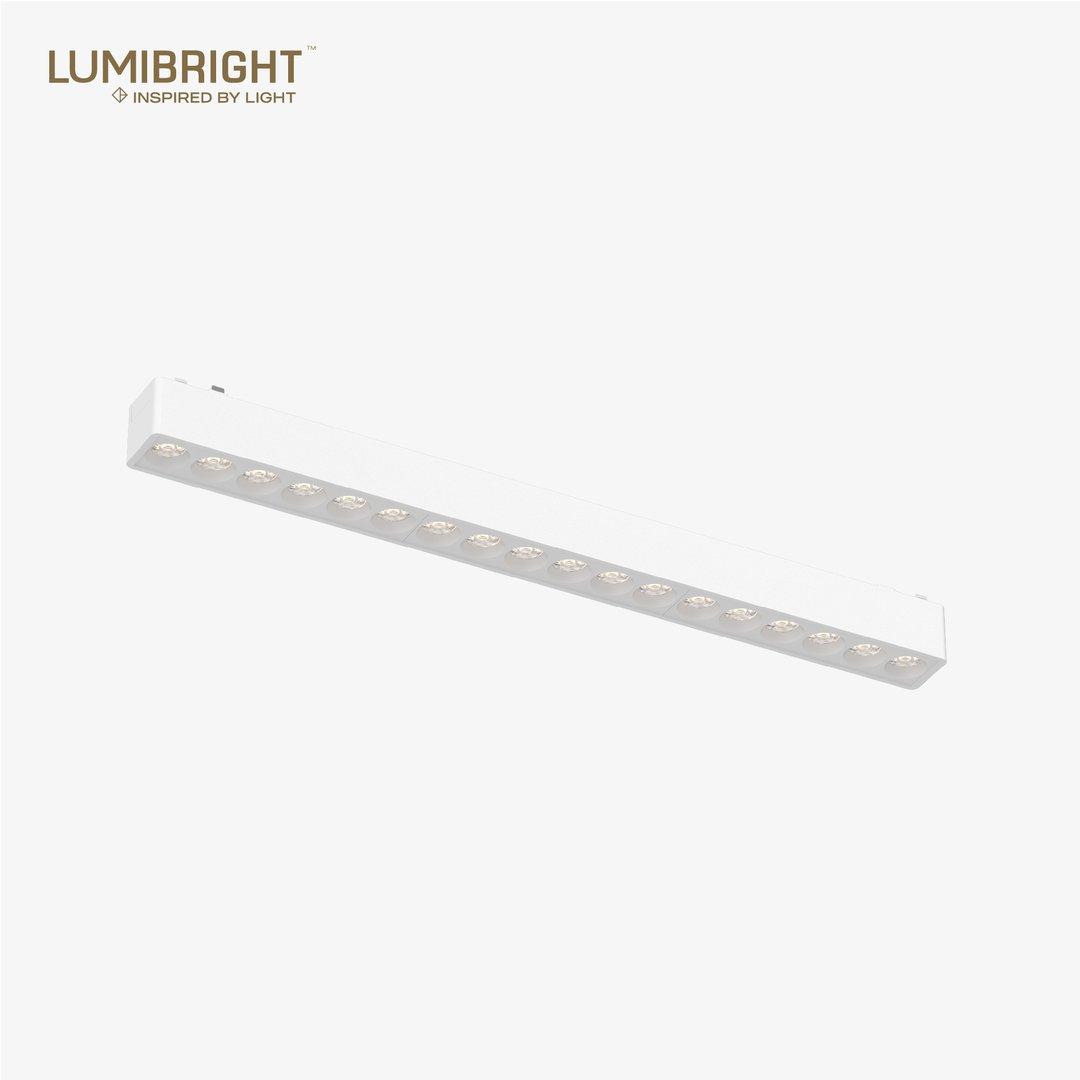

LBMG407	Wattage18W	CCT3000K	IPIP20	Dimensions338x26x24mm	Cut-outNot published

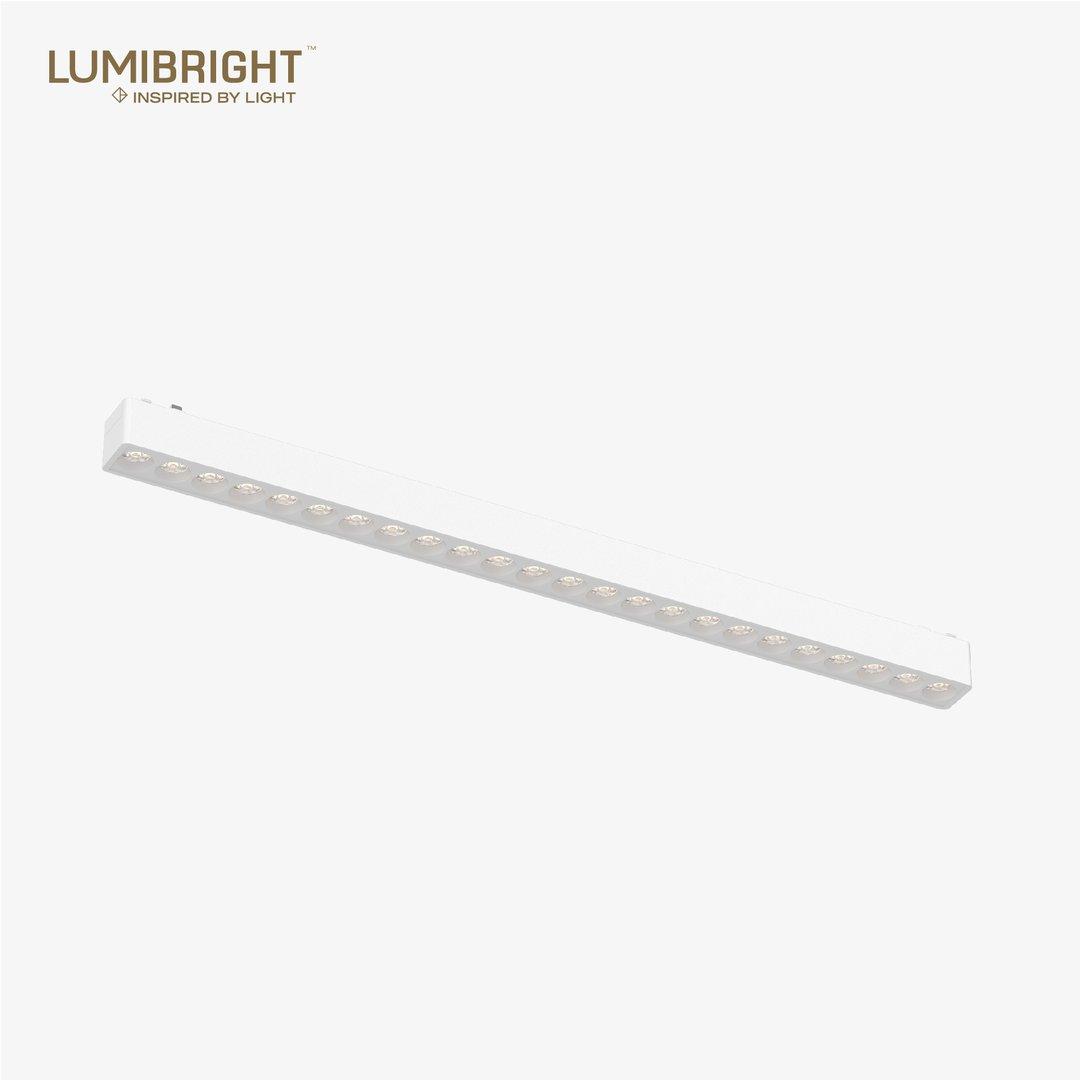

LBMG408	Wattage24W	CCT3000K	IPIP20	Dimensions445x26x24mm	Cut-outNot published

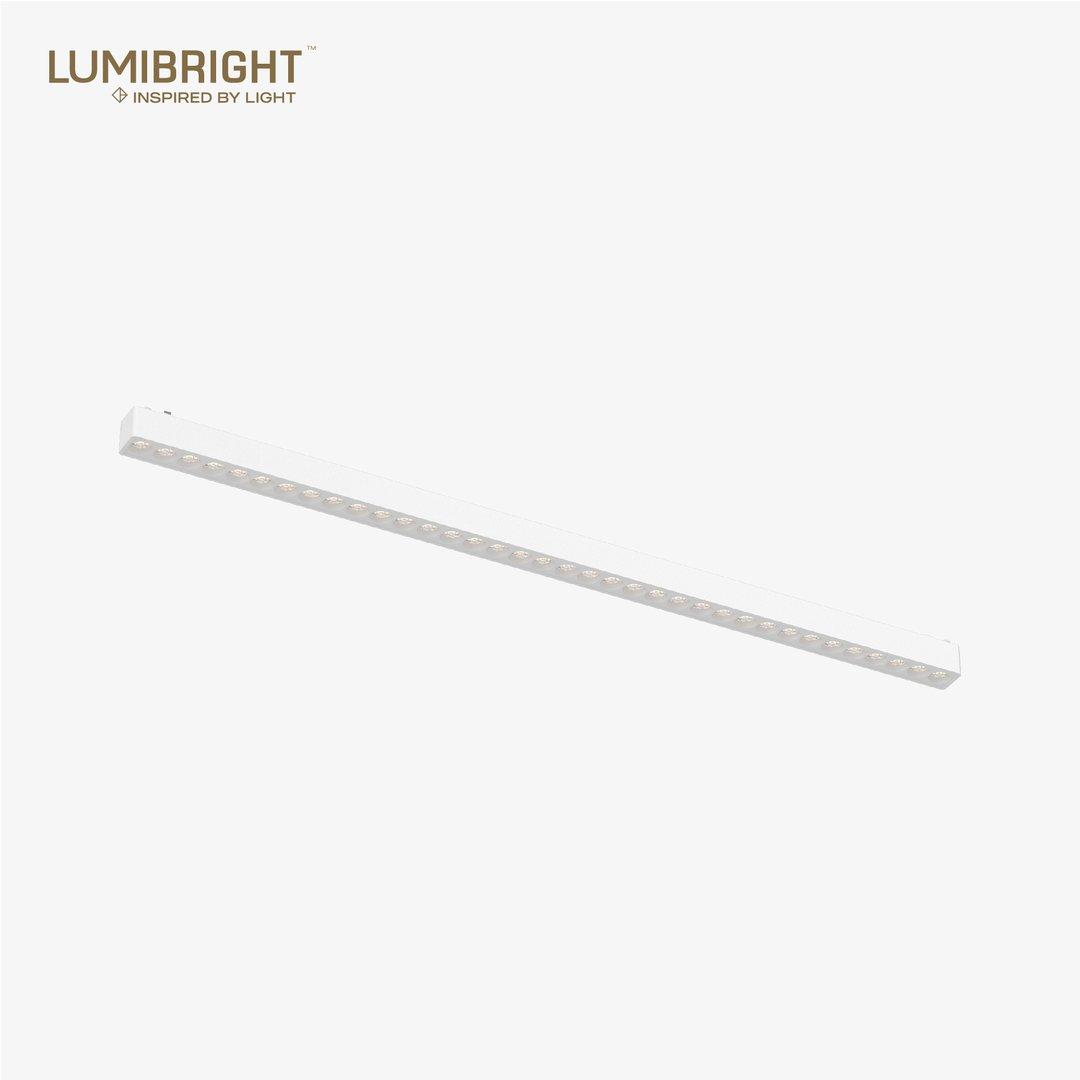

LBMG409	Wattage30W	CCT3000K	IPIP20	Dimensions555x26x24mm	Cut-outNot published

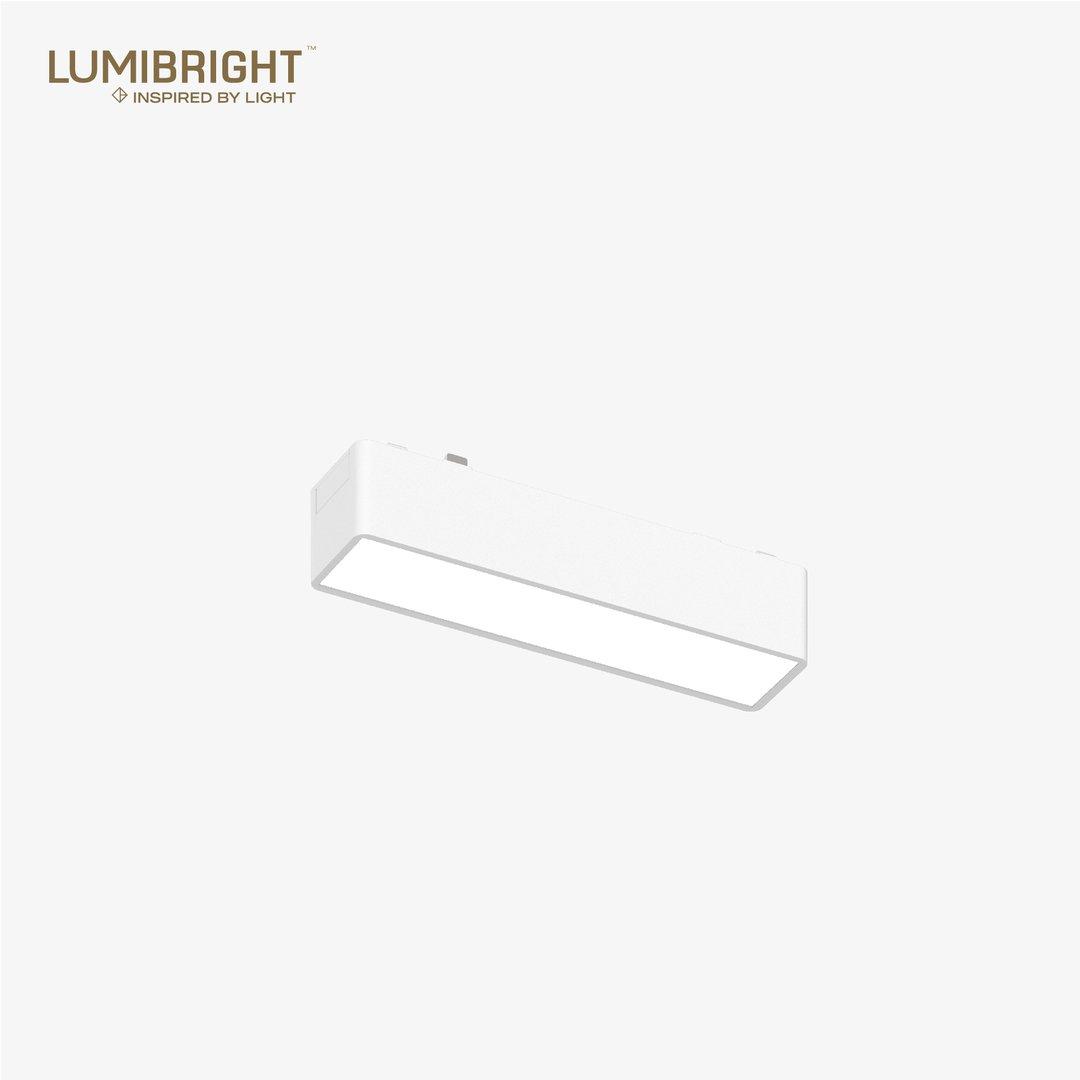

LBMG410	Wattage5W	CCT3000K	IPIP20	Dimensions122x26x24mm	Cut-outNot published

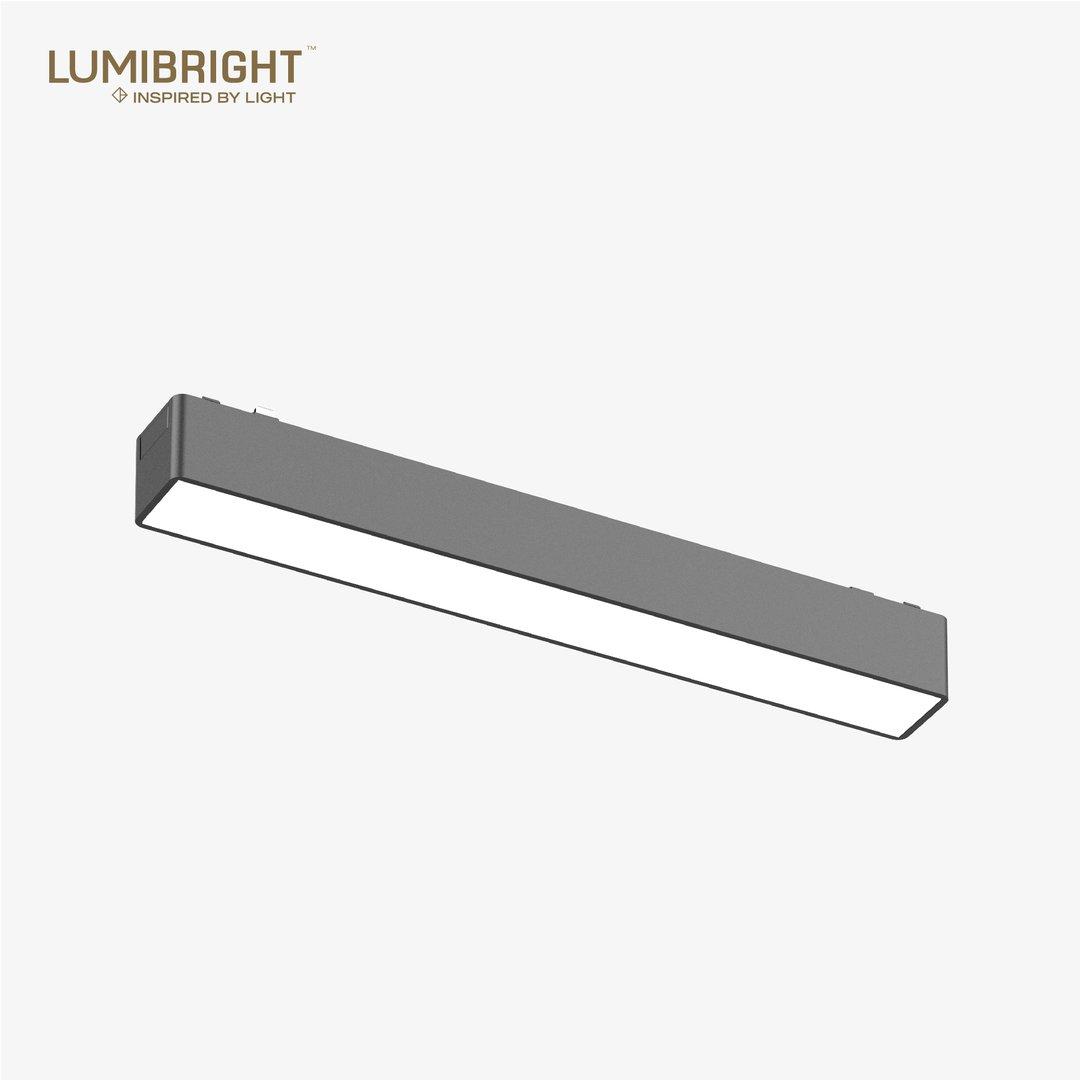

LBMG411	Wattage10W	CCT3000K	IPIP20	Dimensions230x26x24mm	Cut-outNot published

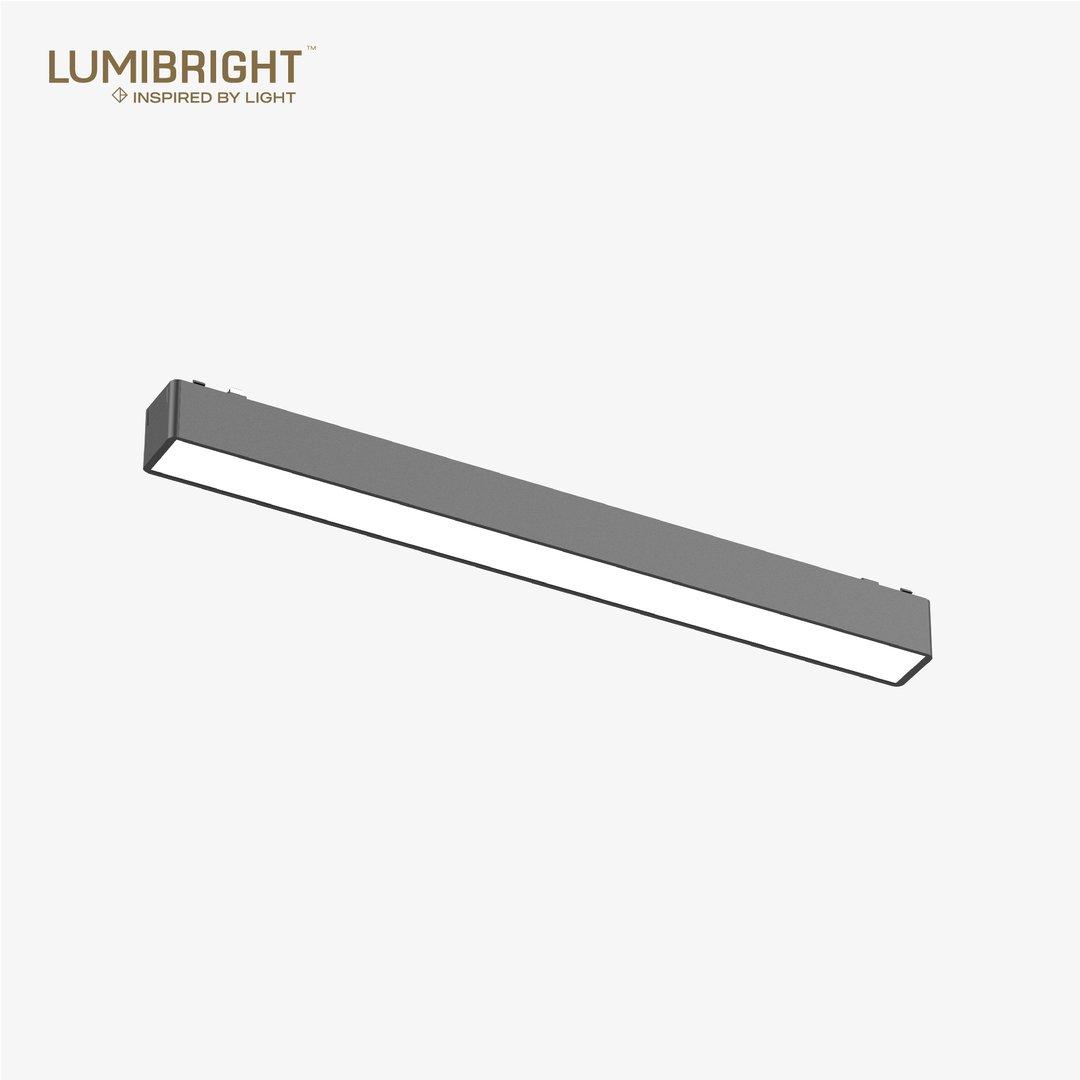

LBMG412	Wattage15W	CCT3000K	IPIP20	Dimensions315x26x24mm	Cut-outNot published
LBMG413	Wattage20W	CCT3000K	IPIP20	Dimensions615x26x24mm	Cut-outNot published

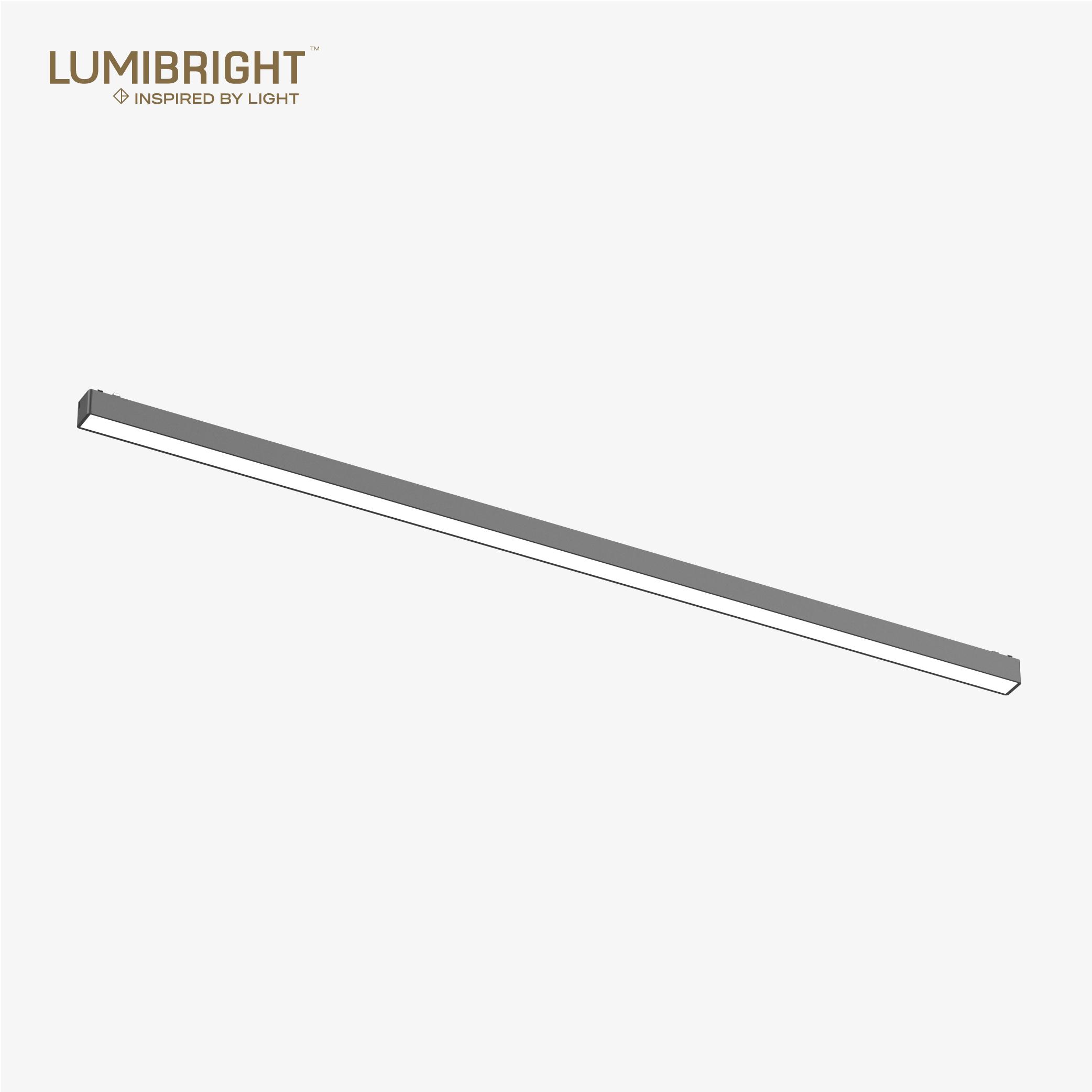

LBMG414	Wattage30W	CCT3000K	IPIP20	Dimensions915x26x24mm	Cut-outNot published

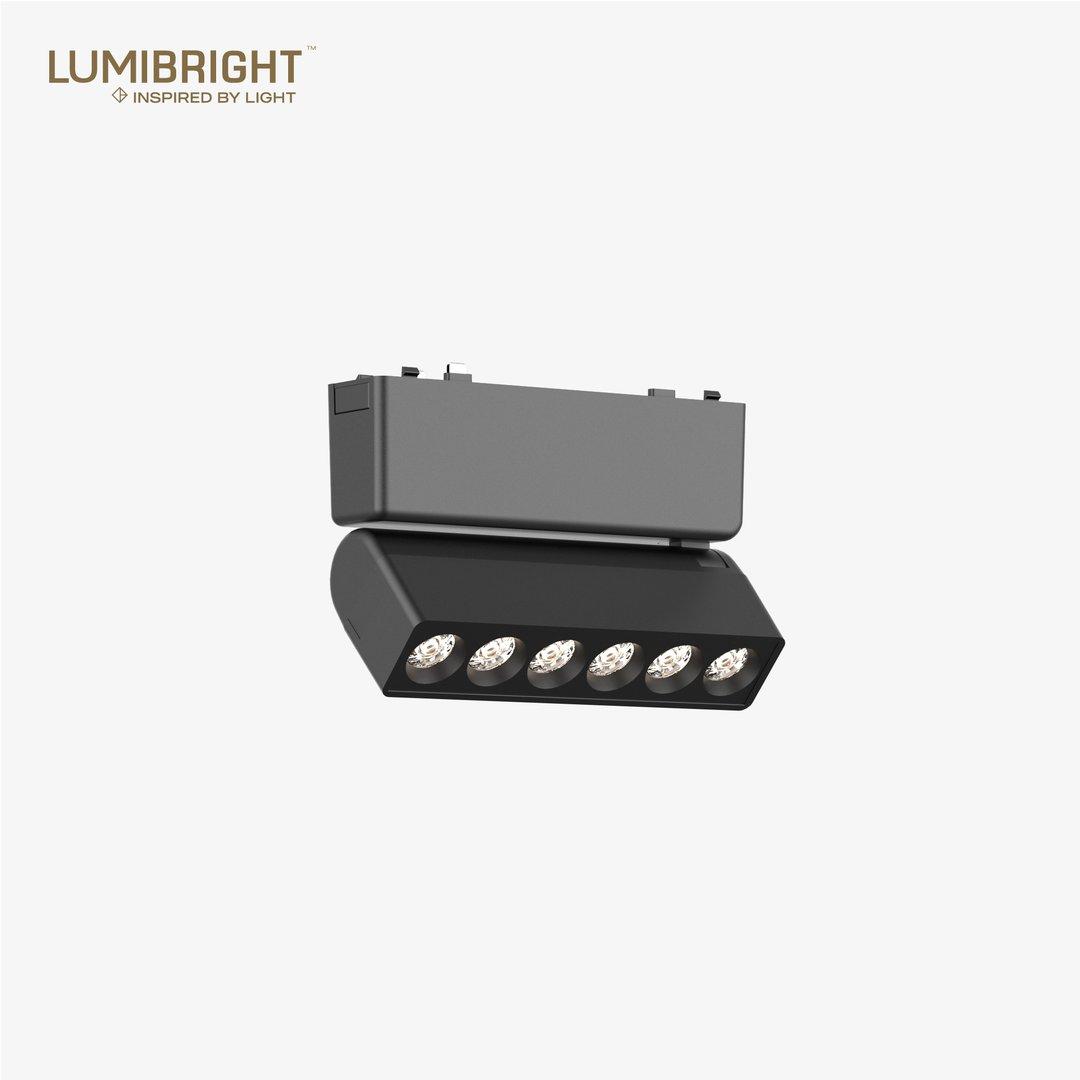

LBMG415	Wattage6W	CCT3000K	IPIP20	Dimensions122x26x80mm	Cut-outNot published

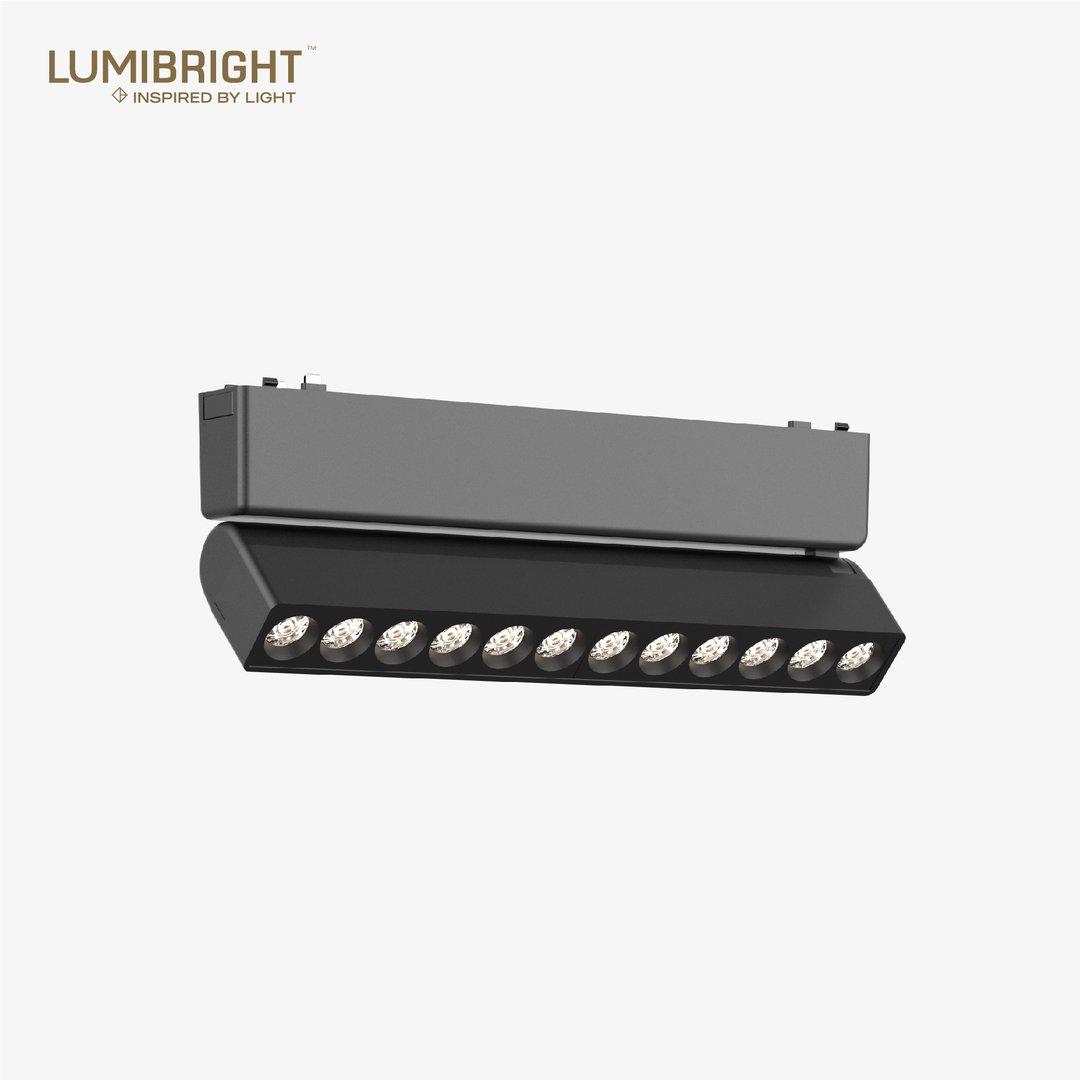

LBMG416	Wattage12W	CCT3000K	IPIP20	Dimensions230x26x80mm	Cut-outNot published

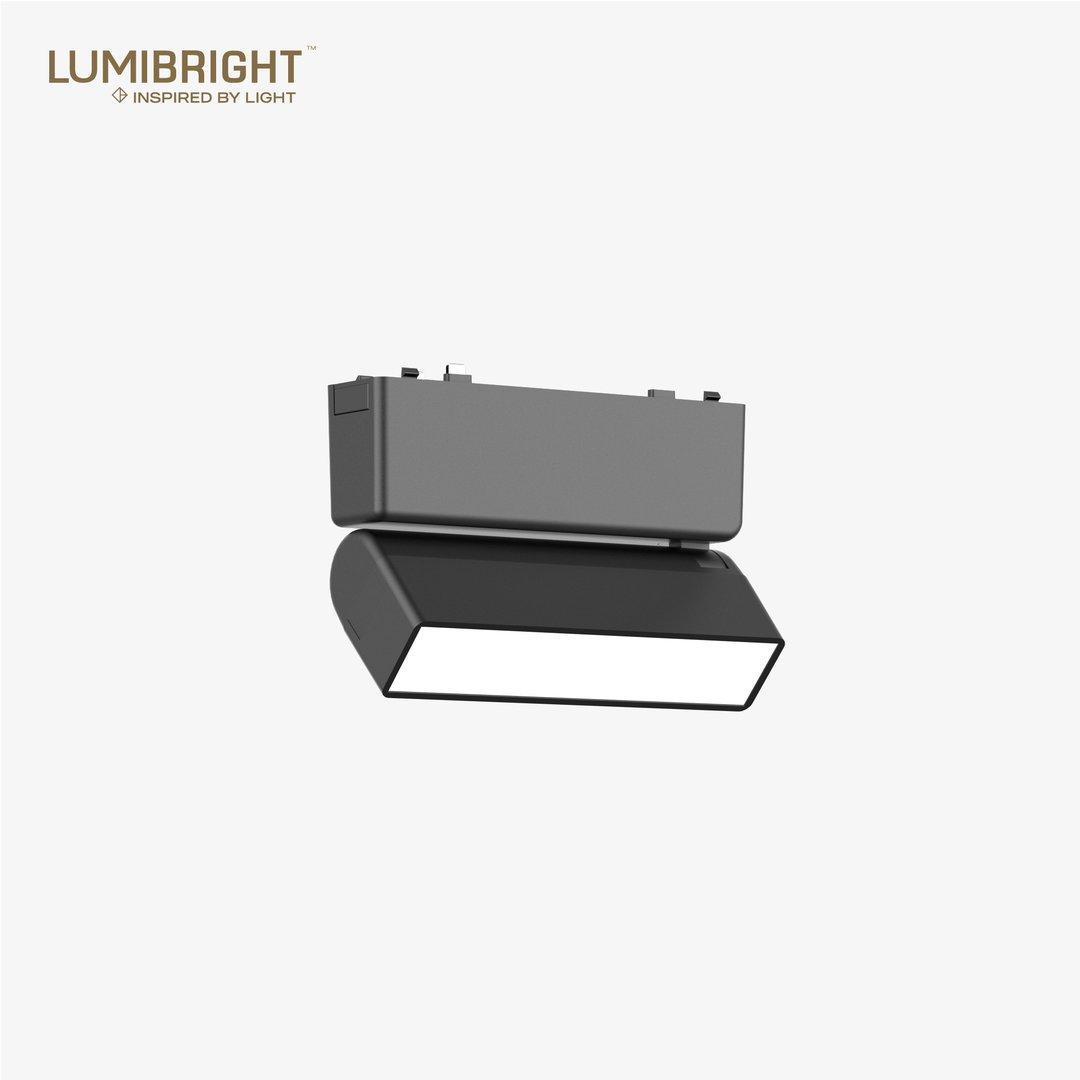

LBMG417	Wattage5W	CCT3000K	IPIP20	Dimensions122x26x80mm	Cut-outNot published

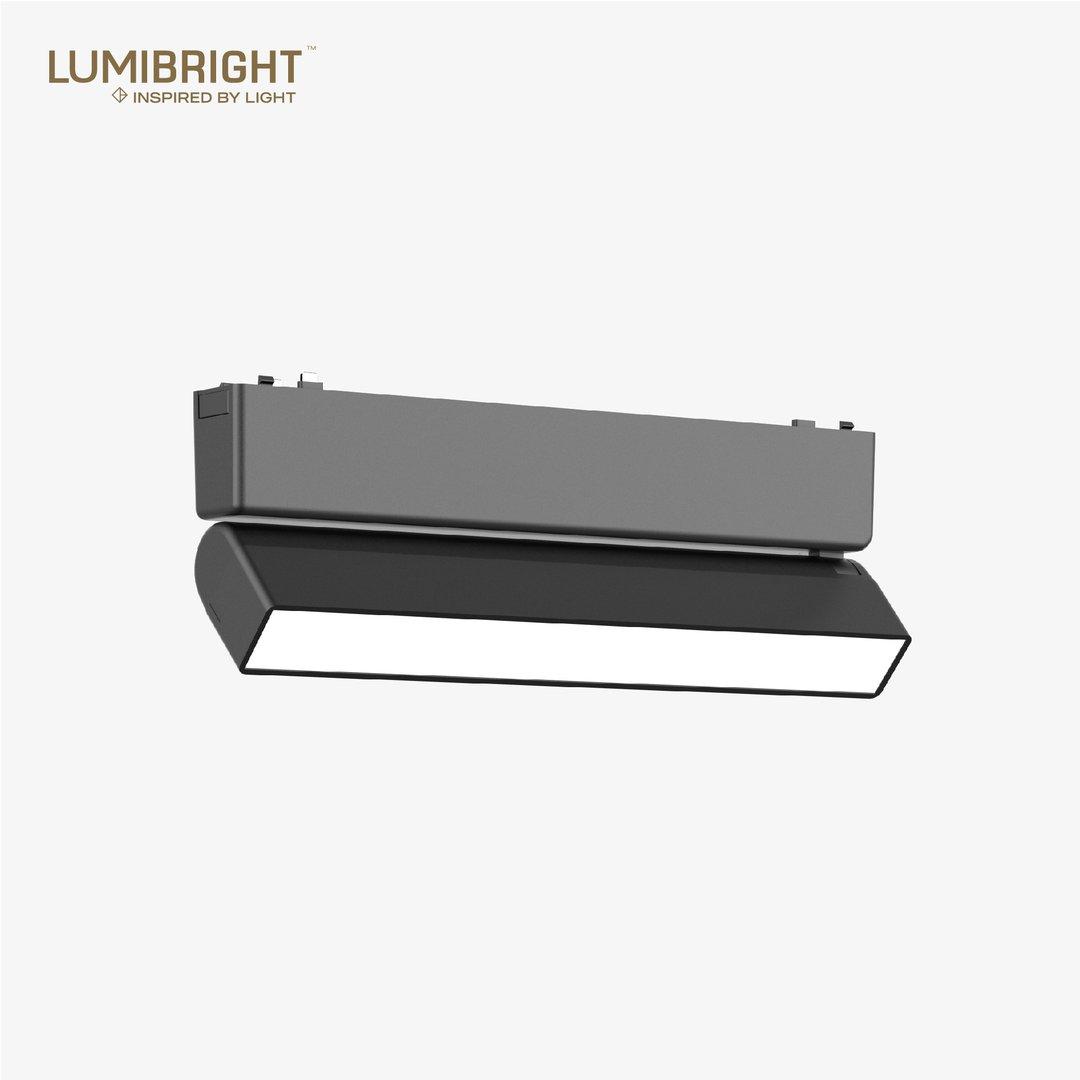

LBMG418	Wattage10W	CCT3000K	IPIP20	Dimensions230x26x80mm	Cut-outNot published

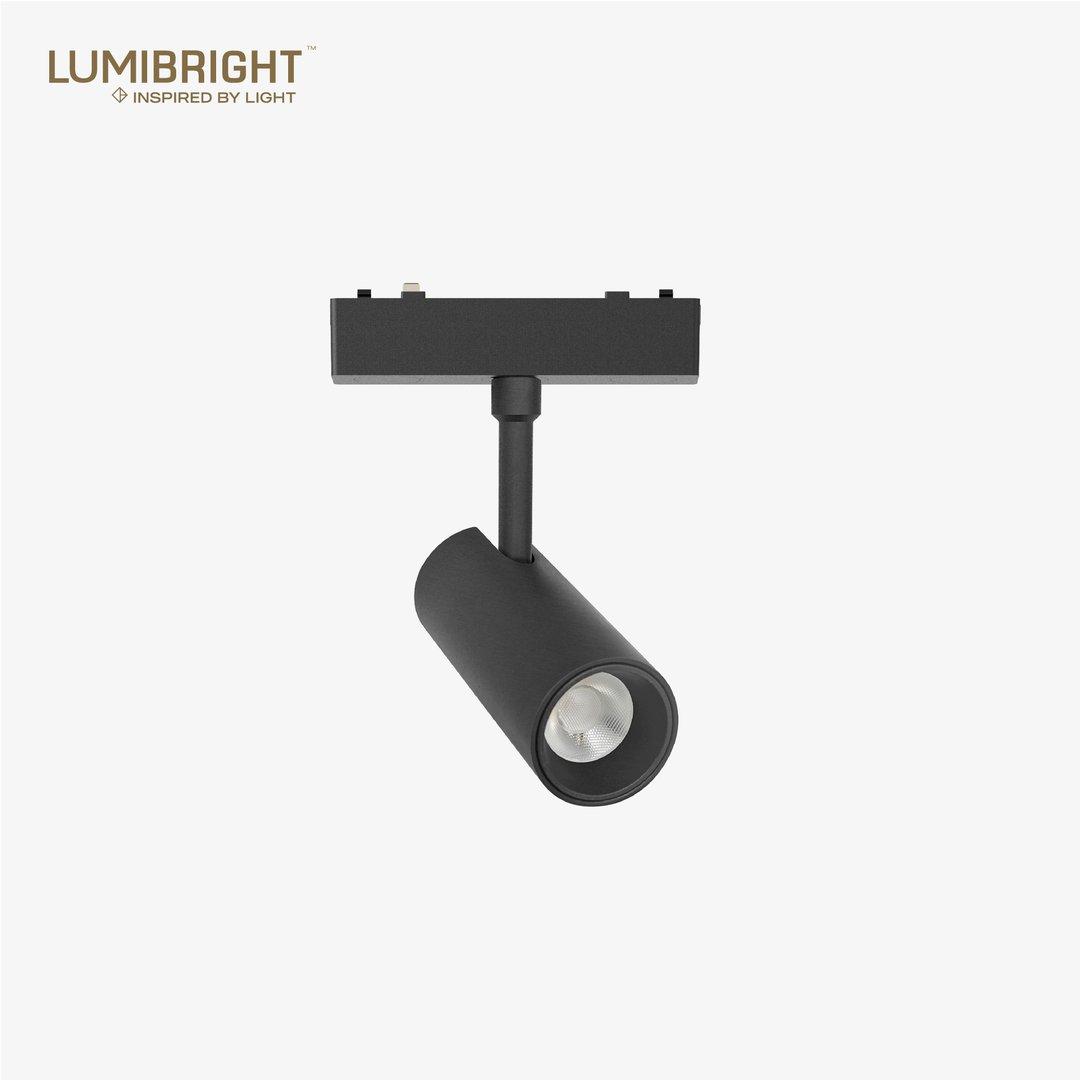

LBMG419	Wattage9W	CCT3000K	IPIP20	DimensionsФ44x110mm	Cut-outNot published

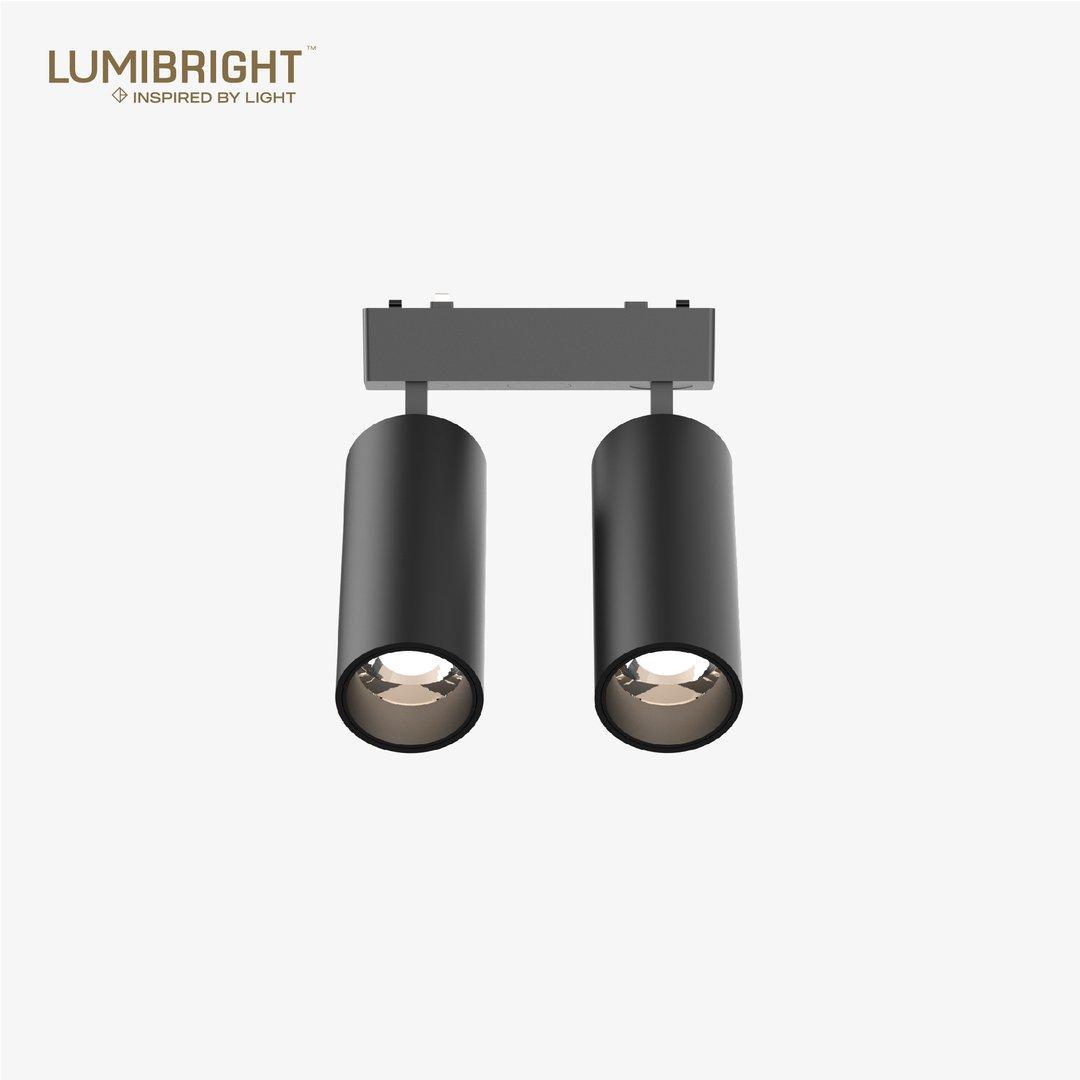

LBMG420	Wattage9Wx2	CCT3000K	IPIP20	DimensionsФ44x110mm	Cut-outNot published
LBMG421	Wattage18W	CCT3000K	IPIP20	DimensionsФ60x120mm	Cut-outNot published

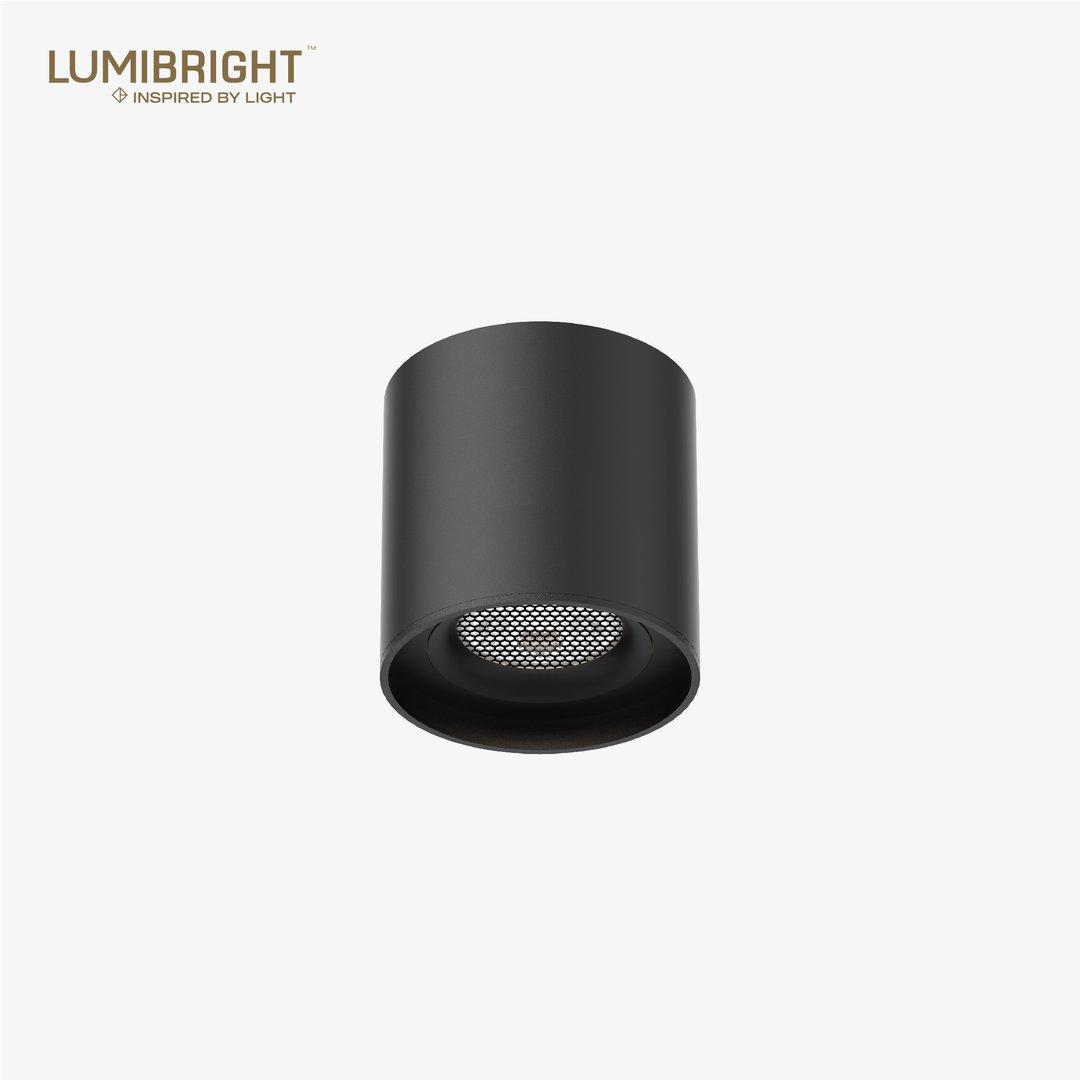

LBMG422	Wattage6W	CCT3000K	IPIP20	DimensionsΦ75x75mm	Cut-outNot published

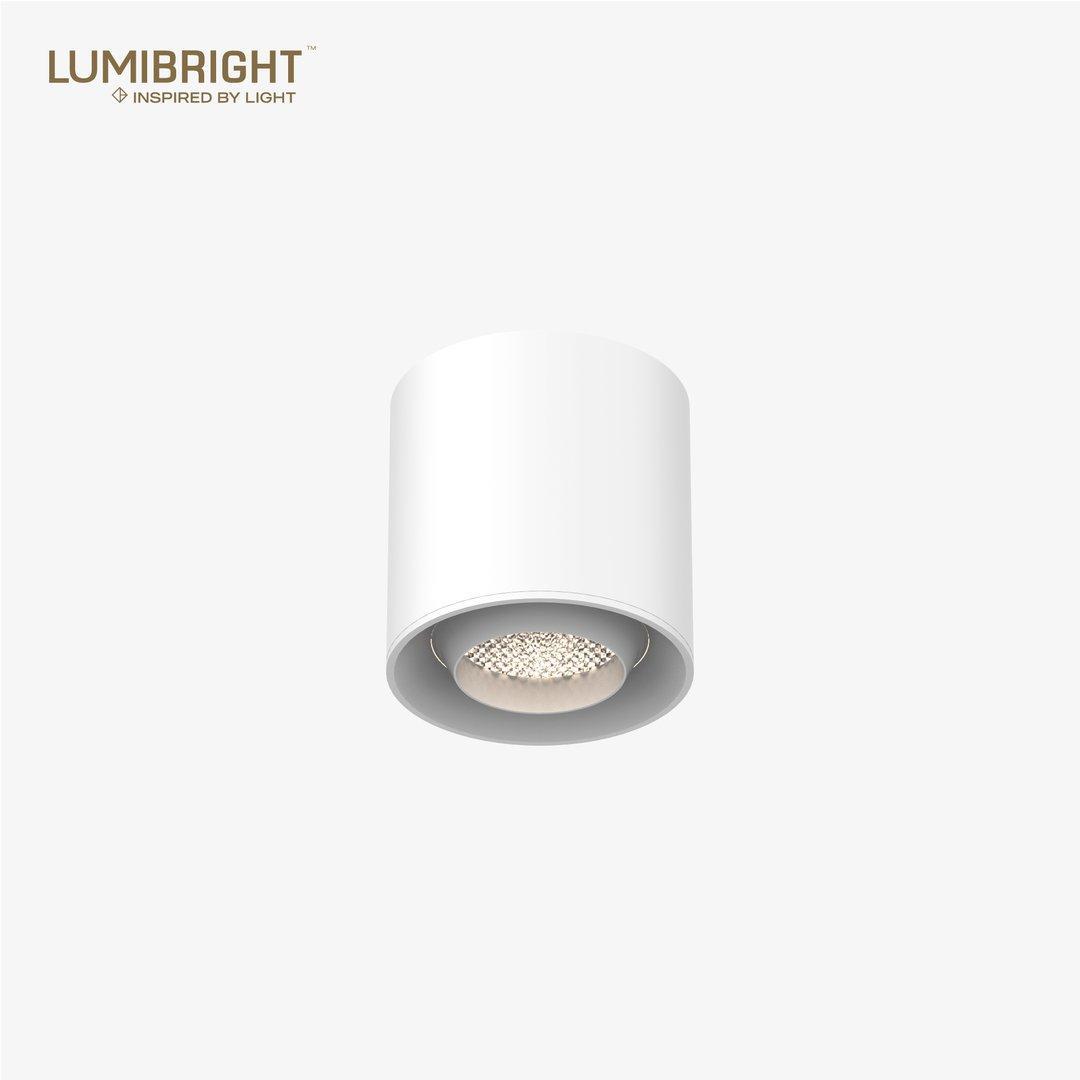

LBMG423	Wattage6W	CCT3000K	IPIP20	DimensionsΦ75x75mm	Cut-outNot published

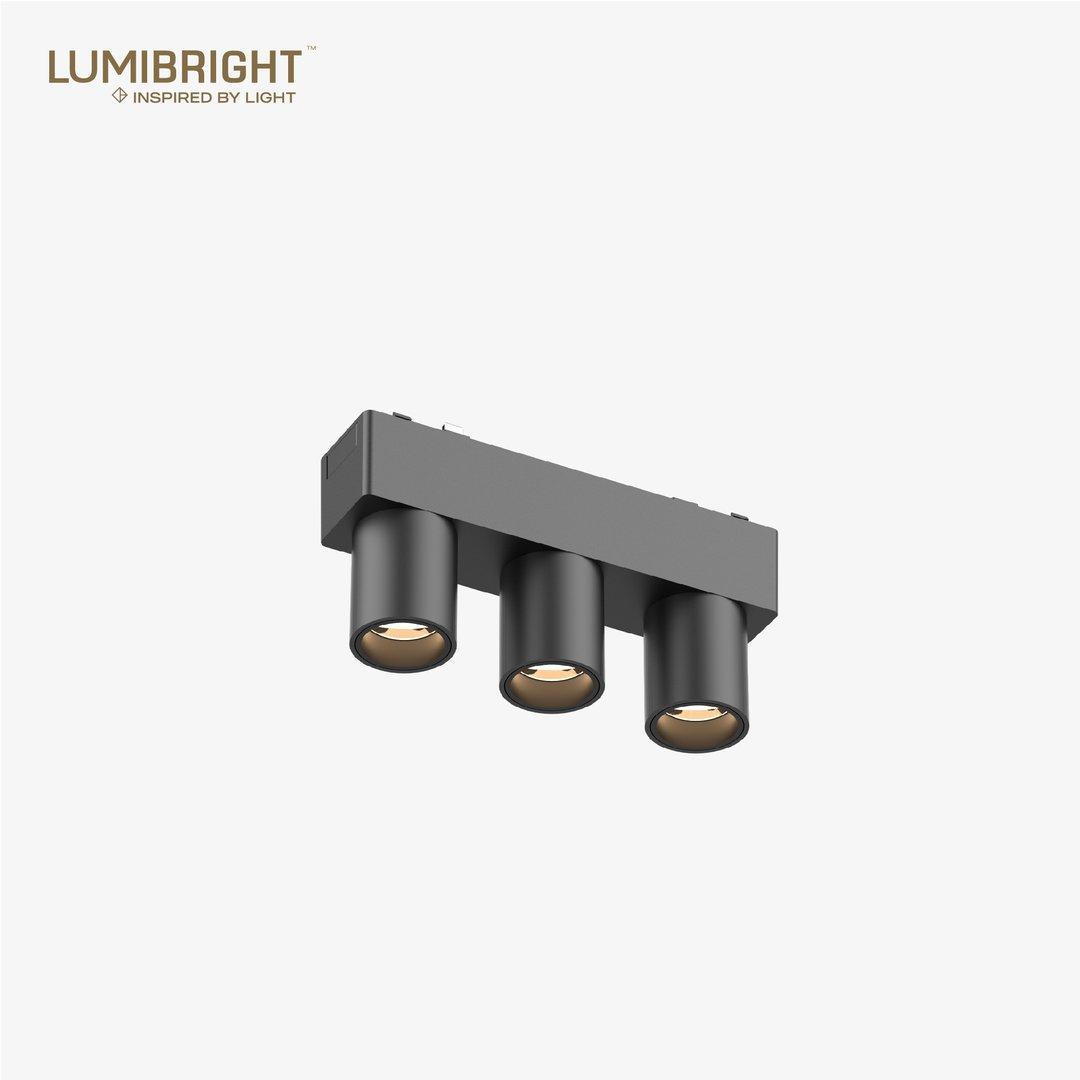

LBMG424	Wattage6W	CCT3000K	IPIP20	Dimensions122x26x55mm	Cut-outNot published

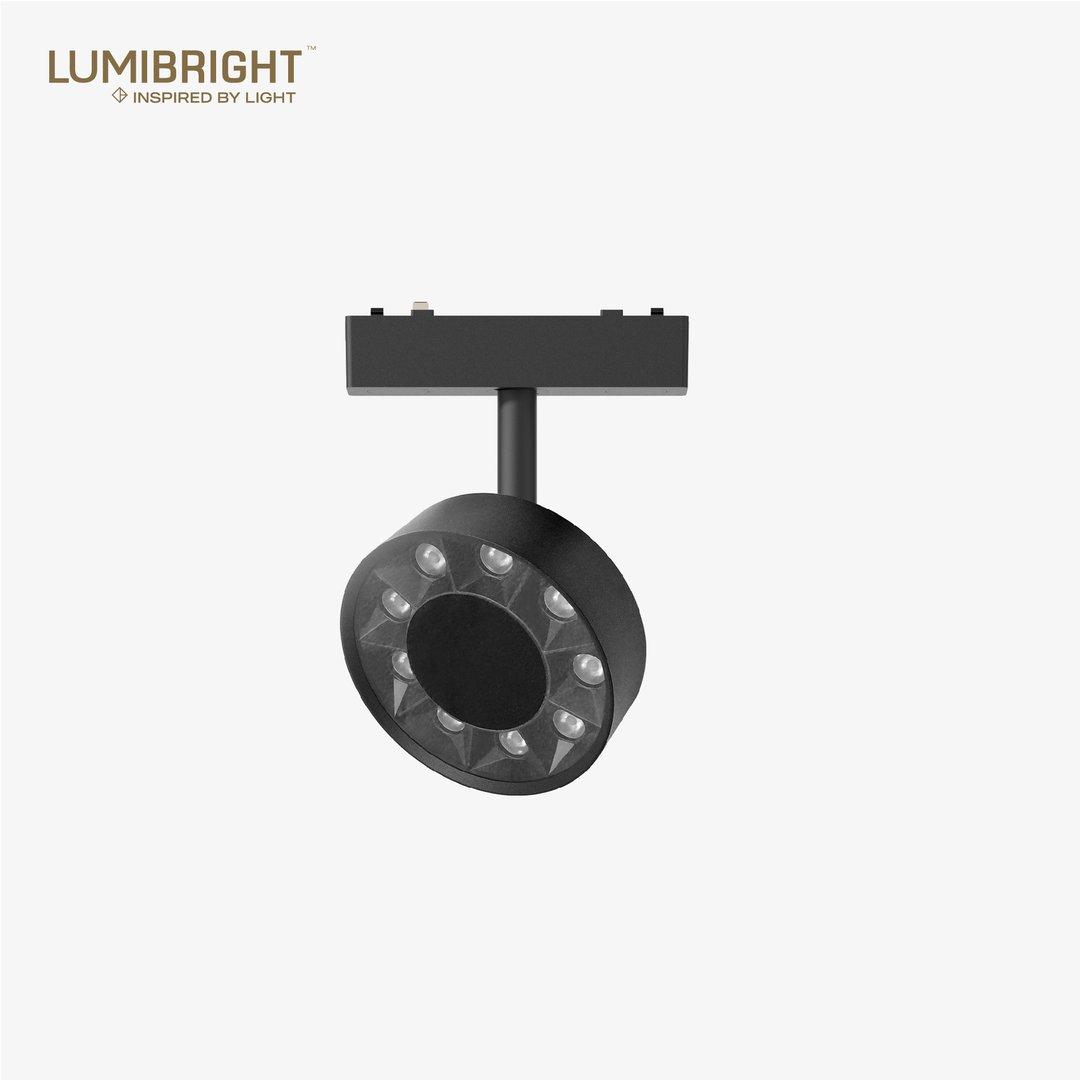

LBMG425	Wattage9W	CCT3000K	IPIP20	DimensionsΦ95x30mm	Cut-outNot published

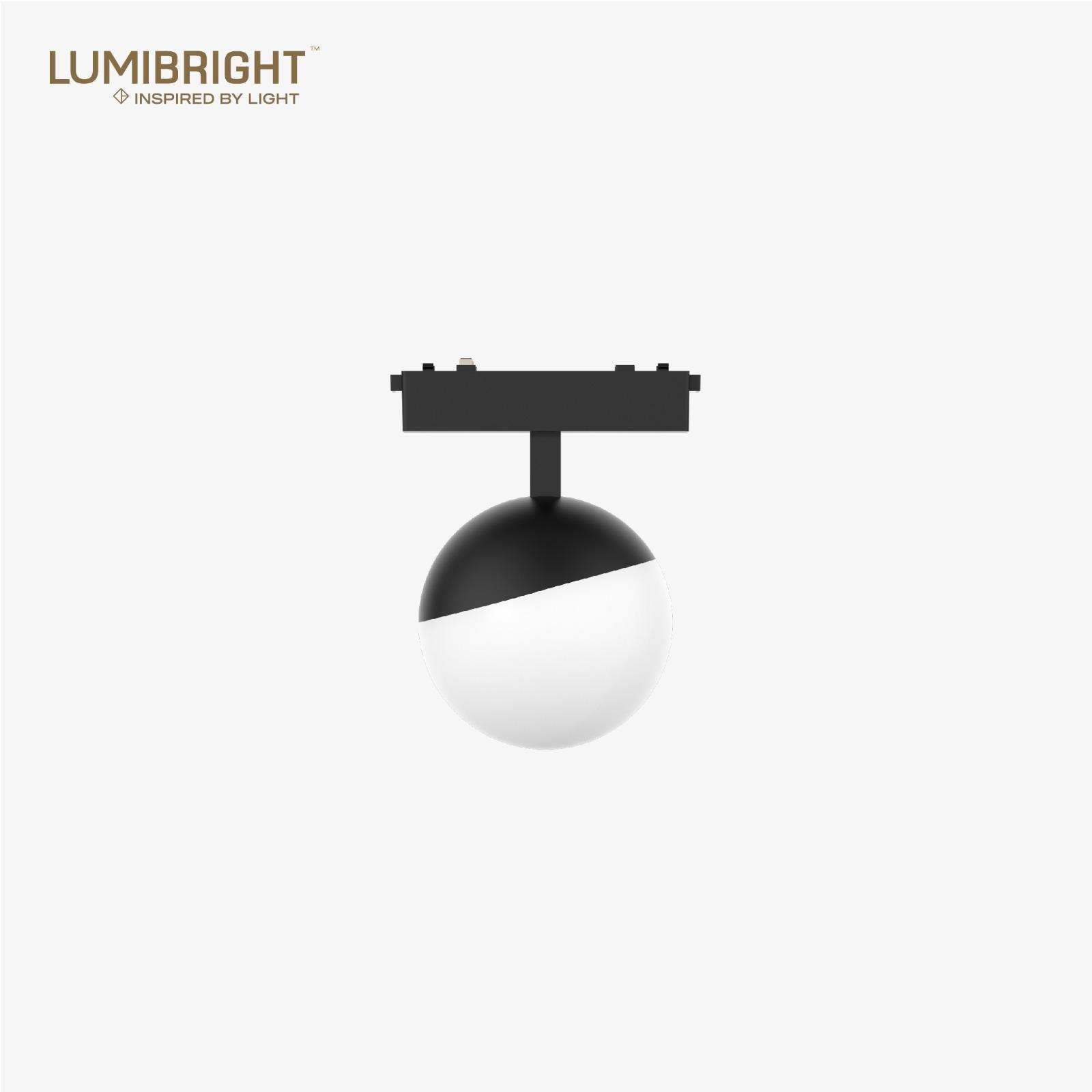

LBMG426	Wattage6W	CCT3000K	IPIP20	DimensionsΦ100x100mm	Cut-outNot published

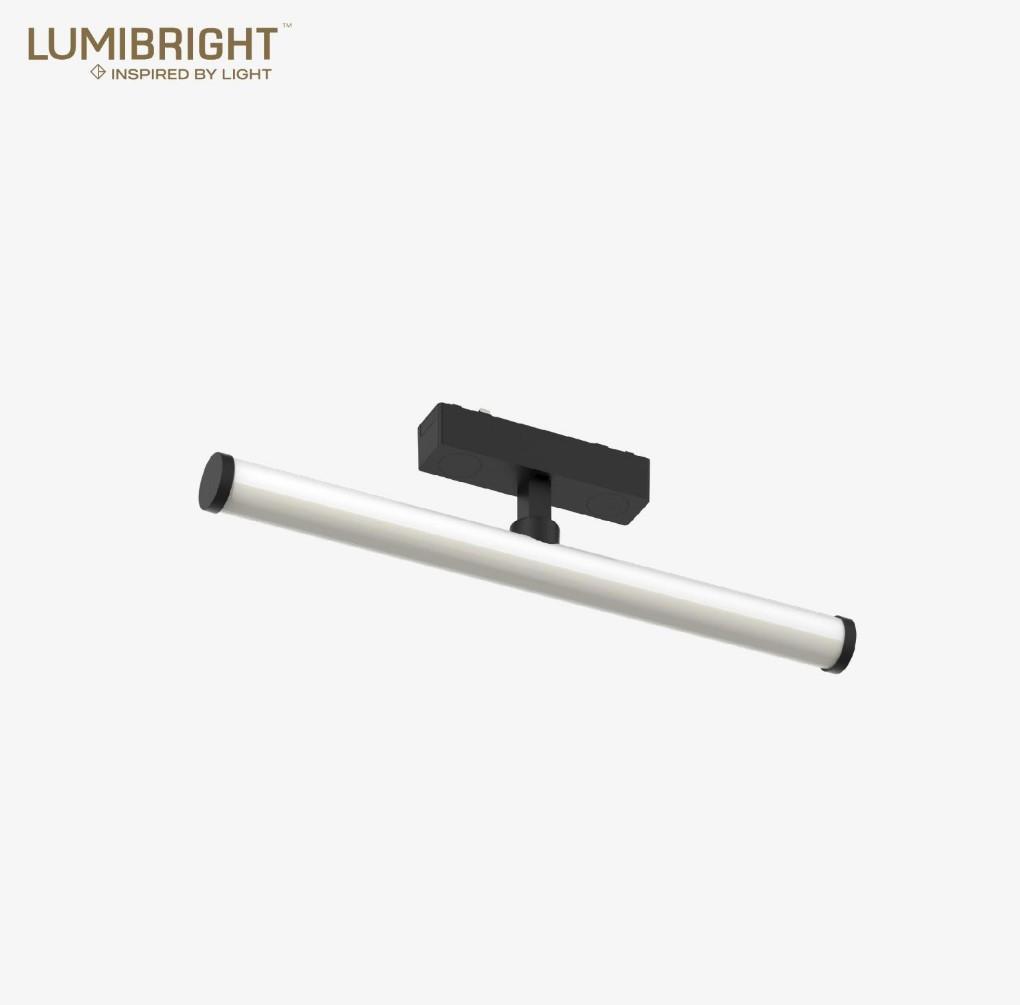

LBMG427	Wattage10W	CCT3000K	IPIP20	Dimensions300x25x87mm	Cut-outNot published

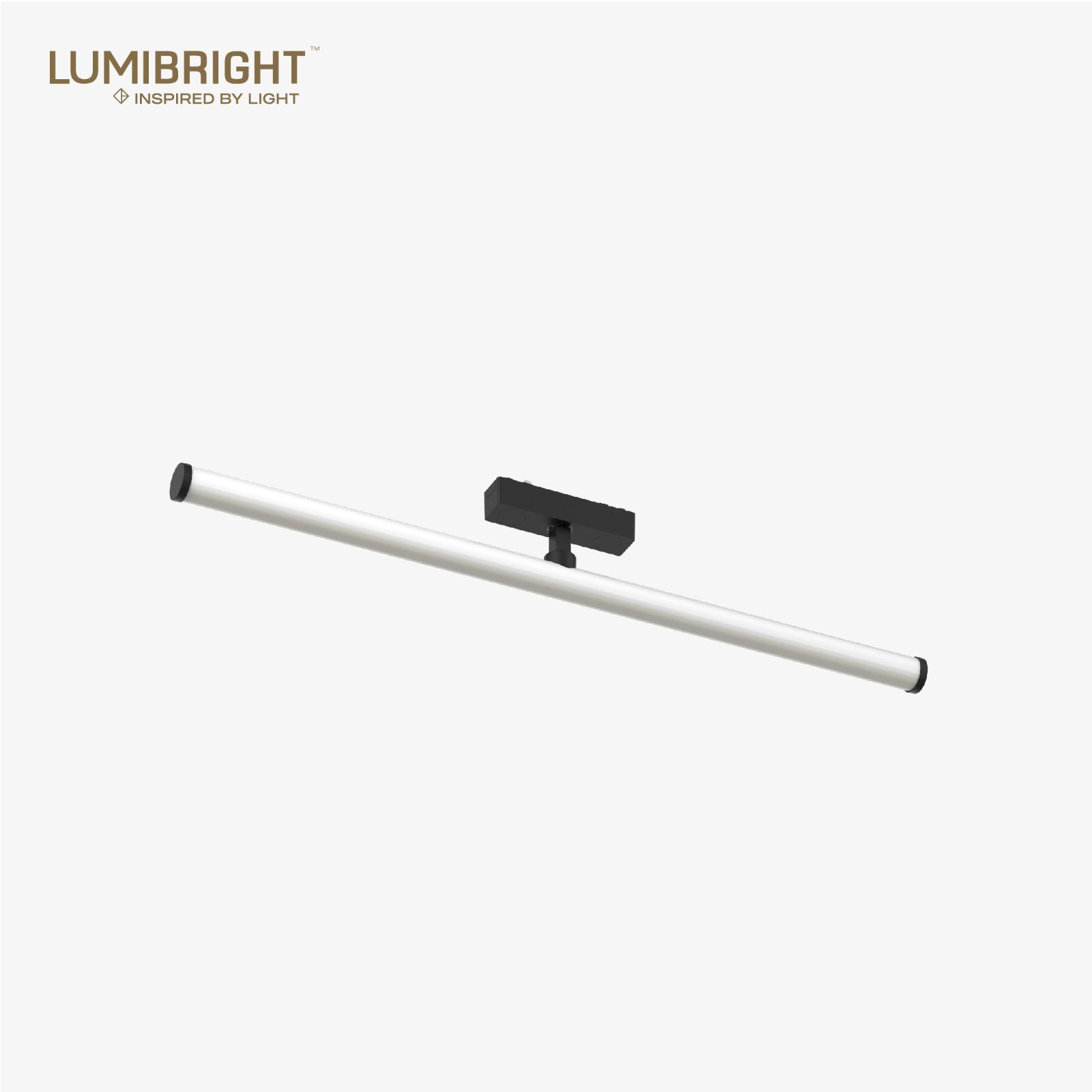

LBMG428	Wattage20W	CCT3000K	IPIP20	Dimensions600x25x87mm	Cut-outNot published

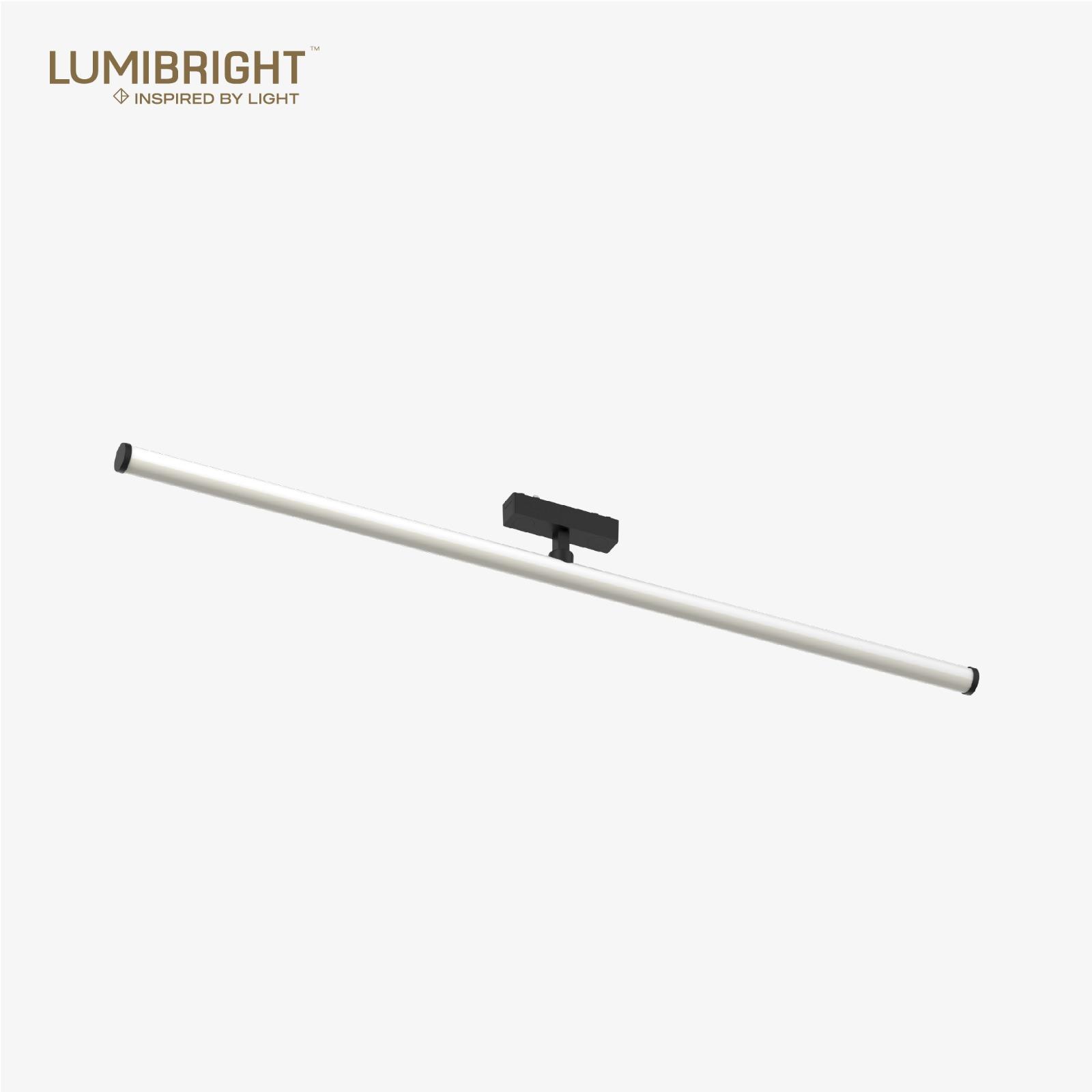

LBMG429	Wattage20W	CCT3000K	IPIP20	Dimensions900x25x87mm	Cut-outNot published

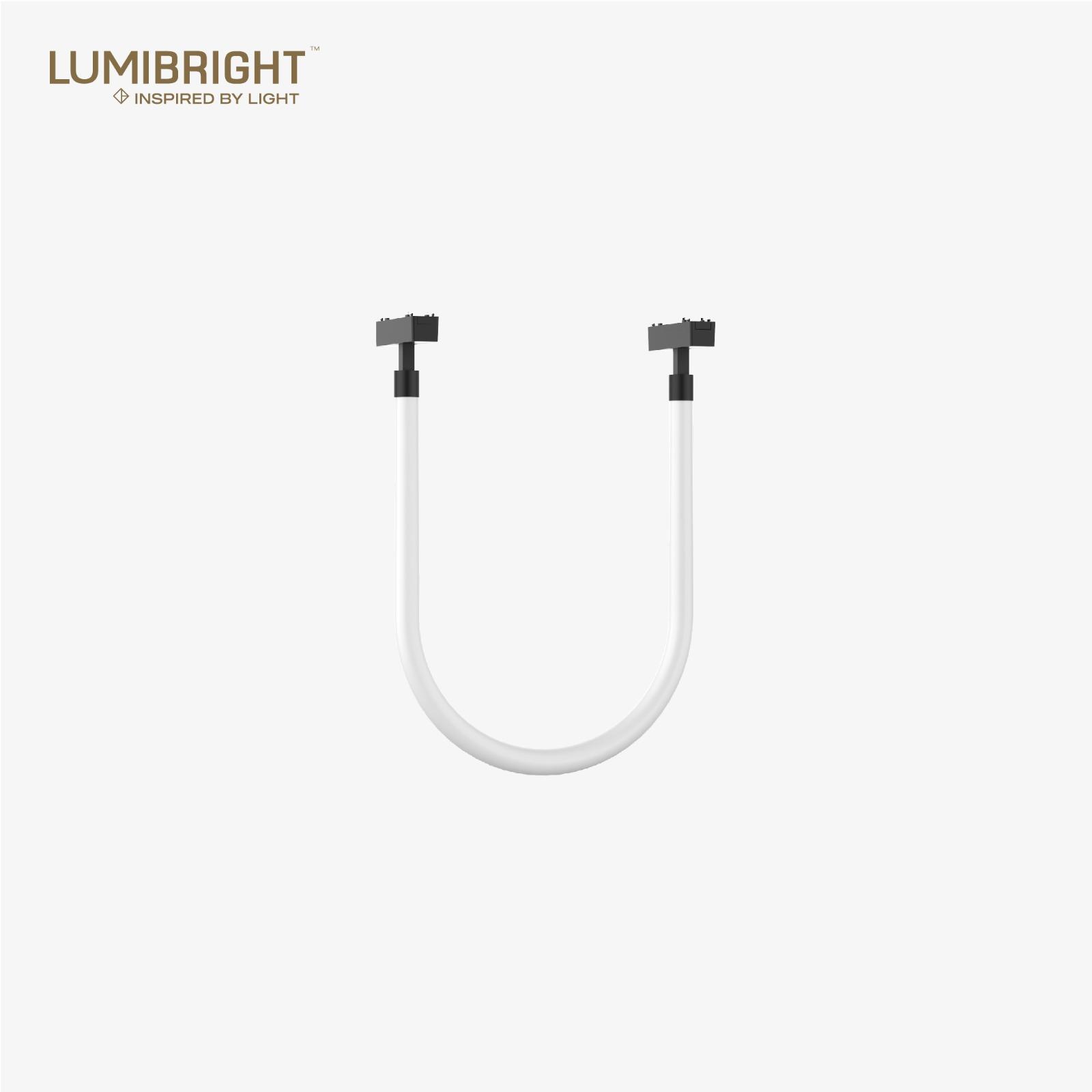

LBMG430	Wattage8W	CCT3000K	IPIP20	Dimensions500mm	Cut-outNot published
LBMG431	Wattage16W	CCT3000K	IPIP20	Dimensions1000mm	Cut-outNot published
LBMG432	Wattage32W	CCT3000K	IPIP20	Dimensions2000mm	Cut-outNot published

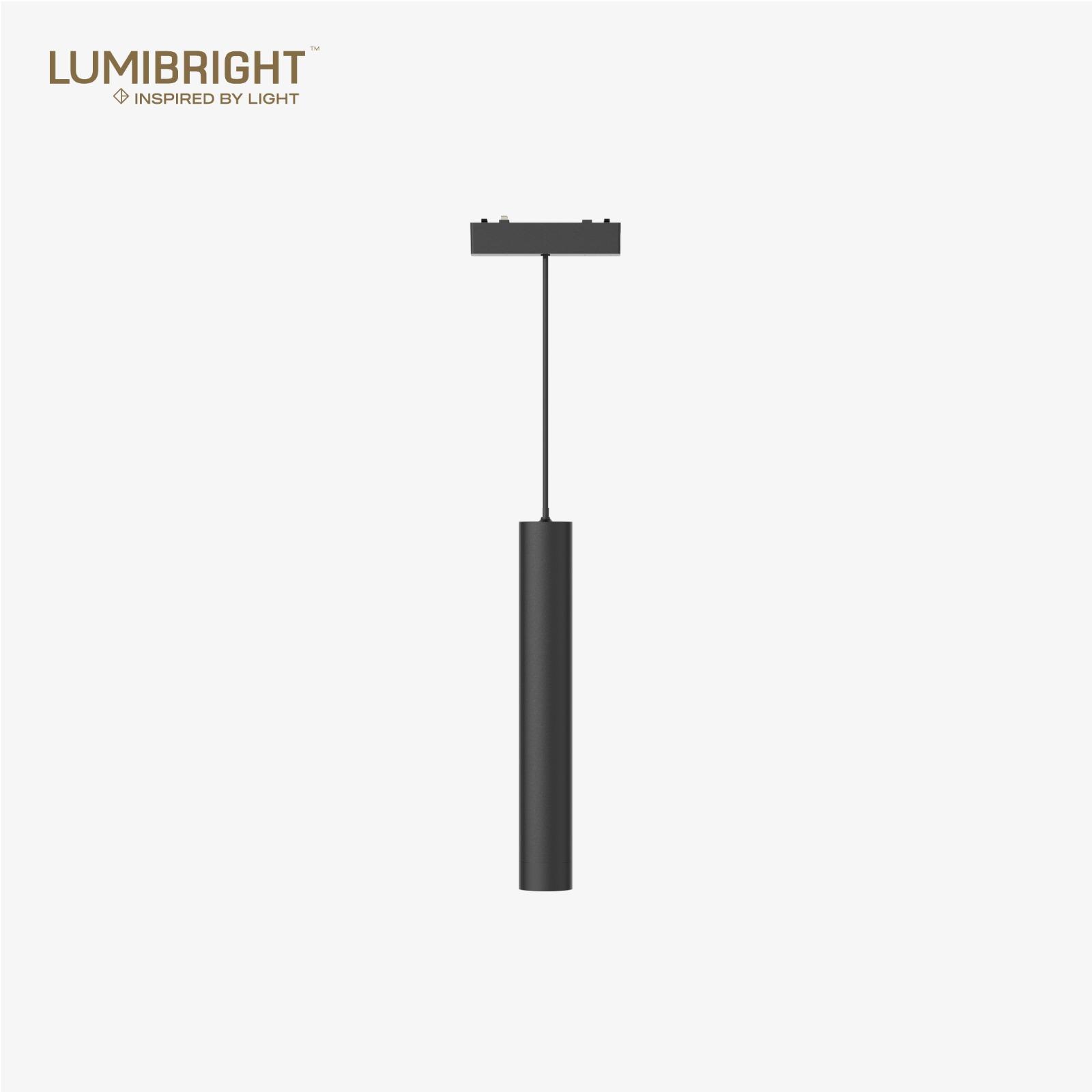

LBMG433	Wattage7W	CCT3000K	IPIP20	DimensionsФ40x300mm	Cut-outNot published

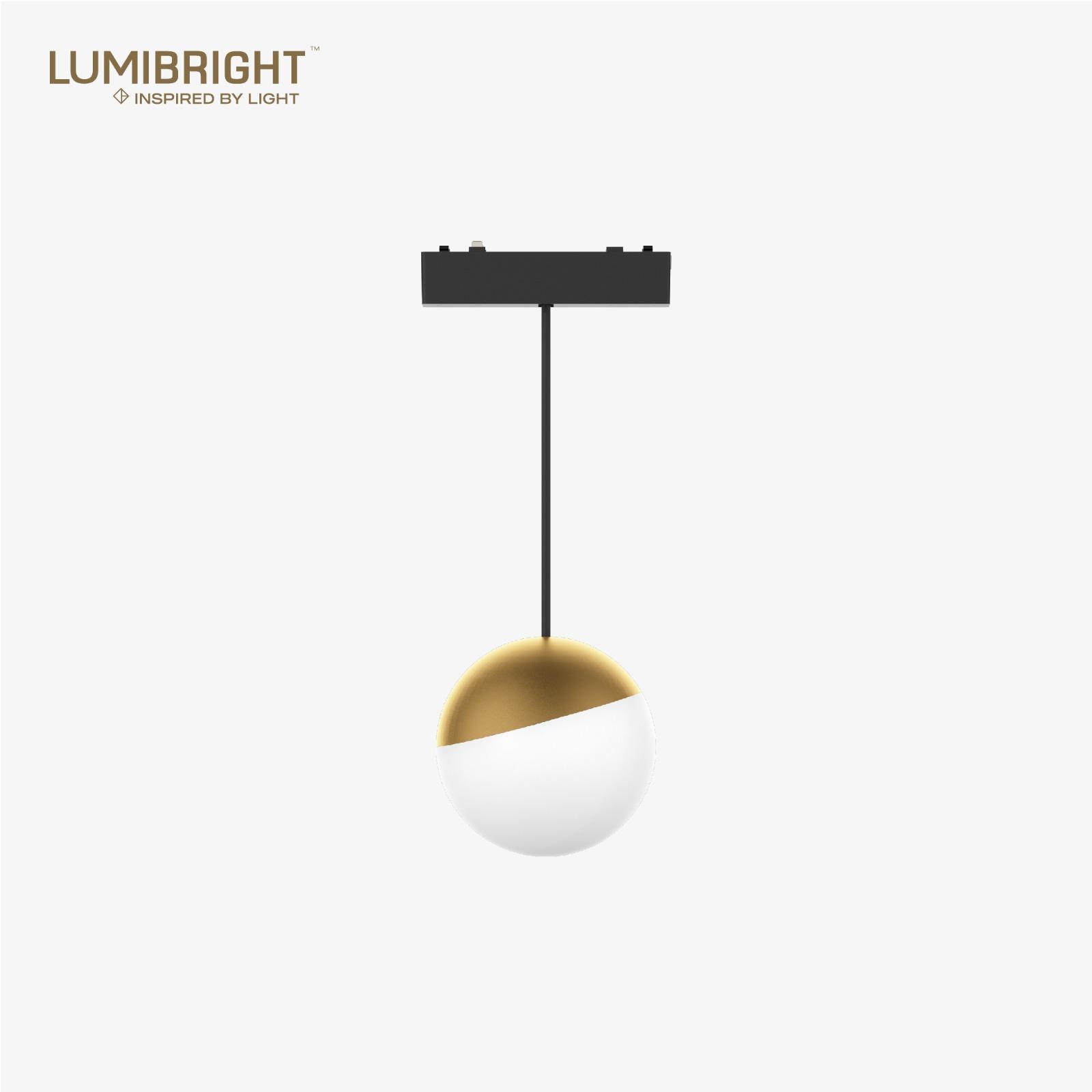

LBMG434	Wattage7W	CCT3000K	IPIP20	DimensionsФ30x300mm	Cut-outNot published
LBMG435	Wattage6W	CCT3000K	IPIP20	DimensionsΦ150x150mm	Cut-outNot published
LBMG436	Wattage10W	CCT3000K	IPIP20	DimensionsΦ100x100mm	Cut-outNot published
LBMG437	Wattage6W	CCT3000K	IPIP20	Dimensionsɸ70	Cut-outNot published

Technical Data

Full Specification

Dimensions	615x26x24mm · 122x26x24mm · 230x26x24mm · 338x26x24mm +22 more
Cut-out	Not published — technical review required
Power	20W · 6W · 12W · 18W +11 more
Lumen output	1350lm · 500lm
Efficacy	Not published — technical review required
Optics / beam angle	100° · 24° · 30° · 180° +1 more
Colour temperature	3000K · 4000K
CRI Ra	≥90 · 90+
R9	Not published — technical review required
TM-30 Rf / Rg	Not published — technical review required
UGR	Not published — technical review required
IP rating	IP20
IK rating	Not published — technical review required
Ambient temperature (Ta)	Not published — technical review required
Driver	Not published — technical review required
Dimming / control	Not published — technical review required
Input voltage	48VAC · 48VDC
Light source	Not published — technical review required
Material	Die casting Aluminium · PC
Finish	black
Mounting / installation	Not published — technical review required
Net weight	Not published — technical review required
Certification	Not published — technical review required
Lifetime	Not published — technical review required
Warranty	Not published — technical review required
Lead time	Not published — technical review required

10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
