ALFIO
Application inspiration · not a project reference
ALFIO is part of Lumi Ville. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
ALFIO
ALFIO is a architectural lighting family within the LUMIBRIGHT Lumi Ville collection. The current catalogue groups 4 article codes under this family, including LVU9805, LVU9806, LVU9807. For LVU9805, published values include colour temperature: 2700K, 3000K; IP rating: IP44; dimensions: 82.5x500mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the ALFIO articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LVU9805 | WattageNot published | CCT2700K, 3000K | IPIP44 | Dimensions82.5x500mm | Cut-outNot published |
| LVU9806 | WattageNot published | CCT2700K, 3000K | IPIP44 | Dimensions82.5x800mm | Cut-outNot published |
| LVU9807 | WattageNot published | CCT2700K, 3000K | IPIP44 | Dimensions84.5x92.5x500 | Cut-outNot published |
| LVU9808 | WattageNot published | CCT2700K, 3000K | IPIP44 | Dimensions84.5x92.5x800 | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | 84.5x92.5x500 · 82.5x500mm · 82.5x800mm · 84.5x92.5x800 |
|---|---|
| Cut-out | Not published — technical review required |
| Power | Not published — technical review required |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | Not published — technical review required |
| Colour temperature | 2700K · 3000K |
| CRI Ra | 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP44 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 230VAC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | Aluminium |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
6 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
4 Products
Dimensions

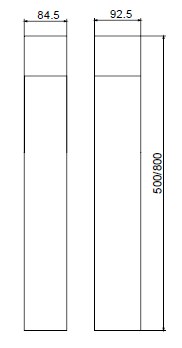

Technical Drawing
Drawing and sizes shown for model LVU9807. This family has 4 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LVU9807
84.5x92.5x500
Specifications
At a Glance
2 CCT
2700K, 3000K
CRI 80
Colour Rendering
IP44
Protection Rating
1 finishes
Body Finish Options
4 sizes
82.5x500mm, 82.5x800mm, 84.5x92.5x500, 84.5x92.5x800
Configure your product
LVU9807
Ip Rating
IP44
Body finish
Aluminum
Material
Aluminum
The published options are not mapped to a confirmed order code. Technical review is required before issuing a configuration-specific specification sheet.
