AMBIT

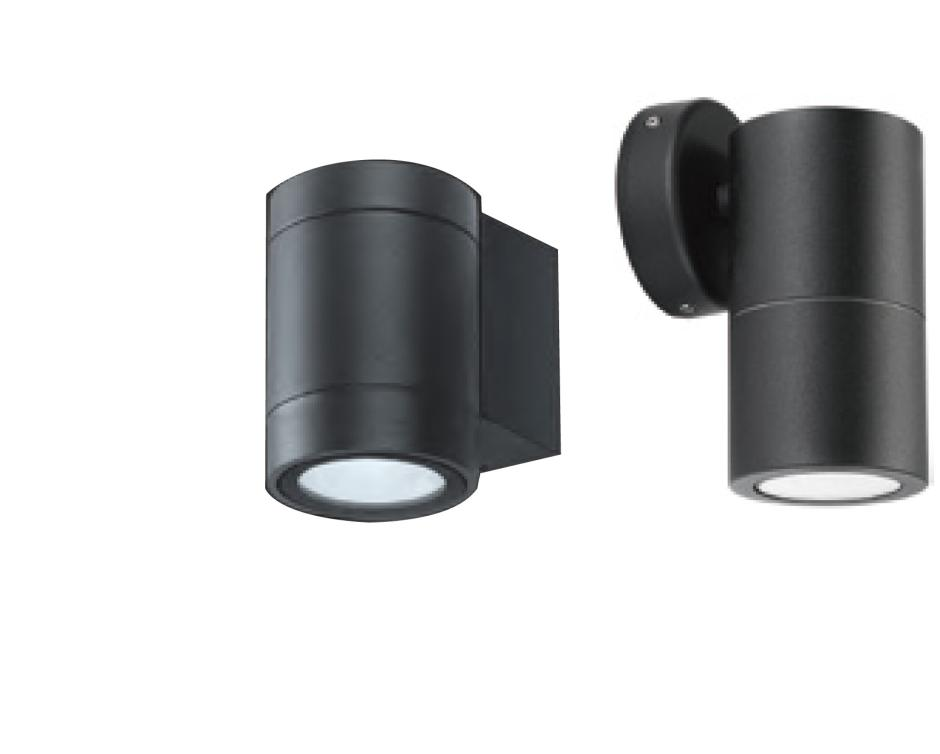

AMBIT is a architectural lighting family within the LUMIBRIGHT Lumi Ville collection. The current catalogue groups 10 article codes under this family, including LVU4026, LVU4027, LVU4028. For LVU4026, published values include colour temperature: 2700K, 3000K; IP rating: IP44. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the AMBIT articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LVU4026 | WattageNot published | CCT2700K, 3000K | IPIP44 | DimensionsNot published | Cut-outNot published |
| LVU4027 | WattageNot published | CCT2700K, 3000K | IPIP44 | DimensionsNot published | Cut-outNot published |
| LVU4028 | WattageNot published | CCT2700K, 3000K | IPIP44 | Dimensions108x85x235mm | Cut-outNot published |
| LVU4031 | WattageNot published | CCT2700K, 3000K | IPIP44 | DimensionsØ76x290mm | Cut-outNot published |
| LVU4032 | WattageNot published | CCT2700K, 3000K | IPIP44 | DimensionsØ105x290x185mm | Cut-outNot published |
| LVU4033 | WattageNot published | CCT2700K, 3000K | IPIP44 | Dimensions220x120x120mm | Cut-outNot published |
| LVU4034 | WattageNot published | CCT2700K, 3000K | IPIP44 | Dimensions120x188x382mm | Cut-outNot published |
| LVU4035 | WattageNot published | CCT2700K, 3000K | IPIP44 | Dimensions345x120x245mm | Cut-outNot published |
| LVU4042 | WattageNot published | CCT2700K, 3000K | IPIP44 | Dimensions180x280x171mm | Cut-outNot published |
| LVU4068 | WattageNot published | CCT2700K, 3000K | IPIP44 | DimensionsØ134x316x173mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | 108x85x235mm · Ø76x290mm · Ø105x290x185mm · 220x120x120mm +4 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | Not published — technical review required |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | Not published — technical review required |
| Colour temperature | 2700K · 3000K |
| CRI Ra | 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP44 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 230VAC · 220-240VAC |
| Light source | Not published — technical review required |
| Material | Stainless steel · Aluminium,Glass · Aluminium |
| Finish | aluminium |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
7 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
10 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LVU4042. This family has 10 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LVU4042
180x280x171mm
Specifications
At a Glance
2 CCT
2700K, 3000K
CRI 80
Colour Rendering
IP44
Protection Rating
1 finishes
Body Finish Options
8 sizes
108x85x235mm, 120x188x382mm, 180x280x171mm, 220x120x120mm, 345x120x245mm, Ø105x290x185mm, Ø134x316x173mm, Ø76x290mm
Configure your product
LVU4026
Ip Rating
IP44
Body finish
Aluminium
Material
- · Aluminium · Die-casting Aluminium · Die-casting Aluminium
The published options are not mapped to a confirmed order code. Technical review is required before issuing a configuration-specific specification sheet.
