ATLAS
Application inspiration · not a project reference
ATLAS is part of Lumi Ville. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
ATLAS
ATLAS is a architectural lighting family within the LUMIBRIGHT Lumi Ville collection. The current catalogue groups 4 article codes under this family, including LVU6101, LVU6102, LVU6103. For LVU6101, published values include colour temperature: 2700K, 3000K; IP rating: IP65; dimensions: Ø60x626mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the ATLAS articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LVU6101 | WattageNot published | CCT2700K, 3000K | IPIP65 | DimensionsØ60x626mm | Cut-outNot published |
| LVU6102 | Wattage4.0-8.0W | CCT2700K, 3000K | IPIP65 | DimensionsØ60x626mm | Cut-outNot published |

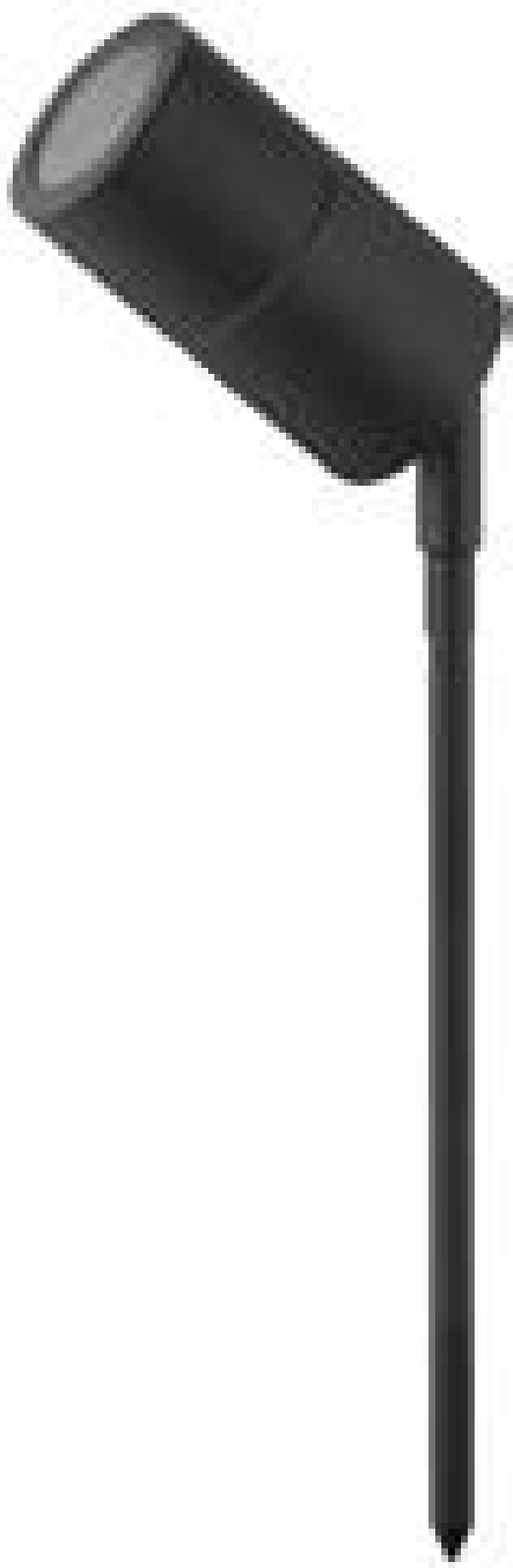

| LVU6103 | WattageNot published | CCT2700K, 3000K | IPIP65 | DimensionsØ60x394mm | Cut-outNot published |
| LVU6104 | Wattage4.0-8.0W | CCT2700K, 3000K | IPIP65 | DimensionsØ60x394mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø60x626mm · Ø60x394mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | Not published — technical review required |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | Not published — technical review required |
| Colour temperature | 2700K · 3000K |
| CRI Ra | 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP65 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC · 12VAC |
| Light source | Not published — technical review required |
| Material | Aluminium,Glass |
| Finish | Aluminium |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
7 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Dimensions
Technical Drawing
Drawing and sizes shown for model LVU6101. This family has 4 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LVU6101
Ø60x626mm
Specifications
At a Glance
8W
Power Range
2 CCT
2700K, 3000K
CRI 80
Colour Rendering
IP65
Protection Rating
1 finishes
Body Finish Options
2 sizes
Ø60x394mm, Ø60x626mm
Configure your product
LVU6101
Ip Rating
IP65
Body finish
Aluminum
Material
Aluminum,Glass
The published options are not mapped to a confirmed order code. Technical review is required before issuing a configuration-specific specification sheet.
