BACKSPIN

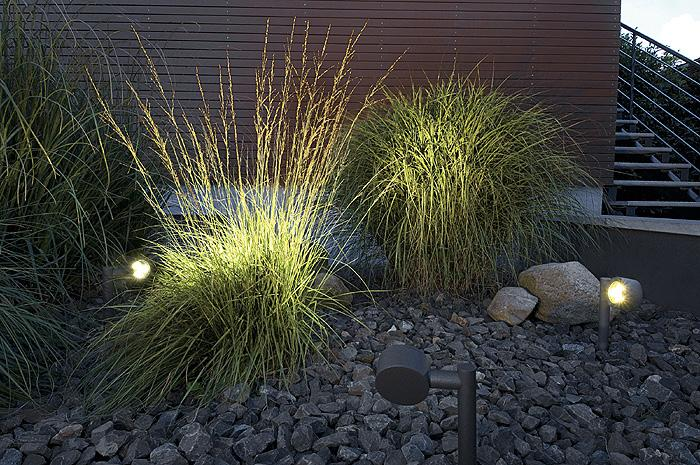

Application inspiration · not a project reference
BACKSPIN is part of Lumi Ville. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
BACKSPIN
BACKSPIN is a architectural lighting family within the LUMIBRIGHT Lumi Ville collection. Explore 12 models, including LVU6105, LVU6106, LVU6107, with model-specific specifications and configuration choices. LVU6105 specifications include colour temperature: 2700K, 3000K; IP rating: IP65; dimensions: 90x340mm. Compare the BACKSPIN range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LVU6105 | WattageNot published | CCT2700K, 3000K | IPIP65 | Dimensions90x340mm | Cut-outNot published |
| LVU6106 | Wattage4.0-8.0W | CCT2700K, 3000K | IPIP65 | Dimensions90x340mm | Cut-outNot published |
| LVU6107 | WattageNot published | CCT2700K, 3000K | IPIP65 | Dimensions90x200mm | Cut-outNot published |
| LVU6108 | Wattage4.0-8.0W | CCT2700K, 3000K | IPIP65 | Dimensions90x200mm | Cut-outNot published |
| LVU6109 | WattageNot published | CCT2700K, 3000K | IPIP65 | Dimensions88x360mm | Cut-outNot published |
| LVU6110 | Wattage4.0-8.0W | CCT2700K, 3000K | IPIP65 | Dimensions88x360mm | Cut-outNot published |
| LVU6111 | WattageNot published | CCT2700K, 3000K | IPIP65 | Dimensions88x216mm | Cut-outNot published |
| LVU6112 | Wattage4.0-8.0W | CCT2700K, 3000K | IPIP65 | Dimensions88x216mm | Cut-outNot published |
| LVU6113 | Wattage5W | CCT2700K, 3000K | IPIP65 | DimensionsNot published | Cut-outNot published |
| LVU6114 | Wattage10W | CCT3000K | IPIP65 | DimensionsNot published | Cut-outNot published |
| LVU6117 | Wattage3W | CCT2700K/3000K/4000K/6000K | IPIP65 | DimensionsØ34x100x67mm | Cut-outNot published |
| LVU6118 | Wattage3W | CCT2700K/3000K/4000K/6000K | IPIP65 | Dimensions35x103x68mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | 90x340mm · 90x200mm · 88x360mm · 88x216mm +2 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 8W · 5W · 10W · 3W |
| Lumen output | 900lm · 120lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | Not published — technical review required |
| Colour temperature | 2700K · 3000K · 4000K · 6000K |
| CRI Ra | 80 · >80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP65 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 12VAC · 220-240VAC · - · 12VDC |
| Light source | Not published — technical review required |
| Material | Aluminium,Glass · Aluminium |
| Finish | Aluminium |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
9 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
12 Products
Dimensions
Technical Drawing

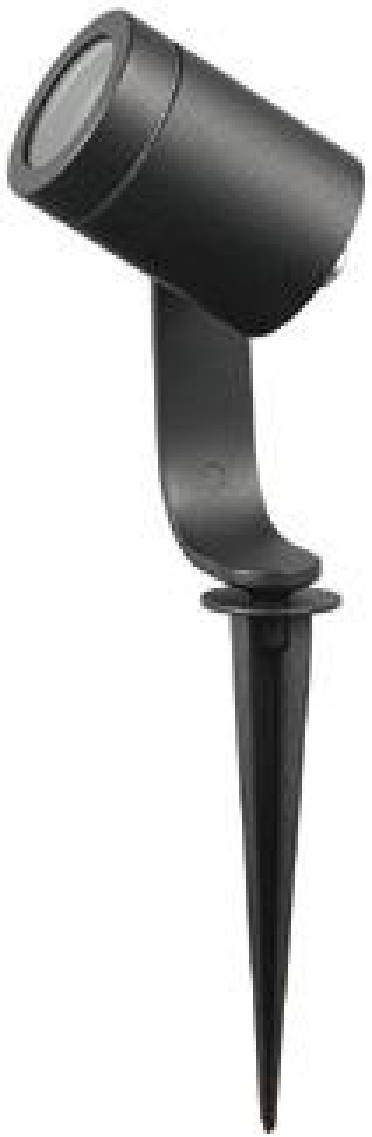

Drawing and sizes shown for model LVU6106. This family has 12 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LVU6106
90x340mm
Specifications
At a Glance
3–10W
Power Range
1 options
Beam: 10°
4 CCT
2700K, 3000K, 4000K, 6000K
CRI 80
Colour Rendering
IP65
Protection Rating
1 finishes
Body Finish Options
6 sizes
35x103x68mm, 88x216mm, 88x360mm, 90x200mm, 90x340mm, Ø34x100x67mm
Configure your product
LVU6106
Ip Rating
IP65
Body finish
Aluminum
Material
Aluminum · Aluminum, Glass · Aluminum,Glass
Compatible Lamp
LVB1000 - FOCO MR16 4W (360lm) · LVB1001 - FOCO MR16 5W (450lm) · LVB1004 - FOCO MR16 6W (530lm) · LVB1005 - FOCO MR16 7W (600lm) · LVB1002 - FOCO MR16 5W (550lm) · LVB1003 - FOCO MR16 8W (400lm) · LVB1006 - SMART FOCO MR16 6W (400lm)
Colour temperature
2700K · 3000K
The published options are not mapped to a confirmed order code. Technical review is required before issuing a configuration-specific specification sheet.
