Lumi Ville
BALL
Application inspiration · not a project reference
BALL is part of Lumi Ville. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Special Light
BALL
BALL is a special light family within the LUMIBRIGHT Lumi Ville collection. Explore 1 models, including LVL7022, with model-specific specifications and configuration choices. LVL7022 specifications include power: 1W; colour temperature: 3000K; IP rating: IP65; dimensions: Ø80x800mm. Compare the BALL range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LVL7022 | Wattage1W | CCT3000K | IPIP65 | DimensionsØ80x800mm | Cut-outNot published |
Dimensions
Technical Drawing

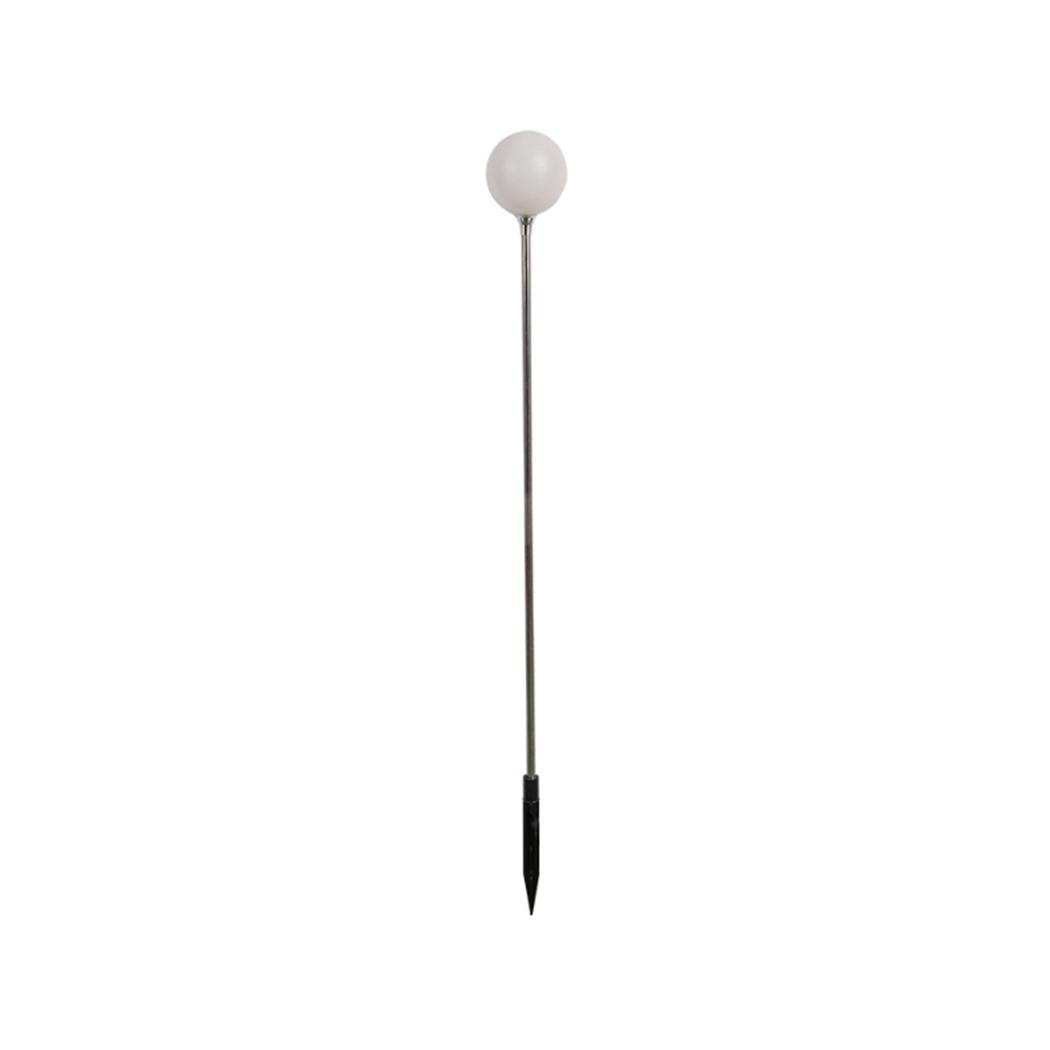

Drawing and sizes shown for model LVL7022.
Size — model LVL7022
Ø80x800mm
Technical Data
Full Specification
| Dimensions | Ø80x800mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 1W |
| Lumen output | 40lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 120° |
| Colour temperature | 2700K · 3000K |
| CRI Ra | 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP65 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 12VDC |
| Light source | Not published — technical review required |
| Material | Metal |
| Finish | Not published — technical review required |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | 3 Years |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Specifications
At a Glance
1W
Power
120°
Beam Angle
2 CCT
2700K, 3000K
CRI 80
Colour Rendering
IP65
Protection Rating
Ø80x800mm
Dimensions
Configure your product
LVL7022
Order code
Listed configurationLVL7022.W.730.BRS.120
1 listed configurations · availability requires confirmation
