Lumi Ville
BLOSSOM
Application inspiration · not a project reference
BLOSSOM is part of Lumi Ville. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Wall Light
BLOSSOM
BLOSSOM is a wall light family within the LUMIBRIGHT Lumi Ville collection. The current catalogue groups 3 article codes under this family, including LVU4121, LVU4122, LVU4128. For LVU4121, published values include power: 5W; colour temperature: 3000K; IP rating: IP54; dimensions: 140x140xH90mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the BLOSSOM articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

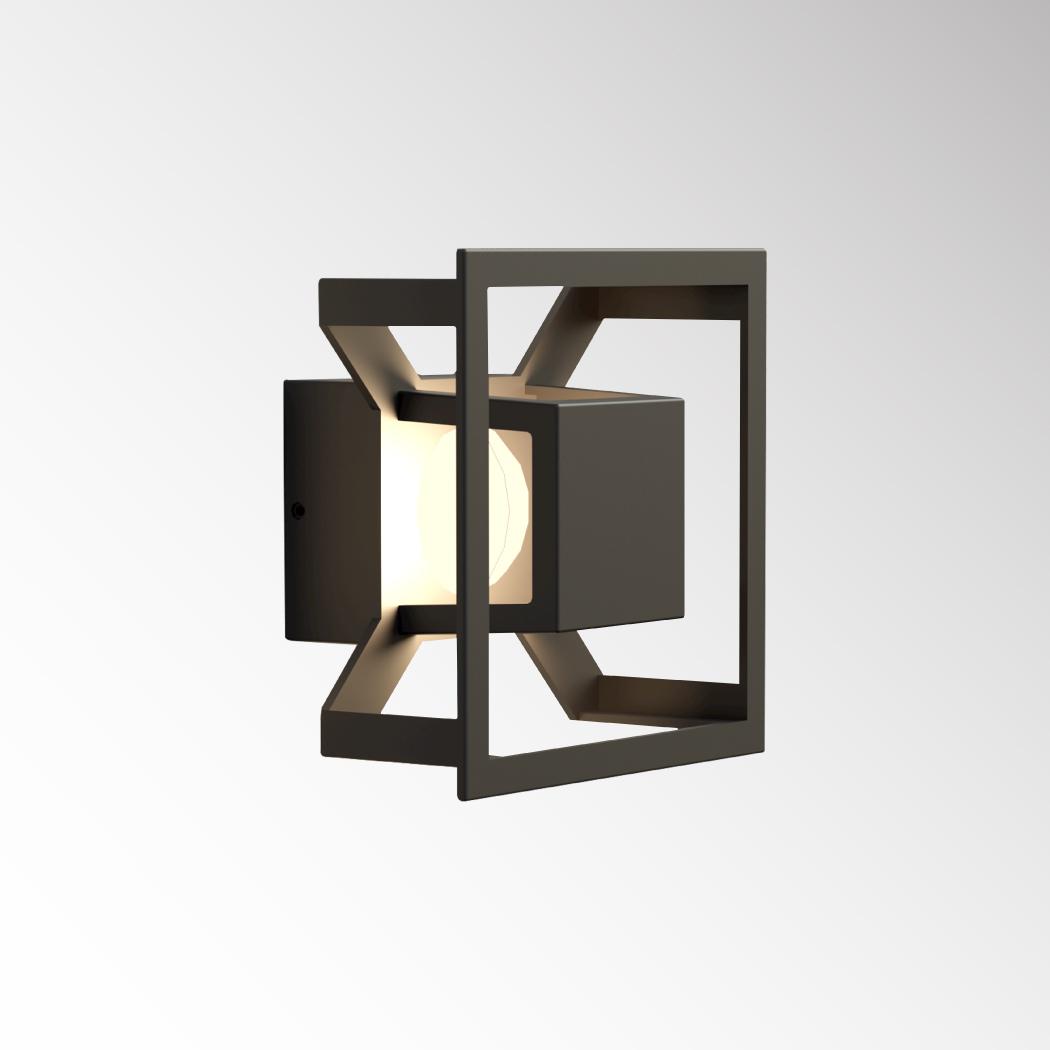

| LVU4121 | Wattage5W | CCT3000K | IPIP54 | Dimensions140x140xH90mm | Cut-outNot published |

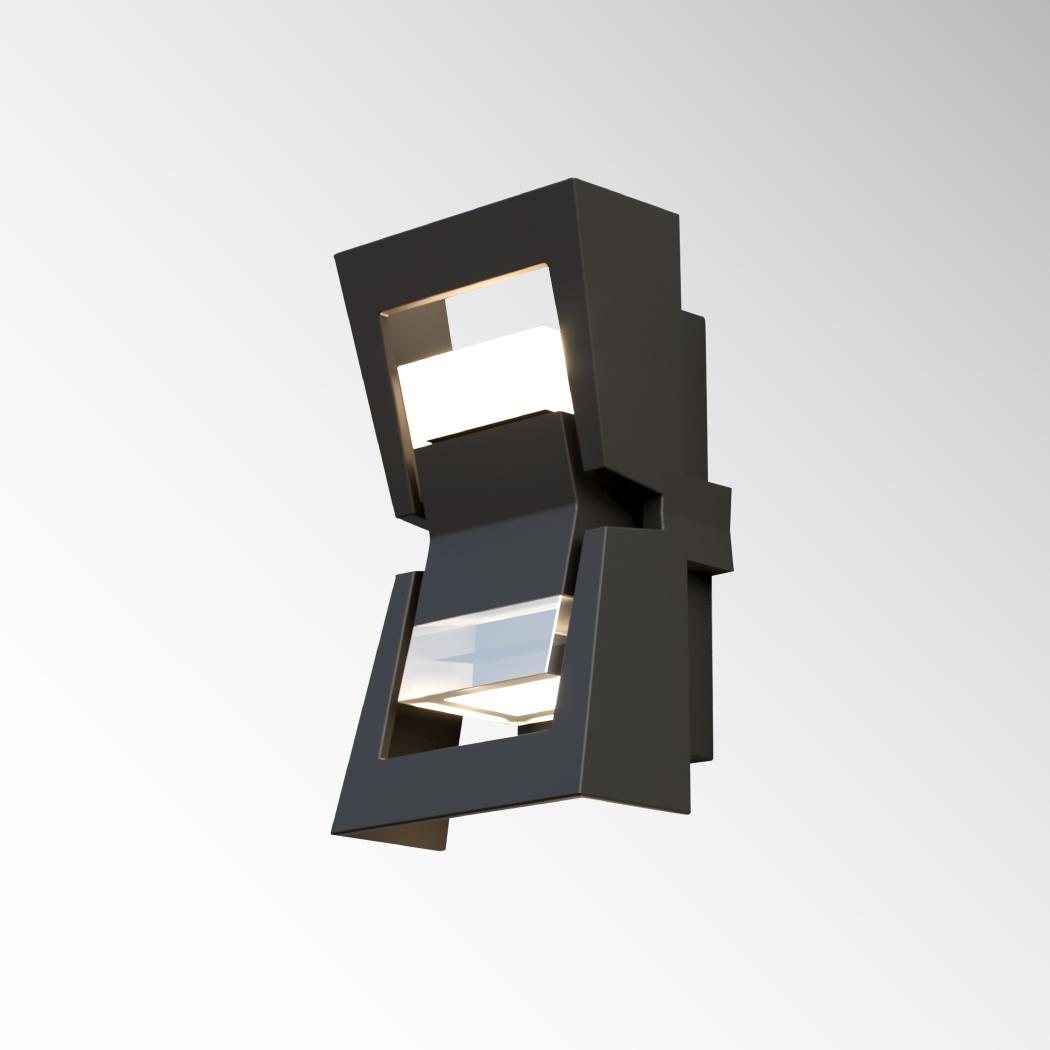

| LVU4122 | Wattage6W | CCT3000K | IPIP54 | Dimensions210x116xH95mm | Cut-outNot published |

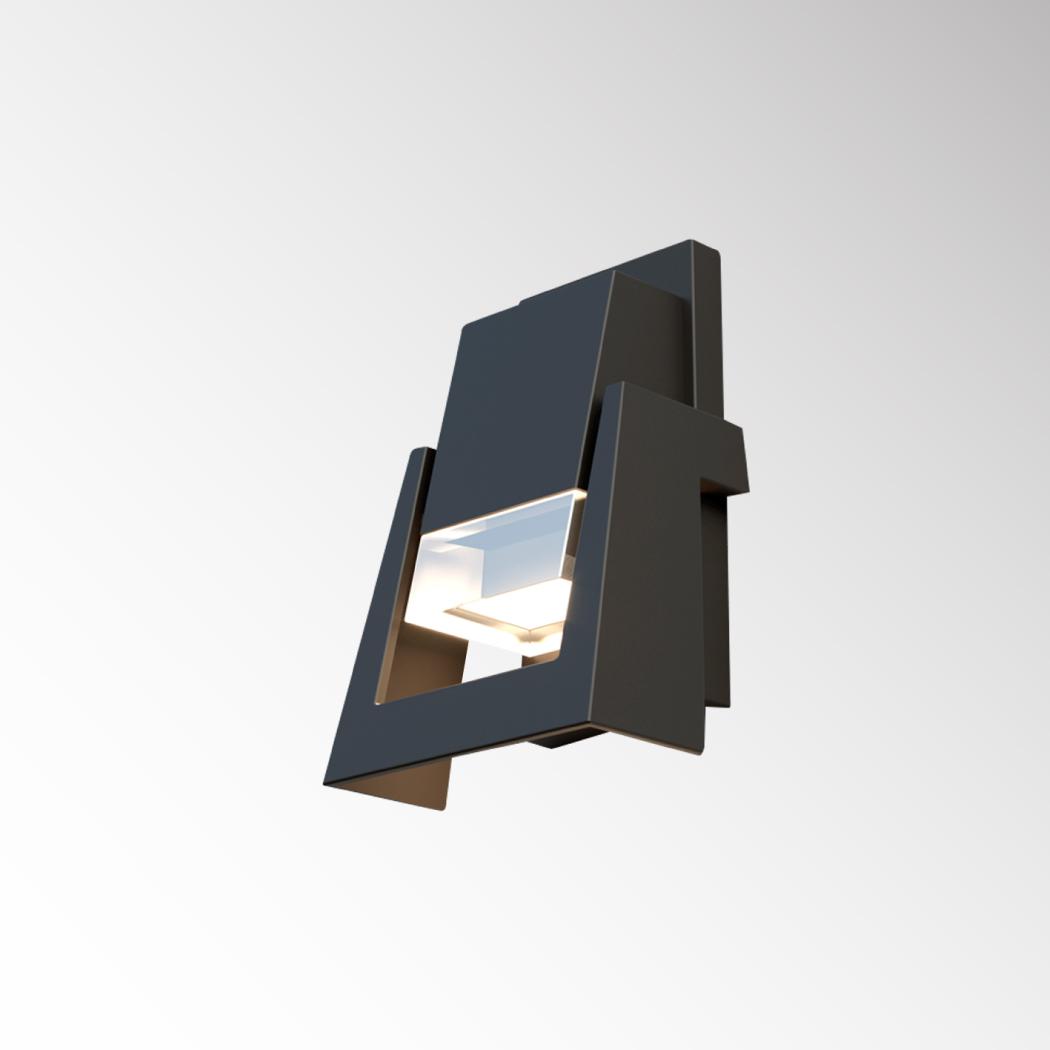

| LVU4128 | Wattage5W | CCT3000K | IPIP54 | Dimensions185x116x95mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | 210x116xH95mm · 140x140xH90mm · 185x116x95mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 6W · 5W |
| Lumen output | 375lm · 487lm · 400lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 90° |
| Colour temperature | 3000K |
| CRI Ra | ≥80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP54 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 90-260VAC |
| Light source | Not published — technical review required |
| Material | Die-casting Aluminium · Die-Cast Aluminium |
| Finish | Not published — technical review required |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | 5 Years · 3 Years |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
3 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LVU4122. This family has 3 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LVU4122
210x116xH95mm
Specifications
At a Glance
5–6W
Power Range
1 options
Beam: 90°
1 CCT
3000K
CRI 80
Colour Rendering
IP54
Protection Rating
3 sizes
140x140xH90mm, 185x116x95mm, 210x116xH95mm
Configure your product
LVU4122
Order code
Listed configurationLVU4122.W.830.WBK.180
1 listed configurations · availability requires confirmation
