BRENTA
BRENTA is a architectural lighting family within the LUMIBRIGHT Lumi Ville collection. Explore 15 models, including LVU4022, LVU4023, LVU4024, with model-specific specifications and configuration choices. LVU4022 specifications include colour temperature: 2700K, 3000K; IP rating: IP44. Compare the BRENTA range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LVU4022 | WattageNot published | CCT2700K, 3000K | IPIP44 | DimensionsNot published | Cut-outNot published |
| LVU4023 | WattageNot published | CCT2700K, 3000K | IPIP44 | DimensionsØ81x152x331 | Cut-outNot published |
| LVU4024 | WattageNot published | CCT2700K, 3000K | IPIP44 | Dimensions240x142x105mm | Cut-outNot published |
| LVU4025 | WattageNot published | CCT2700K, 3000K | IPIP44 | Dimensions240x105x142 | Cut-outNot published |
| LVU4061 | WattageNot published | CCT2700K, 3000K | IPIP44 | DimensionsØ76x200x104mm | Cut-outNot published |
| LVU4062 | WattageNot published | CCT2700K, 3000K | IPIP44 | Dimensions182x128x275mm | Cut-outNot published |
| LVU4063 | WattageNot published | CCT2700K, 3000K | IPIP44 | Dimensions142x128x275mm | Cut-outNot published |
| LVU9820 | WattageNot published | CCT2700K, 3000K | IPIP44 | DimensionsØ76x500mm | Cut-outNot published |
| LVU9821 | WattageNot published | CCT2700K, 3000K | IPIP44 | DimensionsØ76x800mm | Cut-outNot published |
| LVU9822 | WattageNot published | CCT2700K, 3000K | IPIP44 | Dimensions182x500mm | Cut-outNot published |
| LVU9823 | WattageNot published | CCT2700K, 3000K | IPIP44 | Dimensions182x800mm | Cut-outNot published |
| LVU9824 | WattageNot published | CCT2700K, 3000K | IPIP44 | Dimensions142x500mm | Cut-outNot published |

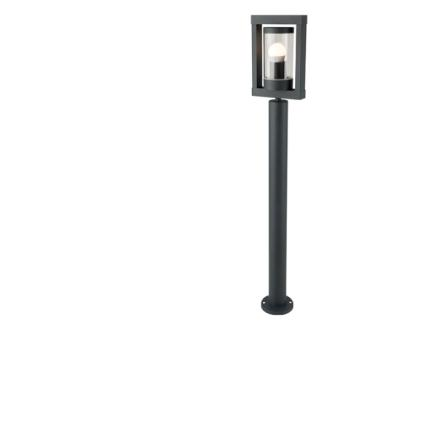

| LVU9825 | WattageNot published | CCT2700K, 3000K | IPIP44 | Dimensions142x800mm | Cut-outNot published |
| LVU9826 | WattageNot published | CCT2700K, 3000K | IPIP44 | Dimensions120x120x500mm | Cut-outNot published |
| LVU9827 | WattageNot published | CCT2700K, 3000K | IPIP44 | Dimensions120x120x800mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | 142x128x275mm · Ø81x152x331 · 240x142x105mm · 240x105x142 +10 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | Not published — technical review required |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | Not published — technical review required |
| Colour temperature | 2700K · 3000K |
| CRI Ra | 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP44 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 230VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | aluminium |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
7 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
15 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LVU4063. This family has 15 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LVU4063
142x128x275mm
Specifications
At a Glance
2 CCT
2700K, 3000K
CRI 80
Colour Rendering
IP44
Protection Rating
2 finishes
Body Finish Options
14 sizes
120x120x500mm, 120x120x800mm, 142x128x275mm, 142x500mm, 142x800mm, 182x128x275mm, 182x500mm, 182x800mm, 240x105x142, 240x142x105mm, Ø76x200x104mm, Ø76x500mm, Ø76x800mm, Ø81x152x331
Configure your product
LVU4063
Ip Rating
IP44
Body finish
Aluminium · Aluminum
Material
Aluminium · Aluminum · Die-casting Aluminium
The published options are not mapped to a confirmed order code. Technical review is required before issuing a configuration-specific specification sheet.
