Inground Light
GRAMOS
GRAMOS is a inground light family within the LUMIBRIGHT Lumi Ville collection. Explore 1 models, including LVL1027, with model-specific specifications and configuration choices. LVL1027 specifications include power: 3W; colour temperature: 2700K; IP rating: IP67; dimensions: 48x48x83mm. Compare the GRAMOS range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LVL1027 | Wattage3W | CCT2700K | IPIP67 | Dimensions48x48x83mm | Cut-outØ38x110mm |

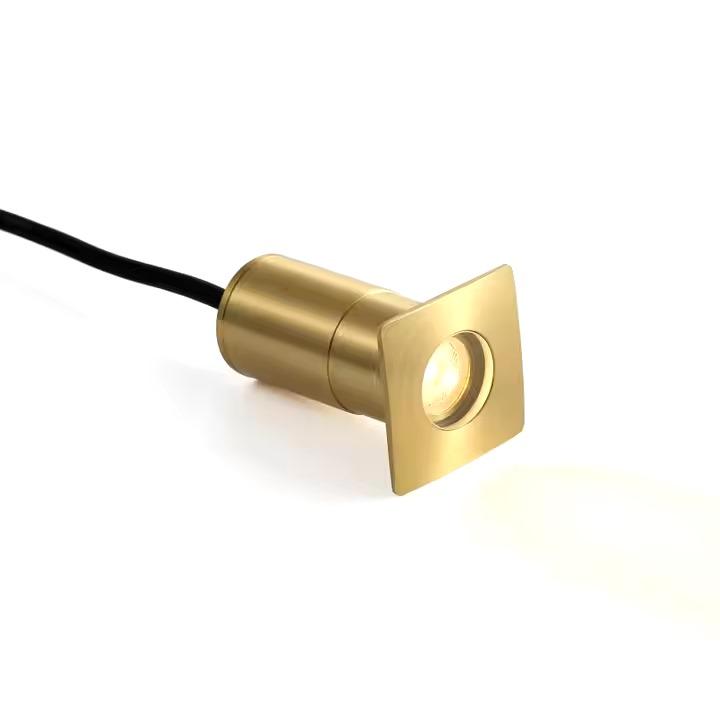

Product View
Configuration
Select Specification
Select attributes to narrow down variants
All Variants (4)
Dimensions
Technical Drawing
Drawing and sizes shown for model LVL1027.
Size — model LVL1027
48x48x83mm
Technical Data
Full Specification
| Dimensions | 48x48x83mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 3W |
| Lumen output | 120lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 30° |
| Colour temperature | 2700K · 3000K |
| CRI Ra | 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP67 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 24VDC |
| Light source | Not published — technical review required |
| Material | Brass |
| Finish | brass-color · brass · BRASS COLOR |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | 5 Years |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Specifications
At a Glance
3W
Power
30°
Beam Angle
2 CCT
2700K, 3000K
CRI 80
Colour Rendering
IP67
Protection Rating
2 finishes
Body Finish
48x48x83mm
Dimensions
Configure your product
LVL1027
Order code
Listed configurationLVL1027.W.827.BRS.30
2 listed configurations · availability requires confirmation
