HATTY
Application inspiration · not a project reference
HATTY is part of Lumi Ville. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
HATTY

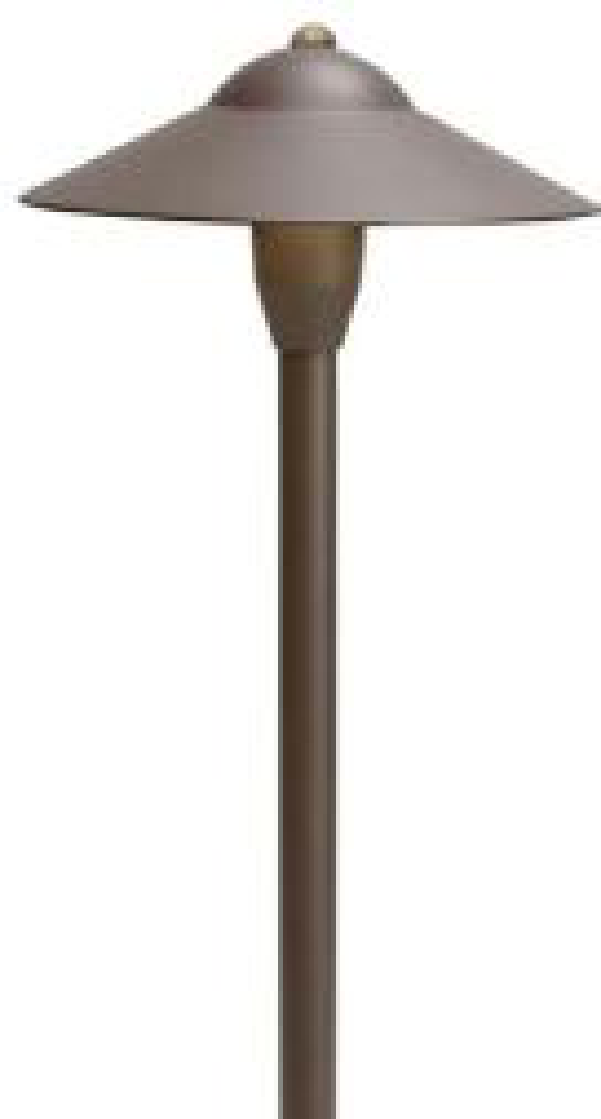

HATTY is a architectural lighting family within the LUMIBRIGHT Lumi Ville collection. The current catalogue groups 17 article codes under this family, including LVL9400, LVL9401, LVL9402. For LVL9400, published values include power: 1.0-5.0W; colour temperature: 2700K, 3000K; IP rating: IP65. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the HATTY articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LVL9400 | Wattage1.0-5.0W | CCT2700K, 3000K | IPIP65 | DimensionsNot published | Cut-outNot published |
| LVL9401 | Wattage1.0-5.0W | CCT2700K, 3000K | IPIP65 | DimensionsNot published | Cut-outNot published |
| LVL9402 | Wattage1.0-5.0W | CCT2700K, 3000K | IPIP65 | DimensionsNot published | Cut-outNot published |
| LVL9406 | Wattage1.0-5.0W | CCT2700K, 3000K | IPIP65 | DimensionsNot published | Cut-outNot published |
| LVL9407 | Wattage1.0-5.0W | CCT2700K, 3000K | IPIP65 | DimensionsNot published | Cut-outNot published |
| LVL9408 | Wattage1.0-5.0W | CCT2700K, 3000K | IPIP65 | DimensionsNot published | Cut-outNot published |
| LVL9409 | Wattage1.0-5.0W | CCT2700K, 3000K | IPIP65 | DimensionsNot published | Cut-outNot published |
| LVL9410 | Wattage1.0-5.0W | CCT2700K, 3000K | IPIP65 | DimensionsNot published | Cut-outNot published |
| LVL9417 | Wattage1.0-5.0W | CCT2700K, 3000K | IPIP65 | DimensionsNot published | Cut-outNot published |
| LVL9418 | Wattage1.0-5.0W | CCT2700K, 3000K | IPIP65 | DimensionsNot published | Cut-outNot published |
| LVL9419 | Wattage1.0-5.0W | CCT2700K, 3000K | IPIP65 | DimensionsNot published | Cut-outNot published |
| LVL9420 | Wattage1.0-5.0W | CCT2700K, 3000K | IPIP65 | DimensionsNot published | Cut-outNot published |
| LVL9427 | Wattage1.0-5.0W | CCT2700K, 3000K | IPIP65 | DimensionsNot published | Cut-outNot published |
| LVL9428 | Wattage1.0-5.0W | CCT2700K, 3000K | IPIP65 | DimensionsNot published | Cut-outNot published |
| LVL9429 | Wattage1.0-5.0W | CCT2700K, 3000K | IPIP65 | DimensionsNot published | Cut-outNot published |
| LVL9430 | Wattage1.0-5.0W | CCT2700K, 3000K | IPIP65 | DimensionsNot published | Cut-outNot published |
| LVL9431 | Wattage4W | CCT2700K, 3000K | IPIP65 | DimensionsNot published | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Not published — technical review required |
|---|---|
| Cut-out | Not published — technical review required |
| Power | Not published — technical review required |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | Not published — technical review required |
| Colour temperature | 2700K · 3000K |
| CRI Ra | Not published — technical review required |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP65 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 12V AC/DC · 12V · 24V |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | brass · Aluminium |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
4 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
17 Products
Specifications
At a Glance
4–5W
Power Range
2 CCT
2700K, 3000K
CRI 80
Colour Rendering
IP65
Protection Rating
3 finishes
Body Finish Options
Configure your product
LVL9408
Ip Rating
IP65
Body finish
Aluminium · Aluminum · Brass · Bronze
Material
Aluminum · Brass · Brass - Aluminium · Die -cast brass · Die-cast Bronze · Die-cast brass
Compatible Lamp
LVB1015 - BRÜCKE - G4 3W (300lm) · LVB1016 - BRÜCKE - G4 2W (200lm) · LVB1013 - BRÜCKE - G4 4W (400lm) · LVB1018 - EPINGLE - G4 3W (180lm) · LVB1020 - EPINGLE - G4 2W (180lm) · LVB1021 - FACKEL - G4 2W () · LVB1023 - EPINGLE - G4 2W (270lm) · LVB1022 - EPINGLE - G4 3W (270lm) · LVB1019 - SILKON- G4 1W (100lm) · LVB1024 - SILKON - G4 3W (270lm) · LVB1026 - ALBITAR - G4 3W (270lm) · LVB1027 - ALBITAR - G4 1W (100lm) · LVB1025 - ALBITAR - G4 5W (400lm)
Colour temperature
2700K · 3000K
The published options are not mapped to a confirmed order code. Technical review is required before issuing a configuration-specific specification sheet.
