Wall Light
HELESTRA
HELESTRA is a architectural lighting family within the LUMIBRIGHT Lumi Ville collection. The current catalogue groups 13 article codes under this family, including LBE40229, LVU4116, LVU4117. For LBE40229, published values include power: 5w; colour temperature: 3000K; IP rating: IP54; dimensions: 130x100xH140mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the HELESTRA articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LBE40229 | Wattage5w | CCT3000K | IPIP54 | Dimensions130x100xH140mm | Cut-outNot published |

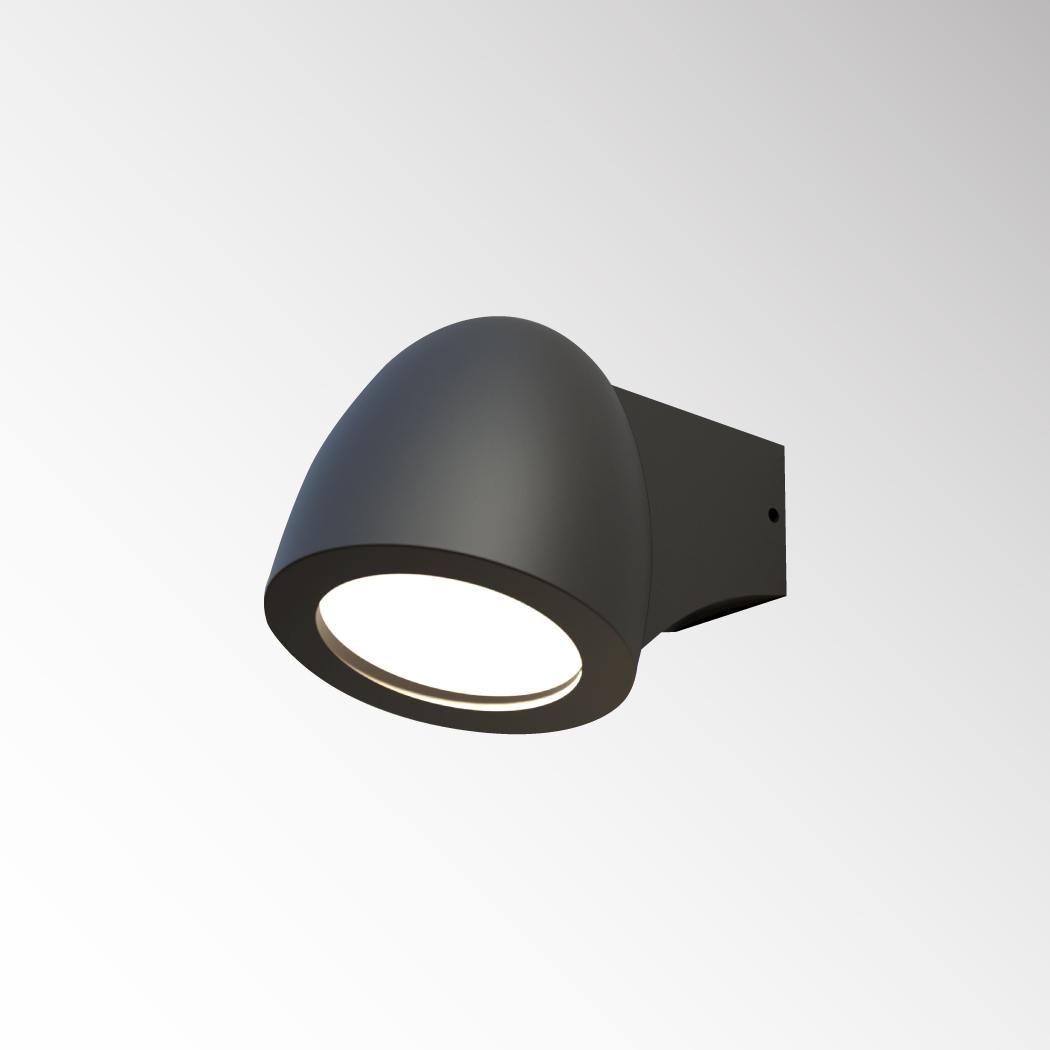

| LVU4116 | WattageNot published | CCT2700K, 3000K | IPIP54 | Dimensions100x90x130mm | Cut-outNot published |

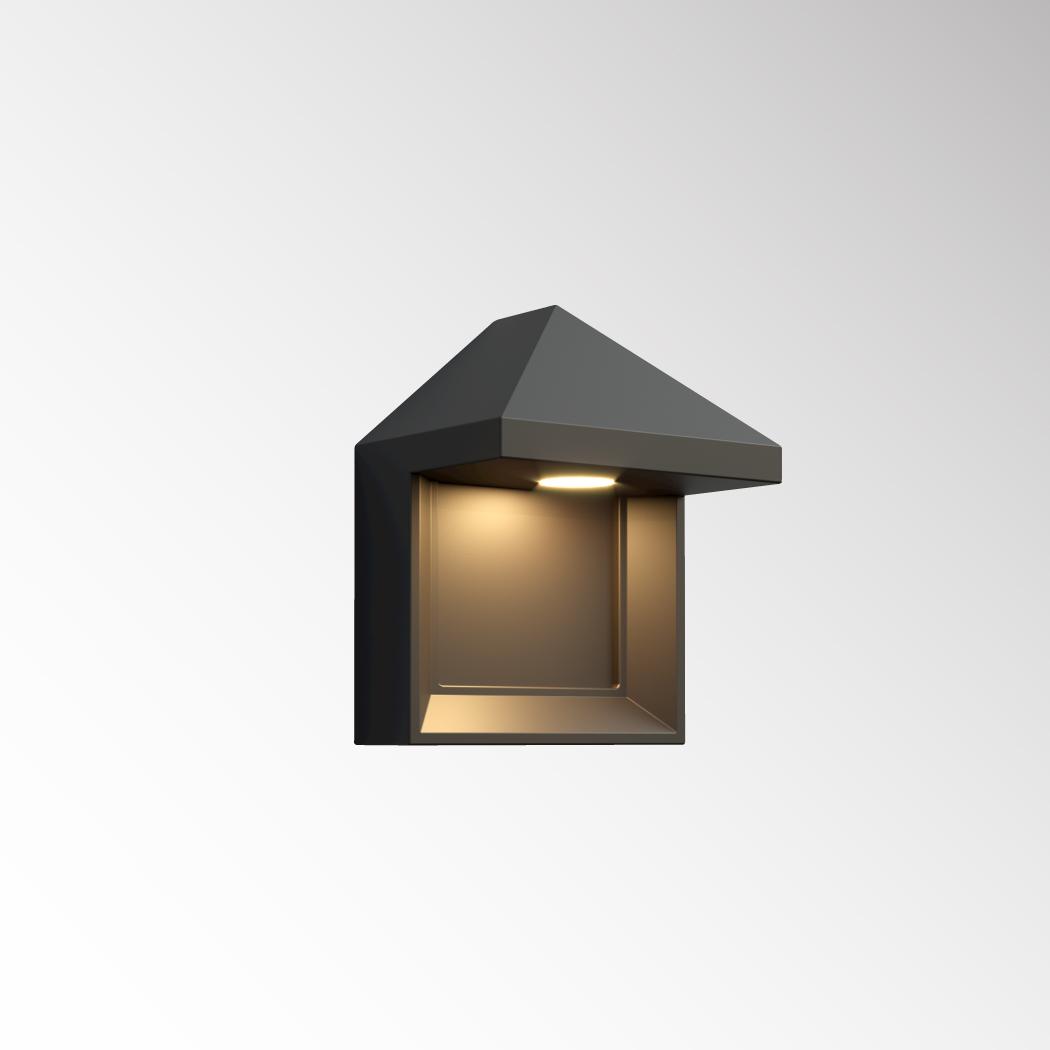

| LVU4117 | Wattage5W | CCT3000K | IPIP54 | Dimensions180x140xH100mm | Cut-outNot published |

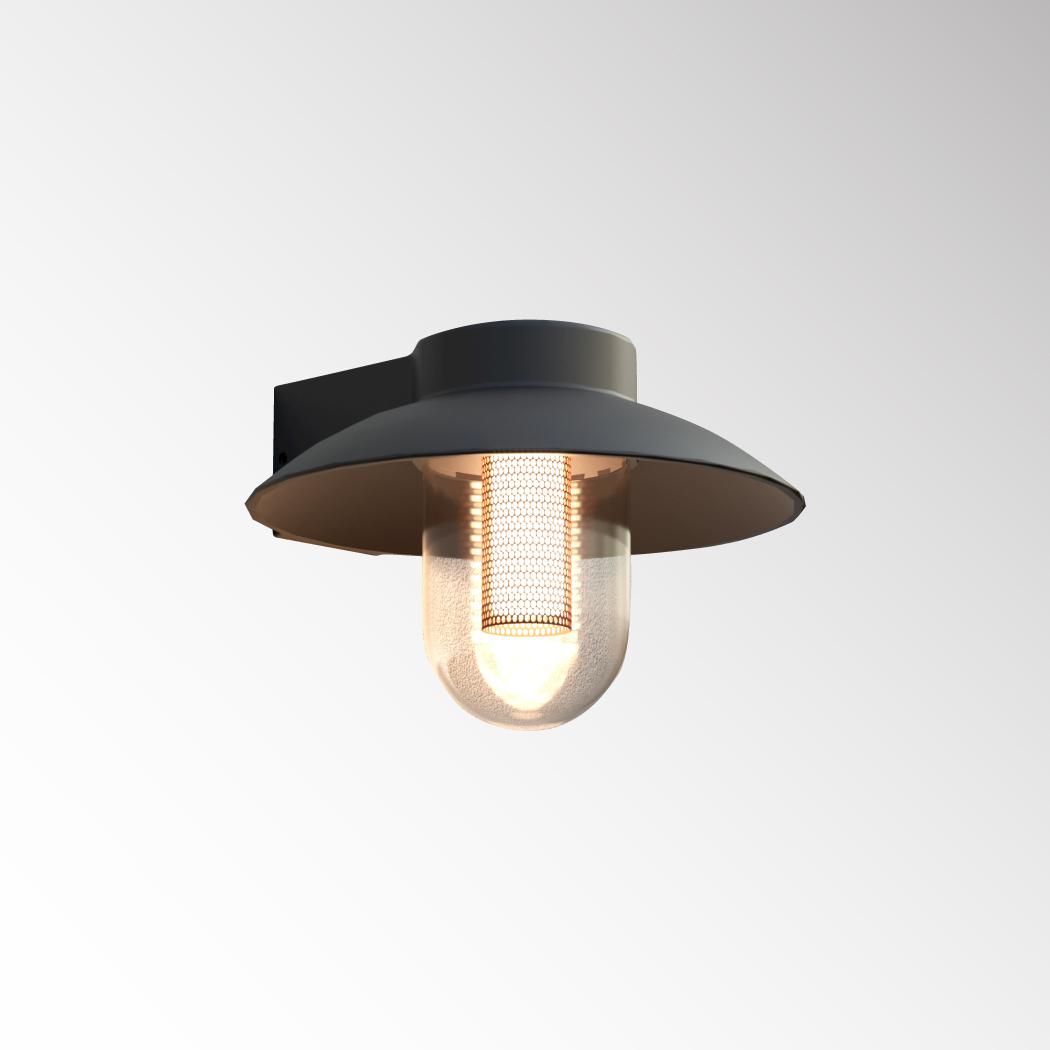

| LVU4118 | Wattage5W | CCT3000K | IPIP54 | Dimensions200x200xH200mm | Cut-outNot published |

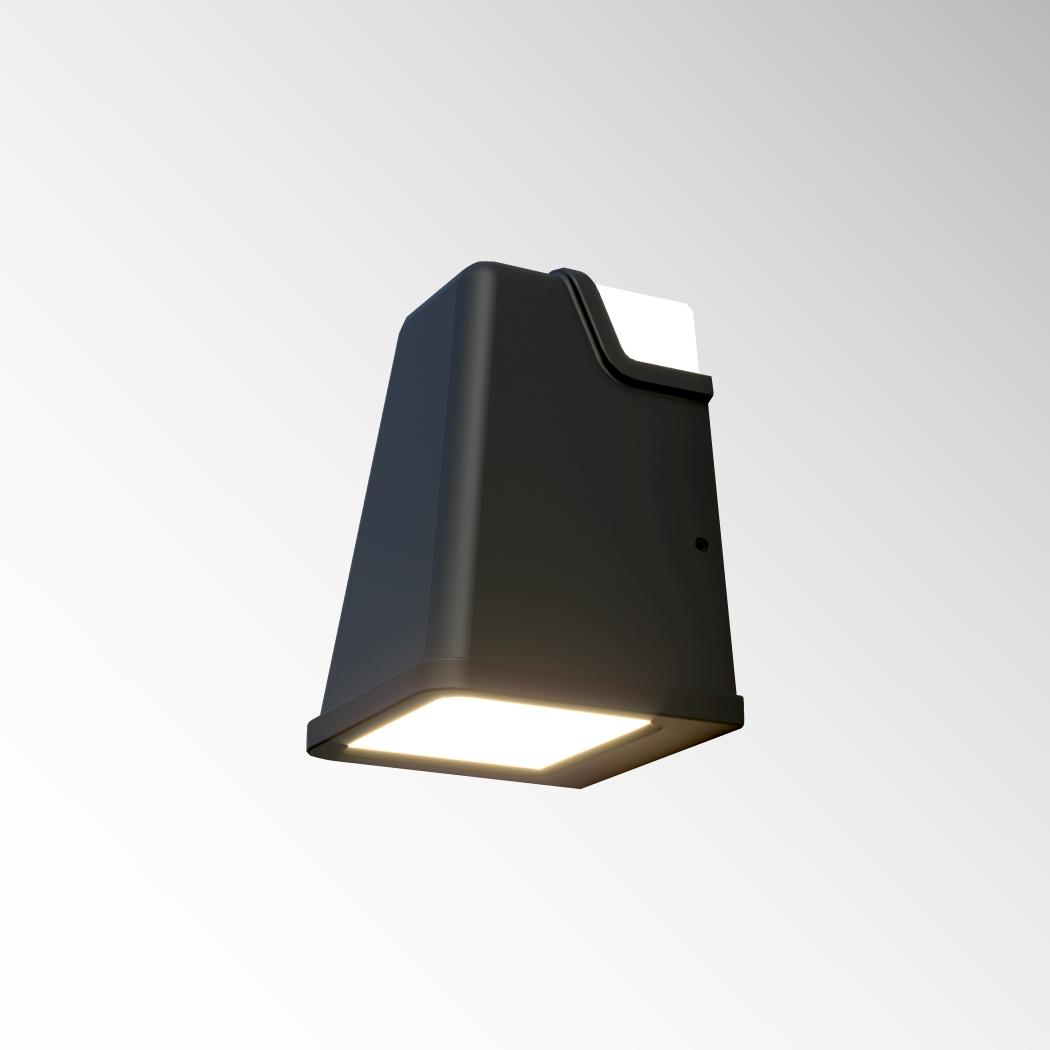

| LVU4119 | Wattage2W+4W | CCT3000K | IPIP54 | Dimensions155x106xH106mm | Cut-outNot published |
| LVU9842 | WattageNot published | CCT2700K, 3000K | IPIP44 | DimensionsØ100x162x500mm | Cut-outNot published |
| LVU9843 | WattageNot published | CCT2700K, 3000K | IPIP44 | DimensionsØ100x162x800mm | Cut-outNot published |
| LVU9846 | WattageNot published | CCT2700K, 3000K | IPIP44 | Dimensions63x500mm | Cut-outNot published |
| LVU9847 | WattageNot published | CCT2700K, 3000K | IPIP44 | Dimensions63x800mm | Cut-outNot published |
| LVU9848 | WattageNot published | CCT2700K, 3000K | IPIP44 | DimensionsØ65x500mm | Cut-outNot published |
| LVU9849 | WattageNot published | CCT2700K, 3000K | IPIP44 | DimensionsØ65x800mm | Cut-outNot published |
| LVU9850 | WattageNot published | CCT2700K, 3000K | IPIP44 | DimensionsØ76x500mm | Cut-outNot published |
| LVU9851 | WattageNot published | CCT2700K, 3000K | IPIP44 | DimensionsØ76x800mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | 130x100xH140mm · 100x90x130mm · 180x140xH100mm · 200x200xH200mm +9 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 5W · 2W+4W |
| Lumen output | 437lm · 525lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 60° · 120° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +1 more |
| CRI Ra | 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP54 · IP44 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 90-260VAC · 230VAC |
| Light source | Not published — technical review required |
| Material | Aluminium Die casting · Die casting Aluminium · Die-casting Aluminium · Die-Cast Aluminium +1 more |
| Finish | black · dark-grey · MATTE DARK GREY · aluminium |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | 5 Years |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
13 Products
Dimensions

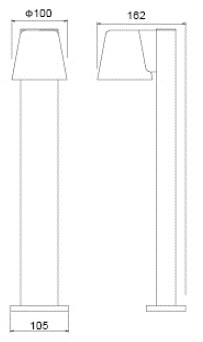

Technical Drawing
Drawing and sizes shown for model LVU9842. This family has 13 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LVU9842
Ø100x162x500mm
Specifications
At a Glance
2–5W
Power Range
2 options
Beam: 60°, 120°
2 CCT
2700K, 3000K
CRI 80
Colour Rendering
IP44 / IP54
Protection Rating
3 finishes
Body Finish Options
13 sizes
100x90x130mm, 130x100xH140mm, 155x106xH106mm, 180x140xH100mm, 200x200xH200mm, 63x500mm, 63x800mm, Ø100x162x500mm, Ø100x162x800mm, Ø65x500mm, Ø65x800mm, Ø76x500mm, Ø76x800mm
Configure your product
LBE40229
Order code
Listed configurationLBE40229.W.830.WBK.60
5 listed configurations · availability requires confirmation
