Lumi Ville

JELLY

Application inspiration · not a project reference

JELLY is part of Lumi Ville. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.

Ceiling Light

3 variants·luminaire·surface mounted

JELLY is a ceiling light family within the LUMIBRIGHT Lumi Ville collection. Explore 1 models, including LVU3009, with model-specific specifications and configuration choices. LVU3009 specifications include power: 20W; colour temperature: 3000K; IP rating: IP65; dimensions: Dia115*H305MM. Compare the JELLY range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.

Model specifications

Article	Wattage	CCT	IP	Dimensions	Cut-out
LVU3009	Wattage20W	CCT3000K	IPIP65	DimensionsDia115*H305MM	Cut-outNot published

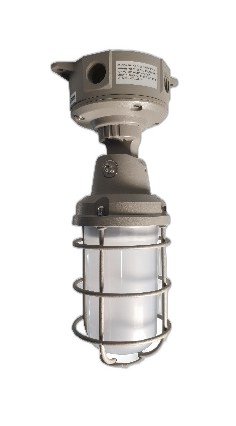

Product View

Configuration

Select Specification

Power

Beam Angle

CCT

Finish

IP Rating

Select attributes to narrow down variants

All Variants (3)

Code	Power	CCT	Beam	CRI	Finish	Size
LVU3009	20W	3000K	—	80	grey	Dia115*H305MM
LVU3009	20W	3000K	120°	80	grey	Dia115*H305MM
LVU3009	20W	3000K	—	80	grey	Dia115*H305MM

Dimensions

Technical Drawing

Drawing and sizes shown for model LVU3009.

Size — model LVU3009

Dia115*H305MM

Technical Data

Full Specification

Dimensions	Dia115*H305MM
Cut-out	Not published — technical review required
Power	20W
Lumen output	1900LM+100 AC220V input
Efficacy	Not published — technical review required
Optics / beam angle	120°
Colour temperature	2700K · 3000K
CRI Ra	80
R9	Not published — technical review required
TM-30 Rf / Rg	Not published — technical review required
UGR	Not published — technical review required
IP rating	IP65
IK rating	Not published — technical review required
Ambient temperature (Ta)	Not published — technical review required
Driver	Not published — technical review required
Dimming / control	Not published — technical review required
Input voltage	220-240VAC
Light source	Not published — technical review required
Material	Aluminium
Finish	grey
Mounting / installation	Not published — technical review required
Net weight	Not published — technical review required
Certification	Not published — technical review required
Lifetime	Not published — technical review required
Warranty	5 Years
Lead time	Not published — technical review required

11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.

How to compare body height, fixings, cable entry and driver position →

Specifications

At a Glance

20W

Power

120°

Beam Angle

3000K

Colour Temperature

CRI 80

Colour Rendering

IP65

Protection Rating

grey

Body Finish

Dia115*H305MM

Dimensions

Model

Model details ↗

Configure your product

LVU3009

Colour temperature

Body finish

Beam angle

CRI

Power

Dimension

Order code

Listed configuration

LVU3009.W.830.WSG.120

1 listed configurations · availability requires confirmation
