Lumi Ville

LUCIDO

Application inspiration · not a project reference

LUCIDO is part of Lumi Ville. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.

9 product lines·9 total variants

LUCIDO is a architectural lighting family within the LUMIBRIGHT Lumi Ville collection. The current catalogue groups 9 article codes under this family, including LVU4071, LVU4072, LVU4074. For LVU4071, published values include colour temperature: 2700K, 3000K; IP rating: IP44; dimensions: Ø120x185x230mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the LUCIDO articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.

Model specifications

Article	Wattage	CCT	IP	Dimensions	Cut-out
LVU4071	WattageNot published	CCT2700K, 3000K	IPIP44	DimensionsØ120x185x230mm	Cut-outNot published
LVU4072	WattageNot published	CCT2700K, 3000K	IPIP44	DimensionsØ95x138x240mm	Cut-outNot published
LVU4074	WattageNot published	CCT2700K, 3000K	IPIP44	DimensionsØ102x117x136mm	Cut-outNot published
LVU9838	WattageNot published	CCT2700K, 3000K	IPIP44	DimensionsØ120x500mm	Cut-outNot published
LVU9839	WattageNot published	CCT2700K, 3000K	IPIP44	DimensionsØ120x800mm	Cut-outNot published
LVU9840	WattageNot published	CCT2700K, 3000K	IPIP44	DimensionsØ95x500mm	Cut-outNot published
LVU9841	WattageNot published	CCT2700K, 3000K	IPIP44	DimensionsØ95x800mm	Cut-outNot published
LVU9844	WattageNot published	CCT2700K, 3000K	IPIP44	DimensionsØ102x500mm	Cut-outNot published
LVU9845	WattageNot published	CCT2700K, 3000K	IPIP44	DimensionsØ102x800mm	Cut-outNot published

Technical Data

Full Specification

Dimensions	Ø120x185x230mm · Ø95x138x240mm · Ø102x117x136mm · Ø120x500mm +5 more
Cut-out	Not published — technical review required
Power	Not published — technical review required
Lumen output	Not published — technical review required
Efficacy	Not published — technical review required
Optics / beam angle	Not published — technical review required
Colour temperature	2700K · 3000K
CRI Ra	80
R9	Not published — technical review required
TM-30 Rf / Rg	Not published — technical review required
UGR	Not published — technical review required
IP rating	IP44
IK rating	Not published — technical review required
Ambient temperature (Ta)	Not published — technical review required
Driver	Not published — technical review required
Dimming / control	Not published — technical review required
Input voltage	230VAC
Light source	Not published — technical review required
Material	Aluminium
Finish	aluminium
Mounting / installation	Not published — technical review required
Net weight	Not published — technical review required
Certification	Not published — technical review required
Lifetime	Not published — technical review required
Warranty	Not published — technical review required
Lead time	Not published — technical review required

7 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.

Configuration

Select Specification

CCT

Finish

IP Rating

Select attributes to narrow down variants

Product Lines

9 Products

LVU4071

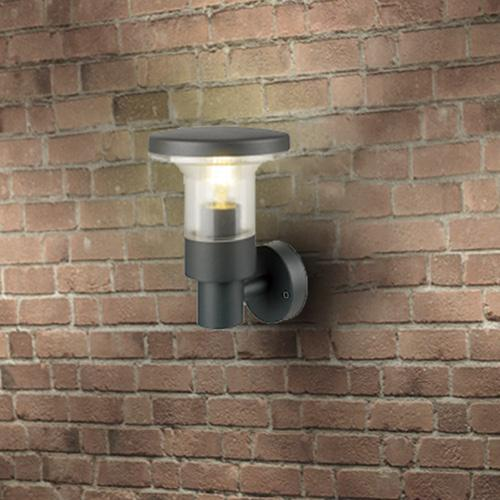

LUCIDO LVU4071 - WALL MOUNTED

IP44Ø120x185x230mm

1 variant

LVU4072

LUCIDO LVU4072 - WALL MOUNTED

IP44Ø95x138x240mm

1 variant

LVU4074

LUCIDO LVU4074 - WALL MOUNTED

IP44Ø102x117x136mm

1 variant

LVU9838

LUCIDO LVU9838 - WALL MOUNTED

IP44Ø120x500mm

1 variant

LVU9839

LUCIDO LVU9839 - WALL MOUNTED

IP44Ø120x800mm

1 variant

LVU9840

LUCIDO LVU9840 - WALL MOUNTED

IP44Ø95x500mm

1 variant

LVU9841

LUCIDO LVU9841 - WALL MOUNTED

IP44Ø95x800mm

1 variant

LVU9844

LUCIDO LVU9844 - WALL MOUNTED

IP44Ø102x500mm

1 variant

LVU9845

LUCIDO LVU9845 - WALL MOUNTED

IP44Ø102x800mm

1 variant

Dimensions

Technical Drawing

Drawing and sizes shown for model LVU4071. This family has 9 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.

Size — model LVU4071

Ø120x185x230mm

Specifications

At a Glance

2 CCT

2700K, 3000K

CRI 80

Colour Rendering

IP44

Protection Rating

2 finishes

Body Finish Options

9 sizes

Ø102x117x136mm, Ø102x500mm, Ø102x800mm, Ø120x185x230mm, Ø120x500mm, Ø120x800mm, Ø95x138x240mm, Ø95x500mm, Ø95x800mm

Model

Model details ↗

Configure your product

LVU4071

Ip Rating

IP44

Body finish

Aluminium · Aluminum

Material

Aluminium · Aluminum

The published options are not mapped to a confirmed order code. Technical review is required before issuing a configuration-specific specification sheet.
