Lumi Ville
LUMIVILLE
Application inspiration · not a project reference
LUMIVILLE is part of Lumi Ville. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Wall Light
LUMIVILLE
LUMIVILLE is a wall light family within the LUMIBRIGHT Lumi Ville collection. Explore 10 models, including LC1007, LVU1511, LVU1512, with model-specific specifications and configuration choices. LC1007 specifications include IP rating: IP65; dimensions: 9"x14". Compare the LUMIVILLE range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

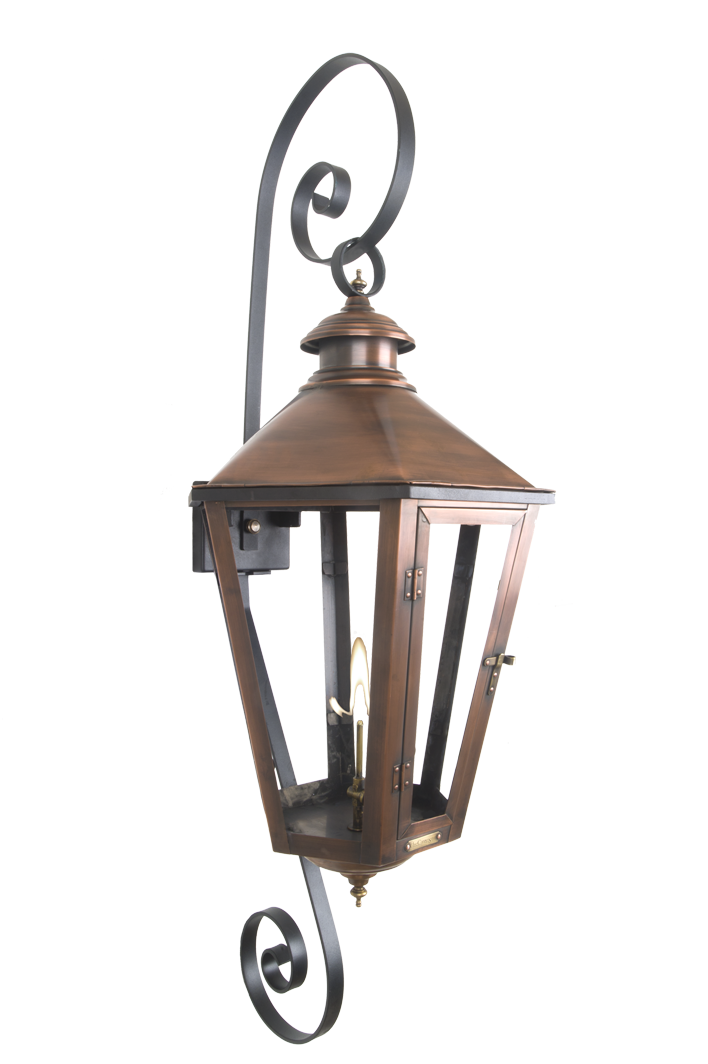

| LC1007 | WattageNot published | CCTNot published | IPIP65 | Dimensions9"x14" | Cut-outNot published |
| LVU1511 | WattageNot published | CCT2700K, 3000K | IPIP54 | Dimensionsφ145x340mm | Cut-outNot published |

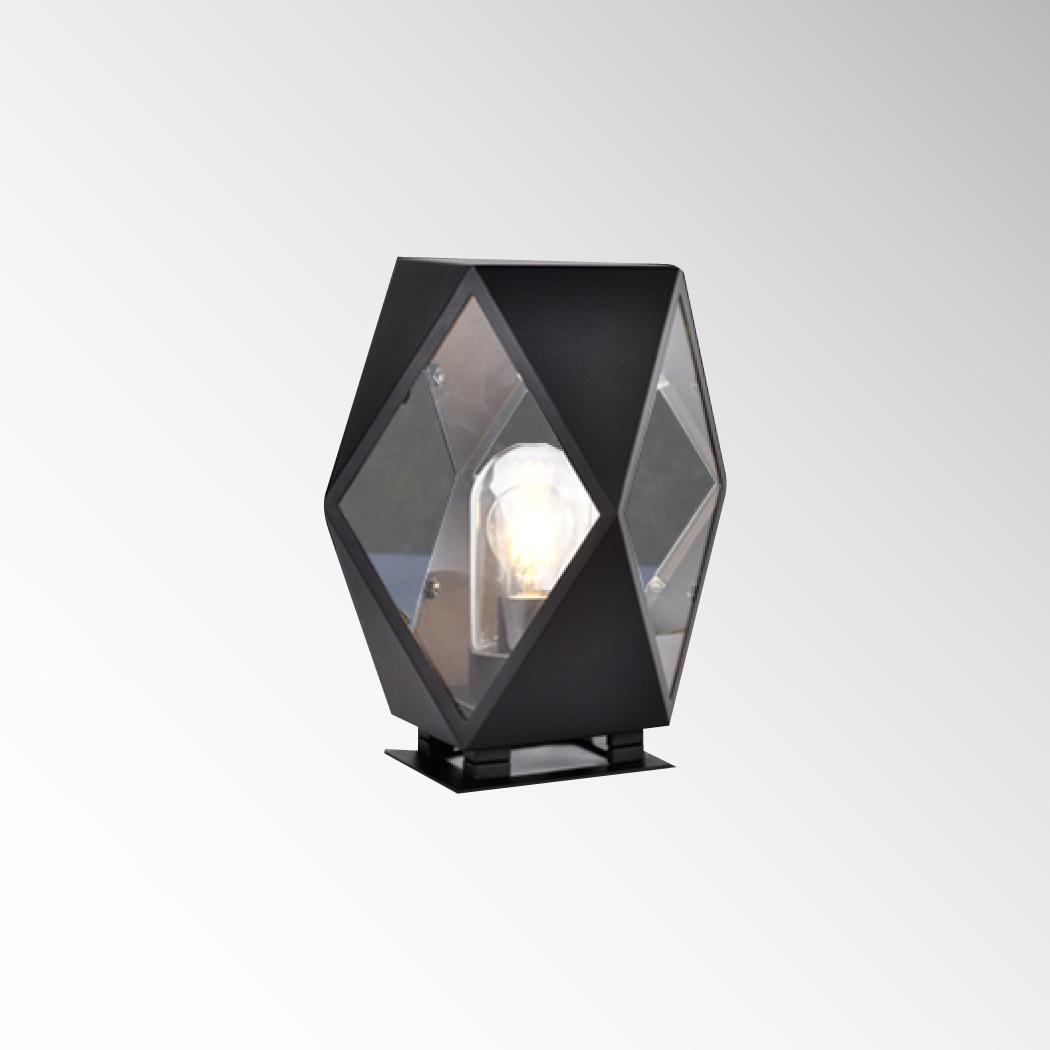

| LVU1512 | WattageNot published | CCT2700K, 3000K | IPNot published | DimensionsL200xW200xH335mm | Cut-outNot published |
| LVU4111 | WattageNot published | CCT2700K, 3000K | IPIP54 | Dimensionsφ145x455xφ122mm | Cut-outNot published |

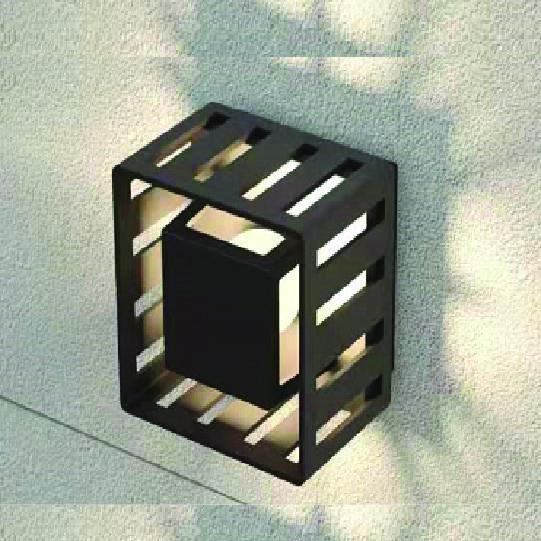

| LVU4114 | Wattage5W | CCT3000K | IPIP54 | Dimensions106x106x90mm | Cut-outNot published |

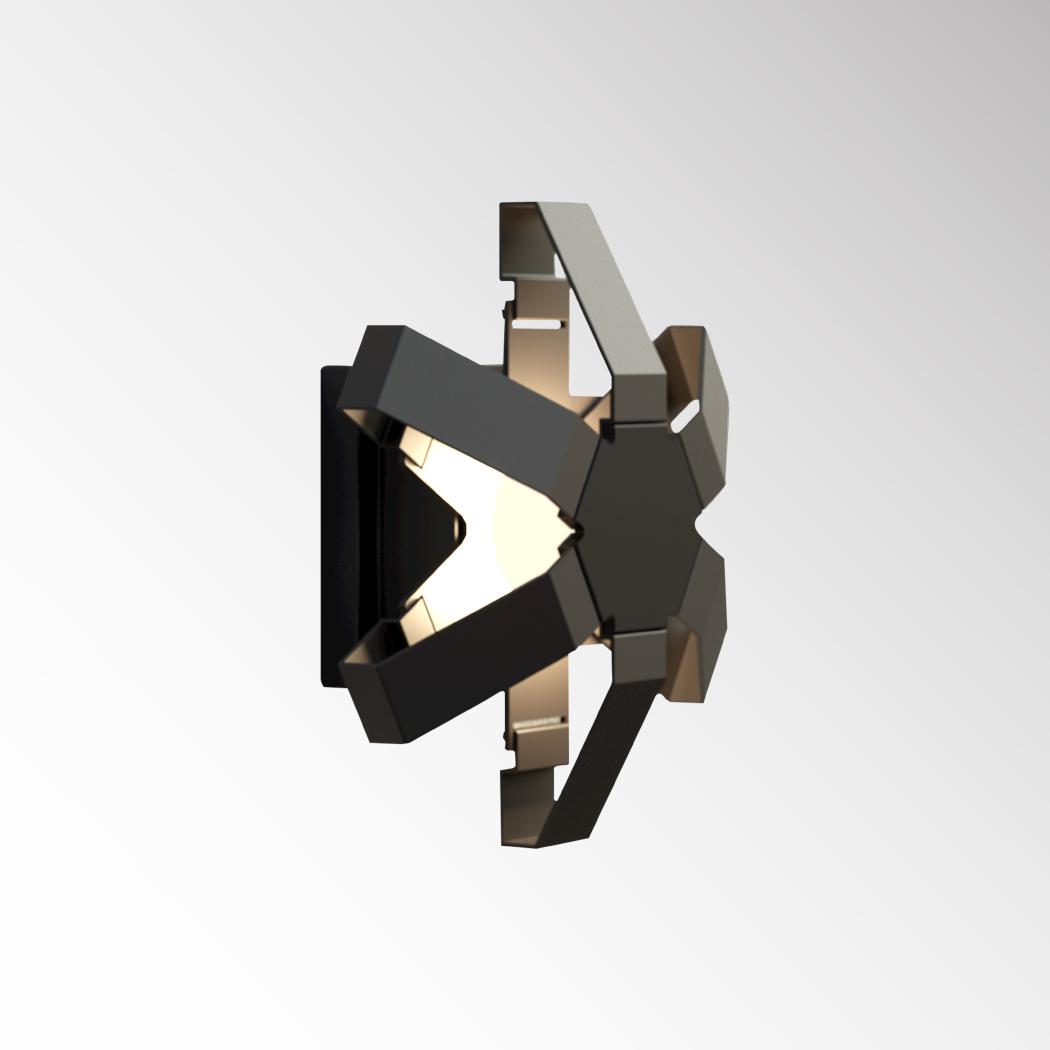

| LVU4120 | Wattage5W | CCT3000K | IPIP54 | Dimensions200x200xH90mm | Cut-outNot published |

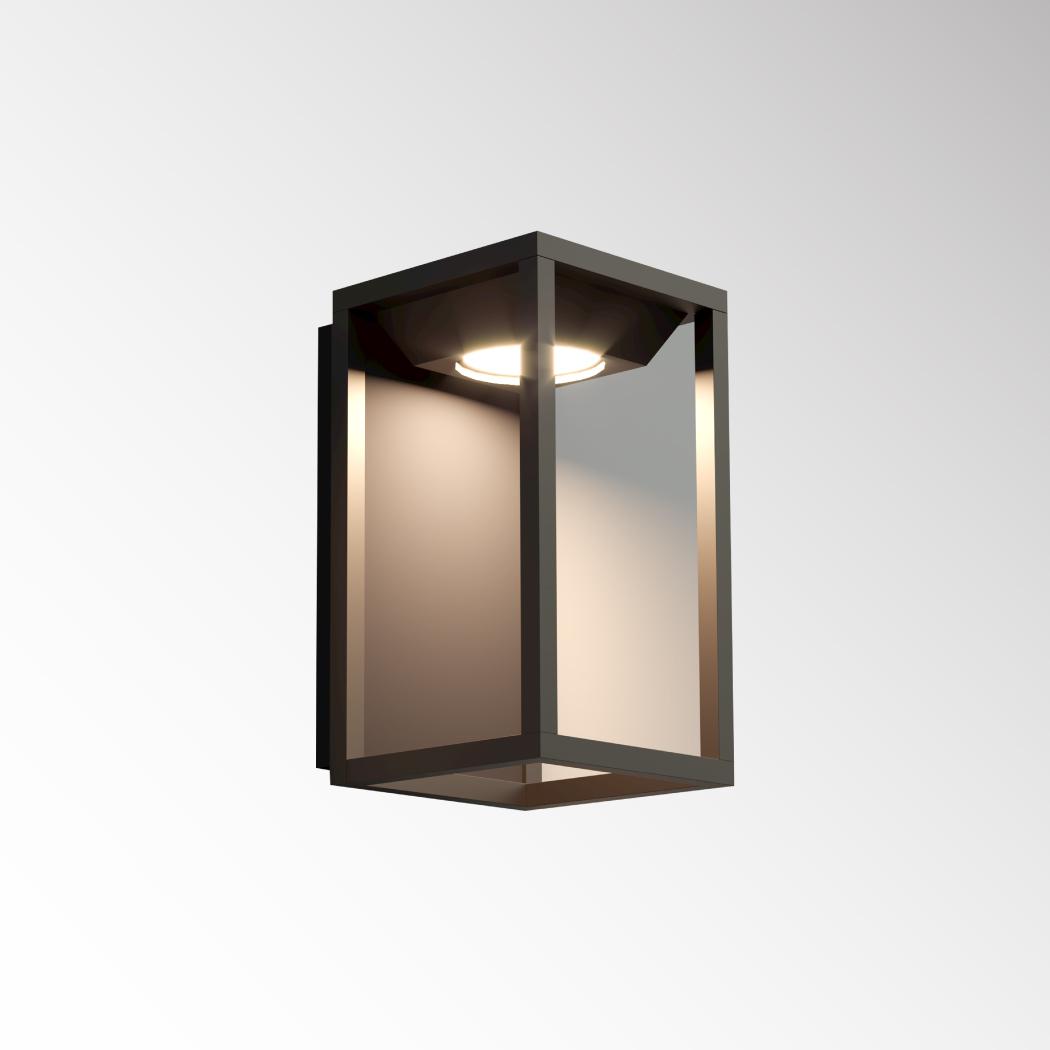

| LVU4127 | Wattage8W | CCT3000K | IPIP54 | Dimensions140x140x350mm | Cut-outNot published |
| LVU9866 | WattageNot published | CCT2700K, 3000K | IPIP54 | Dimensionsφ145x500mm | Cut-outNot published |

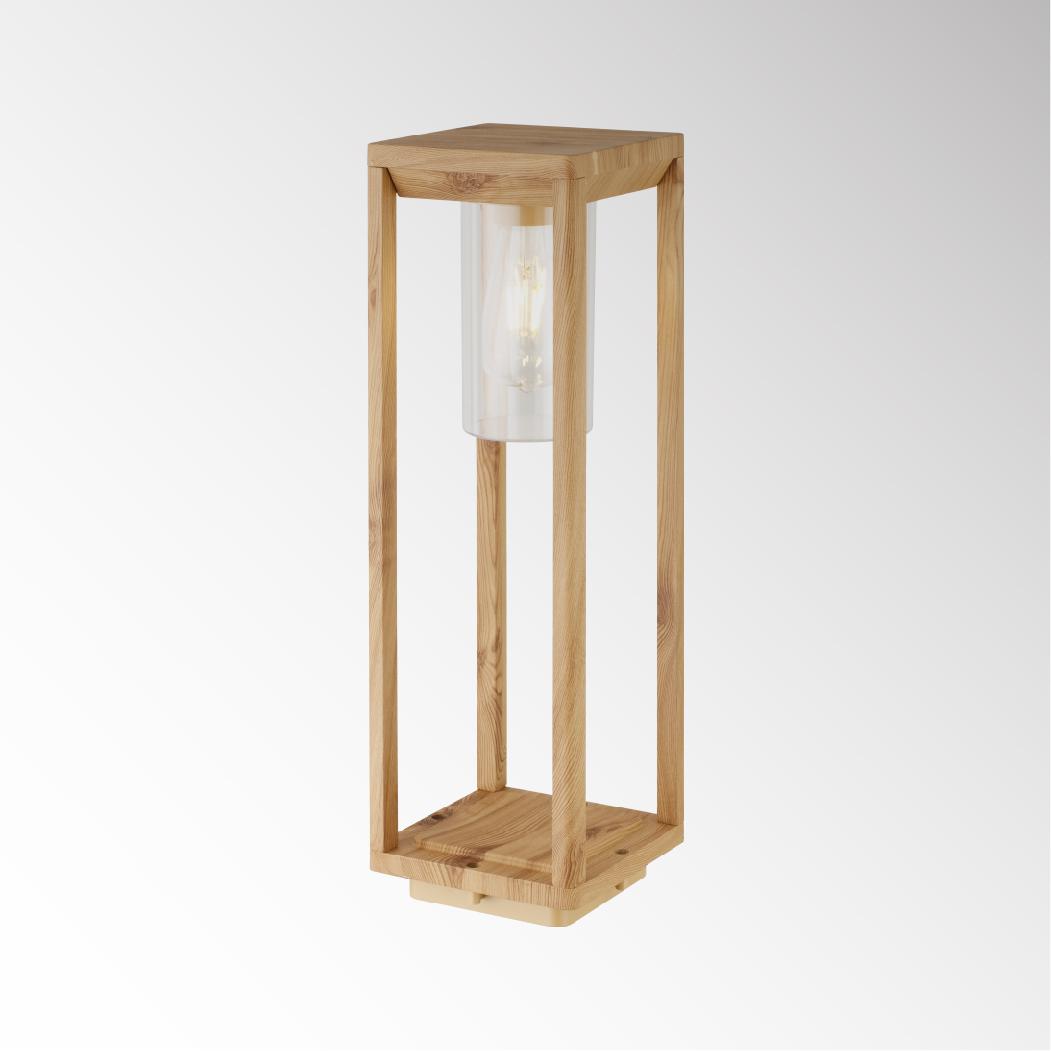

| LVU9871 | WattageNot published | CCT2700K, 3000K | IPIP54 | Dimensions150x150x500mm | Cut-outNot published |

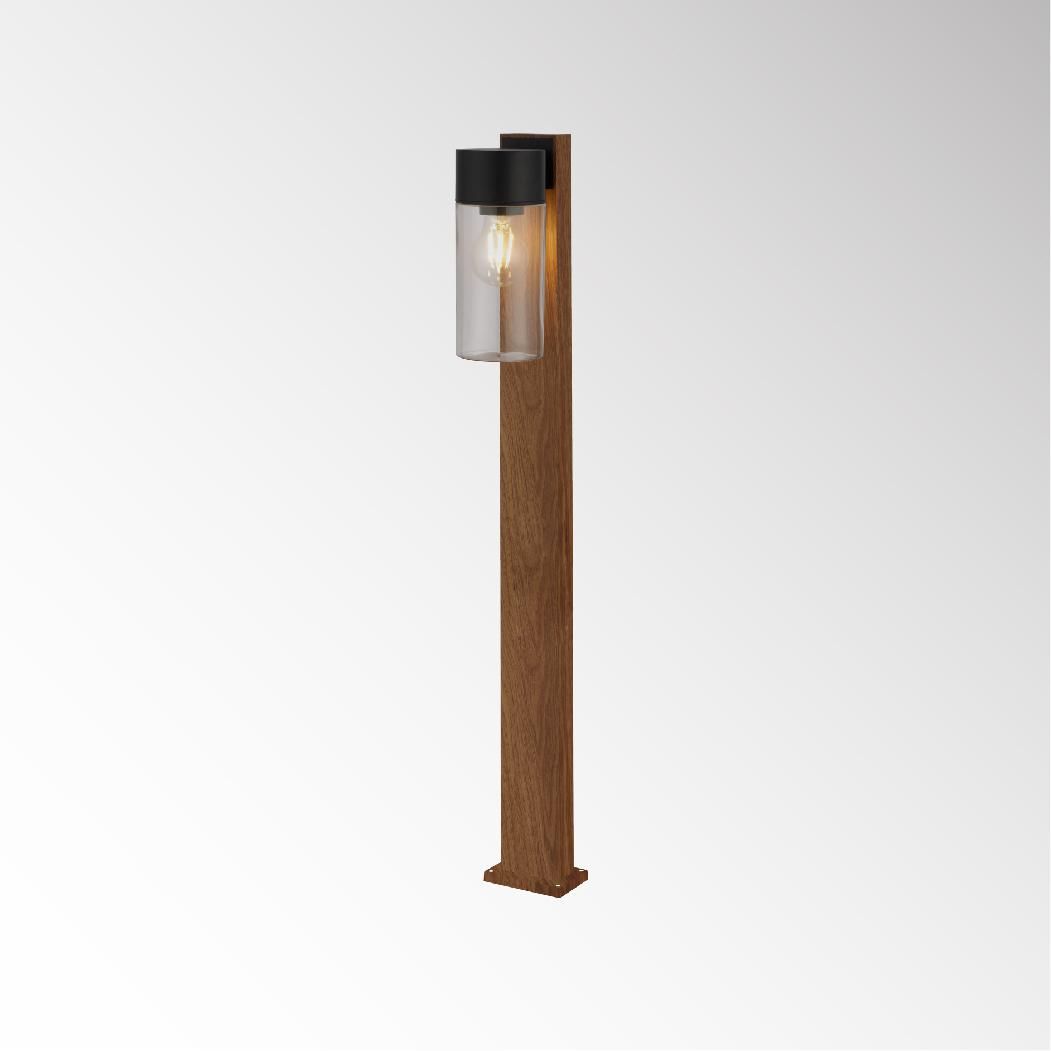

| LVU9872 | WattageNot published | CCT2700K, 3000K | IPIP54 | Dimensions140x95x500mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | 9"x14" · φ145x340mm · L200xW200xH335mm · φ145x455xφ122mm +6 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 5W · 8W |
| Lumen output | 312lm · 375lm · 700lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 180° · DIFFUSED |
| Colour temperature | 2700K · 3000K |
| CRI Ra | > 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP65 · IP54 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 90-260VAC · 85-265VAC |
| Light source | Not published — technical review required |
| Material | Die-cast Aluminium · Pure Aluminium · Aluminium · Die cast Aluminium +4 more |
| Finish | antique-brass · bronze · Antique Brass · black +2 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | 5 Years · 3 Years |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
10 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LC1007. This family has 10 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LC1007
9"x14"
Specifications
At a Glance
5–8W
Power Range
1 options
Beam: 180°
2 CCT
2700K, 3000K
CRI 80
Colour Rendering
IP54
Protection Rating
5 finishes
Body Finish Options
10 sizes
106x106x90mm, 140x140x350mm, 140x95x500mm, 150x150x500mm, 200x200xH90mm, 9"x14", L200xW200xH335mm, φ145x340mm, φ145x455xφ122mm, φ145x500mm
Configure your product
LC1007
Order code
Listed configurationLC1007.E14.WAB
2 listed configurations · availability requires confirmation
