WEX
WEX is a architectural lighting family within the LUMIBRIGHT Lumi Ville collection. The current catalogue groups 12 article codes under this family, including LVU4097, LVU4098, LVU4099. For LVU4097, published values include power: 10W; colour temperature: 3000K; IP rating: IP54; dimensions: 7.25x14x3. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the WEX articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LVU4097 | Wattage10W | CCT3000K | IPIP54 | Dimensions7.25x14x3 | Cut-outNot published |
| LVU4098 | Wattage15W | CCT3000K | IPIP54 | Dimensions7.25x17.7x3 | Cut-outNot published |
| LVU4099 | Wattage5W | CCT3000K | IPIP54 | Dimensions4.5x16x6.2 | Cut-outNot published |
| LVU4100 | Wattage9W | CCT3000K | IPIP54 | Dimensions7x18x6.25 | Cut-outNot published |
| LVU5008 | Wattage36W | CCT2700K, 3000K | IPIP54 | Dimensions24.5x14 | Cut-outNot published |
| LVU5009 | Wattage47W | CCT2700K, 3000K | IPIP54 | Dimensions24.5x20 | Cut-outNot published |
| LVU5010 | Wattage36W | CCT2700K, 3000K | IPIP54 | Dimensions33x18x16.5 | Cut-outNot published |
| LVU5011 | Wattage47W | CCT2700K, 3000K | IPIP54 | Dimensions43x18x16.5 | Cut-outNot published |
| LVU5012 | Wattage36W | CCT2700K, 3000K | IPIP54 | Dimensions24.5x14 | Cut-outNot published |
| LVU5013 | Wattage47W | CCT2700K, 3000K | IPIP54 | Dimensions24.5x20 | Cut-outNot published |
| LVU5014 | Wattage36W | CCT2700K, 3000K | IPIP54 | Dimensions33x18x16.5 | Cut-outNot published |
| LVU5015 | Wattage47W | CCT2700K, 3000K | IPIP54 | Dimensions43x18x16.5 | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | 7.25x17.7x3 · 7.25x14x3 · 4.5x16x6.2 · 7x18x6.25 +4 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 15W · 10W · 5W · 9W +2 more |
| Lumen output | 400lm · 600lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | Not published — technical review required |
| Colour temperature | 2700K · 3000K |
| CRI Ra | 80 · >80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP54 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 90-260VAC · 220-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium,Glass |
| Finish | Aluminium |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
9 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
12 Products
Dimensions
Technical Drawing

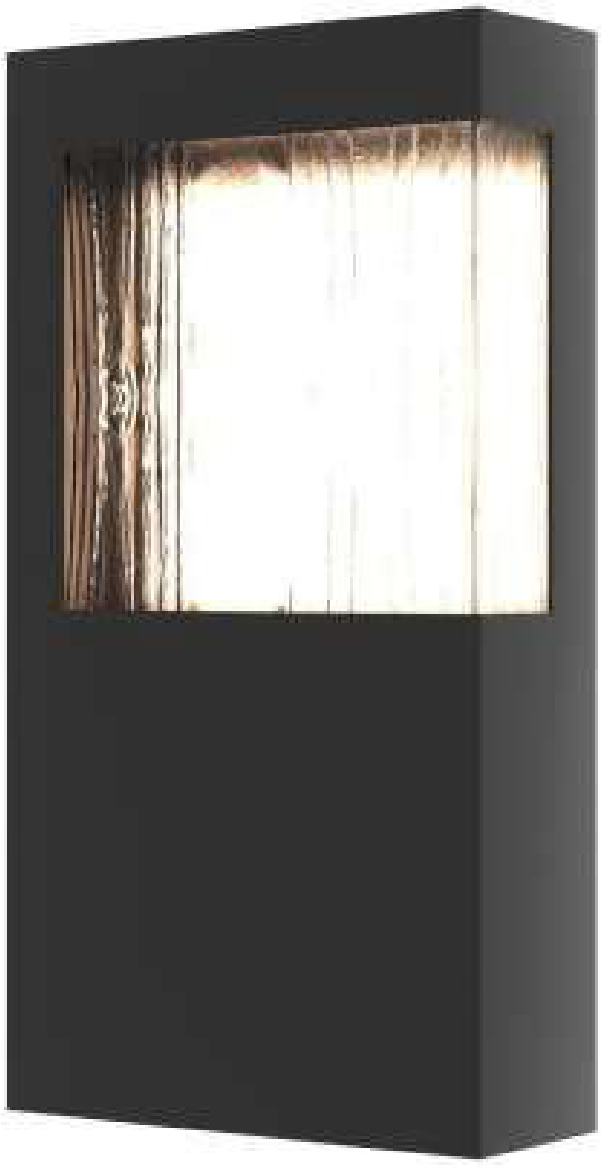

Drawing and sizes shown for model LVU4098. This family has 12 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LVU4098
7.25x17.7x3
Specifications
At a Glance
5–47W
Power Range
2 CCT
2700K, 3000K
CRI 80
Colour Rendering
IP54
Protection Rating
2 finishes
Body Finish Options
8 sizes
24.5x14, 24.5x20, 33x18x16.5, 4.5x16x6.2, 43x18x16.5, 7.25x14x3, 7.25x17.7x3, 7x18x6.25
