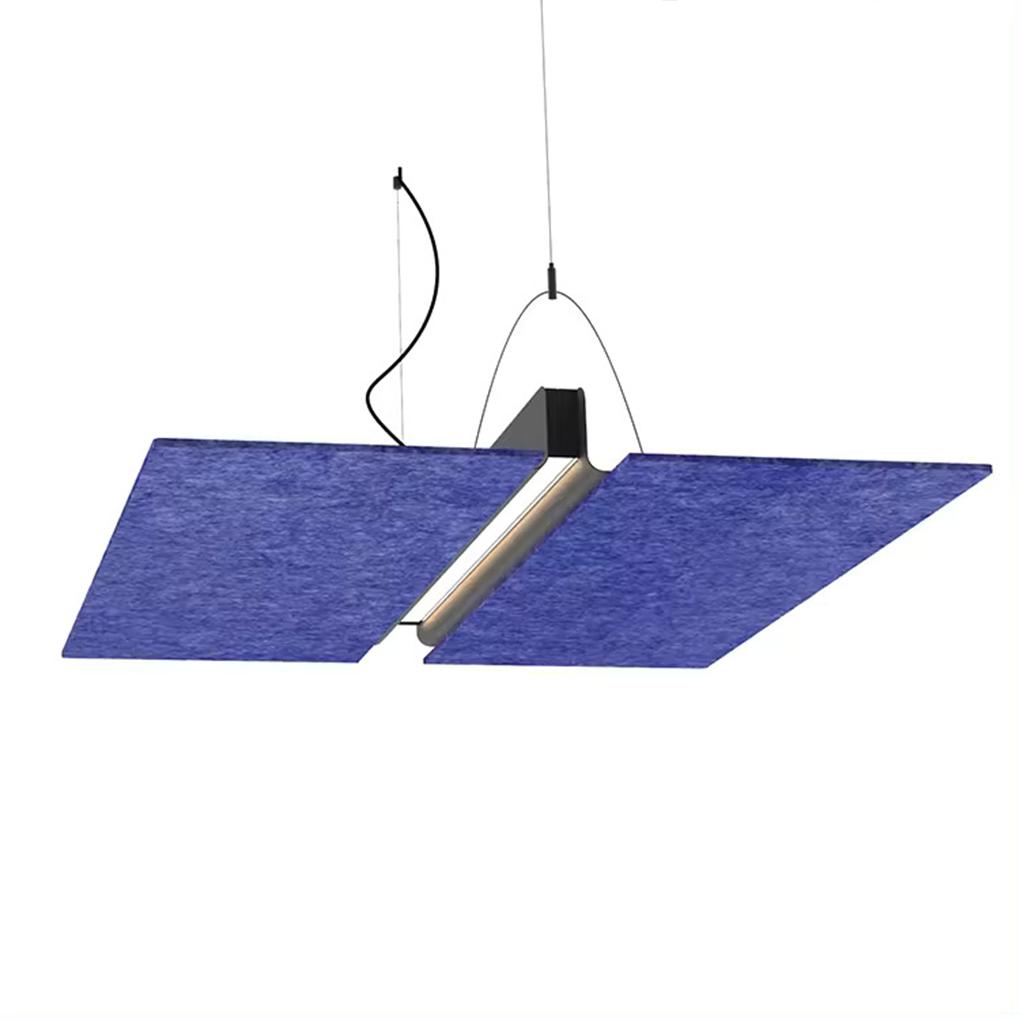

LAC0004 Acoustic Light
LAC0004: specifications and applications
LAC0004 is the AILES LAC0004 - ACOUSTIC LIGHTING lighting model in the lumi acoustic catalogue, listed under ACOUSTIC LIGHTING. This page keeps the specifications, configuration choices and project notes for LAC0004 together, so it can be compared with other AILES models without substituting the dimensions or options of a neighbouring article.
The LAC0004 catalogue record lists power: 36W. Coordinate this load with the circuit schedule and the selected control gear.
The LAC0004 catalogue record lists body dimensions: L1190×W1000 ×H124mm. Check the housing against the architectural detail and the space reserved for installation.
The LAC0004 catalogue record lists colour temperature: 4000K. Compare the listed colour choices with finishes, surrounding light and the intended atmosphere.
The LAC0004 catalogue record lists finish or material: Aluminum+Iron+PC/+PET. Review the stated construction alongside adjoining architectural materials and sample approvals.
The LAC0004 catalogue record lists mounting: suspended-pendant. Check the fixing arrangement and access for installation before finalising the detail.
For open workplaces, hospitality interiors and collaborative rooms, consider how the light source and the acoustic treatment sit within the same ceiling composition. Compare the required illumination with the separate acoustic brief. Model-specific sound absorption data, suspension details and lighting calculations belong in the project review; the product category alone is not an acoustic performance rating.
LAC0004 has 1 listed order-code configuration. The listed code is LAC0004.940.AC42.90. Use the exact listed combination when selecting finishes, colour temperature or optical options; an option appearing elsewhere in the family is not automatically an orderable combination for this article.
For a LAC0004 project submission, retain this model reference with the drawings and the selected configuration. Include the relevant dimensions, optical information and installation requirements in the coordination review. Where a document or value is not available on the page, request the model-specific information from the specification team rather than copying a value from another AILES article.
Model specifications
| Product Type | Acoustic Wing led light |
|---|---|
| Power | 36W |
| Lumen Output | 3060-3240lm |
| Material | Aluminum+Iron+PC/+PET |
| Dimensions | L1190×W1000 ×H124mm |
| Light Source | Voltage: AC 200-240 V(50/60Hz)/Power: 36W UGR<23/Optic: microprismatic Beam Angle: 90° CCT: 4000K/CRI 92 R9>60/Efficiency: 85-90 lm/W Distribute: Direct and Indirect. Light Source: LED(SMD 2835) BOKE DALI Driver(PF>0.95)/ElectricalControl: DALI-2 Electrical Protection: Class I/Working Temperature: -20℃ to 55°C Life Span L80 50000 hours/IP20 |
| Acoustic Panel | Thickness 12MM NRC Max=0.95/Density 2400g/m2 Material: polyester, up to 60% recycled plastic; Fire rating:/EN 13501 Class(B-s1,d0); |
| Mounting | Pendant mounted/– Height adjustable 1.5m suspension rope./– 1.5m length of cable. |
