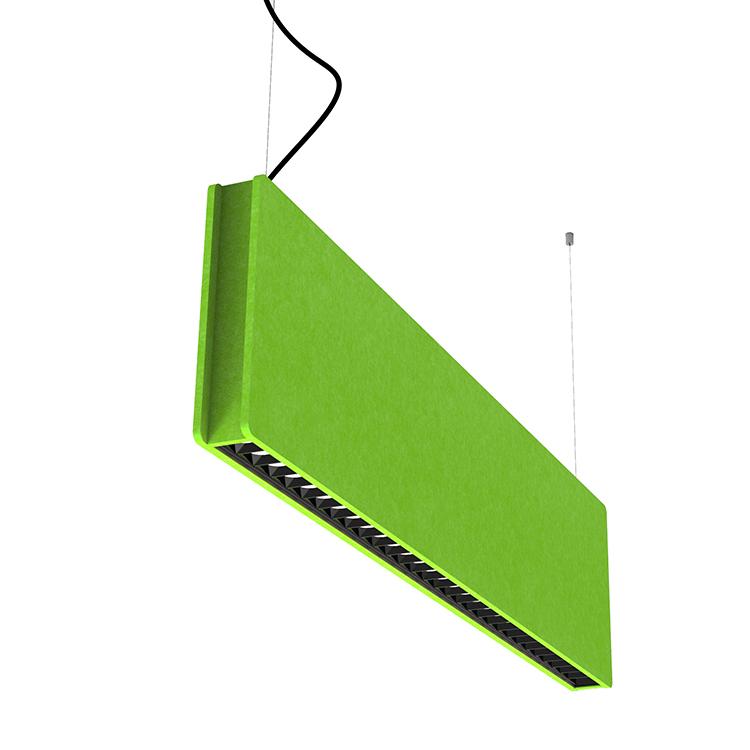

LAC0002 Acoustic Lighting
BASE: LAC0002LINEAL lighting solution with professional specifications
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
1 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Product Information
- Category:
- ACOUSTIC LIGHTING
- Series:
- LINEAL
- Family:
- LINEAL
- Dimension:
- L1198×W64×H300mm
- Light Source:
- Voltage: AC 200-240 V(50/60Hz) UGR＜13/Optic: Lens/Beam Angle: 50° CCT: 4000K/CRI 92 R9＞60/Efficiency: 115 lm/W/Light Source: lumileds (SMD 2835) BOKE DALI Driver(PF＞0.95)/Distribute: Direct and Indirect ElectricalControl: DALI-2 Electrical Protection: Class I/Working Temperature: -20℃ to 55° C Life Span L80 50000 hours/IP20
- Material:
- Aluminum+PMMA/+PET
Catalogue Specification
- Product Type:
- Linear/Acoustic led light
- Power:
- 36W
- Lumen Output:
- 4140lm
- Material:
- Aluminum+PMMA/+PET
- Dimensions:
- L1198×W64×H300mm
- Light Source:
- Voltage: AC 200-240 V(50/60Hz) UGR＜13/Optic: Lens/Beam Angle: 50° CCT: 4000K/CRI 92 R9＞60/Efficiency: 115 lm/W/Light Source: lumileds (SMD 2835) BOKE DALI Driver(PF＞0.95)/Distribute: Direct and Indirect ElectricalControl: DALI-2 Electrical Protection: Class I/Working Temperature: -20℃ to 55° C Life Span L80 50000 hours/IP20
- Acoustic Panel:
- Thickness 9MM NRC Max=0.85/Density 1900g/m2 Material: polyester, up to 60% recycled plastic; Fire rating:/EN 13501 Class(B-s1,d0);
- Mounting:
- Pendant mounted/– Height adjustable 1.5m suspension rope./– 1.5m length of cable.
Applications
LAC0002: specifications and applications
LAC0002 is the LINEAL LAC0002 - ACOUSTIC LIGHTING lighting model in the lumi acoustic catalogue, listed under ACOUSTIC LIGHTING. This page keeps the specifications, configuration choices and project notes for LAC0002 together, so it can be compared with other LINEAL models without substituting the dimensions or options of a neighbouring article.
The LAC0002 catalogue record lists power: 36W. Coordinate this load with the circuit schedule and the selected control gear.
The LAC0002 catalogue record lists body dimensions: L1198×W64×H300mm. Check the housing against the architectural detail and the space reserved for installation.
The LAC0002 catalogue record lists colour temperature: 4000K. Compare the listed colour choices with finishes, surrounding light and the intended atmosphere.
The LAC0002 catalogue record lists finish or material: Aluminum+PMMA/+PET. Review the stated construction alongside adjoining architectural materials and sample approvals.
The LAC0002 catalogue record lists mounting: suspended-pendant. Check the fixing arrangement and access for installation before finalising the detail.
For open workplaces, hospitality interiors and collaborative rooms, consider how the light source and the acoustic treatment sit within the same ceiling composition. Compare the required illumination with the separate acoustic brief. Model-specific sound absorption data, suspension details and lighting calculations belong in the project review; the product category alone is not an acoustic performance rating.
LAC0002 has 1 listed order-code configuration. The listed code is LAC0002.940.AC12.50. Use the exact listed combination when selecting finishes, colour temperature or optical options; an option appearing elsewhere in the family is not automatically an orderable combination for this article.
For a LAC0002 project submission, retain this model reference with the drawings and the selected configuration. Include the relevant dimensions, optical information and installation requirements in the coordination review. Where a document or value is not available on the page, request the model-specific information from the specification team rather than copying a value from another LINEAL article.
Configure your product
LAC0002
Order code
Listed configurationLAC0002.940.AC12.50
1 listed configurations · availability requires confirmation
