Lumi Arc
SPARK
Application inspiration · not a project reference
SPARK is part of Lumi Arc. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Wall Washer
SPARK
SPARK is a wall washer family within the LUMIBRIGHT Lumi Arc collection. The current catalogue groups 6 article codes under this family, including LB7045, LBP2004, LBP7040. For LB7045, published values include colour temperature: 3000K. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the SPARK articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LB7045 | WattageNot published | CCT3000K | IPNot published | DimensionsNot published | Cut-outNot published |
| LBP2004 | Wattage10W | CCT3000K/4000K/5000K (Switchable) | IPIP20 | DimensionsØ106xH42mm | Cut-outØ90-95mm |
| LBP7040 | Wattage24x1W | CCT2700K, 3000K, 4000K, 6000K | IPIP65 | DimensionsL1000x35x53mm | Cut-outNot published |

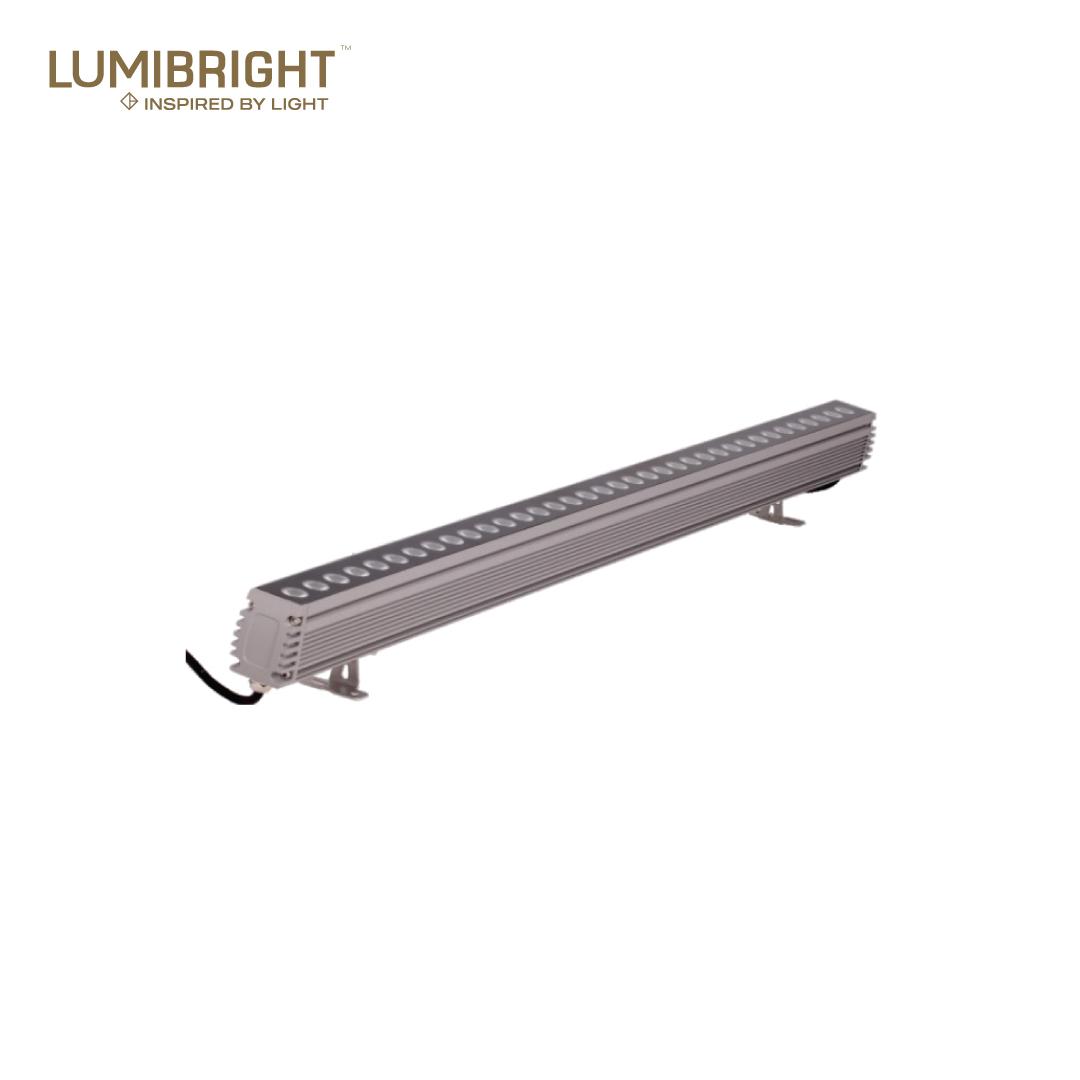

| LBP7041 | Wattage36W | CCT6000K | IPIP65 | DimensionsL1000xW45xH90mm | Cut-outNot published |
| LBP7042 | Wattage36W | CCT3000K | IPIP65 | DimensionsL600xW45xH90mm | Cut-outNot published |
| LBP7045 | Wattage36W | CCT4000K | IPIP67 | DimensionsL1000mm*W40mm*H107mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø106xH42mm · L1000x35x53mm · L1000xW45xH90mm · L600xW45xH90mm +1 more |
|---|---|
| Cut-out | Ø90-95mm |
| Power | 30W · 10W |
| Lumen output | Not published — technical review required |
| Efficacy | 100-105LM/W |
| Optics / beam angle | 8° · 15° · 25° · 40° +1 more |
| Colour temperature | 3000K · 4000K · 6000K · Switch +1 more |
| CRI Ra | 80+/90+ |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 · IP65 · IP67 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 200-240VAC · AC · 220-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | grey-sand · black-sand · dark-grey · graphite +2 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
6 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LBP2004. This family has 6 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBP2004
Ø106xH42mm
Cut-Out
Ø90-95mm
Specifications
At a Glance
1–36W
Power Range
10 options
Beam: 8°, 10°, 15°, 20°, 25°, 30°, 40°, 45°, 60°, 90°
4 CCT
3000K, 4000K, 5000K, 6000K
Switch
Colour Options
CRI 80/90
Colour Rendering
IP20 / IP65 / IP67
Protection Rating
6 finishes
Body Finish Options
5 sizes
L1000mm*W40mm*H107mm, L1000x35x53mm, L1000xW45xH90mm, L600xW45xH90mm, Ø106xH42mm
Ø90-95mm
Cut-Out
Configure your product
LBP2004
Order code
Listed configurationLBP2004.S.8CCTS.WWH.90.DR
1 listed configurations · availability requires confirmation
