Lumi Brick
PIXNIC
Application inspiration · not a project reference
PIXNIC is part of Lumi Brick. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Brick Light
PIXNIC
PIXNIC is a brick light family within the LUMIBRIGHT Lumi Brick collection. Explore 22 models, including LBK1001, LBK1002, LBK1003, with model-specific specifications and configuration choices. LBK1001 specifications include power: 1.3W; colour temperature: 3000K/4000K/5000K/6000K; IP rating: IP67; dimensions: 100x100x70mm. Compare the PIXNIC range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

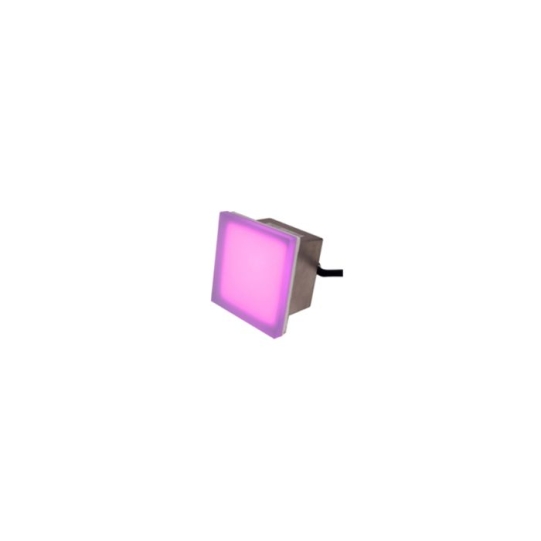

| LBK1001 | Wattage1.3W | CCT3000K/4000K/5000K/6000K | IPIP67 | Dimensions100x100x70mm | Cut-outNot published |

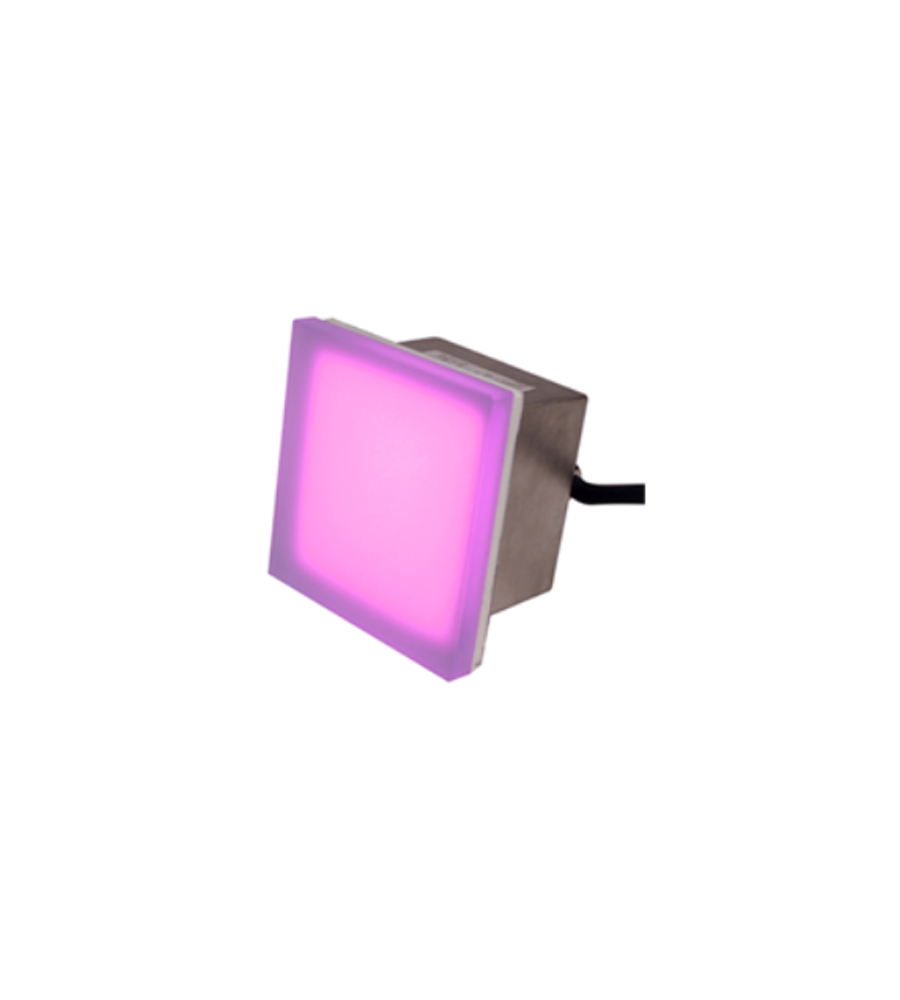

| LBK1002 | Wattage4W | CCT3000K/4000K/5000K/6000K | IPIP67 | Dimensions200*200*70mm | Cut-outNot published |
| LBK1003 | Wattage1.3W | CCTRGB | IPIP67 | Dimensions100x100x70mm | Cut-outNot published |
| LBK1004 | Wattage7.8W | CCT3000K/4000K/5000K/6500K | IPIP67 | Dimensions300x300x70mm | Cut-outNot published |
| LBK1006 | Wattage15.6W | CCT3000K/4000K/5000K/6000K | IPIP67 | Dimensions400x400x70mm | Cut-outNot published |
| LBK1038 | Wattage36W | CCT3000K | IPIP67 | DimensionsL600xW1200xH55mm | Cut-outNot published |
| LBK1039 | Wattage12W | CCT3000K | IPIP67 | DimensionsL300xW300xH55mm | Cut-outNot published |
| LBK1040 | Wattage21W | CCT3000K | IPIP67 | DimensionsL600xW600xH55mm | Cut-outNot published |

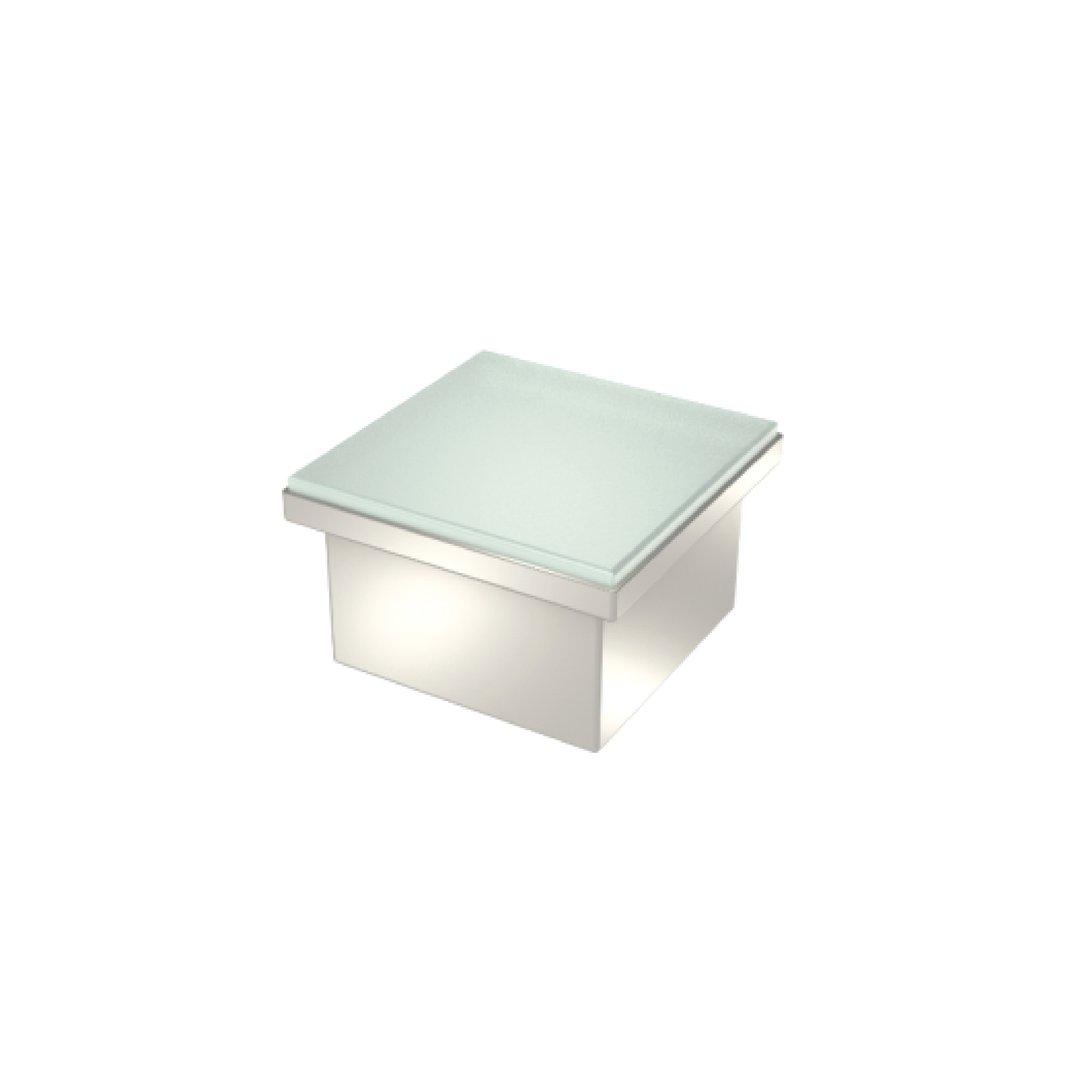

| LBK1041 | Wattage2W | CCT3000K | IPIP67 | DimensionsL75xW75xH60mm | Cut-outNot published |
| LBK1042 | Wattage7W | CCTRED | IPIP68 | Dimensions100x100x80mm(including back box height) | Cut-outNot published |
| LBK1043 | Wattage3W | CCTBLUE | IPIP65 | DimensionsL150xW150xH60mm(with back box) | Cut-outNot published |

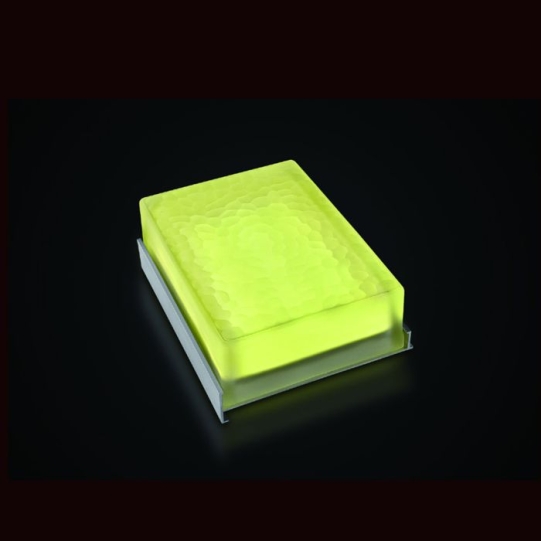

| LBK2001 | Wattage2.6W | CCT3000K/4000K/6000K | IPIP67 | Dimensions192x142x60mm | Cut-outNot published |

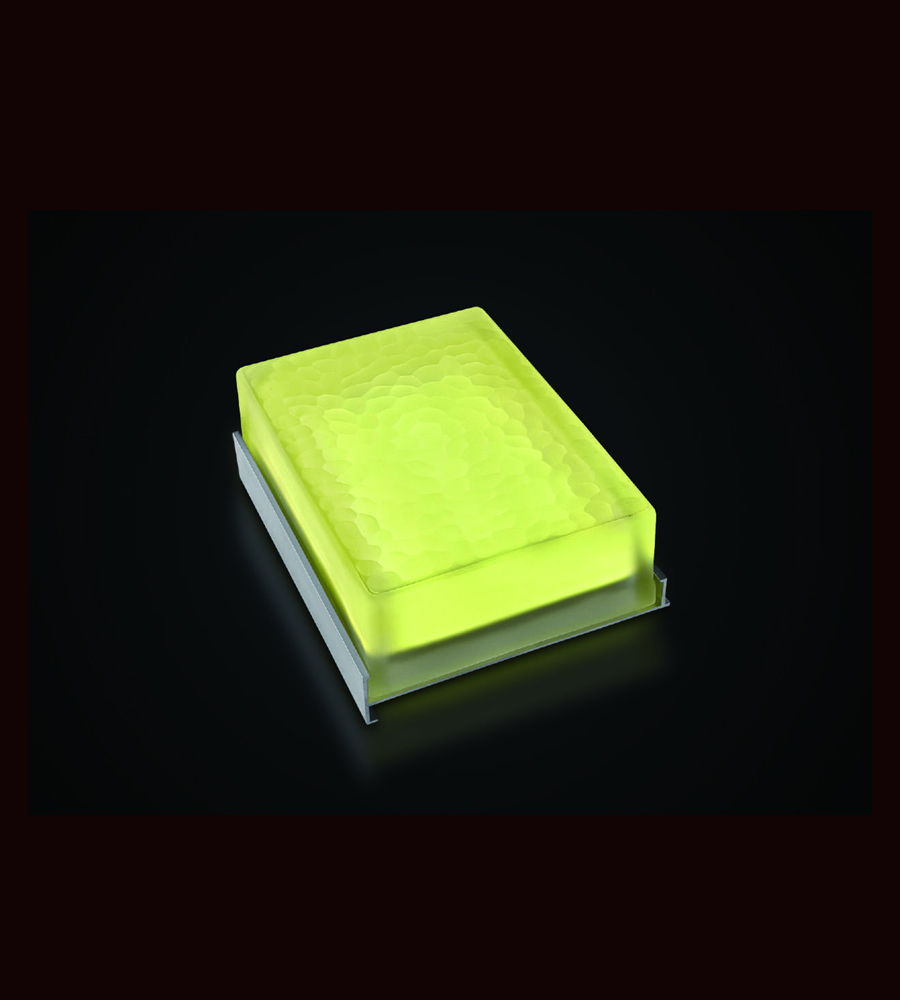

| LBK2002 | Wattage2.6W | CCTRGB | IPIP67 | Dimensions192x142x60mm | Cut-outNot published |

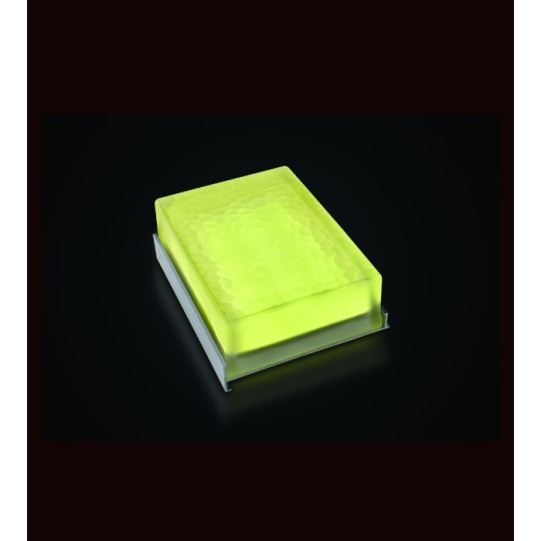

| LBK2003 | Wattage2.6W | CCTRGBW | IPIP67 | Dimensions192x142x60mm | Cut-outNot published |

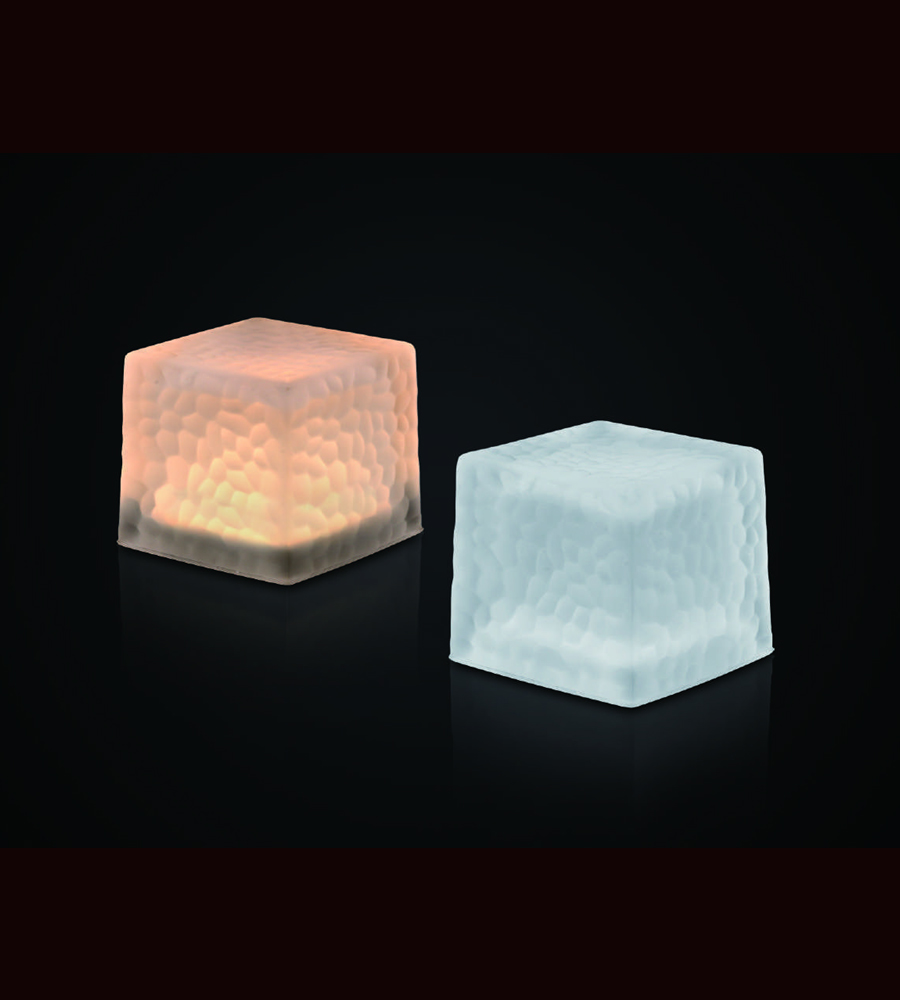

| LBK2004 | Wattage1.3W | CCT3000K/4000K/6000K | IPIP67 | Dimensions100x100x100mm | Cut-outNot published |

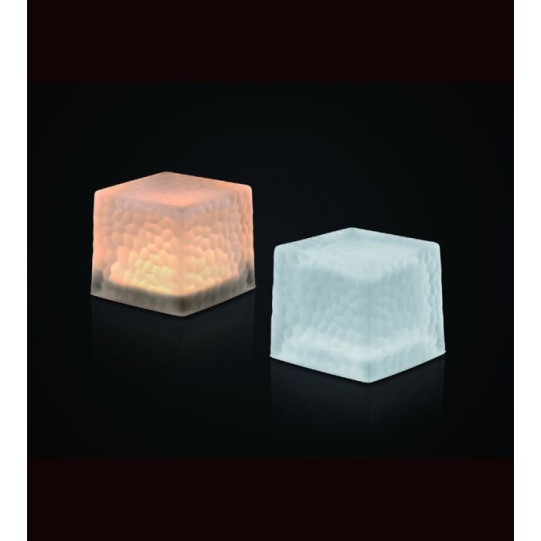

| LBK2005 | Wattage1.3W | CCTRGB | IPIP67 | Dimensions100x100x100mm | Cut-outNot published |
| LBK2007 | Wattage2.6W | CCT3000K/4000K/6000K | IPIP67 | Dimensions200x100x48mm | Cut-outNot published |

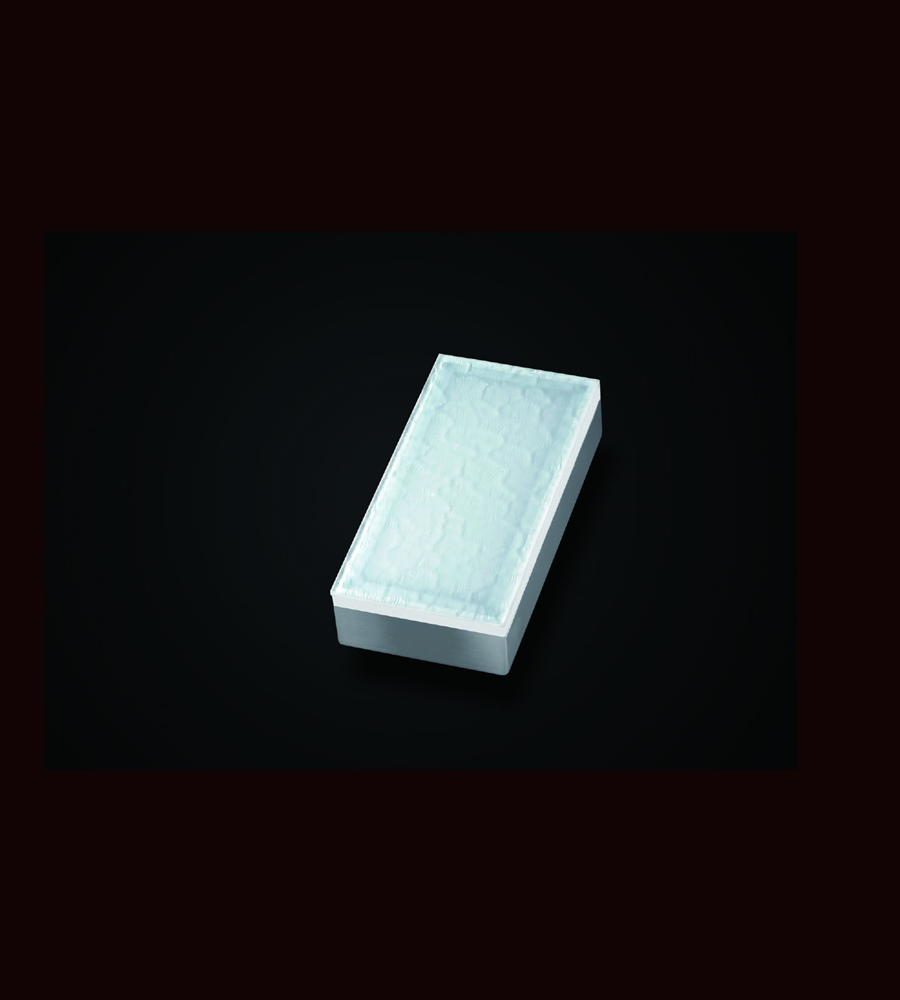

| LBK2008 | Wattage2.6W | CCTRGBW | IPIP67 | Dimensions200x100x48mm | Cut-outNot published |

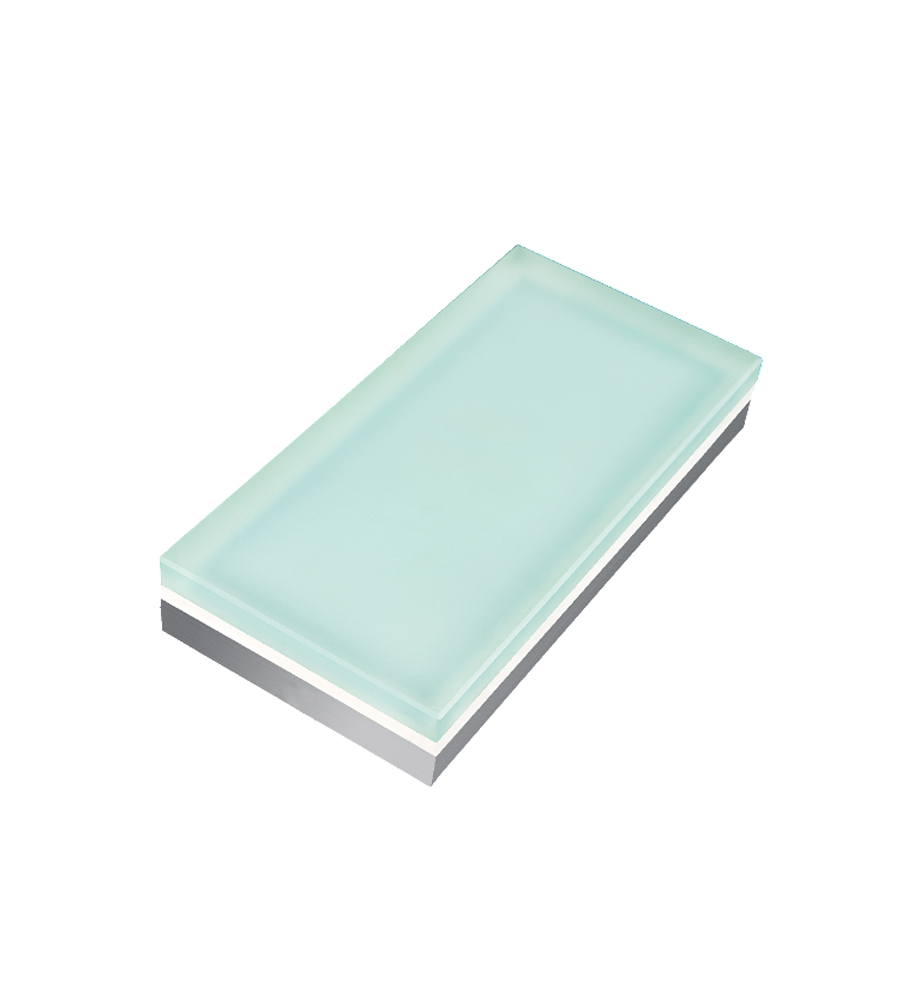

| LBK5009 | Wattage36W | CCT3000K | IPIP67 | DimensionsL600xW1200xH55mm | Cut-outNot published |
| LBK5010 | Wattage12W | CCT3000K | IPIP67 | DimensionsL600xW122xH97mm | Cut-outNot published |

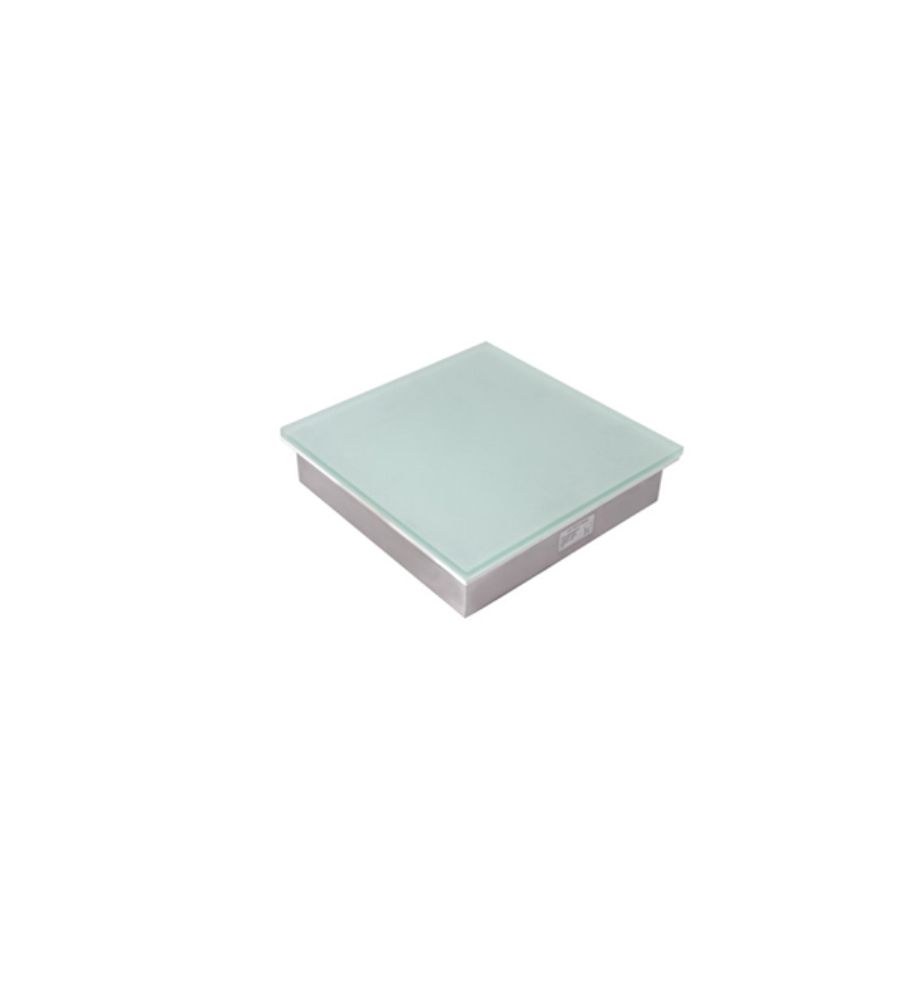

| LBKT001 | Wattage8W | CCTRGB | IPIP67 | Dimensions300x300x60mm | Cut-outNot published |
| LBKT002 | Wattage9.6W | CCT3000K | IPIP67 | Dimensions600x600x40mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | 100x100x70mm · 200*200*70mm · 200x200x70mm · 300x300x70mm +10 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 1.3W · 2W · 2.6W · 4W +7 more |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 120° · DIFFUSED |
| Colour temperature | 3000K · 4000K · 5000K · 6000K +7 more |
| CRI Ra | 70 · 75 · 80 · >80 +3 more |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP67 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 24VAC · 24VDC · 12VDC |
| Light source | Not published — technical review required |
| Material | Stainless Steel + 12mm Toughened Glass · Stainless Steel + 10mm Toughened Glass · Stainless Steel + 12mm Tempered Glass · Stainless Steel + 15mm Toughened Glass +3 more |
| Finish | dark-grey · frosted · Dark Grey |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
9 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
19 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LBK1001. This family has 19 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBK1001
100x100x70mm
Specifications
At a Glance
1.3–36W
Power Range
2 options
Beam: 110°, 120°
5 CCT
3000K, 4000K, 5000K, 6000K, 6500K
BLUE / GREEN / RED / RGB / RGBW(3000K) / YELLOW
Colour Options
CRI 75/80
Colour Rendering
IP67
Protection Rating
2 finishes
Body Finish Options
13 sizes
100x100x100mm, 100x100x70mm, 192x142x60mm, 200*200*70mm, 200x100x48mm, 300x300x60mm, 300x300x70mm, 400x400x70mm, 600x600x40mm, L300xW300xH55mm, L600xW1200xH55mm, L600xW600xH55mm, L75xW75xH60mm
Configure your product
LBK1001
Order code
Listed configurationLBK1001.W.730.FRS.120
8 listed configurations · availability requires confirmation
