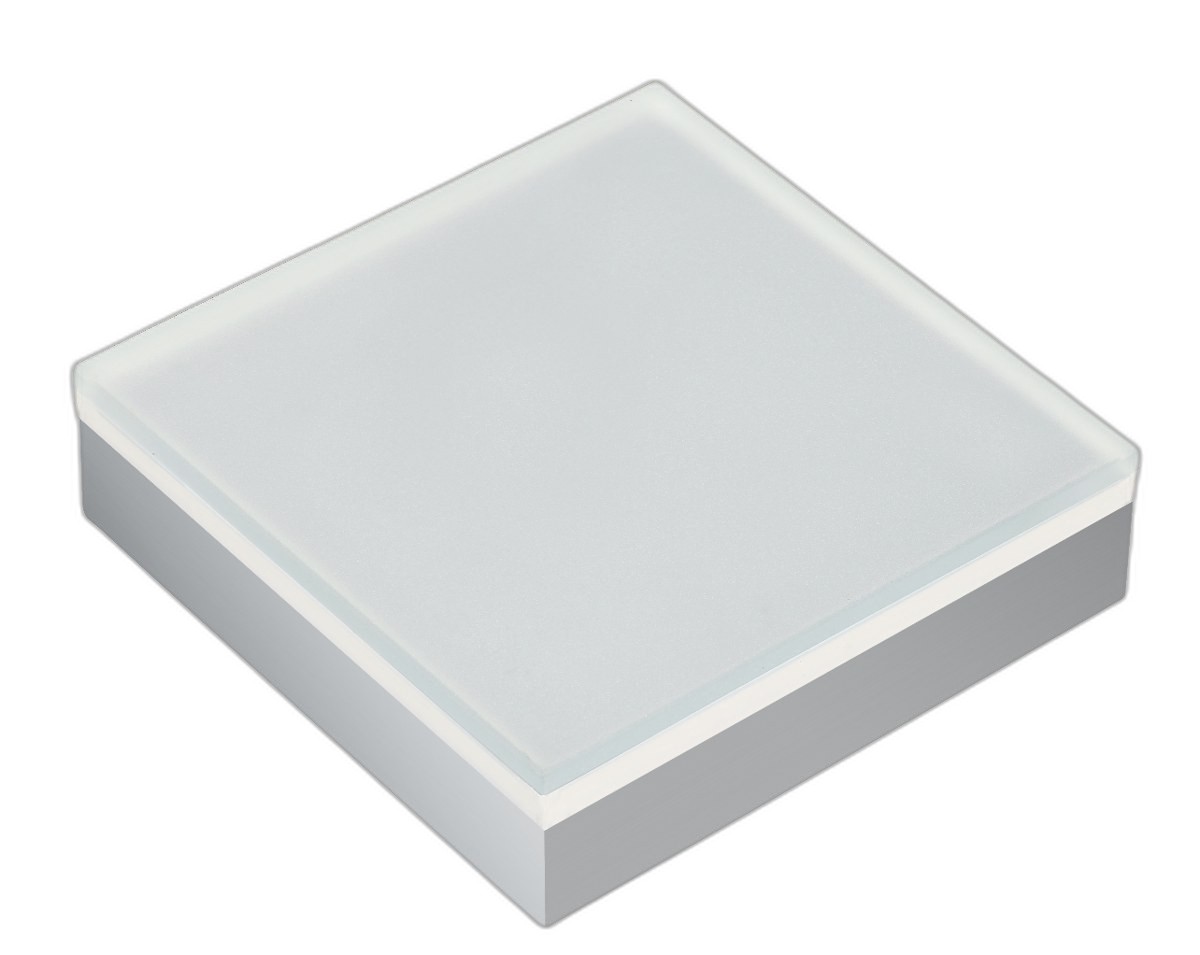

LBK1039 Brick Light
BASE: LBK1039PIXNIC brick light for architectural outdoor applications with IP67 rating
Specifications at a Glance
12W
Power
3000K
Available Colour Temperatures
CRI ≥80
Colour Rendering Index
IP67
Protection Rating
DIFFUSED
Beam Angle
24VDC
Input
L300xW300xH55mm
Body Dimensions
Frosted
Available Finishes
floor-recessed, wall-mounted, wall-recessed
Mounting Type
LED
LED Chip
50,000Hrs
LED Life Time
Stainless steel
Material
−20°C ～+45°C
Operating Temperature
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
1 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
LBK1039.W.830.FRS.D
CCT:
3000K
Power:12W
Beam:
Finish:
CRI ≥80IP67Frosted
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- BRICK LIGHT
- Series:
- PIXNIC
- Family:
- PIXNIC
- Dimension:
- L300xW300xH55mm
- Input Voltage:
- 24VDC
- Light Source:
- LED
- Material:
- Stainless steel
- Life Time:
- 50,000Hrs
- Operating Temp:
- −20°C ～+45°C
Catalogue Specification
- Light Source:
- LED
- Power:
- 12W
- Input Voltage:
- 24VDC
- Beam Angle:
- 120°
- Colour Temperature:
- 3000K
- CRI:
- ≥80
- LED Life Time:
- 50,000Hrs
- Dimensions:
- L300xW300xH55mm
- Dimming / Function:
- on/off
- Material:
- Stainless steel
- Operating Temperature:
- −20°C ～+45°C
- IP Rating:
- IP67
Applications
Architectural
Configure your product
LBK1039
Order code
Listed configurationLBK1039.W.830.FRS.D
1 listed configurations · availability requires confirmation
