COB STRIP
LUMI FLEX
IP20

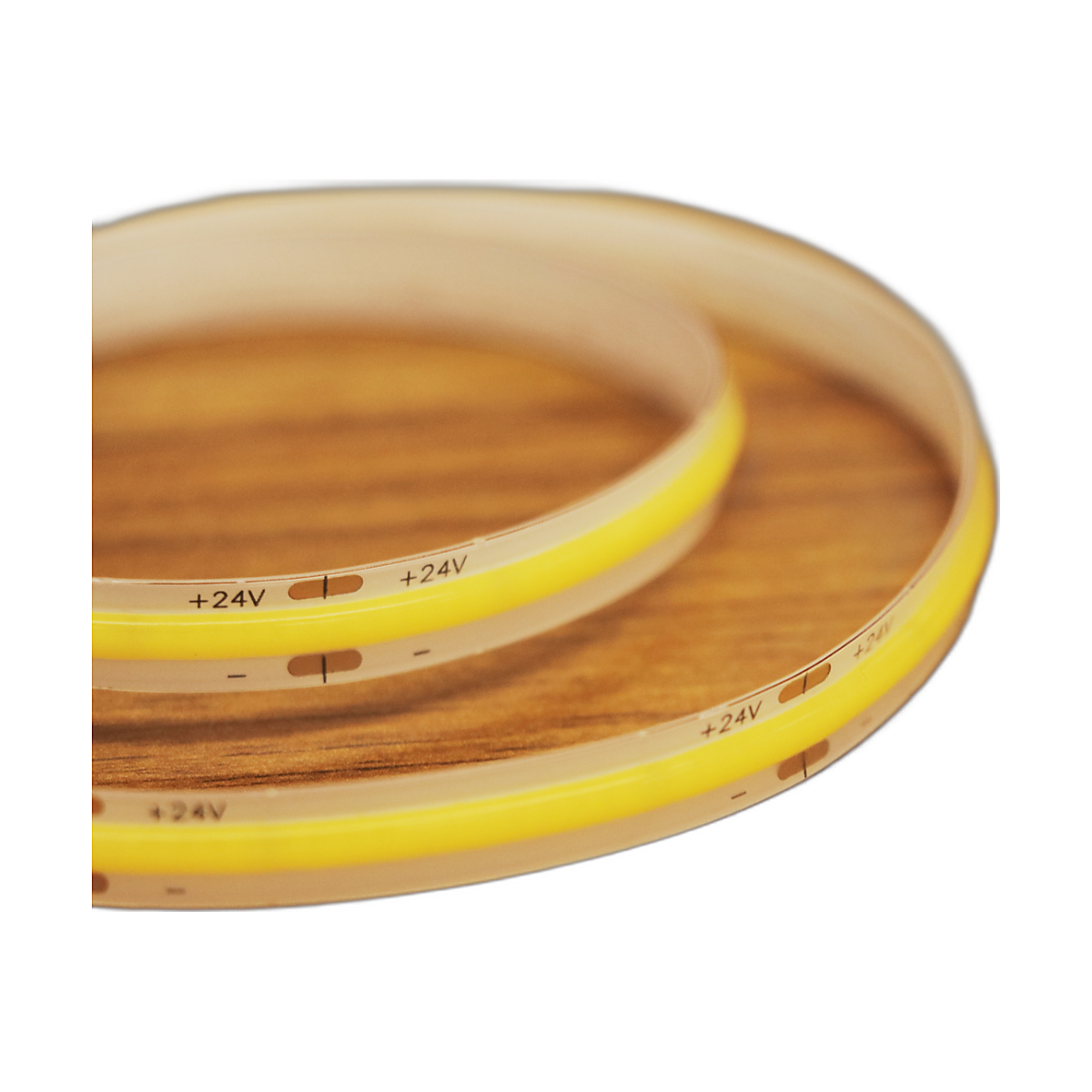

LUMIFLEX 25W 24VDC COB LED STRIP LIGHT IP20

BASE: LF1097

The LUMIFLEX COB STRIP is a 25W LED strip light offering 473 lumens with a color temperature range of 2700K to 6500K. Ideal for joinery, cabinets, and architectural coves, it features a high CRI of ≥90 for true color rendering and a 120° beam angle for uniform lighting. With a lifespan of 50,000 hours and a 5-year warranty, it ensures reliability and performance in demanding indoor environments.

LUMIFLEX 25W 24VDC COB LED STRIP LIGHT IP20
Specifications at a Glance
25W
Power
2700K-473lm,3000K-502lm,4000K-542lm,6500K-546lm
Lumen Output
2700K3000K4000K5000K6500K
Available Colour Temperatures
IP20
Protection Rating
120°
Beam Angle
24VDC
Input
10x5000mm
Body Dimensions
COB LED
LED Chip
50,000Hrs
LED Life Time
PCB
Material
-20°C~+45°C
Operating Temperature
5 Years (Replace)
Warranty
INDOOR
Usage
Certifications & Compliance
CE
RoHS
IP20
5 Year Warranty

CONFIGURE YOUR PRODUCT

Select your preferred specifications to generate the exact order code.

120°
Generated Order Code
LF1097.W.927.25.NWP
Available

Total Available Configurations: 4

Your Configuration

Color Temperature
2700K
Dimming
💡
On/Off
Beam Angle
120°
Need help configuring? Contact our sales team for assistance.

AVAILABLE CONFIGURATIONS

4 standard configurations ready for immediate order

Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.

LF1097.W.927.25.NWP
CCT:
2700K
Power:25W
Lumen:473lm
Beam:
120°
Finish:
White
CRI ≥90IP20
LF1097.N.940.25.NWP
CCT:
4000K
Power:25W
Lumen:542lm
Beam:
120°
Finish:
White
CRI ≥90IP20
LF1097.C.965.25.NWP
CCT:
6500K
Power:25W
Lumen:546lm
Beam:
120°
Finish:
White
CRI ≥90IP20
LF1097.W.930.25.NWP
CCT:
3000K
Power:25W
Lumen:502lm
Beam:
120°
Finish:
White
CRI ≥90IP20

Need Custom Options?

Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.

Questions about configurations? Contact our sales team for technical assistance.

Product Information

Category:
STRIP LIGHT
Series:
COB STRIP
Family:
COB STRIP
Dimension:
10x5000mm
Input Voltage:
24VDC
Light Source:
COB LED
Material:
PCB
Life Time:
50,000Hrs
Operating Temp:
-20°C~+45°C
Warranty:
5 Years (Replace)
Usage:
INDOOR
