SMD 2835
LUMI FLEX
IP65

LF1169.T.8TW.48.WP

BASE: LF1169

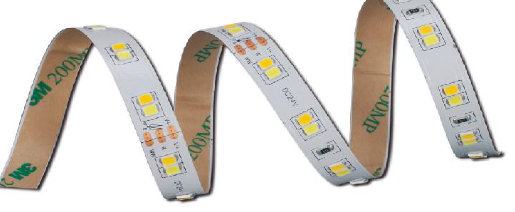

The LUMIFLEX SMD 2835 strip light delivers 110lm/W with a robust IP65 rating, ensuring durability in outdoor environments. Ideal for sheltered outdoor use, it enhances façade details, signage, and soffits with its glare-free 120° beam angle. With a lifespan of 50,000 hours and available in 3000K and 6000K color temperatures, it provides reliable, high-quality illumination for architectural lighting projects.

LF1169.T.8TW.48.WP
Specifications at a Glance
9.6W/m
Power
110lm/W
Lumen Output
2700-6000K(Tunable)3000K3000K+6000K4000K5000K
Available Colour Temperatures
IP65
Protection Rating
120°
Beam Angle
24VDC
Input
Certifications & Compliance
CE
RoHS
IP65
5 Year Warranty

CONFIGURE YOUR PRODUCT

Select your preferred specifications to generate the exact order code.

120°
Generated Order Code
LF1169.T.8TW1.48.WP
Available

Total Available Configurations: 2

Your Configuration

Color Temperature
2700K
Dimming
💡
On/Off
Beam Angle
120°
Need help configuring? Contact our sales team for assistance.

AVAILABLE CONFIGURATIONS

2 standard configurations ready for immediate order

Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.

LF1169.T.8TW.48.WP
CCT:
3000K
Power:48W
Lumen:110lm/W
Beam:
120°
Finish:
White
CRI ≥80IP65
LF1169.T.8TW1.48.WP
CCT:
2700K
Power:48W
Lumen:110lm/W
Beam:
120°
Finish:
White
CRI ≥80IP65

Need Custom Options?

Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.

Questions about configurations? Contact our sales team for technical assistance.

Product Information

Category:
STRIP LIGHT
Series:
SMD 2835
Family:
SMD 2835
