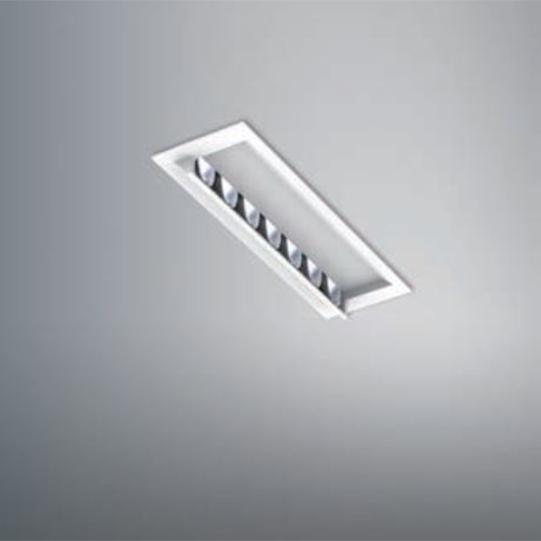

AIKEN L01127 - CEILING RECESSED LIGHT
BASE: L01127AIKEN lighting solution with professional specifications
Specifications at a Glance
8W
Power
387LM
Lumen Output
2700K3000K4000K6000K
Available Colour Temperatures
CRI 80CRI 90
Colour Rendering Index
IP20
Protection Rating
UGR<19
UGR / Optics
150mA
Input
152x40mm
Cutout Size
66mm x 304mm x 164mm
Body Dimensions
BlackWhite
Available Finishes
Non-DimmableDALITriac0/1-10V
Dimming Options
recessed-downlight, surface-mounted
Mounting Type
Certifications & Compliance
CE
RoHS
IP20
5 Year Warranty
CONFIGURE YOUR PRODUCT
Select your preferred specifications to generate the exact order code.
Generated Order Code
L01127.927.03.W
Available
Total Available Configurations: 8
Your Configuration
Color Temperature
2700K
Body Finish
Black
Cri
CRI 80
Dimming
💡
Non-DimmableNeed help configuring? Contact our sales team for assistance.
AVAILABLE CONFIGURATIONS
8 standard configurations ready for immediate order
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L01127.927.03.W
CCT:
2700K
Power:8W
Lumen:387LM
Beam:
24°
Finish:
CRI 80IP20Black
L01127.927.01.W
CCT:
2700K
Power:8W
Lumen:387LM
Beam:
24°
Finish:
CRI 80IP20White
L01127.930.03.W
CCT:
3000K
Power:8W
Lumen:387LM
Beam:
24°
Finish:
CRI 80IP20Black
L01127.930.01.W
CCT:
3000K
Power:8W
Lumen:387LM
Beam:
24°
Finish:
CRI 80IP20White
L01127.940.03.W
CCT:
4000K
Power:8W
Lumen:387LM
Beam:
24°
Finish:
CRI 80IP20Black
L01127.940.01.W
CCT:
4000K
Power:8W
Lumen:387LM
Beam:
24°
Finish:
CRI 80IP20White
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- CEILING RECESSED LIGHT
- Series:
- AIKEN
- Family:
- AIKEN
Applications
Office
Jewellery Display
