LUMIBRIGHT
AIKEN
LUMI INDOOR
ceiling-recessed
IP20

L01129 Ceiling Light

BASE: L01129

AIKEN lighting solution with professional specifications

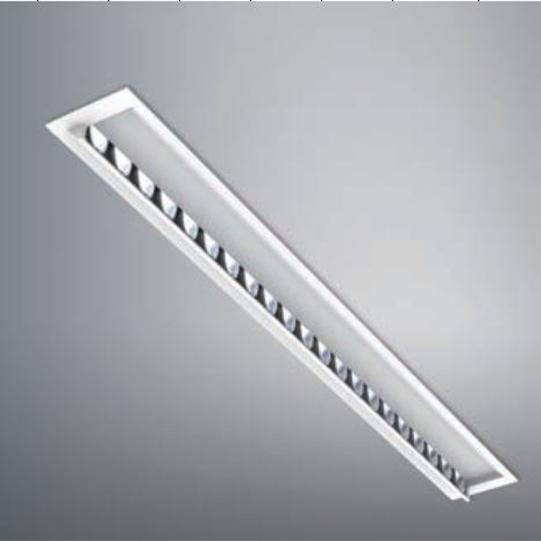

AIKEN L01129 - CEILING RECESSED LIGHT
Specifications at a Glance
22W
Power
1090LM
Lumen Output
2700K3000K4000K6000K
Available Colour Temperatures
CRI 90+
Colour Rendering Index
IP20
Protection Rating
24°
Beam Angle
UGR<19
UGR / Optics
500mA
Input
432x40mm
Cutout Size
66mm x 304mm x 164mm
Body Dimensions
BlackWhite
Available Finishes
Non-DimmableDALITriac0/1-10V
Dimming Options
ceiling-recessed
Mounting Type
LED
LED Chip
ALUMINUM
Material
Technical evidence & warranty

Supporting model-specific declarations/test reports require verification

Evidence requirementsWarranty status

AVAILABLE CONFIGURATIONS

8 listed configurations · availability requires confirmation

Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.

L01129.927.03.W
CCT:
2700K
Power:22W
Lumen:1090LM
Beam:
24°
Finish:
Black
CRI 90+IP20
L01129.927.01.W
CCT:
2700K
Power:22W
Lumen:1090LM
Beam:
24°
Finish:
White
CRI 90+IP20
L01129.930.03.W
CCT:
3000K
Power:22W
Lumen:1090LM
Beam:
24°
Finish:
Black
CRI 90+IP20
L01129.930.01.W
CCT:
3000K
Power:22W
Lumen:1090LM
Beam:
24°
Finish:
White
CRI 90+IP20
L01129.940.03.W
CCT:
4000K
Power:22W
Lumen:1090LM
Beam:
24°
Finish:
Black
CRI 90+IP20
L01129.940.01.W
CCT:
4000K
Power:22W
Lumen:1090LM
Beam:
24°
Finish:
White
CRI 90+IP20

Need Custom Options?

Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.

Questions about configurations? Contact our sales team for technical assistance.
Compatible Accessories
1 items

Recommended accessories for optimal installation and performance

Accessories

Additional components

1

Product Information

Category:
CEILING RECESSED LIGHT
Series:
AIKEN
Family:
AIKEN
Dimension:
444x66mm
Input Voltage:
500mA
Light Source:
LED
Material:
ALUMINUM
Cut-Out:
432x40mm

Catalogue Specification

Light Source:
LED
Power:
22W
Input Voltage:
500mA
Colour Temperature:
2700K/3000K/4000K/6000K/6500K
Lumen Output:
1090LM
Beam Angle:
WALLWASHER
CRI:
90+
IP Rating:
IP20
Body Finish:
WHITE/BLACK
Dimensions:
444x66mm
Cut-Out:
432x40mm
Optics:
REFLECTOR
Cover / Lens:
CLEAR GLASS
Material:
ALUMINUM

Applications

Jewellery Display
Office

Configure your product

L01129

Order code

Listed configuration

L01129.927.03.W

8 listed configurations · availability requires confirmation
