L01188 Ceiling Light
BASE: L01188ALYSSA lighting solution with professional specifications
Specifications at a Glance
9W
Power
1036LM
Lumen Output
2700K3000K4000K
Available Colour Temperatures
CRI 90+
Colour Rendering Index
IP65
Protection Rating
20° / 25° / 40° / 55°
Beam Angle
LENS
UGR / Optics
250mA
Input
Ø60mm
Cutout Size
Ø70x58mm
Body Dimensions
BlackPainted In GoldenWhite
Available Finishes
DALINon-DimmableTriac
Dimming Options
ceiling-recessed
Mounting Type
LED
LED Chip
ALUMINUM
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
36 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L01188.940.05.55
CCT:
4000K
Power:9W
Lumen:1036LM
Beam:
55°
Finish:
CRI 90+IP65Gold
L01188.930.05.55
CCT:
3000K
Power:9W
Lumen:1036LM
Beam:
55°
Finish:
CRI 90+IP65Gold
L01188.927.05.55
CCT:
2700K
Power:9W
Lumen:1036LM
Beam:
55°
Finish:
CRI 90+IP65Gold
L01188.940.05.40
CCT:
4000K
Power:9W
Lumen:1036LM
Beam:
40°
Finish:
CRI 90+IP65Gold
L01188.930.05.40
CCT:
3000K
Power:9W
Lumen:1036LM
Beam:
40°
Finish:
CRI 90+IP65Gold
L01188.927.05.40
CCT:
2700K
Power:9W
Lumen:1036LM
Beam:
40°
Finish:
CRI 90+IP65Gold
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- CEILING RECESSED LIGHT
- Series:
- ALYSSA
- Family:
- ALYSSA
- Dimension:
- Ø70x58mm
- Input Voltage:
- 250mA
- Light Source:
- LED
- Material:
- ALUMINUM
- Cut-Out:
- Ø60mm
Catalogue Specification
- Light Source:
- LED
- Power:
- 9W
- Input Voltage:
- 250mA
- Colour Temperature:
- 2700K/3000K/4000K/6000K/6500K
- Lumen Output:
- 1036LM
- Beam Angle:
- 20°/25°/40°/55°
- CRI:
- 90+
- IP Rating:
- IP65
- Body Finish:
- WHITE/BLACK/GOLD
- Dimensions:
- Ø70x58mm
- Cut-Out:
- Ø60mm
- Optics:
- LENS
- Cover / Lens:
- PC
- Material:
- ALUMINUM

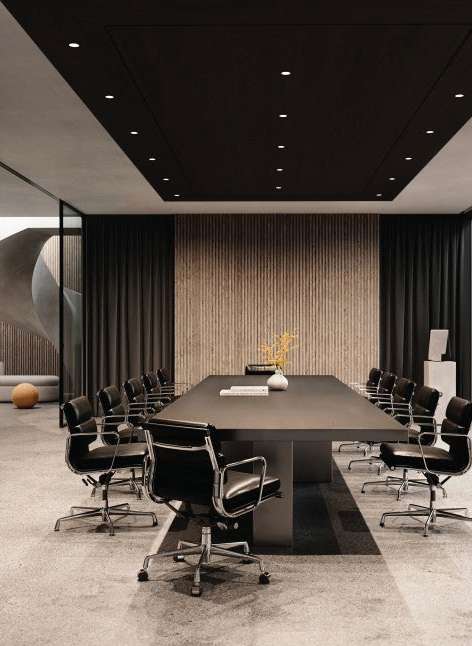

Applications
Jewellery Display
Office
Configure your product
L01188
Order code
Listed configurationL01188.940.05.55
36 listed configurations · availability requires confirmation
