L01189 Ceiling Light

L01189: specifications and applications

L01189 is the ALYSSA L01189 - CEILING RECESSED LIGHT lighting model in the lumi indoor catalogue, listed under CEILING RECESSED LIGHT. This page keeps the specifications, configuration choices and project notes for L01189 together, so it can be compared with other ALYSSA models without substituting the dimensions or options of a neighbouring article.

The L01189 catalogue record lists power: 18W. Coordinate this load with the circuit schedule and the selected control gear.

The L01189 catalogue record lists body dimensions: Ø94x69mm. Check the housing against the architectural detail and the space reserved for installation.

The L01189 catalogue record lists cut-out: Ø82mm. Use the opening dimension separately from the outside body size when coordinating the finished surface.

The L01189 catalogue record lists colour temperature: 2700K, 3000K, 4000K, 6000K, 6500K. Compare the listed colour choices with finishes, surrounding light and the intended atmosphere.

The L01189 catalogue record lists colour rendering: 90+. Include this catalogue value in the material and display-lighting comparison for the project.

The L01189 catalogue record lists optical distribution: 15°/25°/40°. Compare the listed option with target distance, spacing and the surface being illuminated.

The L01189 catalogue record lists enclosure rating: IP65. Coordinate this rating with the actual exposure, cleaning regime and installation conditions.

The L01189 catalogue record lists electrical requirement: 500mA. Keep the stated unit alongside the driver and control specification; a current rating must not be treated as a mains voltage.

The L01189 catalogue record lists finish or material: WHITE/BLACK/GOLD. Review the stated construction alongside adjoining architectural materials and sample approvals.

The L01189 catalogue record lists mounting: recessed. Check the fixing arrangement and access for installation before finalising the detail.

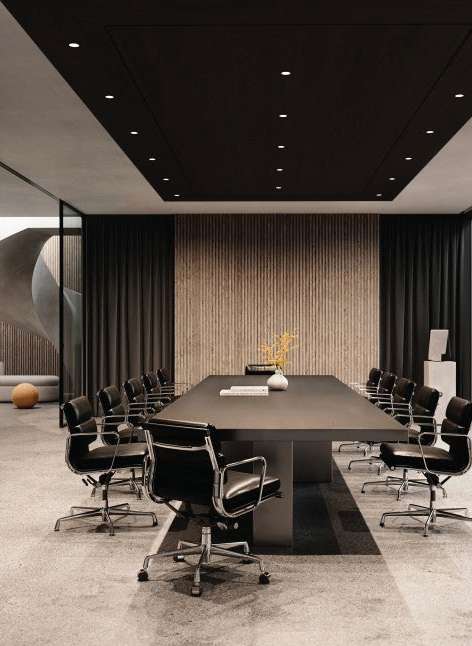

Hotel circulation, villa interiors and workplace settings need the ceiling arrangement to support the task and the architecture together. Compare the model dimensions, any stated cut-out and the intended distribution before setting out the fittings. Coordinate spacing with the room geometry and use the appropriate optical information for the final calculation rather than treating a nominal wattage as a coverage guarantee.

L01189 has 27 listed order-code configurations. Examples from this model are L01189.940.05.40, L01189.940.03.40, L01189.940.01.40. Use the exact listed combination when selecting finishes, colour temperature or optical options; an option appearing elsewhere in the family is not automatically an orderable combination for this article.

For a L01189 project submission, retain this model reference with the drawings and the selected configuration. Include the relevant dimensions, optical information and installation requirements in the coordination review. Where a document or value is not available on the page, request the model-specific information from the specification team rather than copying a value from another ALYSSA article.
