Lumi Indoor
ARMAR
Application inspiration · not a project reference
ARMAR is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Spot Light
ARMAR
ARMAR is a spot light family within the LUMIBRIGHT Lumi Indoor collection. The current catalogue groups 12 article codes under this family, including LB2850, LB2851, LB3311. For LB2850, published values include power: 9W; colour temperature: 2700K/3000K/4000K/5000K/6000K; IP rating: IP44; dimensions: Ø90x100mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the ARMAR articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

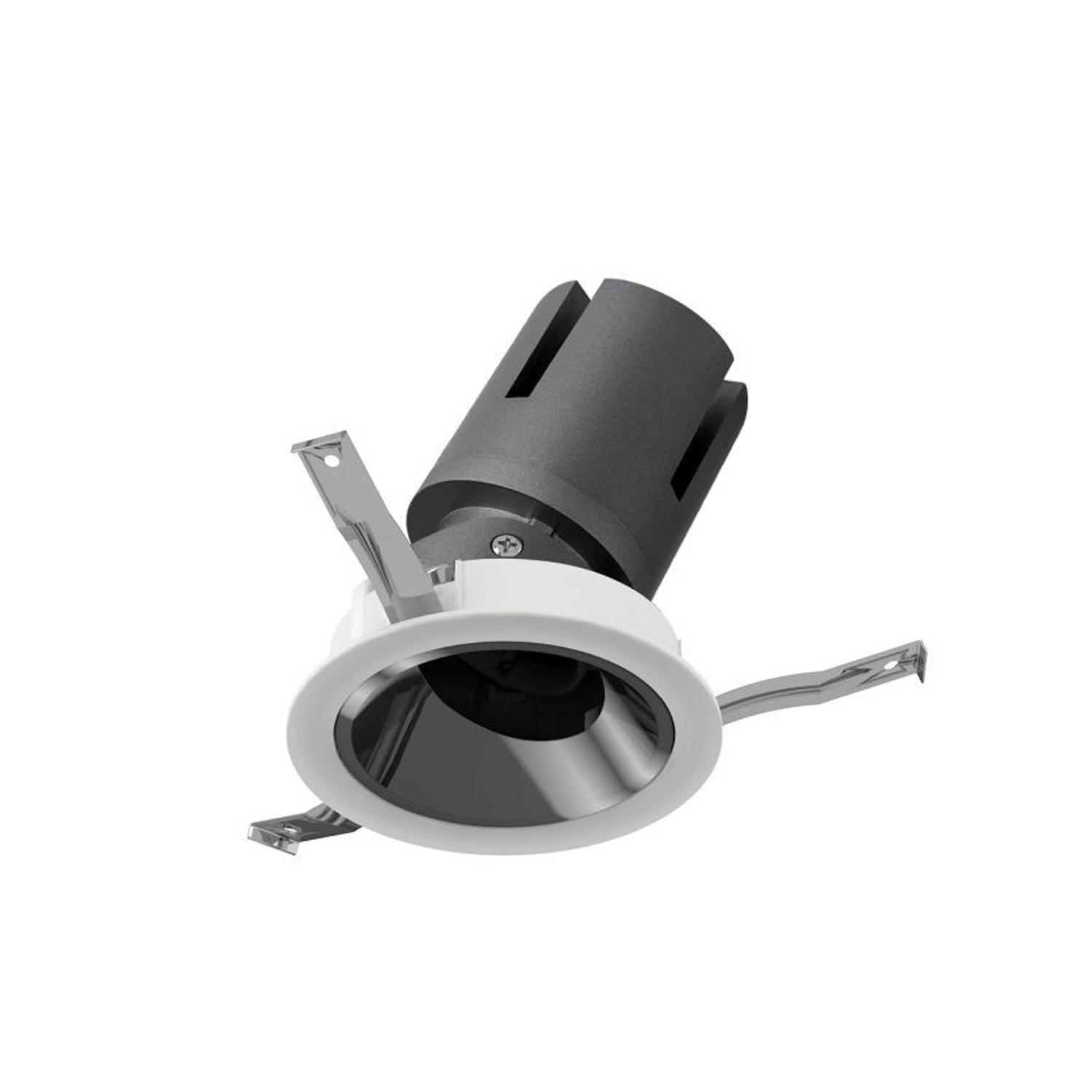

| LB2850 | Wattage9W | CCT2700K/3000K/4000K/5000K/6000K | IPIP44 | DimensionsØ90x100mm | Cut-outØ75mm |

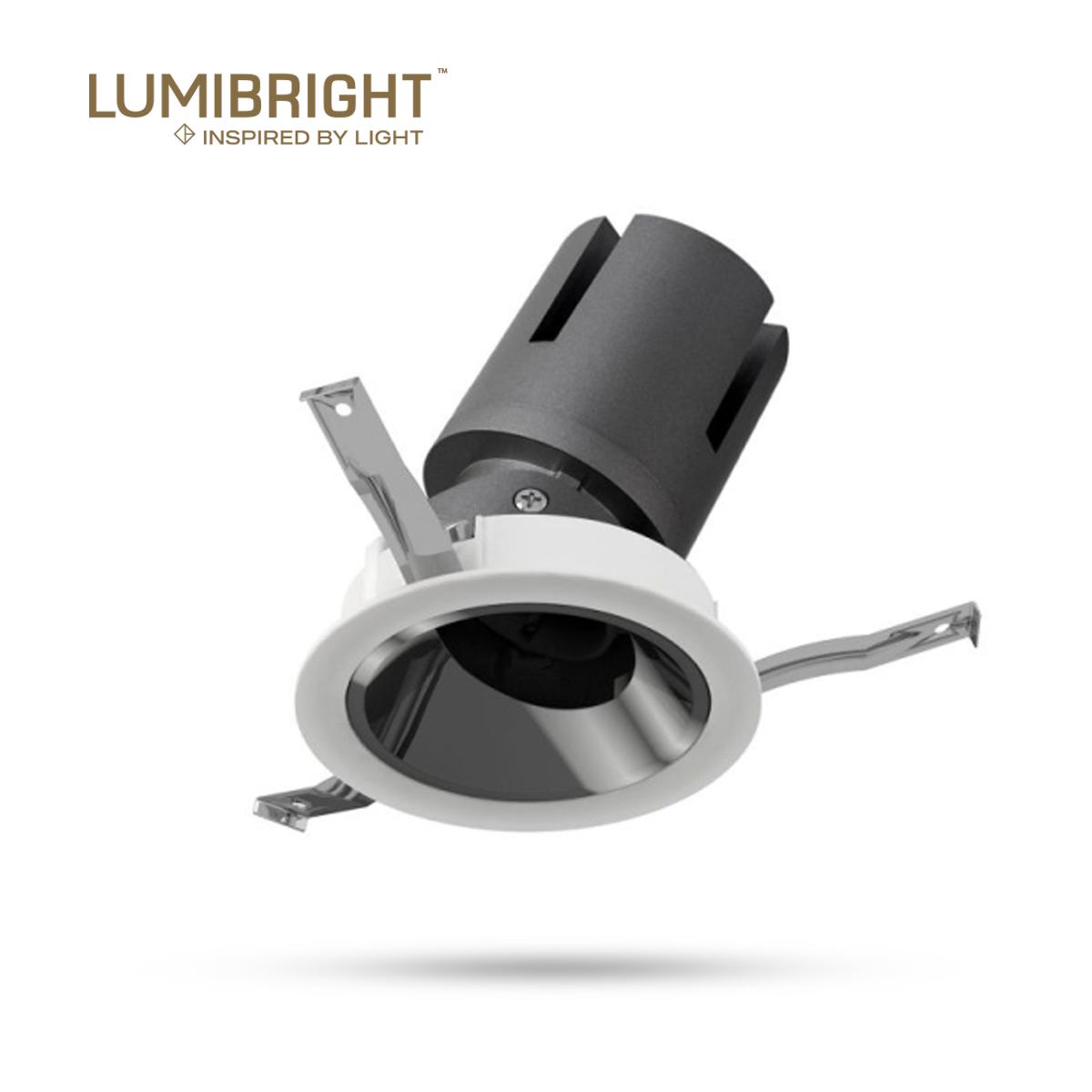

| LB2851 | Wattage12W | CCT2700K/3000K/4000K/5000K/6000K | IPIP44 | DimensionsØ90x100mm | Cut-outØ75mm |

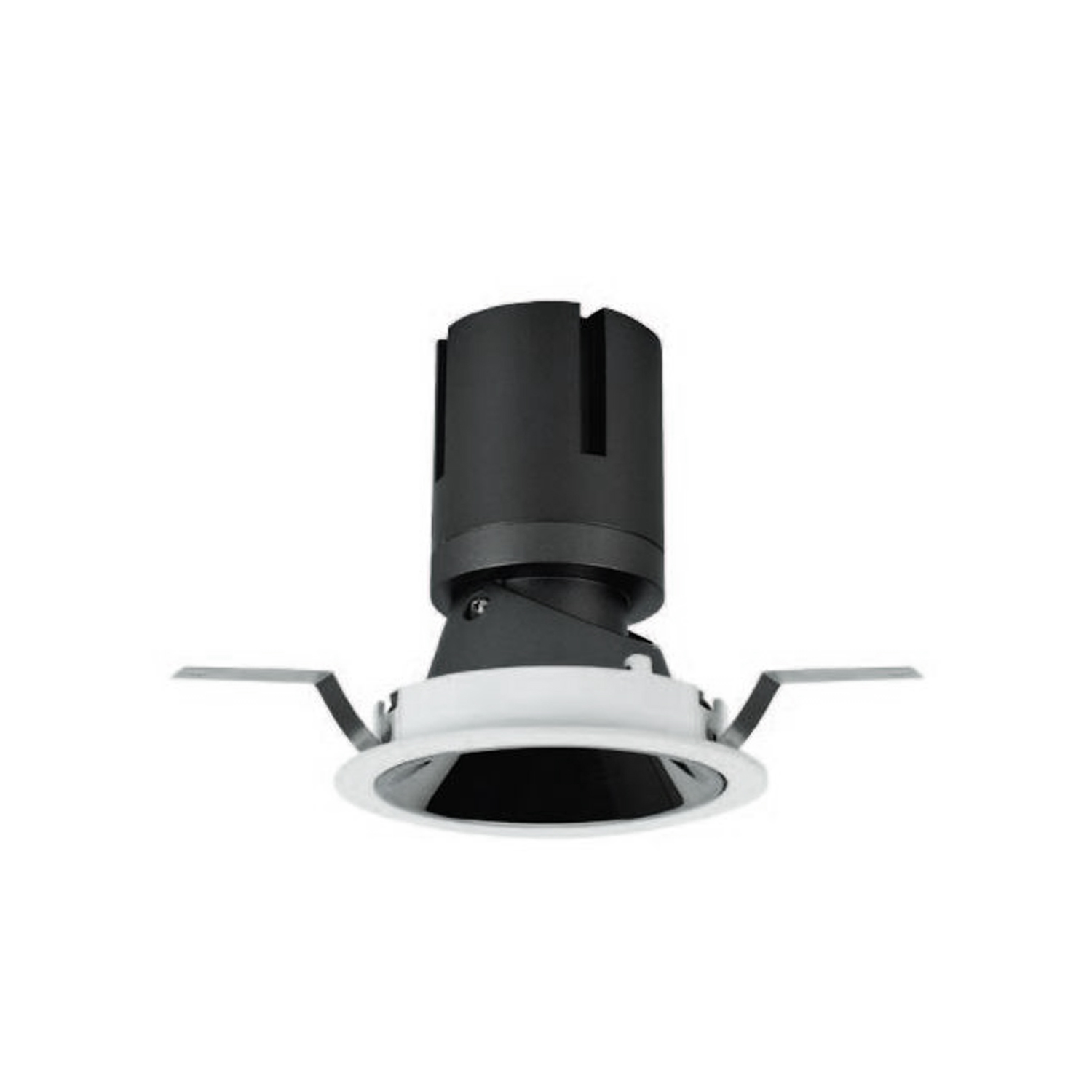

| LB3311 | Wattage25W | CCT2700K/3000K/4000K/5000K/6000K | IPIP44 | DimensionsØ140x150mm | Cut-outØ125mm |

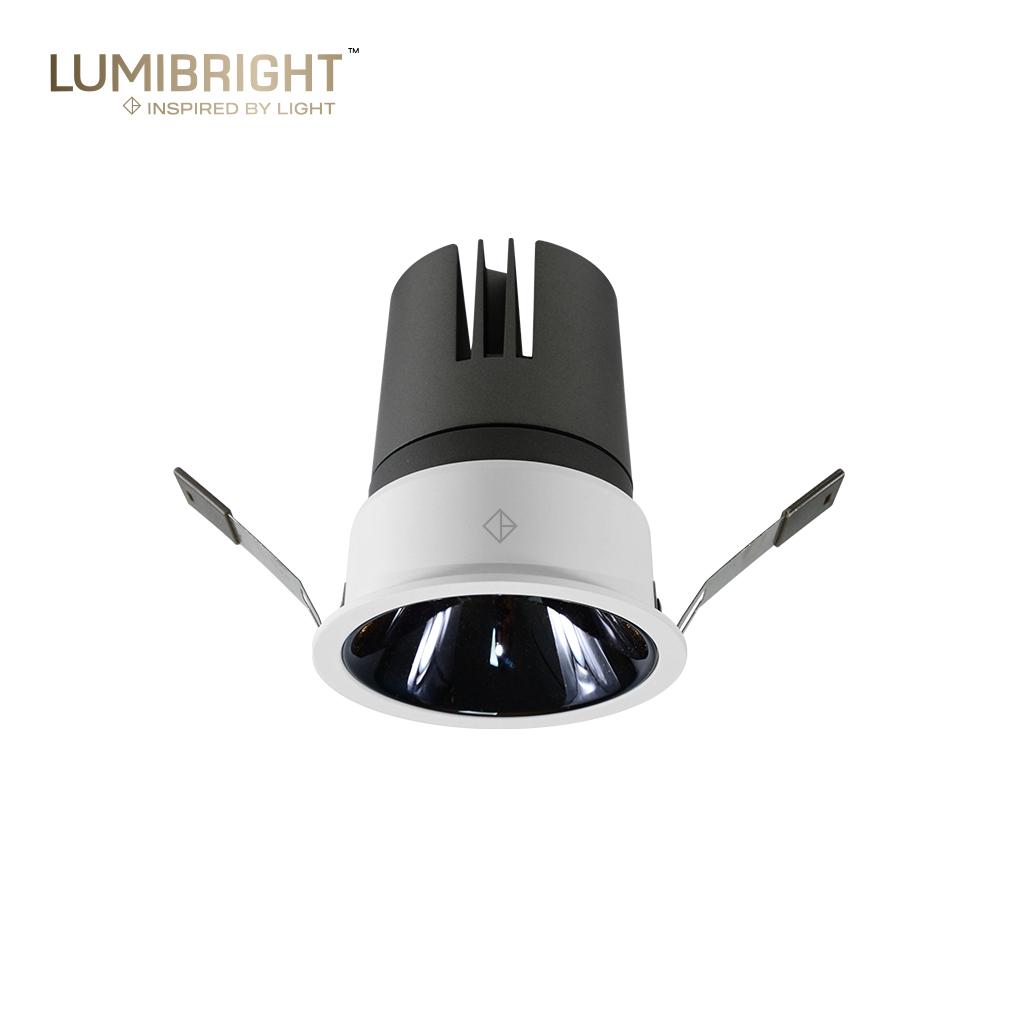

| LBE2063 | Wattage12W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsØ82*97mm | Cut-outØ75mm |

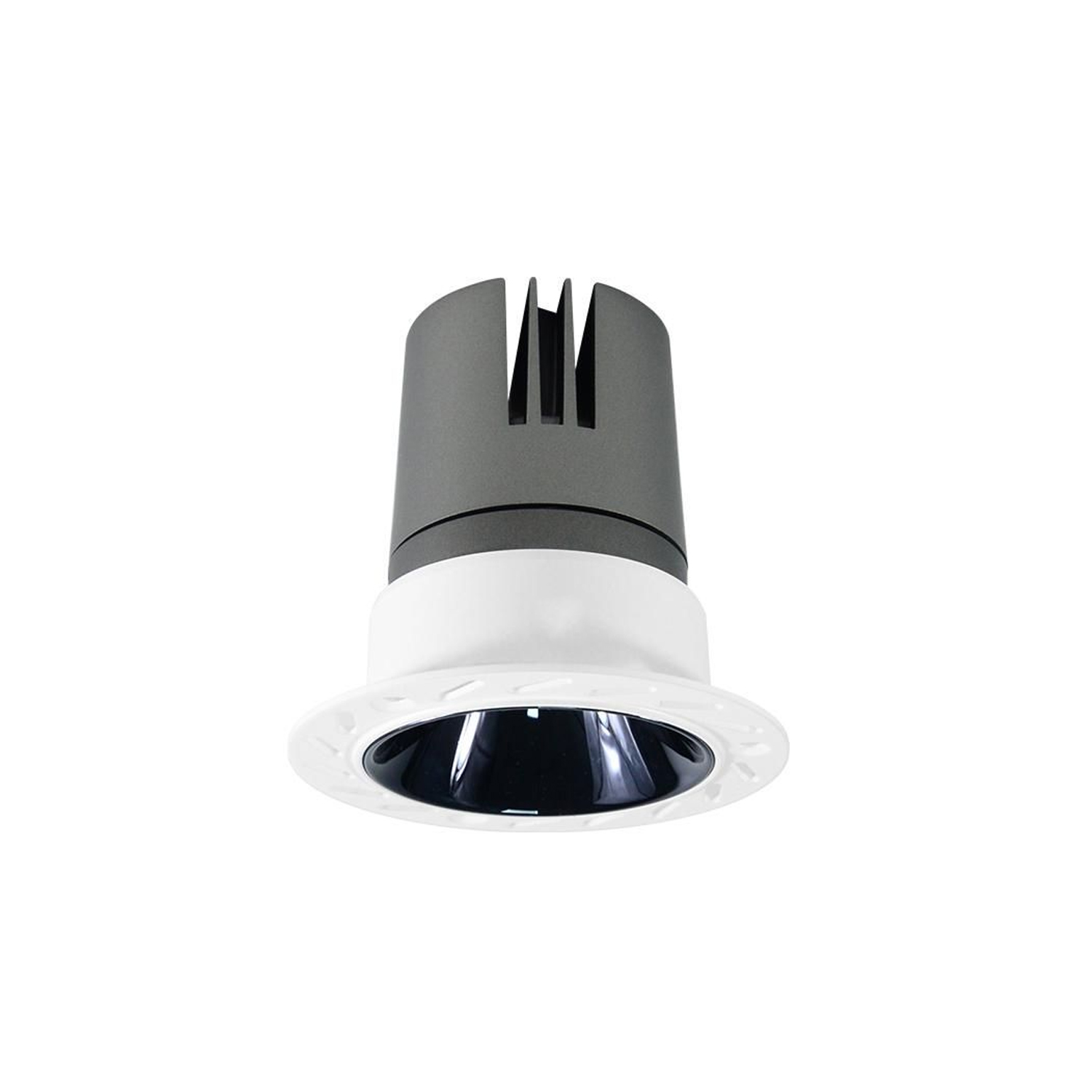

| LBE2064 | Wattage12W | CCT6000K | IPIP20 | DimensionsØ100x97mm | Cut-outØ75mm |

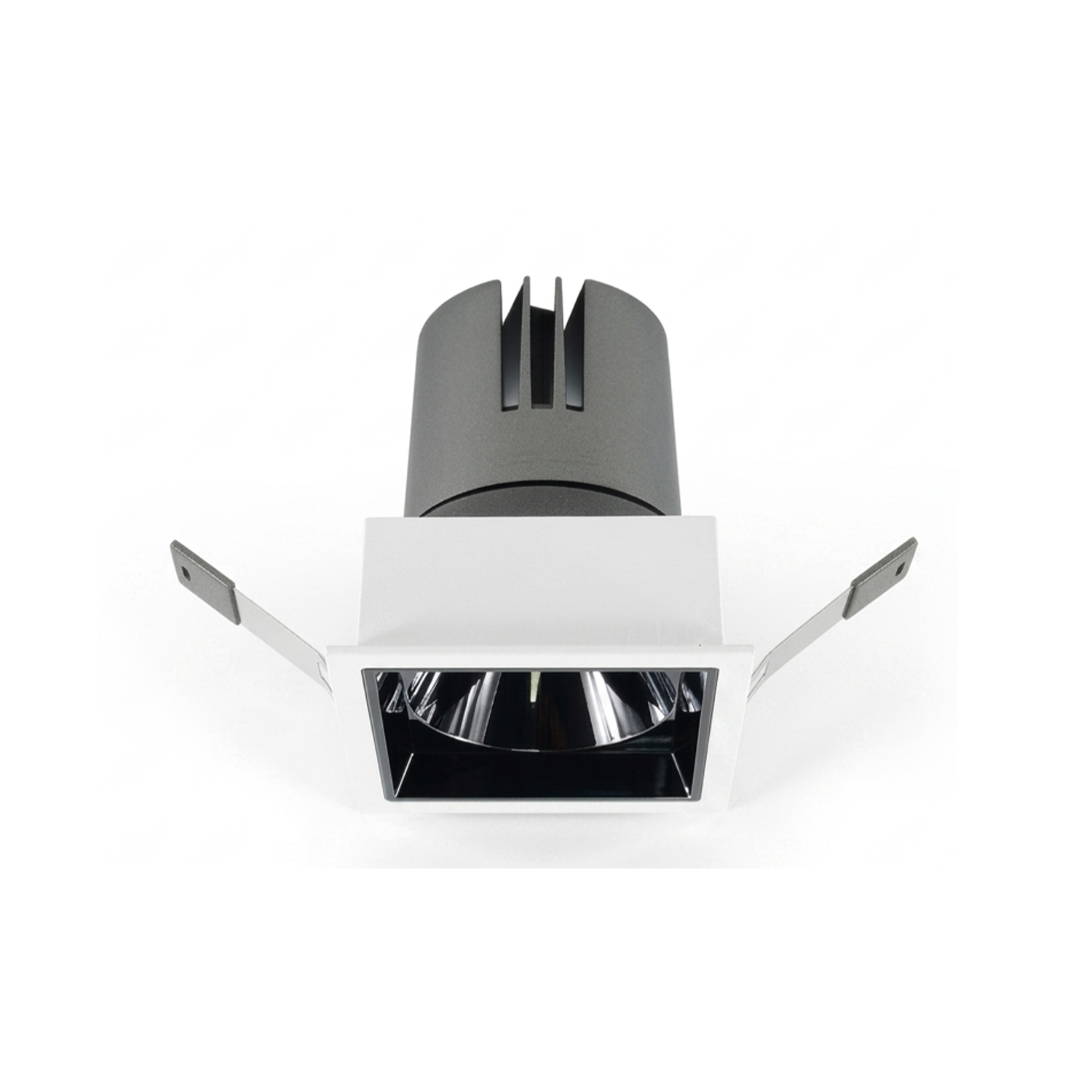

| LBE2065 | Wattage12W | CCT2700K/3000K/4000K/6000K | IPIP20 | Dimensions85*85*97mm | Cut-out75*75mm |

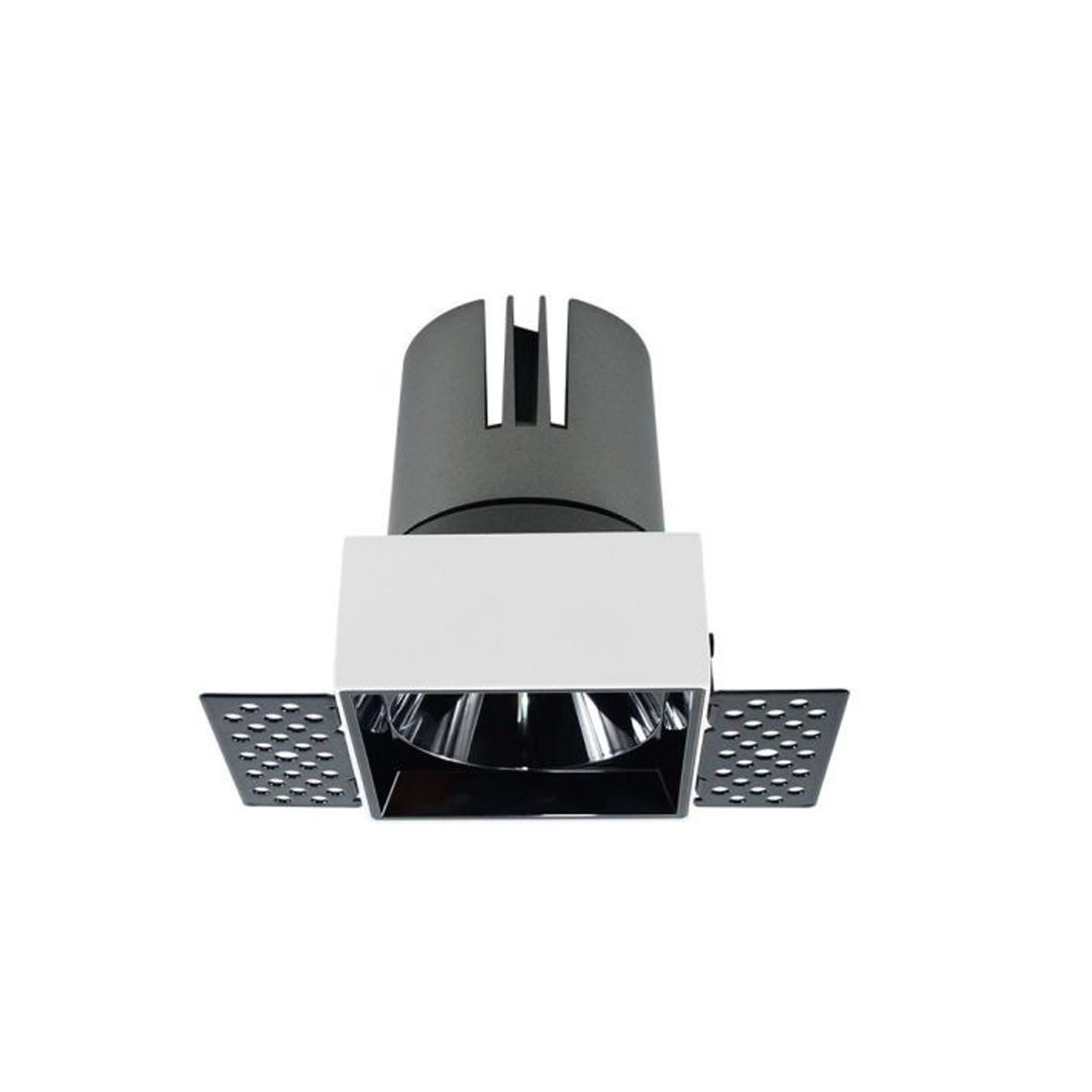

| LBE2066 | Wattage12W | CCT2700K/3000K/4000K/6000K | IPIP20 | Dimensions120*85*97mm | Cut-out75*75mm |

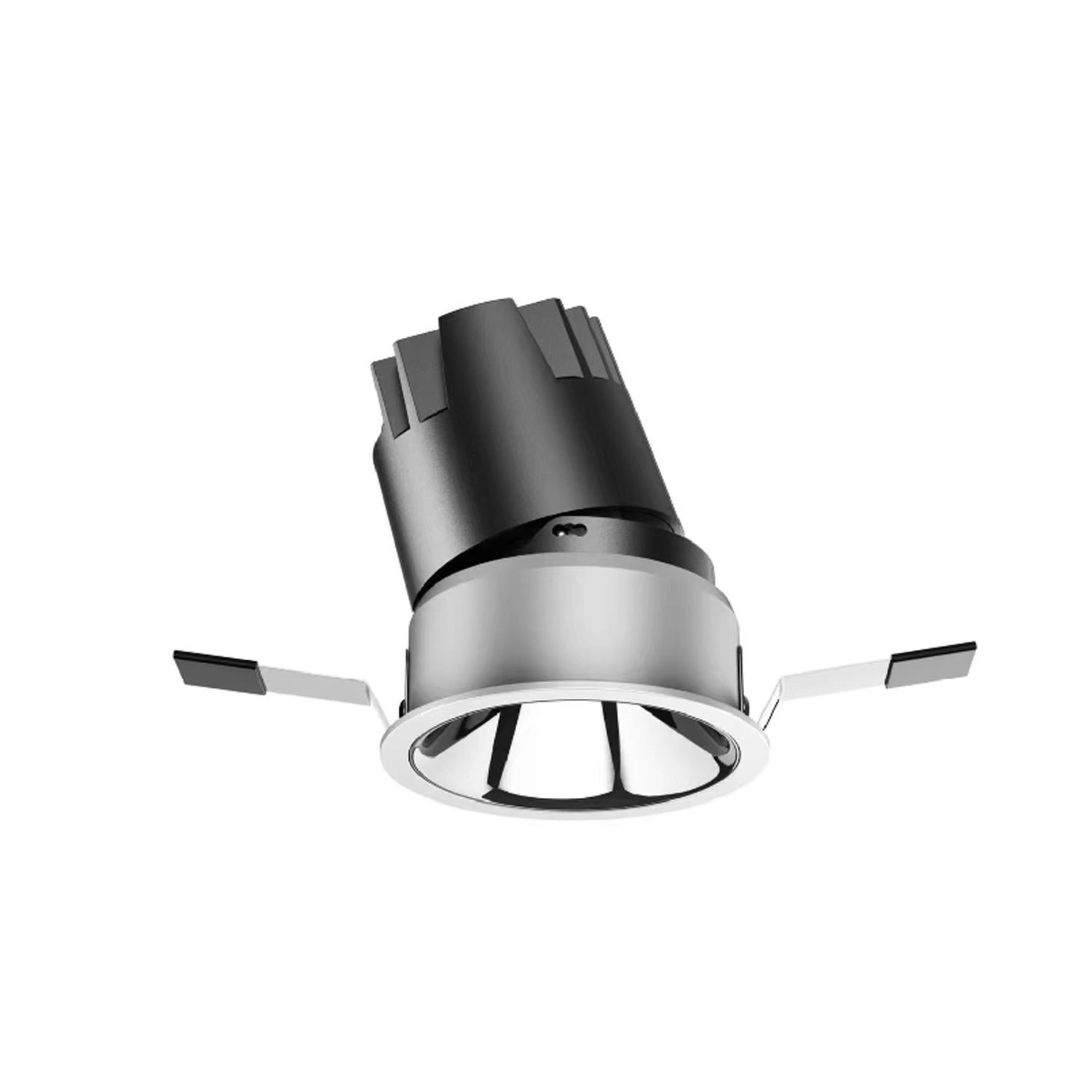

| LBE2172 | Wattage12W | CCT3000K | IPIP20 | DimensionsØ82*97mm | Cut-outØ75mm |

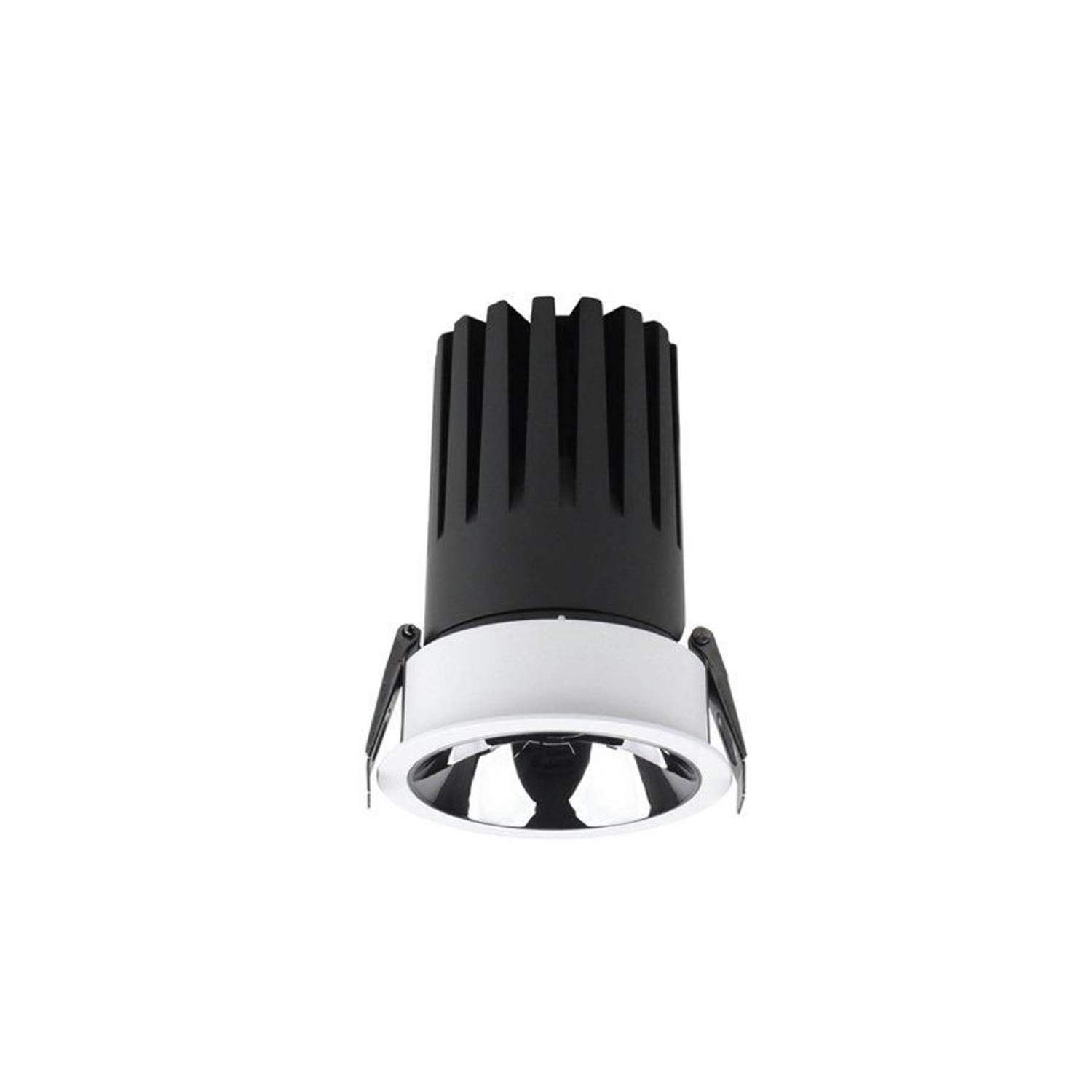

| LBE2177 | Wattage18W | CCT4000K | IPIP65 | DimensionsØ84*H120mm | Cut-outØ75mm |
| LBT2046 | Wattage12W | CCT2700K, 3000K, 4000K, 6000K | IPIP20 | DimensionsØ85x98mm | Cut-outØ75mm |
| LBT2112 | Wattage12W | CCT2700K, 3000K, 4000K, 6000K | IPIP20 | DimensionsØ100x97mm | Cut-outNot published |
| LBT2113 | Wattage12W | CCT3500K | IPIP20 | DimensionsØ100x97mm | Cut-outØ75mm |
Technical Data
Full Specification
| Dimensions | 85*85*97mm · Ø90x100mm · Ø140x150mm · Ø82*97mm +8 more |
|---|---|
| Cut-out | 75*75mm · Ø75mm · Ø125mm · 75x75mm |
| Power | 12W · 9W · 25W · 18W |
| Lumen output | 630lm · 840lm · 1750lm · 813.57lm +1 more |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 15° · 24° · 25° · 38° +3 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +3 more |
| CRI Ra | 90 · >80 · CRI 80 · 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 · IP44 · IP65 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC · 200-240VAC · 42VDC |
| Light source | Not published — technical review required |
| Material | Aluminium · Die Casting Aluminium |
| Finish | black+matt-black · White · black+matt-white · white+matt-black +24 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
12 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LBE2065. This family has 12 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBE2065
85*85*97mm
Cut-Out
75*75mm
Specifications
At a Glance
9–25W
Power Range
6 options
Beam: 15°, 24°, 25°, 38°, 50°, 60°
6 CCT
2700K, 3000K, 3500K, 4000K, 5000K, 6000K
Switch
Colour Options
CRI 80/90
Colour Rendering
IP20 / IP44 / IP65
Protection Rating
15 finishes
Body Finish Options
12 sizes
120*85*97mm, 120x85x97mm, 85*85*97mm, 85x85x97mm, Ø100*97mm, Ø100x97mm, Ø140x150mm, Ø82*97mm, Ø82x97mm, Ø84*H120mm, Ø85x98mm, Ø90x100mm
4 cut-outs
75*75mm, 75x75mm, Ø125mm, Ø75mm
Configure your product
LBE2065
Order code
Listed configurationLBE2065.N.940.WBK+PBK.38.DR
64 listed configurations · availability requires confirmation
