LUMIBRIGHT
ARMAR
LUMI INDOOR
ceiling-recessed
IP44

LB2850 Spot Light

BASE: LB2850

ARMAR lighting solution with professional specifications

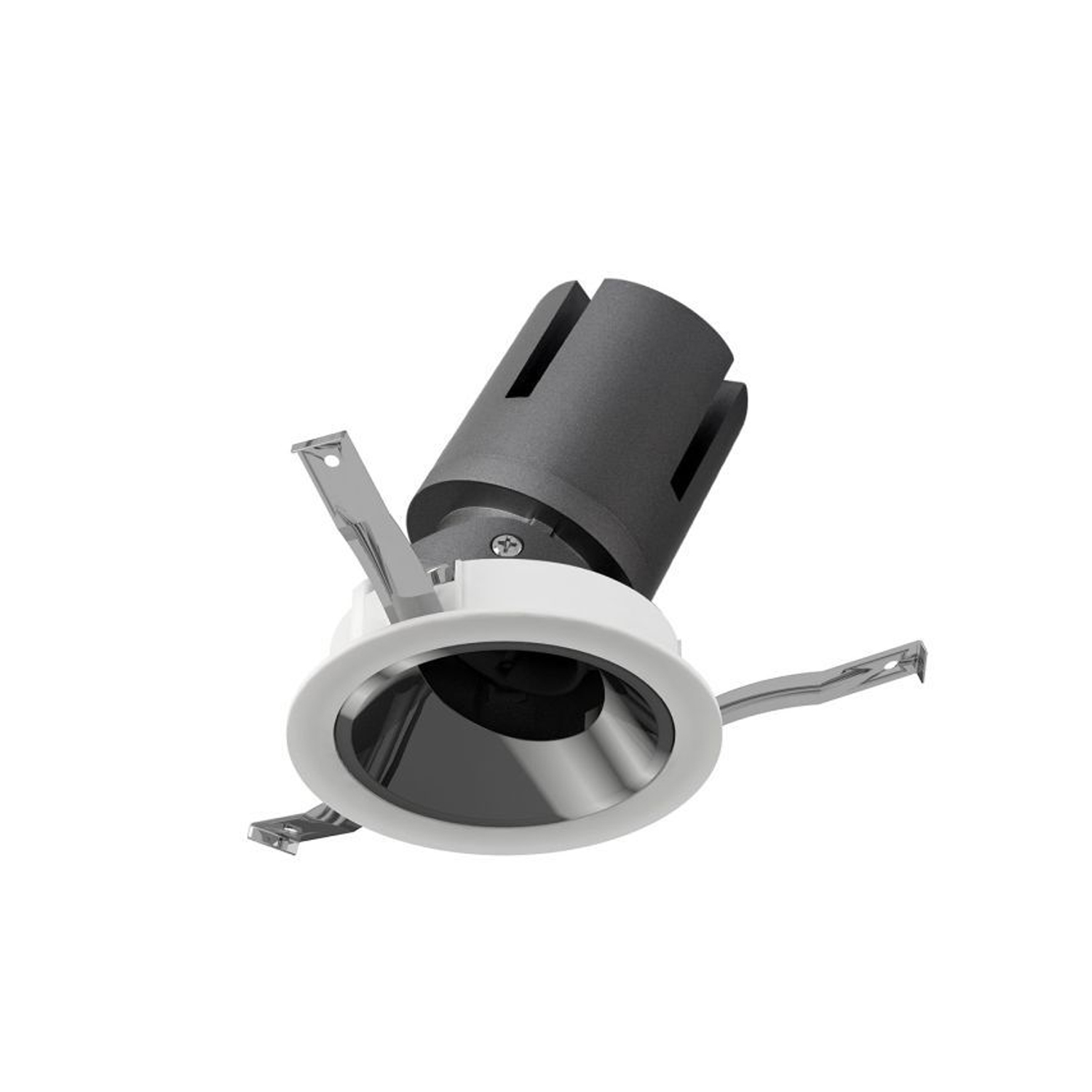

ARMAR LB2850 - SPOT LIGHT
Specifications at a Glance
9W
Power
630lm
Lumen Output
2700K3000K5000K
Available Colour Temperatures
CRI >80
Colour Rendering Index
IP44
Protection Rating
15° / 24° / 38°
Beam Angle
200-240VAC,50/60HZ
Input
Ø75mm
Cutout Size
Ø90x100mm
Body Dimensions
Black With SandBlack With Sand+ChromeBlack With Sand+GoldenBlack With Sand+Mirror BlackWhiteWhite With SandWhite With Sand+ChromeWhite With Sand+GoldenWhite With Sand+Mirror Black
Available Finishes
DALINon-DimmableTriac
Dimming Options
ceiling-recessed, track-mounted
Mounting Type
CREE COB
LED Chip
50,000Hrs
LED Life Time
Aluminum
Material
Technical evidence & warranty

Supporting model-specific declarations/test reports require verification

Evidence requirementsWarranty status

AVAILABLE CONFIGURATIONS

25 listed configurations · availability requires confirmation

Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.

LB2850.W.830.PAW.38.DR
CCT:
3000K
Power:9W
Lumen:630lm
Beam:
38°
Finish:
White
CRI >80IP44
LB2850.W.827.PAW.38.DR
CCT:
2700K
Power:9W
Lumen:630lm
Beam:
38°
Finish:
White
CRI >80IP44
LB2850.C.850.PAB.38.DR
CCT:
5000K
Power:9W
Lumen:630lm
Beam:
38°
Finish:
Black
CRI >80IP44
LB2850.C.850.PAW+MBK.38.DR
CCT:
5000K
Power:9W
Lumen:630lm
Beam:
38°
Finish:
White With Sand+Mirror Black
CRI >80IP44
LB2850.C.850.PAW+CRM.38.DR
CCT:
5000K
Power:9W
Lumen:630lm
Beam:
38°
Finish:
White With Sand+Chrome
CRI >80IP44
LB2850.C.850.PAW+WGL.38.DR
CCT:
5000K
Power:9W
Lumen:630lm
Beam:
38°
Finish:
White With Sand+Golden
CRI >80IP44

Need Custom Options?

Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.

Questions about configurations? Contact our sales team for technical assistance.
Compatible Accessories
1 items

Recommended accessories for optimal installation and performance

Accessories

Additional components

1

Product Information

Category:
SPOT LIGHT
Series:
ARMAR
Family:
ARMAR
Dimension:
Ø90x100mm
Input Voltage:
200-240VAC,50/60HZ
Light Source:
CREE COB
Material:
Aluminum
Life Time:
50,000Hrs
Cut-Out:
Ø75mm

Catalogue Specification

Light Source:
CREE COB
Power:
9W
Input Voltage:
200-240VAC,50/60HZ
Driver:
200mA/25-42VDC(on/off) 200mA/9-42VDC(Dali)
CRI:
>80
Colour Temperature:
2700K/3000K/4000K/5000K/6000K
Lumen Output:
630lm
Beam Angle:
38°
IP Rating:
IP44
LED Life Time:
50,000Hrs
Material:
Aluminum
Body Finish:
White
Dimensions:
Ø90x100mm
Cut-Out:
Ø75mm
Warranty:
Written eligibility and policy confirmation required
Catalogue conformity claim (evidence not verified):
CE,RoHS

Applications

Jewellery Display
Retail
