Lumi Indoor
ARTITA-RD
Application inspiration · not a project reference
ARTITA-RD is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Ceiling Light
ARTITA-RD
ARTITA-RD is a ceiling light family within the LUMIBRIGHT Lumi Indoor collection. The current catalogue groups 5 article codes under this family, including L01062, L01063, L01064. For L01062, published values include power: 10W; colour temperature: 2700K/3000K/4000K/6000K/6500K; IP rating: IP65; dimensions: D85*H58mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the ARTITA-RD articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

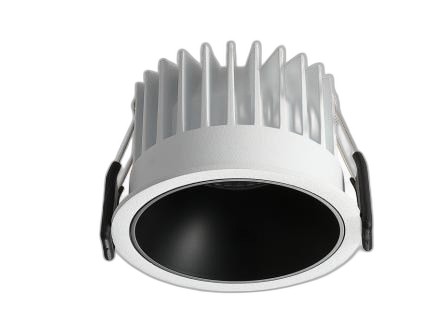

| L01062 | Wattage10W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | DimensionsD85*H58mm | Cut-outØ75mm |

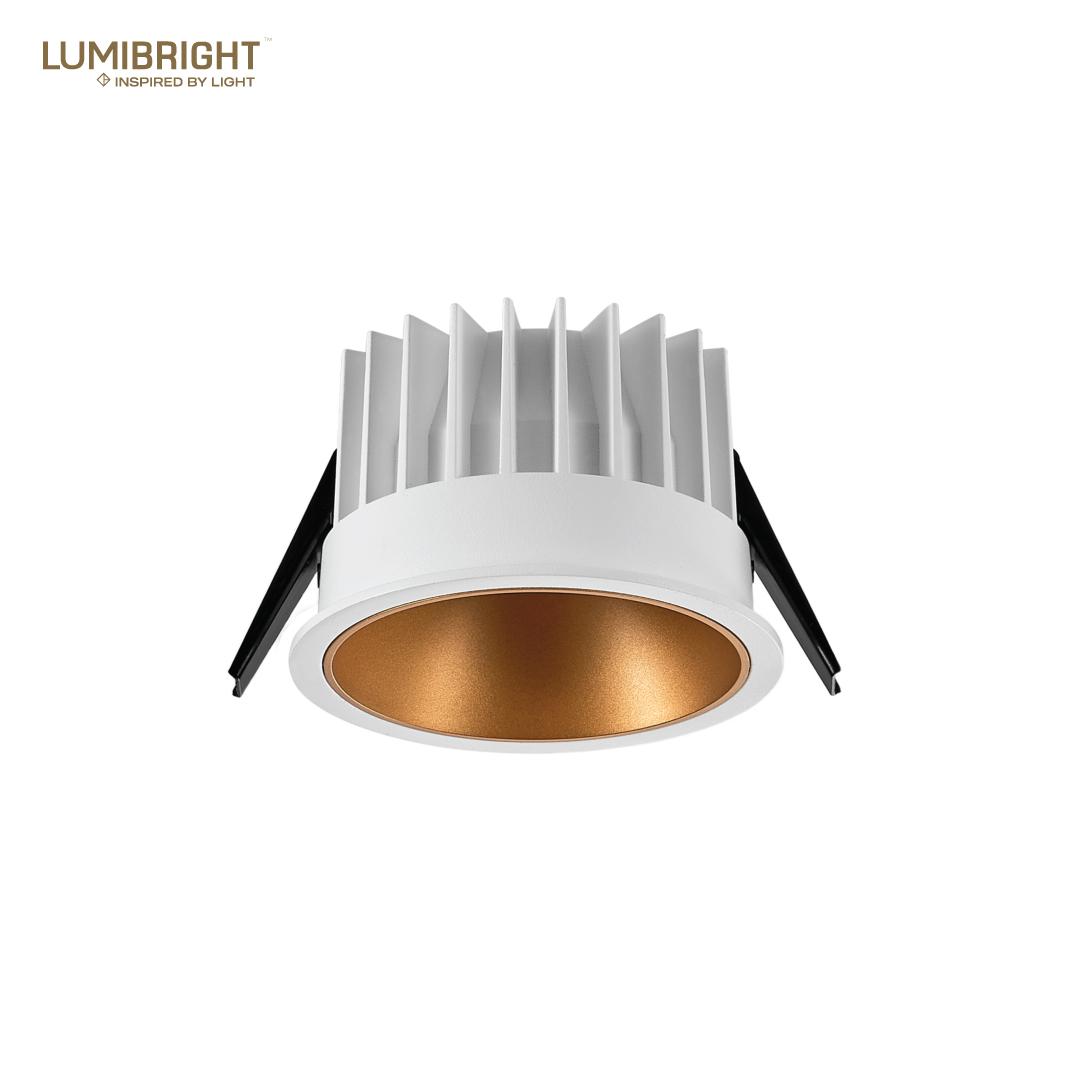

| L01063 | Wattage15W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | DimensionsD100*H64mm | Cut-outØ90mm |

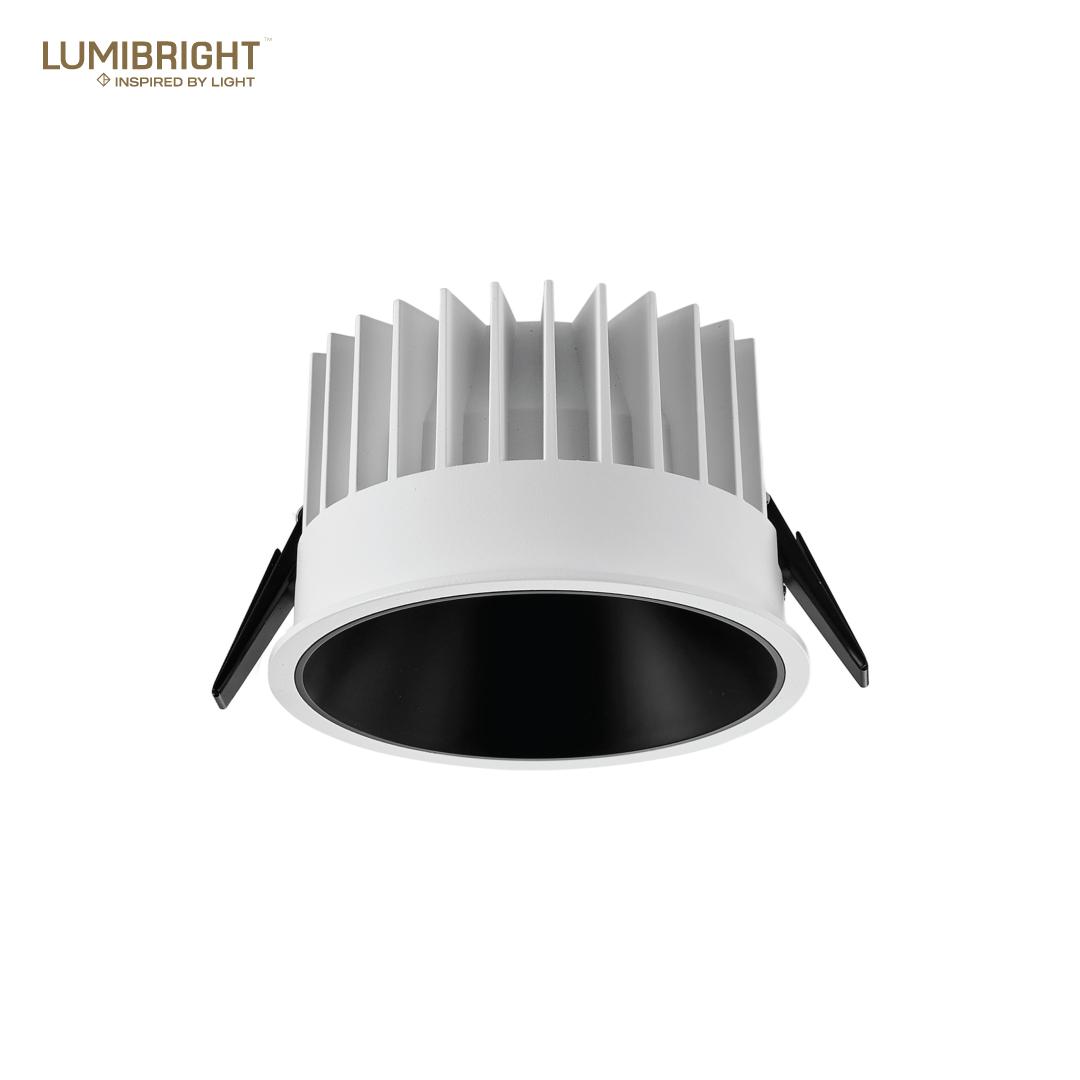

| L01064 | Wattage25W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | DimensionsD136*H83mm | Cut-outØ125mm |

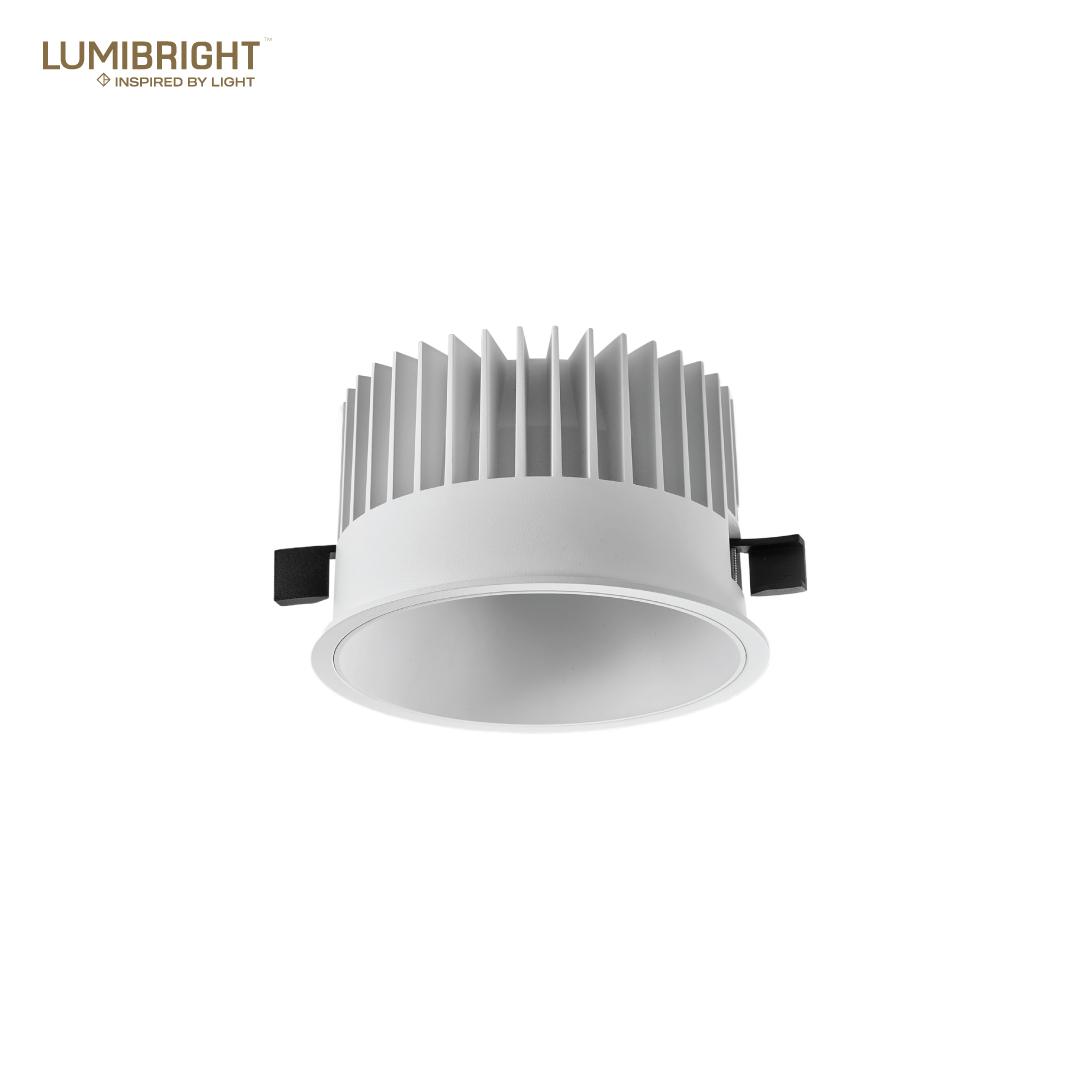

| L01065 | Wattage35W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | DimensionsD158*H96mm | Cut-outØ145mm |
| L01066 | Wattage45W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | DimensionsD180*H109mm | Cut-outØ165mm |
Technical Data
Full Specification
| Dimensions | D85*H58mm · D100*H64mm · D136*H83mm · D158*H96mm +1 more |
|---|---|
| Cut-out | Ø75mm · Ø90mm · Ø125mm · Ø145mm +1 more |
| Power | 10W · 15W · 25W · 35W +1 more |
| Lumen output | 720-910lm · 1100lm · 1760lm · 2300lm +1 more |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 15° · 24° · 36° · 60° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +2 more |
| CRI Ra | 90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP65 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium DIE-CAST |
| Finish | White |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
5 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model L01062. This family has 5 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model L01062
D85*H58mm
Cut-Out
Ø75mm
Specifications
At a Glance
10–45W
Power Range
1 options
Beam: 15°
5 CCT
2700K, 3000K, 4000K, 6000K, 6500K
CRI 90
Colour Rendering
IP65
Protection Rating
1 finishes
Body Finish Options
5 sizes
D100*H64mm, D136*H83mm, D158*H96mm, D180*H109mm, D85*H58mm
5 cut-outs
Ø125mm, Ø145mm, Ø165mm, Ø75mm, Ø90mm
Configure your product
L01062
Order code
Listed configurationL01062.960.01.05.60.DR
33 listed configurations · availability requires confirmation
