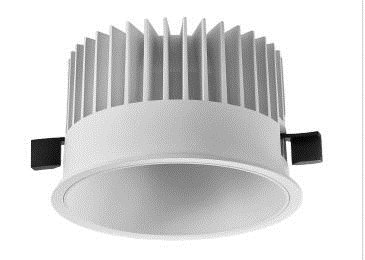

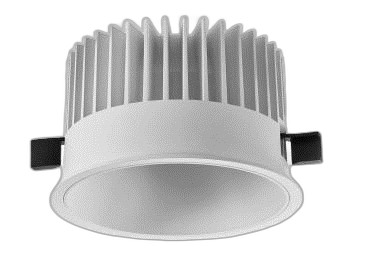

L01066 Ceiling Light
BASE: L01066ARTITA-RD lighting solution with professional specifications
Specifications at a Glance
45W
Power
3060lm
Lumen Output
2700K3000K4000K6000K
Available Colour Temperatures
CRI 90
Colour Rendering Index
IP65
Protection Rating
15° / 24° / 36° / 60°
Beam Angle
REFLECTOR/LENS
UGR / Optics
AC220-240V
Input
Ø165mm
Cutout Size
D180*H109mm
Body Dimensions
Non-DimmableDALITriac
Dimming Options
ceiling-recessed
Mounting Type
BRIDGELUX
LED Chip
ALUMINUM DIE-CAST
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
32 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L01066.927.04.01.15.DR
CCT:
2700K
Power:45W
Lumen:3060lm
Beam:
CRI 90IP6515°
L01066.927.04.01.24.DR
CCT:
2700K
Power:45W
Lumen:3060lm
Beam:
CRI 90IP6524°
L01066.927.04.01.36.DR
CCT:
2700K
Power:45W
Lumen:3060lm
Beam:
CRI 90IP6536°
L01066.927.04.01.60.DR
CCT:
2700K
Power:45W
Lumen:3060lm
Beam:
CRI 90IP6560°
L01066.930.04.01.15.DR
CCT:
3000K
Power:45W
Lumen:3060lm
Beam:
CRI 90IP6515°
L01066.930.04.01.24.DR
CCT:
3000K
Power:45W
Lumen:3060lm
Beam:
CRI 90IP6524°
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- CEILING RECESSED LIGHT
- Series:
- ARTITA-RD
- Family:
- ARTITA-RD
- Dimension:
- D180*H109mm
- Input Voltage:
- AC220-240V
- Light Source:
- BRIDGELUX
- Material:
- ALUMINUM DIE-CAST
- Cut-Out:
- Ø165mm
Catalogue Specification
- Light Source:
- BRIDGELUX
- Power:
- 45W
- Input Voltage:
- AC220-240V
- Colour Temperature:
- 2700K/3000K/4000K/6000K/6500K
- Lumen Output:
- 3060lm
- Beam Angle:
- 15°/24°/36°/60°
- CRI:
- 90
- IP Rating:
- IP65
- Body Finish:
- WHITE
- Dimensions:
- D180*H109mm
- Cut-Out:
- Ø165mm
- Optics:
- REFLECTOR/LENS
- Cover / Lens:
- CLEAR GLASS/PC
- Material:
- ALUMINUM DIE-CAST
- Reflector:
- MATT WHITE/MATT BLACK/MATT SILVER/MATT GOLD
Applications
Jewellery Display
Museum Gallery
