Down Light
ASTIN

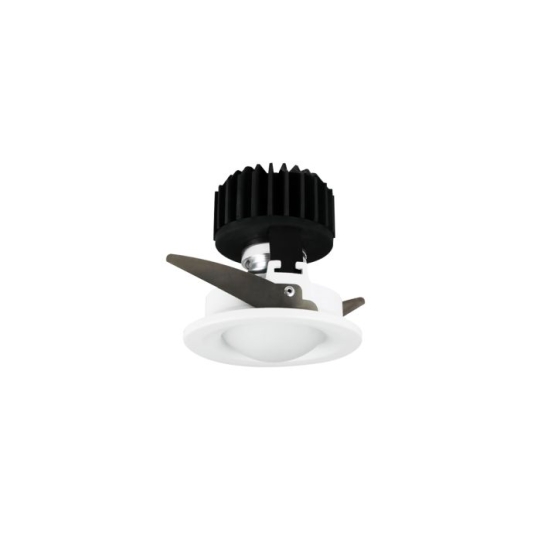

ASTIN is a down light family within the LUMIBRIGHT Lumi Indoor collection. The current catalogue groups 3 article codes under this family, including LB3001, LBE3021, LBE3022. For LB3001, published values include power: 30W; colour temperature: 4000K; IP rating: IP20; dimensions: Ø111x110mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the ASTIN articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LB3001 | Wattage30W | CCT4000K | IPIP20 | DimensionsØ111x110mm | Cut-outØ95mm |
| LBE3021 | Wattage30W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP20 | Dimensions160xH90MM | Cut-out140mm |
| LBE3022 | Wattage50W | CCT2700K/3000K/4000K/5000K/6000K/6500K | IPIP20 | Dimensions160xH110MM | Cut-out140mm |
Product View
Configuration
Select Specification
Select attributes to narrow down variants
All Variants (21)
| Code | Power | CCT | Beam | CRI | Finish | Size | |
|---|---|---|---|---|---|---|---|
| LB3001 | 15W | 3000K, 4000K, 5000K | 60° | 80 | black | Ø111x110mm | |
| LB3001 | 15W | 3000K, 4000K, 5000K | 60° | 80 | white | Ø111x110mm | |
| LB3001 | 15W | 3000K, 4000K, 5000K | 60° | 80 | black | Ø111x110mm | |
| LB3001 | 15W | 3000K, 4000K, 5000K | 60° | 80 | white | Ø111x110mm | |
| LB3001 | 15W | 3000K, 4000K, 5000K | 60° | 80 | black | Ø111x110mm | |
| LB3001 | 15W | 3000K, 4000K, 5000K | 60° | 80 | white | Ø111x110mm | |
| LB3001 | 15W | 3000K, 4000K, 5000K | 60° | 80 | white | Ø111x110mm | |
| LB3001 | 15W | 3000K, 4000K, 5000K | 60° | 80 | black | Ø111x110mm | |
| LB3001 | 15W | 3000K, 4000K, 5000K | 60° | 80 | white | Ø111x110mm | |
| LB3001 | 15W | 3000K, 4000K, 5000K | 60° | 80 | black | Ø111x110mm | |
| LB3001 | 15W | 3000K, 4000K, 5000K | 60° | 80 | white | Ø111x110mm | |
| LB3001 | 15W | 2700K, 3000K, 4000K, 5000K | 60° | 80 | white | Ø111x110mm | |
| LB3001 | 15W | 2700K, 3000K, 4000K, 5000K | 60° | 80 | black | Ø111x110mm | |
| LB3001 | 15W | 3000K, 4000K, 5000K | 60° | 80 | black | Ø111x110mm | |
| LB3001 | 15W | 3000K, 4000K, 5000K | 60° | 80 | black | Ø111x110mm | |
| LB3001 | 15W | 3000K, 4000K, 5000K | 60° | 80 | white | Ø111x110mm | |
| LB3001 | 15W | 3000K, 4000K, 5000K | 60° | 80 | white | Ø111x110mm | |
| LB3001 | 15W | 3000K, 4000K, 5000K | 60° | 80 | White | Ø111x110mm | |
| LB3001 | 15W | 3000K, 4000K, 5000K | 60° | 80 | black | Ø111x110mm | |
| LB3001 | 15W | 3000K, 4000K, 5000K, 5600K | 60° | 80 | black | Ø111x110mm | |
| LB3001 | 15W | 3000K, 4000K, 5000K, 5600K | 60° | 80 | white | Ø111x110mm |
Dimensions
Technical Drawing
Drawing and sizes shown for model LB3001.
Size — model LB3001
Ø111x110mm
Cut-Out
Ø95mm
Technical Data
Full Specification
| Dimensions | Ø111x110mm |
|---|---|
| Cut-out | Ø95mm |
| Power | 15W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 60° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +1 more |
| CRI Ra | 80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP54 · IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 9VDC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | black · White |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
9 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Specifications
At a Glance
15W
Power
60°
Beam Angle
5 CCT
2700K, 3000K, 4000K, 5000K, 5600K
CRI 80
Colour Rendering
IP54
Protection Rating
3 finishes
Body Finish
Ø111x110mm
Dimensions
Ø95mm
Cut-Out
Configure your product
LB3001
Order code
Listed configurationLB3001.C.850.WBK.60
20 listed configurations · availability requires confirmation
