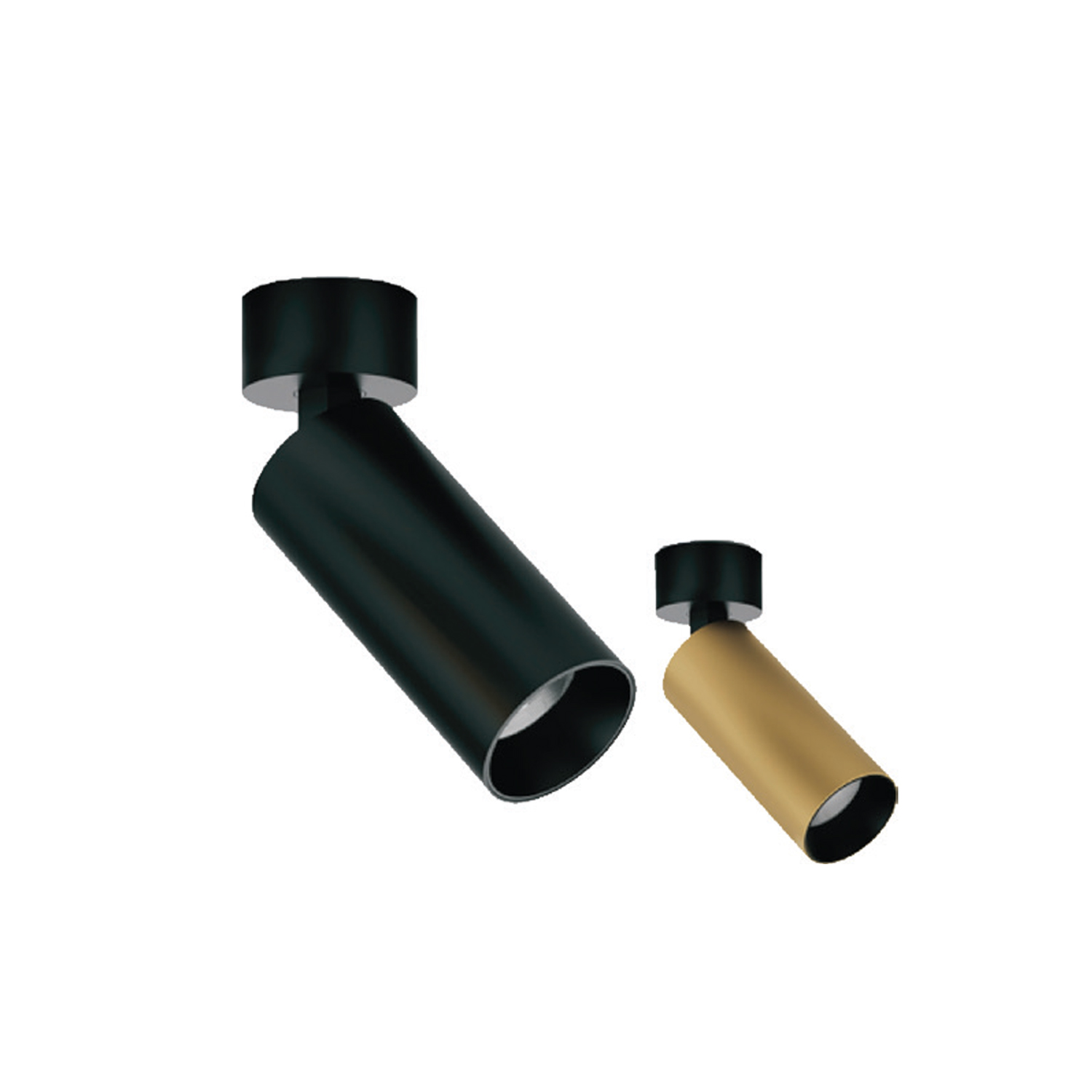

LB2902 Spot Light
BASE: LB2902ASTRO lighting solution with professional specifications
Specifications at a Glance
12W
Power
3000K4000K6000K
Available Colour Temperatures
CRI 90
Colour Rendering Index
IP20
Protection Rating
15° / 24° / 36°
Beam Angle
AC220-240V ,50/60HZ
Input
Ø55x173mm
Body Dimensions
Black With SandGolden+BlackPainted In GoldenWhite With Sand
Available Finishes
ceiling-recessed, track-mounted
Mounting Type
OSRAM COB
LED Chip
Aluminum
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
33 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
LB2902.W.930.PAB.24
CCT:
3000K
Power:12W
Beam:
24°
Finish:
CRI 90IP20Black
LB2902.W.930.PAB.15
CCT:
3000K
Power:12W
Beam:
15°
Finish:
CRI 90IP20Black
LB2902.W.930.PAW.15
CCT:
3000K
Power:12W
Beam:
15°
Finish:
CRI 90IP20White
LB2902.W.930.WGL.15
CCT:
3000K
Power:12W
Beam:
36°
Finish:
CRI 90IP20Gold
LB2902.W.930.PAW.24
CCT:
3000K
Power:12W
Beam:
24°
Finish:
CRI 90IP20White
LB2902.W.930.WGL.24
CCT:
3000K
Power:12W
Beam:
24°
Finish:
CRI 90IP20Gold
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- SPOT LIGHT
- Series:
- ASTRO
- Family:
- ASTRO
- Dimension:
- Ø55x173mm
- Input Voltage:
- AC220-240V ,50/60HZ
- Light Source:
- OSRAM COB
- Material:
- Aluminum
Catalogue Specification
- Light Source:
- OSRAM COB
- Power:
- 12W
- Driver:
- Eaglerise
- Colour Temperature:
- 3000K/4000K/6000K
- Input Voltage:
- AC220-240V ,50/60HZ
- Dimensions:
- Ø55x173mm
- Material:
- Aluminum
- Beam Angle:
- 15/24/36°
- Body Finish:
- White / Black/gold
- Warranty:
- Written eligibility and policy confirmation required
- Luminous Efficacy:
- 80-90lm/W
Applications
Jewellery Display
Retail
Configure your product
LB2902
Order code
Listed configurationLB2902.W.930.PAB.24
33 listed configurations · availability requires confirmation
