LUMIBRIGHT
ASTRO
LUMI INDOOR
IP20

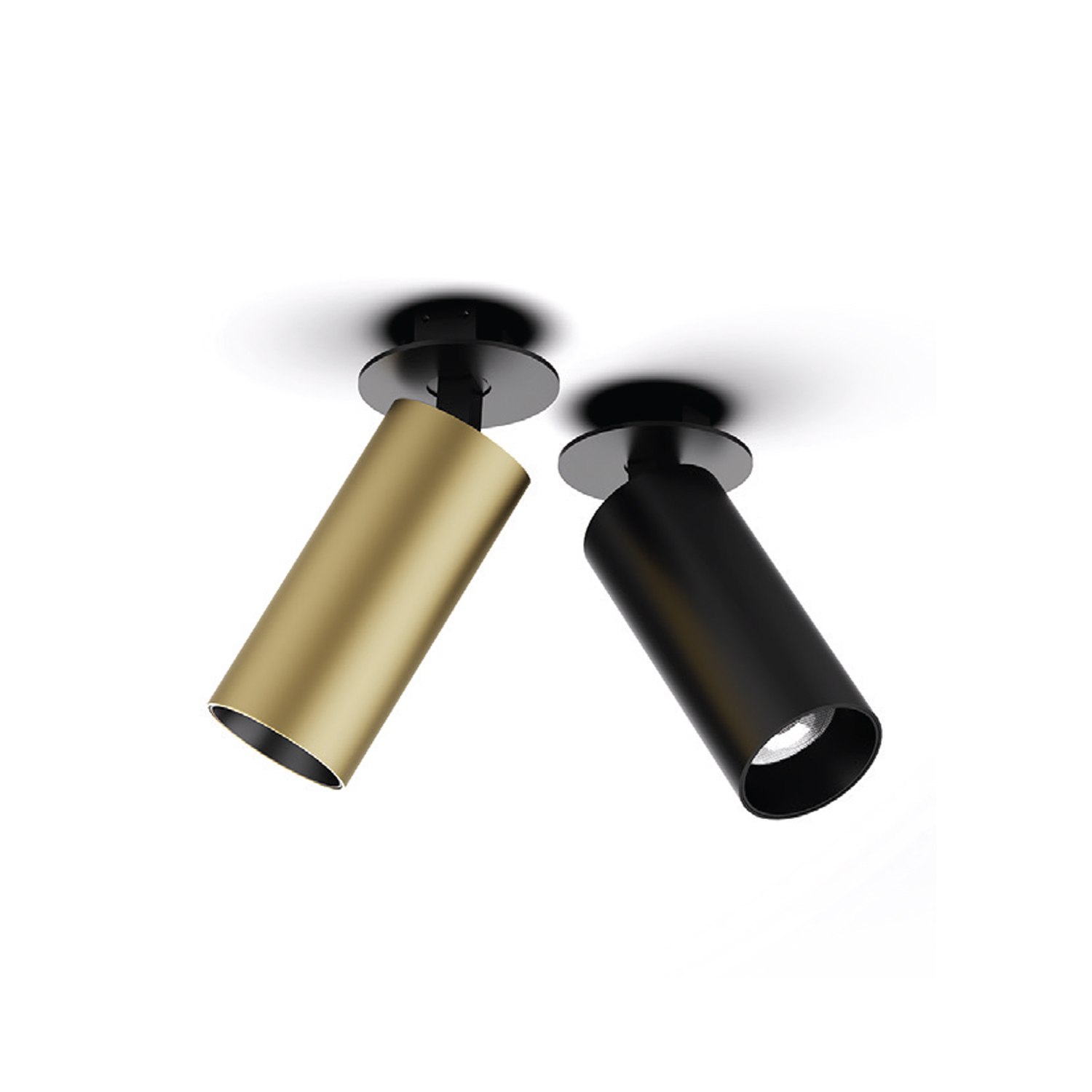

ASTRO LB2904 - SPOT LIGHT

BASE: LB2904

ASTRO lighting solution with professional specifications

ASTRO LB2904 - SPOT LIGHT
Specifications at a Glance
12W
Power
3000K4000K6000K
Available Colour Temperatures
IP20
Protection Rating
15° / 24° / 36°
Beam Angle
AC220-240V ,50/60HZ
Input
Ø55mm
Cutout Size
Ø55x170mm
Body Dimensions
Black With SandGolden+BlackPainted In GoldenWhite With Sand
Available Finishes
OSRAM COB
LED Chip
Aluminum
Material
Certifications & Compliance
CE
RoHS
IP20
5 Year Warranty

CONFIGURE YOUR PRODUCT

Select your preferred specifications to generate the exact order code.

Generated Order Code
LB2904.W.930.PAB.15
Available

Total Available Configurations: 36

Your Configuration

Color Temperature
3000K
Beam Angle
15°
Body Finish
Black
Need help configuring? Contact our sales team for assistance.

AVAILABLE CONFIGURATIONS

30 standard configurations ready for immediate order

Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.

LB2904.W.930.PAB.15
CCT:
3000K
Power:12W
Beam:
15°
Finish:
Black
CRI 90IP20
LB2904.W.930.PAW.15
CCT:
3000K
Power:12W
Beam:
15°
Finish:
White
CRI 90IP20
LB2904.W.930.WGL.15
CCT:
3000K
Power:12W
Beam:
15°
Finish:
Gold
CRI 90IP20
LB2904.W.930.PAB.24
CCT:
3000K
Power:12W
Beam:
24°
Finish:
Black
CRI 90IP20
LB2904.W.930.PAW.24
CCT:
3000K
Power:12W
Beam:
24°
Finish:
White
CRI 90IP20
LB2904.W.930.WGL.24
CCT:
3000K
Power:12W
Beam:
24°
Finish:
Gold
CRI 90IP20

Need Custom Options?

Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.

Questions about configurations? Contact our sales team for technical assistance.
Compatible Accessories
1 items

Recommended accessories for optimal installation and performance

Accessories

Additional components

1

Product Information

Category:
SPOT LIGHT
Series:
ASTRO
Family:
ASTRO
Dimension:
Ø55x170mm
Input Voltage:
AC220-240V ,50/60HZ
Light Source:
OSRAM COB
Material:
Aluminum
Cut-Out:
Ø55mm

Catalogue Specification

Light Source:
OSRAM COB
Power:
12W
Driver:
Eaglerise
Colour Temperature:
3000K/4000K/6000K
Input Voltage:
AC220-240V ,50/60HZ
Dimensions:
Ø55x170mm
Cut-Out:
Ø55mm
Material:
Aluminum
Beam Angle:
15/24/36°
Body Finish:
White / Black/gold
Luminous Efficacy:
80-90lm/W

Applications

Retail
Jewellery Display
