LBP1023 Spot Light

LBP1023: specifications and applications

LBP1023 is the ASTRO LBP1023 - SPOT LIGHT lighting model in the lumi indoor catalogue, listed under SPOT LIGHT. This page keeps the specifications, configuration choices and project notes for LBP1023 together, so it can be compared with other ASTRO models without substituting the dimensions or options of a neighbouring article.

The LBP1023 catalogue record lists power: 12W. Coordinate this load with the circuit schedule and the selected control gear.

The LBP1023 catalogue record lists body dimensions: Ø55xH188mm. Check the housing against the architectural detail and the space reserved for installation.

The LBP1023 catalogue record lists colour temperature: 3000K, 4000K, 6000K. Compare the listed colour choices with finishes, surrounding light and the intended atmosphere.

The LBP1023 catalogue record lists colour rendering: ≥90. Include this catalogue value in the material and display-lighting comparison for the project.

The LBP1023 catalogue record lists optical distribution: 15/24/36°. Compare the listed option with target distance, spacing and the surface being illuminated.

The LBP1023 catalogue record lists enclosure rating: IP20. Coordinate this rating with the actual exposure, cleaning regime and installation conditions.

The LBP1023 catalogue record lists electrical requirement: AC220-240V ,50/60HZ. Keep the stated unit alongside the driver and control specification; a current rating must not be treated as a mains voltage.

The LBP1023 catalogue record lists finish or material: White / Black/gold. Review the stated construction alongside adjoining architectural materials and sample approvals.

The LBP1023 catalogue record lists mounting: track-mounted. Check the fixing arrangement and access for installation before finalising the detail.

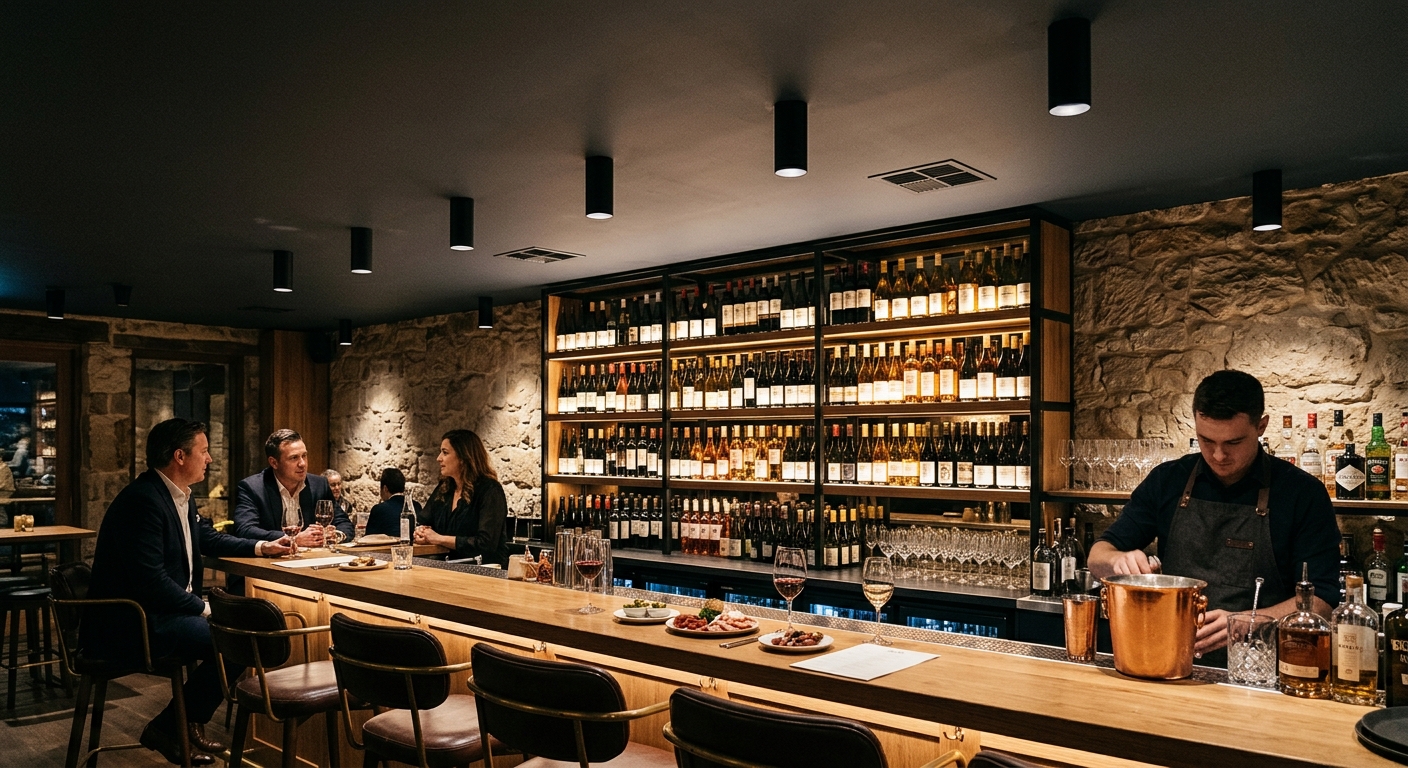

Accent lighting for retail, hospitality and residential interiors starts with the object or surface that needs emphasis. Compare the selected optic with the target size and mounting distance, and review colour appearance alongside surrounding finishes. A clear model and configuration reference helps the lighting schedule distinguish focused feature lighting from the general lighting elsewhere in the same space.

LBP1023 has 27 listed order-code configurations. Examples from this model are LBP1023.N.940.PAB.36, LBP1023.W.930.PAB.36, LBP1023.W.930.WGL+WBK.36. Use the exact listed combination when selecting finishes, colour temperature or optical options; an option appearing elsewhere in the family is not automatically an orderable combination for this article.

For a LBP1023 project submission, retain this model reference with the drawings and the selected configuration. Include the relevant dimensions, optical information and installation requirements in the coordination review. Where a document or value is not available on the page, request the model-specific information from the specification team rather than copying a value from another ASTRO article.

Main model page: LBP1023

Model specifications

Light SourceOSRAM COB
Power12W
DriverEaglerise
Colour Temperature3000K/4000K/6000K
Input VoltageAC220-240V ,50/60HZ
DimensionsØ55xH188mm
MaterialAluminum
Beam Angle15/24/36°
Body FinishWhite / Black/gold
Track Adaptor4 Wires 3 Phase
Luminous Efficacy80-90lm/W

LBP1023 datasheet
