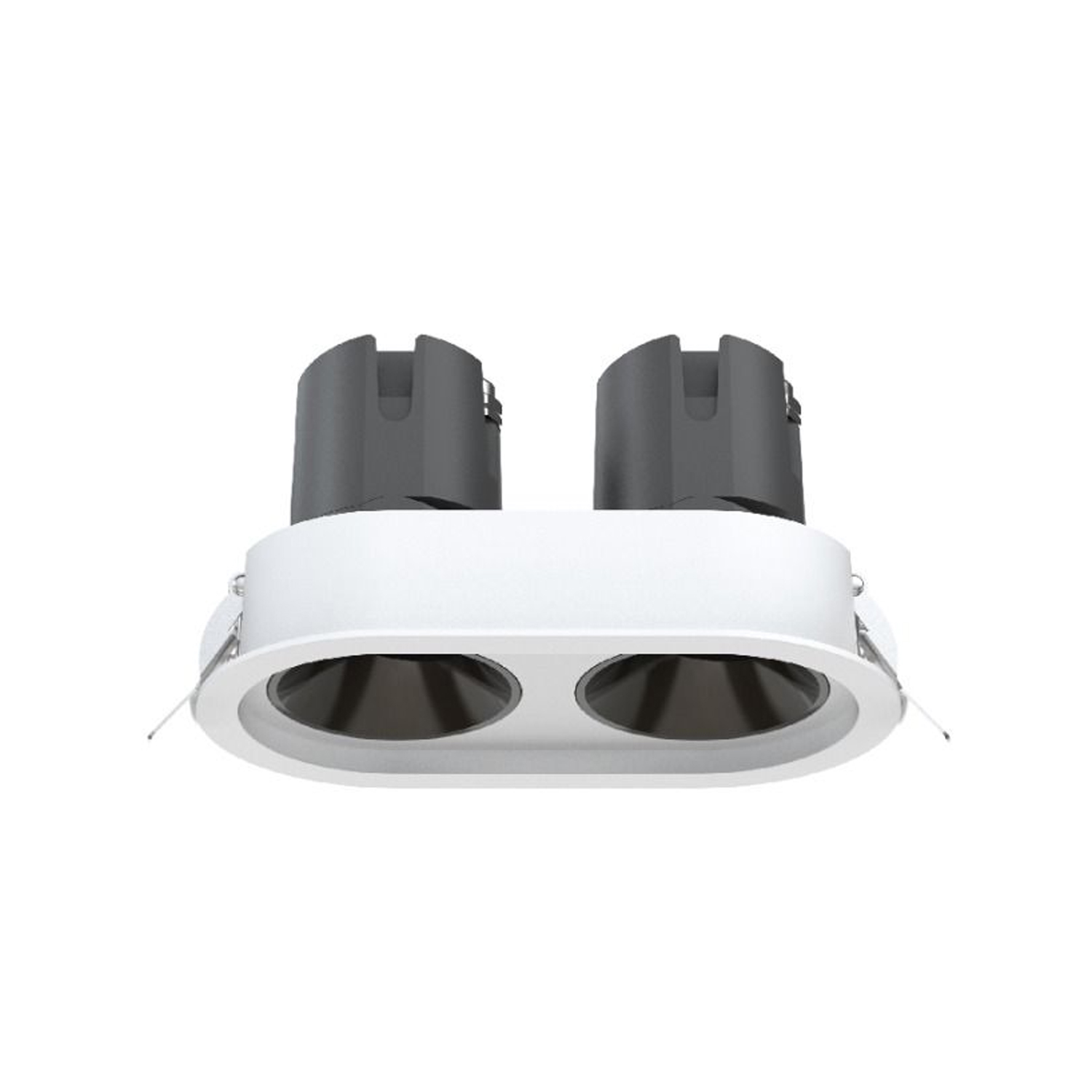

LBE2170 Spot Light
BASE: LBE2170ATRANI-ECO lighting solution with professional specifications
Specifications at a Glance
2*8W
Power
3000K
Available Colour Temperatures
CRI >90
Colour Rendering Index
IP65
Protection Rating
24°
Beam Angle
220-240VAC, 50/60HZ
Input
128xØ65mm
Cutout Size
Ø139×W79×H90mm
Body Dimensions
White
Available Finishes
ceiling-recessed, track-mounted
Mounting Type
Bridgelux COB
LED Chip
50,000Hrs
LED Life Time
Die-Cast Aluminum
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
2 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
LBE2170.W.930.WWH+PBK.24.DDR
CCT:
3000K
Power:2*8W
Beam:
24°
Finish:
CRI >90IP65White
LBE2170.W.930.WWH+PBK.24.DR
CCT:
3000K
Power:2*8W
Beam:
24°
Finish:
CRI >90IP65White
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- SPOT LIGHT
- Series:
- ATRANI-ECO
- Family:
- ATRANI-ECO
- Dimension:
- Ø139×W79×H90mm
- Input Voltage:
- 220-240VAC, 50/60HZ
- Light Source:
- Bridgelux COB
- Material:
- Die-Cast Aluminum
- Life Time:
- 50,000Hrs
- Cut-Out:
- 128xØ65mm
Catalogue Specification
- Light Source:
- Bridgelux COB
- Power:
- 2*8W
- Input Voltage:
- 220-240VAC, 50/60HZ
- Colour Temperature:
- 3000K
- CRI:
- >90
- IP Rating:
- IP65
- Beam Angle:
- 24°
- Material:
- Die-Cast Aluminum
- Body Finish:
- white
- Dimensions:
- Ø139×W79×H90mm
- Cut-Out:
- 128xØ65mm
- LED Life Time:
- 50,000Hrs
- Warranty:
- Written eligibility and policy confirmation required
- Driver:
- Eaglerise dali dimmable
- Luminous Efficacy:
- 80-85LM/W
Applications
Jewellery Display
Retail
Configure your product
LBE2170
Order code
Listed configurationLBE2170.W.930.WWH+PBK.24.DDR
2 listed configurations · availability requires confirmation
