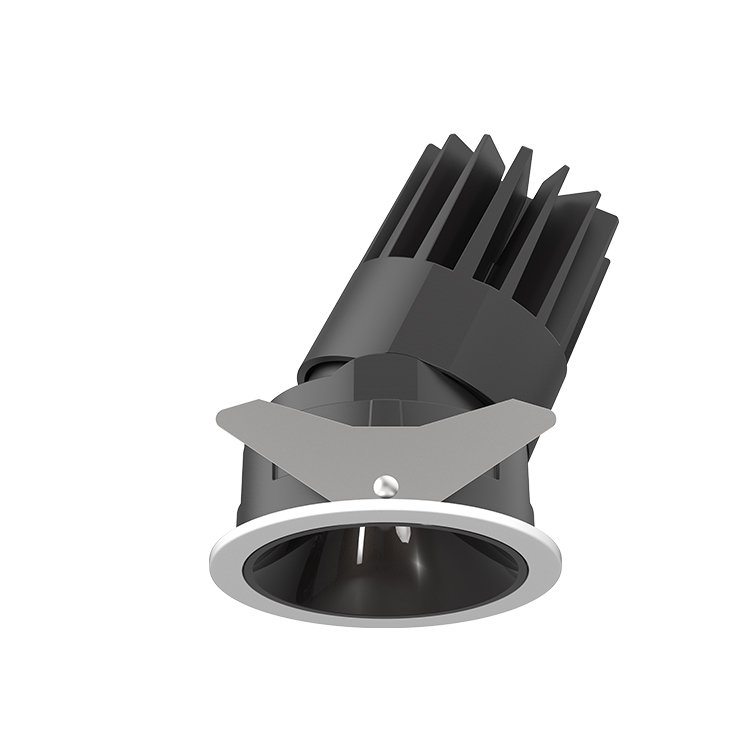

L01195 Ceiling Light
BASE: L01195ATRANI lighting solution with professional specifications
Specifications at a Glance
8W
Power
680lm
Lumen Output
2700K3000K4000K5000K5700K6500K
Available Colour Temperatures
CRI 80/90
Colour Rendering Index
IP65
Protection Rating
15° / 24° / 38° / 60° / 8°
Beam Angle
REFLECTOR
UGR / Optics
AC220-240V
Input
Ø55mm
Cutout Size
ø62×H85mm
Body Dimensions
BlackWhite
Available Finishes
DALINon-DimmableTriac
Dimming Options
ceiling-recessed
Mounting Type
BRIDGELUX
LED Chip
ALUMINUM DIE-CAST
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
121 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L01195.965.03.05.60.DR
CCT:
6500K
Power:8W
Lumen:680lm
Beam:
60°
Finish:
CRI 80/90IP65Black
L01195.965.03.05.38.DR
CCT:
6500K
Power:8W
Lumen:680lm
Beam:
38°
Finish:
CRI 80/90IP65Black
L01195.965.03.05.24.DR
CCT:
6500K
Power:8W
Lumen:680lm
Beam:
24°
Finish:
CRI 80/90IP65Black
L01195.965.03.05.15.DR
CCT:
6500K
Power:8W
Lumen:680lm
Beam:
15°
Finish:
CRI 80/90IP65Black
L01195.965.03.05.8.DR
CCT:
6500K
Power:8W
Lumen:680lm
Beam:
8°
Finish:
CRI 80/90IP65Black
L01195.965.03.02.60.DR
CCT:
6500K
Power:8W
Lumen:680lm
Beam:
60°
Finish:
CRI 80/90IP65Black
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- CEILING RECESSED LIGHT
- Series:
- ATRANI
- Family:
- ATRANI
- Dimension:
- ø62×H85mm
- Input Voltage:
- AC220-240V
- Light Source:
- BRIDGELUX
- Material:
- ALUMINUM DIE-CAST
- Cut-Out:
- Ø55mm
Catalogue Specification
- Light Source:
- BRIDGELUX
- Power:
- 8W
- Input Voltage:
- AC220-240V
- Colour Temperature:
- 2700K/3000K/4000K/6000K/6500K
- Lumen Output:
- 680lm
- Beam Angle:
- 8°/15°/24°/38°/60°
- CRI:
- 80/90
- IP Rating:
- IP65
- Body Finish:
- MATT WHITE/BLACK TRIM
- Dimensions:
- ø62×H85mm
- Cut-Out:
- Ø55mm
- Optics:
- REFLECTOR
- Cover / Lens:
- CLEAR
- Material:
- ALUMINUM DIE-CAST
- Reflector:
- Gun black
Applications
Jewellery Display
Office
Configure your product
L01195
Order code
Listed configurationL01195.965.03.05.60.DR
121 listed configurations · availability requires confirmation
