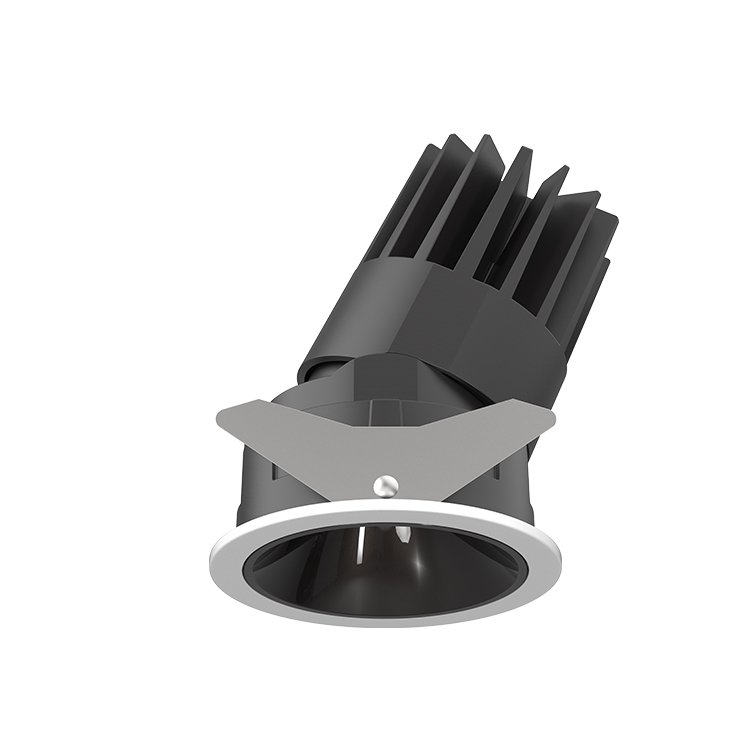

L01197 Ceiling Light
BASE: L01197ATRANI lighting solution with professional specifications
Specifications at a Glance
25W
Power
1600lm
Lumen Output
2700K3000K4000K5000K5700K6500K
Available Colour Temperatures
CRI 80/90
Colour Rendering Index
IP65
Protection Rating
15° / 24° / 38° / 60° / 8°
Beam Angle
REFLECTOR
UGR / Optics
AC220-240V
Input
Ø95mm
Cutout Size
ø111×H130mm
Body Dimensions
BlackWhite
Available Finishes
DALINon-DimmableTriac
Dimming Options
ceiling-recessed
Mounting Type
BRIDGELUX
LED Chip
ALUMINUM DIE-CAST
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
120 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L01197.965.03.05.60.DR
CCT:
6500K
Power:25W
Lumen:1600lm
Beam:
60°
Finish:
CRI 80/90IP65Black
L01197.965.03.05.38.DR
CCT:
6500K
Power:25W
Lumen:1600lm
Beam:
38°
Finish:
CRI 80/90IP65Black
L01197.965.03.05.24.DR
CCT:
6500K
Power:25W
Lumen:1600lm
Beam:
24°
Finish:
CRI 80/90IP65Black
L01197.965.03.05.15.DR
CCT:
6500K
Power:25W
Lumen:1600lm
Beam:
15°
Finish:
CRI 80/90IP65Black
L01197.965.03.05.8.DR
CCT:
6500K
Power:25W
Lumen:1600lm
Beam:
8°
Finish:
CRI 80/90IP65Black
L01197.965.03.02.60.DR
CCT:
6500K
Power:25W
Lumen:1600lm
Beam:
60°
Finish:
CRI 80/90IP65Black
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- CEILING RECESSED LIGHT
- Series:
- ATRANI
- Family:
- ATRANI
- Dimension:
- ø111×H130mm
- Input Voltage:
- AC220-240V
- Light Source:
- BRIDGELUX
- Material:
- ALUMINUM DIE-CAST
- Cut-Out:
- Ø95mm
Catalogue Specification
- Light Source:
- BRIDGELUX
- Power:
- 25W
- Input Voltage:
- AC220-240V
- Colour Temperature:
- 2700K/3000K/4000K/6000K/6500K
- Lumen Output:
- 1600lm
- Beam Angle:
- 8°/15°/24°/38°/60°
- CRI:
- 80/90
- IP Rating:
- IP65
- Body Finish:
- MATT WHITE/BLACK TRIM
- Dimensions:
- ø111×H130mm
- Cut-Out:
- Ø95mm
- Optics:
- REFLECTOR
- Cover / Lens:
- CLEAR
- Material:
- ALUMINUM DIE-CAST
- Reflector:
- Matt white
Applications
Jewellery Display
Office
