L01205 Ceiling Light

BASE: L01205

ATRANI lighting solution with professional specifications

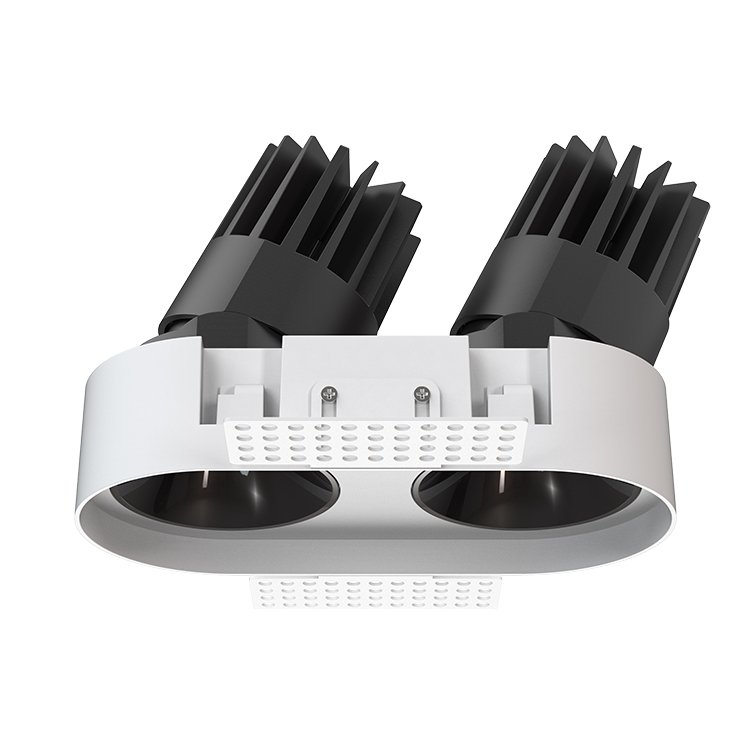

ATRANI L01205 - CEILING RECESSED LIGHT
Specifications at a Glance
2×18W
Power
3240lm
Lumen Output
2700K3000K4000K
Available Colour Temperatures
CRI 80/90
Colour Rendering Index
IP65
Protection Rating
15° / 24° / 38°
Beam Angle
REFLECTOR
UGR / Optics
AC220-240V
Input
180xØ90mm
Cutout Size
L177×W87×H121mm
Body Dimensions
DALINon-DimmableTriac
Dimming Options
ceiling-recessed
Mounting Type
BRIDGELUX
LED Chip
ALUMINUM DIE-CAST
Material
Technical evidence & warranty

Supporting model-specific declarations/test reports require verification

Evidence requirementsWarranty status

AVAILABLE CONFIGURATIONS

9 listed configurations · availability requires confirmation

Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.

L01205.940.01.02.38.DR
CCT:
4000K
Power:2×18W
Lumen:3240lm
Beam:
38°
CRI 80/90IP65
L01205.930.01.02.38.DR
CCT:
3000K
Power:2×18W
Lumen:3240lm
Beam:
38°
CRI 80/90IP65
L01205.927.01.02.38.DR
CCT:
2700K
Power:2×18W
Lumen:3240lm
Beam:
38°
CRI 80/90IP65
L01205.940.01.02.24.DR
CCT:
4000K
Power:2×18W
Lumen:3240lm
Beam:
24°
CRI 80/90IP65
L01205.930.01.02.24.DR
CCT:
3000K
Power:2×18W
Lumen:3240lm
Beam:
24°
CRI 80/90IP65
L01205.927.01.02.24.DR
CCT:
2700K
Power:2×18W
Lumen:3240lm
Beam:
24°
CRI 80/90IP65

Need Custom Options?

Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.

Questions about configurations? Contact our sales team for technical assistance.
Compatible Accessories
1 items

Recommended accessories for optimal installation and performance

Accessories

Additional components

1

Product Information

Category:
CEILING RECESSED LIGHT
Series:
ATRANI
Family:
ATRANI
Dimension:
L177×W87×H121mm
Input Voltage:
AC220-240V
Light Source:
BRIDGELUX
Material:
ALUMINUM DIE-CAST
Cut-Out:
180xØ90mm

Catalogue Specification

Light Source:
BRIDGELUX
Power:
2×18W
Input Voltage:
AC220-240V
Colour Temperature:
2700K/3000K/4000K/6000K/6500K
Lumen Output:
3240lm
Beam Angle:
8°/15°/24°/38°/60°
CRI:
80/90
IP Rating:
IP65
Body Finish:
MATT WHITE/BLACK TRIM
Dimensions:
L177×W87×H121mm
Cut-Out:
180xØ90mm
Optics:
REFLECTOR
Cover / Lens:
CLEAR
Material:
ALUMINUM DIE-CAST
Reflector:
Matt silver

Applications

Jewellery Display
Office
