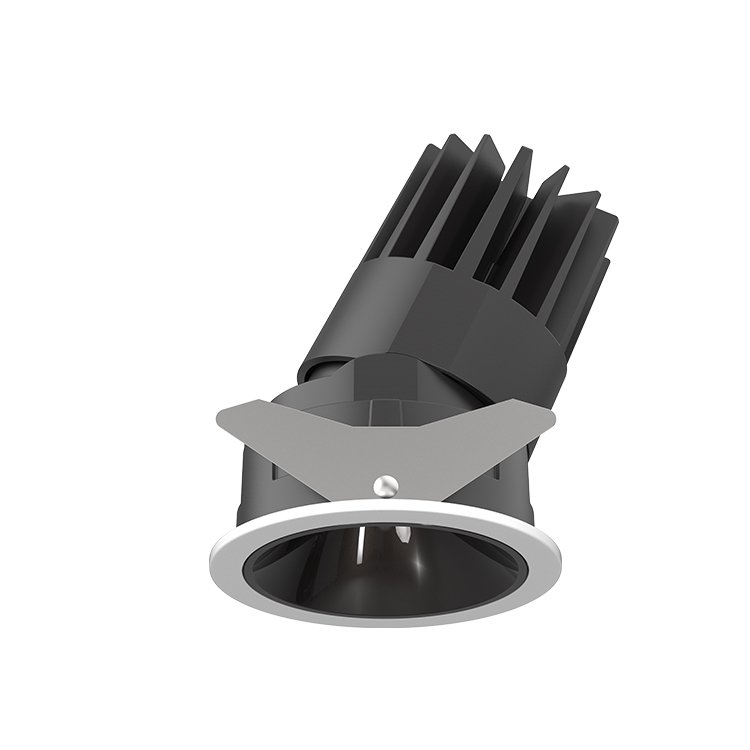

L01267 Ceiling Light
BASE: L01267ATRANI lighting solution with professional specifications
Specifications at a Glance
10W
Power
800lm
Lumen Output
3000K4000K
Available Colour Temperatures
CRI 80/90
Colour Rendering Index
IP65
Protection Rating
24° / 60°
Beam Angle
REFLECTOR
UGR / Optics
250mA/36VDC
Input
Ø55mm
Cutout Size
Ø62×H85mm
Body Dimensions
White
Available Finishes
DALINon-DimmableTriac
Dimming Options
ceiling-recessed
Mounting Type
BRIDGELUX
LED Chip
ALUMINUM DIE-CAST
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
2 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L01267.930.01.05.24.DR
CCT:
3000K
Power:10W
Lumen:800lm
Beam:
24°
Finish:
CRI 80/90IP65White
L01267.940.03.05.60
CCT:
4000K
Power:10W
Lumen:800lm
Beam:
CRI 80/90IP6560°
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- CEILING RECESSED LIGHT
- Series:
- ATRANI
- Family:
- ATRANI
- Dimension:
- Ø62×H85mm
- Input Voltage:
- 250mA/36VDC
- Light Source:
- BRIDGELUX
- Material:
- ALUMINUM DIE-CAST
- Cut-Out:
- Ø55mm
Catalogue Specification
- Light Source:
- BRIDGELUX
- Power:
- 10W
- Input Voltage:
- 250mA/36VDC
- Colour Temperature:
- 2700K/3000K/4000K/6000K/6500K
- Lumen Output:
- 800lm
- Beam Angle:
- 8°/15°/24°/38°/60°
- CRI:
- 80/90
- IP Rating:
- IP65
- Body Finish:
- MATT WHITE/BLACK TRIM
- Dimensions:
- Ø62×H85mm
- Cut-Out:
- Ø55mm
- Optics:
- REFLECTOR
- Cover / Lens:
- CLEAR
- Material:
- ALUMINUM DIE-CAST
- Reflector:
- Gun black
Applications
Jewellery Display
Office
Configure your product
L01267
Order code
Listed configurationL01267.930.01.05.24.DR
2 listed configurations · availability requires confirmation
