L01194 Ceiling Light

L01194: specifications and applications

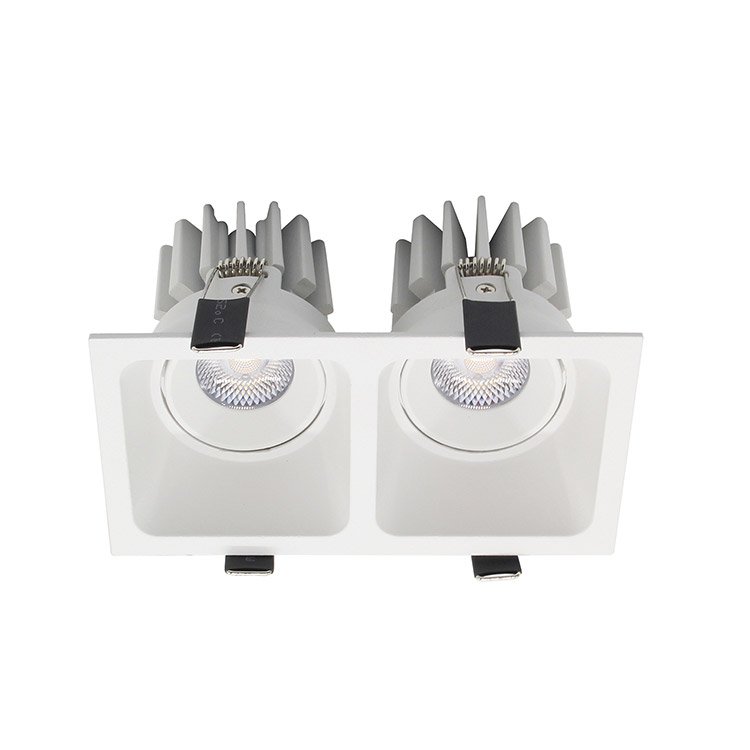

L01194 is the BEYNAC L01194 - CEILING RECESSED LIGHT lighting model in the lumi indoor catalogue, listed under CEILING RECESSED LIGHT. This page keeps the specifications, configuration choices and project notes for L01194 together, so it can be compared with other BEYNAC models without substituting the dimensions or options of a neighbouring article.

The L01194 catalogue record lists power: 2x15W. Coordinate this load with the circuit schedule and the selected control gear.

The L01194 catalogue record lists body dimensions: L162×W85×H105.5mm. Check the housing against the architectural detail and the space reserved for installation.

The L01194 catalogue record lists cut-out: 155x80mm. Use the opening dimension separately from the outside body size when coordinating the finished surface.

The L01194 catalogue record lists colour temperature: 2700K, 3000K, 4000K, 6000K, 6500K. Compare the listed colour choices with finishes, surrounding light and the intended atmosphere.

The L01194 catalogue record lists colour rendering: 80/90. Include this catalogue value in the material and display-lighting comparison for the project.

The L01194 catalogue record lists optical distribution: 15°/24°/38°. Compare the listed option with target distance, spacing and the surface being illuminated.

The L01194 catalogue record lists enclosure rating: IP65. Coordinate this rating with the actual exposure, cleaning regime and installation conditions.

The L01194 catalogue record lists electrical requirement: AC220-240V. Keep the stated unit alongside the driver and control specification; a current rating must not be treated as a mains voltage.

The L01194 catalogue record lists finish or material: MATT WHITE/BLACK TRIM. Review the stated construction alongside adjoining architectural materials and sample approvals.

The L01194 catalogue record lists mounting: recessed. Check the fixing arrangement and access for installation before finalising the detail.

Hotel circulation, villa interiors and workplace settings need the ceiling arrangement to support the task and the architecture together. Compare the model dimensions, any stated cut-out and the intended distribution before setting out the fittings. Coordinate spacing with the room geometry and use the appropriate optical information for the final calculation rather than treating a nominal wattage as a coverage guarantee.

L01194 has 12 listed order-code configurations. Examples from this model are L01194.960.01.38.DR, L01194.940.01.38.DR, L01194.930.01.38.DR. Use the exact listed combination when selecting finishes, colour temperature or optical options; an option appearing elsewhere in the family is not automatically an orderable combination for this article.

For a L01194 project submission, retain this model reference with the drawings and the selected configuration. Include the relevant dimensions, optical information and installation requirements in the coordination review. Where a document or value is not available on the page, request the model-specific information from the specification team rather than copying a value from another BEYNAC article.
