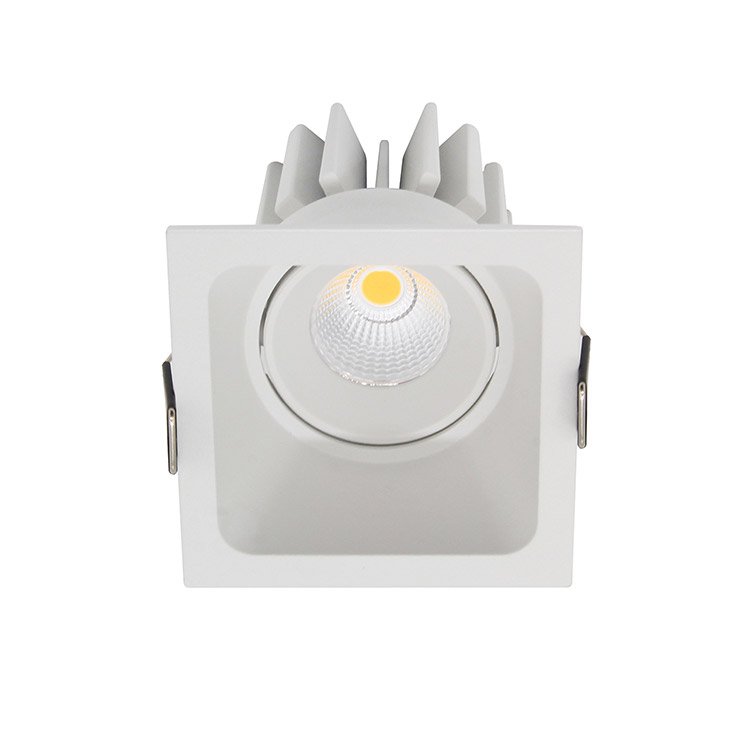

L01265 Ceiling Light
BASE: L01265BEYNAC lighting solution with professional specifications
Specifications at a Glance
10W
Power
850lm
Lumen Output
4000K
Available Colour Temperatures
CRI 80/90
Colour Rendering Index
IP20
Protection Rating
60°
Beam Angle
LENS
UGR / Optics
250mA/36VDC
Input
80x80mm
Cutout Size
L85×W85×H105.5
Body Dimensions
DALINon-DimmableTriac
Dimming Options
ceiling-recessed
Mounting Type
BRIDGELUX
LED Chip
ALUMINUM DIE-CAST
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
1 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L01265.940.03.60
CCT:
4000K
Power:10W
Lumen:850lm
Beam:
CRI 80/90IP2060°
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- CEILING RECESSED LIGHT
- Series:
- BEYNAC
- Family:
- BEYNAC
- Dimension:
- L85×W85×H105.5
- Input Voltage:
- 250mA/36VDC
- Light Source:
- BRIDGELUX
- Material:
- ALUMINUM DIE-CAST
- Cut-Out:
- 80x80mm
Catalogue Specification
- Light Source:
- BRIDGELUX
- Power:
- 10W
- Input Voltage:
- 250mA/36VDC
- Colour Temperature:
- 2700K/3000K/4000K/6000K/6500K
- Lumen Output:
- 850lm
- Beam Angle:
- 15°/24°/38°/60°
- CRI:
- 80/90
- IP Rating:
- IP20
- Body Finish:
- WHITE/BLACK
- Dimensions:
- L85×W85×H105.5
- Cut-Out:
- 80x80mm
- Optics:
- LENS
- Cover / Lens:
- PC
- Material:
- ALUMINUM DIE-CAST
- Reflector:
- Clear
Applications
Jewellery Display
Office
Configure your product
L01265
Order code
Listed configurationL01265.940.03.60
1 listed configurations · availability requires confirmation
