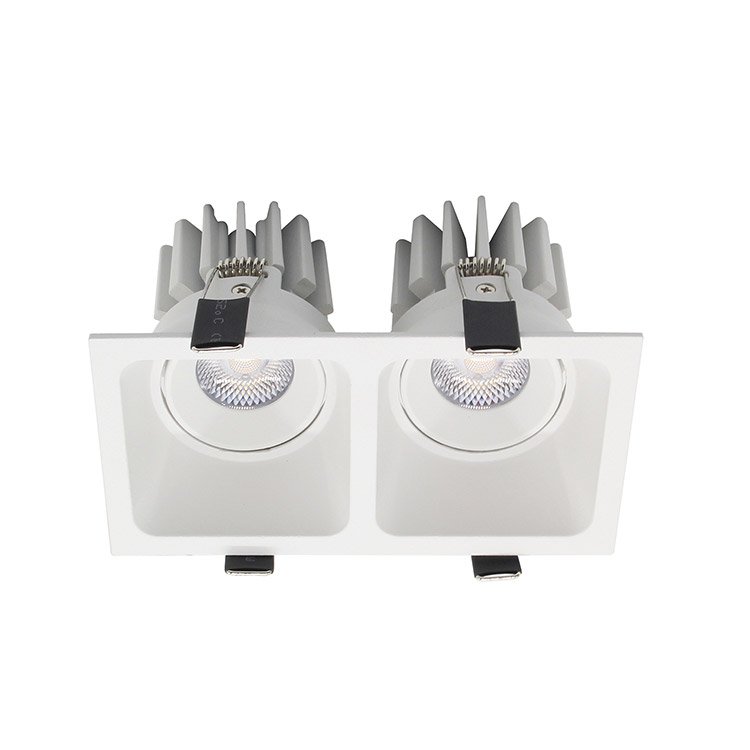

L01266 Ceiling Light
BASE: L01266BEYNAC lighting solution with professional specifications
Specifications at a Glance
2x10W
Power
1700lm
Lumen Output
2700K3000K4000K6000K
Available Colour Temperatures
CRI 80/90
Colour Rendering Index
IP20
Protection Rating
15° / 24° / 38° / 60°
Beam Angle
LENS
UGR / Optics
2x250mA/36VDC
Input
155x80mm
Cutout Size
L162×W85×H90.5mm
Body Dimensions
BlackWhite
Available Finishes
DALINon-DimmableTriac
Dimming Options
ceiling-recessed
Mounting Type
BRIDGELUX
LED Chip
ALUMINUM DIE-CAST
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
33 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L01266.960.03.60.DR
CCT:
6000K
Power:2x10W
Lumen:1700lm
Beam:
60°
Finish:
CRI 80/90IP20Black
L01266.960.03.38.DR
CCT:
6000K
Power:2x10W
Lumen:1700lm
Beam:
38°
Finish:
CRI 80/90IP20Black
L01266.960.03.24.DR
CCT:
6000K
Power:2x10W
Lumen:1700lm
Beam:
24°
Finish:
CRI 80/90IP20Black
L01266.960.03.15.DR
CCT:
6000K
Power:2x10W
Lumen:1700lm
Beam:
15°
Finish:
CRI 80/90IP20Black
L01266.960.01.60.DR
CCT:
6000K
Power:2x10W
Lumen:1700lm
Beam:
60°
Finish:
CRI 80/90IP20White
L01266.960.01.38.DR
CCT:
6000K
Power:2x10W
Lumen:1700lm
Beam:
38°
Finish:
CRI 80/90IP20White
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- CEILING RECESSED LIGHT
- Series:
- BEYNAC
- Family:
- BEYNAC
- Dimension:
- L162×W85×H90.5mm
- Input Voltage:
- 2x250mA/36VDC
- Light Source:
- BRIDGELUX
- Material:
- ALUMINUM DIE-CAST
- Cut-Out:
- 155x80mm
Catalogue Specification
- Light Source:
- BRIDGELUX
- Power:
- 2x10W
- Input Voltage:
- 2x250mA/36VDC
- Colour Temperature:
- 2700K/3000K/4000K/6000K/6500K
- Lumen Output:
- 1700lm
- Beam Angle:
- 15°/24°/38°/60°
- CRI:
- 80/90
- IP Rating:
- IP20
- Body Finish:
- WHITE/BLACK
- Dimensions:
- L162×W85×H90.5mm
- Cut-Out:
- 155x80mm
- Optics:
- LENS
- Cover / Lens:
- PC
- Material:
- ALUMINUM DIE-CAST
- Reflector:
- Clear
Applications
Jewellery Display
Office
Configure your product
L01266
Order code
Listed configurationL01266.960.03.60.DR
33 listed configurations · availability requires confirmation
