LUMIBRIGHT
CALLEJON
LUMI INDOOR
ceiling-recessed
IP44

L01146 Ceiling Light

BASE: L01146

CALLEJON lighting solution with professional specifications

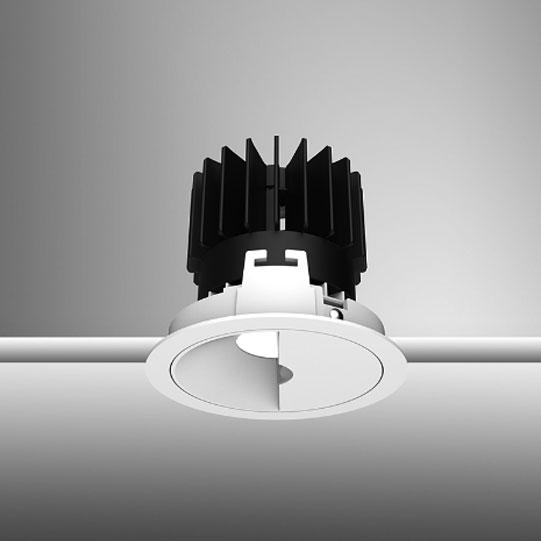

CALLEJON L01146 - CEILING RECESSED LIGHT
Specifications at a Glance
25W
Power
1385LM
Lumen Output
2700K3000K4000K
Available Colour Temperatures
CRI 90+
Colour Rendering Index
IP44
Protection Rating
Wall Washer
Beam Angle
LENS
UGR / Optics
700mA
Input
Ø100mm
Cutout Size
Ø112x98mm
Body Dimensions
BlackWhite
Available Finishes
DALINon-DimmableTriac
Dimming Options
ceiling-recessed
Mounting Type
LED
LED Chip
ALUMINUM
Material
Technical evidence & warranty

Supporting model-specific declarations/test reports require verification

Evidence requirementsWarranty status

AVAILABLE CONFIGURATIONS

6 listed configurations · availability requires confirmation

Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.

L01146.927.01.W
CCT:
2700K
Power:25W
Lumen:1385LM
Beam:
Finish:
White
CRI 90+IP44
L01146.930.01.W
CCT:
3000K
Power:25W
Lumen:1385LM
Beam:
Finish:
White
CRI 90+IP44
L01146.940.01.W
CCT:
4000K
Power:25W
Lumen:1385LM
Beam:
Finish:
White
CRI 90+IP44
L01146.927.03.W
CCT:
2700K
Power:25W
Lumen:1385LM
Beam:
Finish:
Black
CRI 90+IP44
L01146.930.03.W
CCT:
3000K
Power:25W
Lumen:1385LM
Beam:
Finish:
Black
CRI 90+IP44
L01146.940.03.W
CCT:
4000K
Power:25W
Lumen:1385LM
Beam:
Finish:
Black
CRI 90+IP44

Need Custom Options?

Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.

Questions about configurations? Contact our sales team for technical assistance.
Compatible Accessories
1 items

Recommended accessories for optimal installation and performance

Accessories

Additional components

1

Product Information

Category:
CEILING RECESSED LIGHT
Series:
CALLEJON
Family:
CALLEJON
Dimension:
Ø112x98mm
Input Voltage:
700mA
Light Source:
LED
Material:
ALUMINUM
Cut-Out:
Ø100mm

Catalogue Specification

Light Source:
LED
Power:
25W
Input Voltage:
700mA
Colour Temperature:
2700K/3000K/4000K/6000K/6500K
Lumen Output:
1385LM
Beam Angle:
WALLWASHER
CRI:
90+
IP Rating:
IP44
Body Finish:
WHITE/BLACK
Dimensions:
Ø112x98mm
Cut-Out:
Ø100mm
Optics:
LENS
Cover / Lens:
PC
Material:
ALUMINUM

Applications

Jewellery Display
Office
