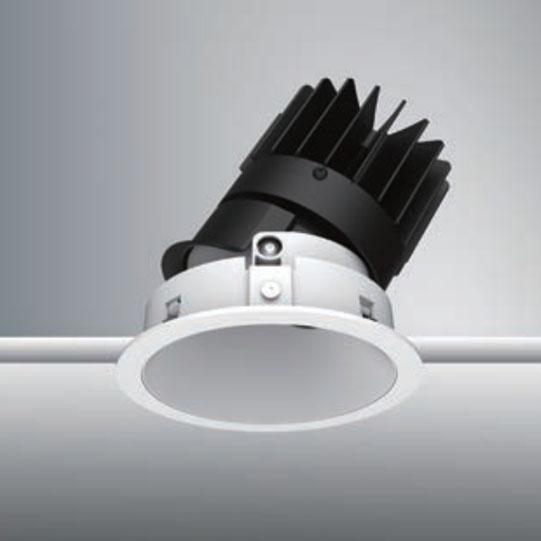

L01157 Ceiling Light
BASE: L01157CALLEJON lighting solution with professional specifications
Specifications at a Glance
32W
Power
3139LM
Lumen Output
2700K3000K4000K
Available Colour Temperatures
CRI 90+
Colour Rendering Index
IP44
Protection Rating
20° / 30° / 45° / 55°
Beam Angle
LENS
UGR / Optics
900mA
Input
Ø128mm
Cutout Size
Ø140x162mm
Body Dimensions
BlackWhite
Available Finishes
DALINon-DimmableTriac
Dimming Options
ceiling-recessed
Mounting Type
LED
LED Chip
ALUMINUM
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
24 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L01157.940.01.55
CCT:
4000K
Power:32W
Lumen:3139LM
Beam:
55°
Finish:
CRI 90+IP44White
L01157.940.01.45
CCT:
4000K
Power:32W
Lumen:3139LM
Beam:
45°
Finish:
CRI 90+IP44White
L01157.940.01.30
CCT:
4000K
Power:32W
Lumen:3139LM
Beam:
30°
Finish:
CRI 90+IP44White
L01157.940.01.20
CCT:
4000K
Power:32W
Lumen:3139LM
Beam:
20°
Finish:
CRI 90+IP44White
L01157.930.01.55
CCT:
3000K
Power:32W
Lumen:3139LM
Beam:
55°
Finish:
CRI 90+IP44White
L01157.930.01.45
CCT:
3000K
Power:32W
Lumen:3139LM
Beam:
45°
Finish:
CRI 90+IP44White
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Compatible Accessories
Product Information
- Category:
- CEILING RECESSED LIGHT
- Series:
- CALLEJON
- Family:
- CALLEJON
- Dimension:
- Ø140x162mm
- Input Voltage:
- 900mA
- Light Source:
- LED
- Material:
- ALUMINUM
- Cut-Out:
- Ø128mm
Catalogue Specification
- Light Source:
- LED
- Power:
- 32W
- Input Voltage:
- 900mA
- Colour Temperature:
- 2700K/3000K/4000K/6000K/6500K
- Lumen Output:
- 3139LM
- Beam Angle:
- 20°/30°/45°/55°
- CRI:
- 90+
- IP Rating:
- IP44
- Body Finish:
- WHITE/BLACK
- Dimensions:
- Ø140x162mm
- Cut-Out:
- Ø128mm
- Optics:
- LENS
- Cover / Lens:
- PC
- Material:
- ALUMINUM
Applications
Jewellery Display
Office
Configure your product
L01157
Order code
Listed configurationL01157.940.01.55
24 listed configurations · availability requires confirmation
