LUMIBRIGHT
CALLEJON
LUMI INDOOR
ceiling-recessed
IP65/IP20

L01182 Ceiling Light

BASE: L01182

CALLEJON lighting solution with professional specifications

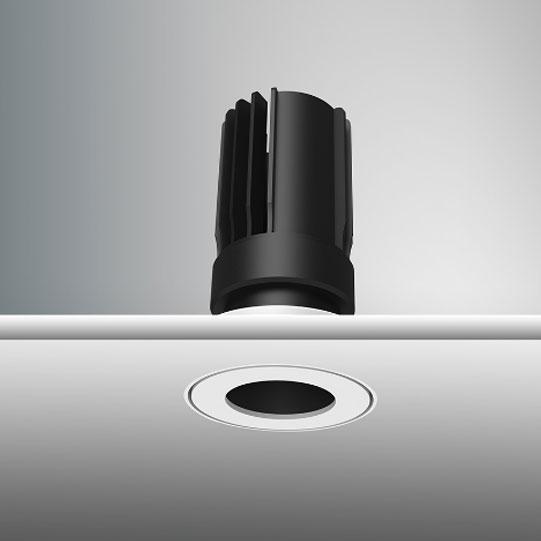

CALLEJON L01182 - CEILING RECESSED LIGHT
Specifications at a Glance
9W
Power
922LM
Lumen Output
2700K3000K4000K
Available Colour Temperatures
CRI 90+
Colour Rendering Index
IP65
Protection Rating
50°
Beam Angle
REFLECTOR
UGR / Optics
250mA
Input
Ø64mm
Cutout Size
Ø95x90mm
Body Dimensions
BlackWhite
Available Finishes
DALINon-DimmableTriac
Dimming Options
ceiling-recessed
Mounting Type
LED
LED Chip
ALUMINUM
Material
Technical evidence & warranty

Supporting model-specific declarations/test reports require verification

Evidence requirementsWarranty status

AVAILABLE CONFIGURATIONS

6 listed configurations · availability requires confirmation

Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.

L01182.940.01.50
CCT:
4000K
Power:9W
Lumen:922LM
Beam:
50°
Finish:
White
CRI 90+IP65
L01182.930.01.50
CCT:
3000K
Power:9W
Lumen:922LM
Beam:
50°
Finish:
White
CRI 90+IP65
L01182.927.01.50
CCT:
2700K
Power:9W
Lumen:922LM
Beam:
50°
Finish:
White
CRI 90+IP65
L01182.940.03.50
CCT:
4000K
Power:9W
Lumen:922LM
Beam:
50°
Finish:
Black
CRI 90+IP65
L01182.930.03.50
CCT:
3000K
Power:9W
Lumen:922LM
Beam:
50°
Finish:
Black
CRI 90+IP65
L01182.927.03.50
CCT:
2700K
Power:9W
Lumen:922LM
Beam:
50°
Finish:
Black
CRI 90+IP65

Need Custom Options?

Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.

Questions about configurations? Contact our sales team for technical assistance.
Compatible Accessories
1 items

Recommended accessories for optimal installation and performance

Accessories

Additional components

1

Product Information

Category:
CEILING RECESSED LIGHT
Series:
CALLEJON
Family:
CALLEJON
Dimension:
Ø95x90mm
Input Voltage:
250mA
Light Source:
LED
Material:
ALUMINUM
Cut-Out:
Ø64mm

Catalogue Specification

Light Source:
LED
Power:
9W
Input Voltage:
250mA
Colour Temperature:
2700K/3000K/4000K/6000K/6500K
Lumen Output:
922LM
Beam Angle:
50°
CRI:
90+
IP Rating:
IP65/IP20
Body Finish:
WHITE/BLACK
Dimensions:
Ø95x90mm
Cut-Out:
Ø64mm
Optics:
REFLECTOR
Cover / Lens:
CLEAR GLASS
Material:
ALUMINUM

Applications

Jewellery Display
Office
