LUMIBRIGHT
CALLEJON
LUMI INDOOR
ceiling-recessed
IP44

L01184 Ceiling Light

BASE: L01184

CALLEJON lighting solution with professional specifications

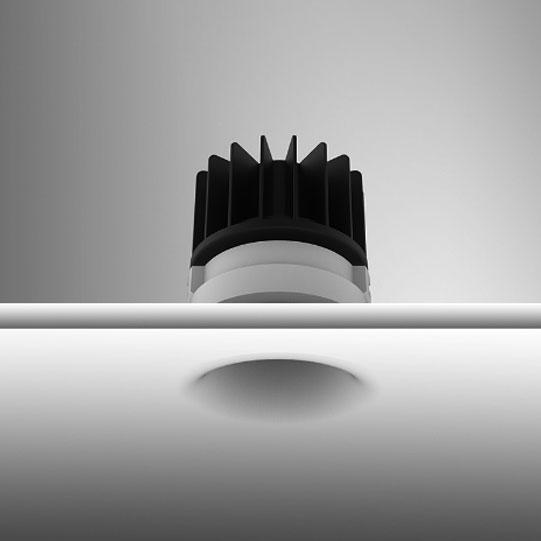

CALLEJON L01184 - CEILING RECESSED LIGHT
Specifications at a Glance
14W
Power
1019LM
Lumen Output
2700K3000K4000K
Available Colour Temperatures
CRI 90+
Colour Rendering Index
IP44
Protection Rating
15° / 24° / 36° / 50°
Beam Angle
LENS
UGR / Optics
350mA
Input
Ø82mm
Cutout Size
Ø89x93mm
Body Dimensions
BlackWhite
Available Finishes
DALINon-DimmableTriac
Dimming Options
ceiling-recessed
Mounting Type
LED
LED Chip
ALUMINUM
Material
Technical evidence & warranty

Supporting model-specific declarations/test reports require verification

Evidence requirementsWarranty status

AVAILABLE CONFIGURATIONS

24 listed configurations · availability requires confirmation

Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.

L01184.940.03.50
CCT:
4000K
Power:14W
Lumen:1019LM
Beam:
50°
Finish:
Black
CRI 90+IP44
L01184.940.03.36
CCT:
4000K
Power:14W
Lumen:1019LM
Beam:
36°
Finish:
Black
CRI 90+IP44
L01184.940.03.24
CCT:
4000K
Power:14W
Lumen:1019LM
Beam:
24°
Finish:
Black
CRI 90+IP44
L01184.940.03.15
CCT:
4000K
Power:14W
Lumen:1019LM
Beam:
15°
Finish:
Black
CRI 90+IP44
L01184.930.03.50
CCT:
3000K
Power:14W
Lumen:1019LM
Beam:
50°
Finish:
Black
CRI 90+IP44
L01184.930.03.36
CCT:
3000K
Power:14W
Lumen:1019LM
Beam:
36°
Finish:
Black
CRI 90+IP44

Need Custom Options?

Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.

Questions about configurations? Contact our sales team for technical assistance.
Compatible Accessories
1 items

Recommended accessories for optimal installation and performance

Accessories

Additional components

1

Product Information

Category:
CEILING RECESSED LIGHT
Series:
CALLEJON
Family:
CALLEJON
Dimension:
Ø89x93mm
Input Voltage:
350mA
Light Source:
LED
Material:
ALUMINUM
Cut-Out:
Ø82mm

Catalogue Specification

Light Source:
LED
Power:
14W
Input Voltage:
350mA
Colour Temperature:
2700K/3000K/4000K/6000K/6500K
Lumen Output:
1019LM
Beam Angle:
15°/24°/36°/50°
CRI:
90+
IP Rating:
IP44
Body Finish:
WHITE/BLACK
Dimensions:
Ø89x93mm
Cut-Out:
Ø82mm
Optics:
LENS
Cover / Lens:
PC
Material:
ALUMINUM

Applications

Jewellery Display
Office
