CRANE is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Track Light
CRANE
CRANE is a track light family within the LUMIBRIGHT Lumi Indoor collection. The current catalogue groups 6 article codes under this family, including LB1022, LB1023, LB1024. For LB1022, published values include colour temperature: 3000K, 4000K, 5000K; IP rating: IP20. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the CRANE articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

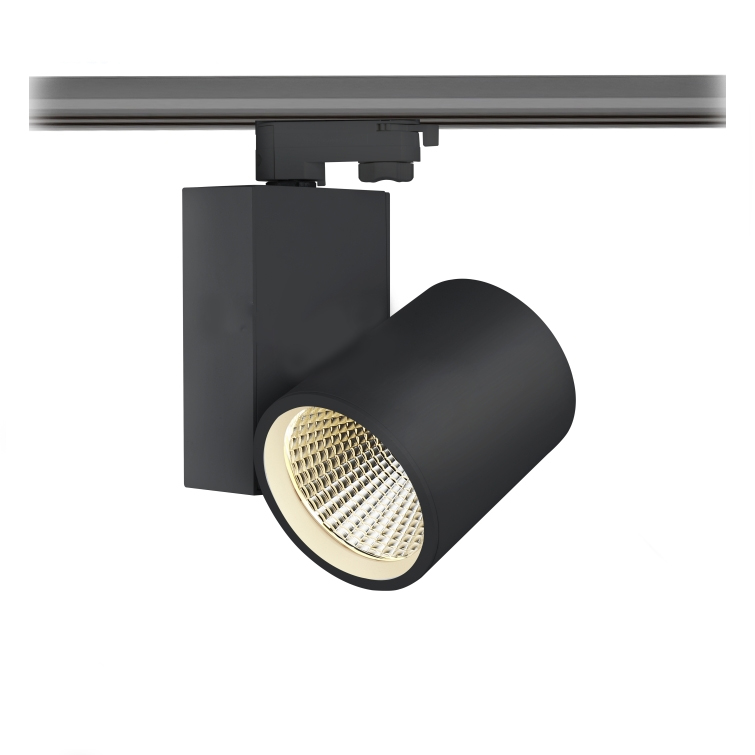

| LB1022 | WattageNot published | CCT3000K, 4000K, 5000K | IPIP20 | DimensionsNot published | Cut-outNot published |

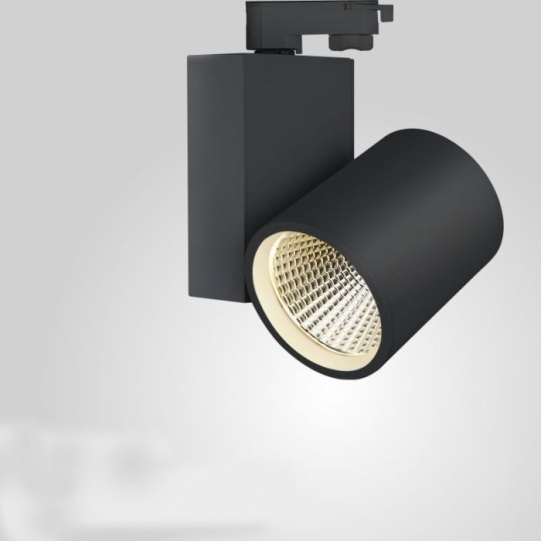

| LB1023 | Wattage20W | CCT3000K | IPIP20 | DimensionsNot published | Cut-outNot published |
| LB1024 | Wattage32W | CCT3000K, 4000K, 5000K | IPIP20 | DimensionsØ93x115mm | Cut-outNot published |

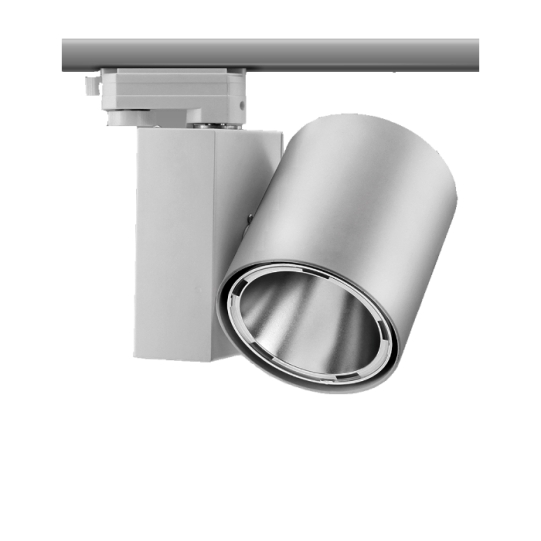

| LB1026 | WattageNot published | CCT3000K | IPIP20 | DimensionsNot published | Cut-outNot published |
| LBP1031 | Wattage30W | CCT2700K/3000K/4000K/5000K/6000K | IPIP20 | DimensionsØ100xH135mm | Cut-outNot published |

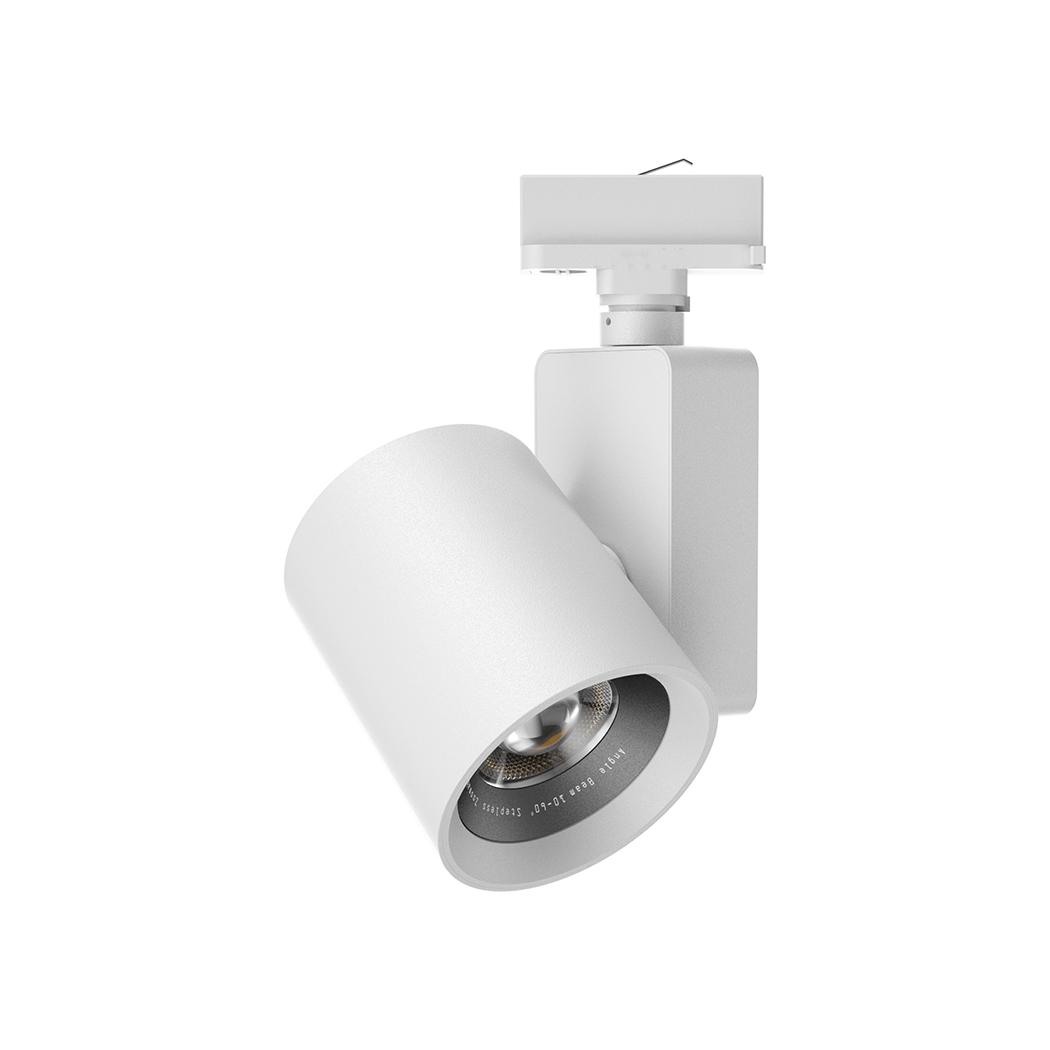

| LBS1002 | Wattage30W | CCT2700K/3500K/4500K/5700K | IPIP20 | DimensionsØ105x153.9x201.3mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø100xH135mm · Ø93x115mm · Ø105x153.9x201.3mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 9W · 10W · 30W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 15° · 24° · 36° · 45° +4 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +6 more |
| CRI Ra | 90 · 80+,90+ · >90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC · 200-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | white · black · Black With Sand · black-sand +2 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
9 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
6 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LBP1031. This family has 6 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBP1031
Ø100xH135mm
Specifications
At a Glance
20–32W
Power Range
6 options
Beam: 15°, 20°, 24°, 30°, 36°, 45°
9 CCT
2700K, 3000K, 3500K, 4000K, 4500K, 5000K, 5700K, 6000K, 6500K
CCT TUNABLE
Colour Options
CRI 80/90
Colour Rendering
IP20
Protection Rating
4 finishes
Body Finish Options
3 sizes
Ø100xH135mm, Ø105x153.9x201.3mm, Ø93x115mm
Configure your product
LBP1031
Order code
Listed configurationLBP1031.W.830.WWH.36
1 listed configurations · availability requires confirmation
