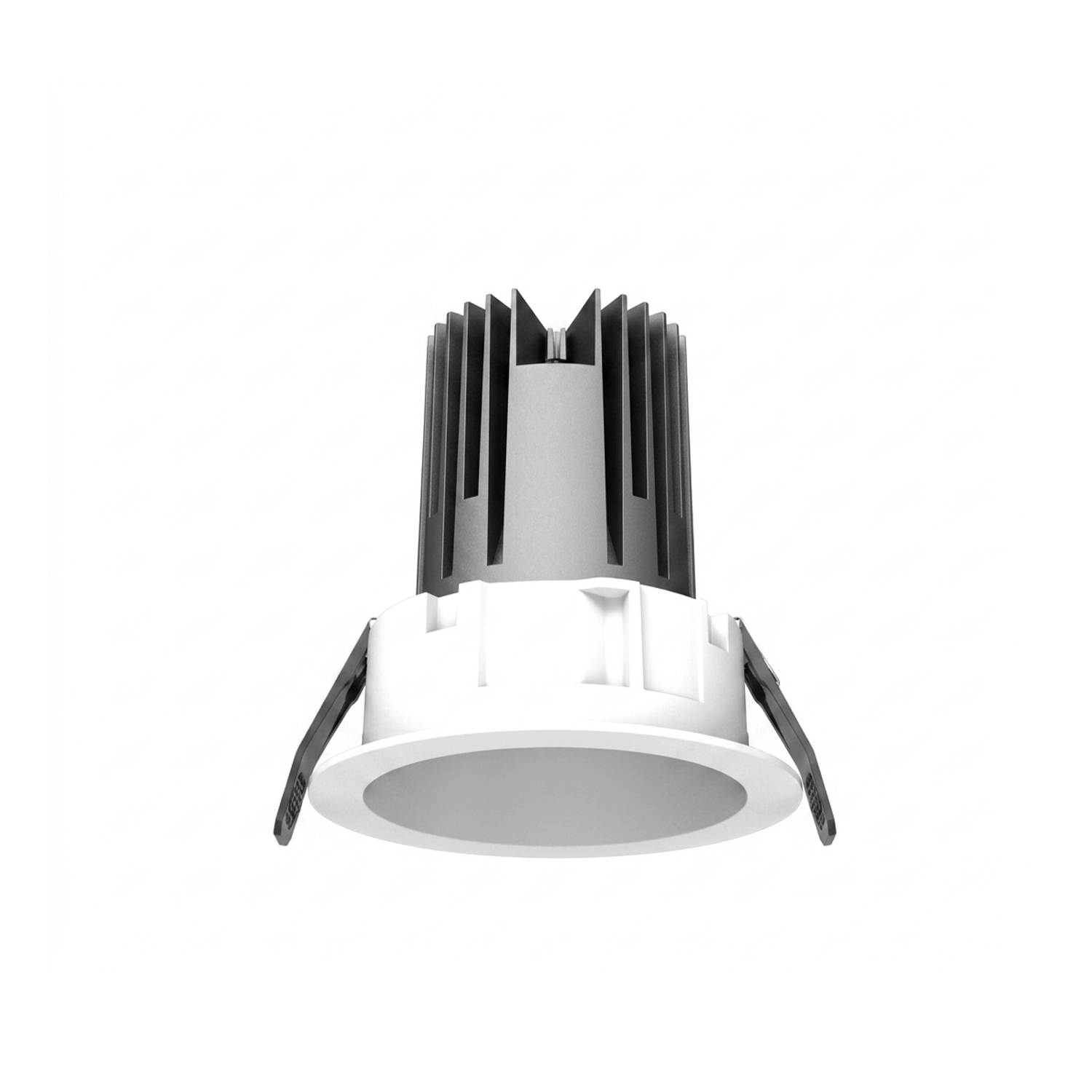

LBP2002 Spot Light

LBP2002: specifications and applications

LBP2002 is the SPOT LBP2002 - SPOT LIGHT lighting model in the lumi indoor catalogue, listed under SPOT LIGHT. This page keeps the specifications, configuration choices and project notes for LBP2002 together, so it can be compared with other DEEP models without substituting the dimensions or options of a neighbouring article.

The LBP2002 catalogue record lists power: 7W. Coordinate this load with the circuit schedule and the selected control gear.

The LBP2002 catalogue record lists body dimensions: Ø90*H76mm. Check the housing against the architectural detail and the space reserved for installation.

The LBP2002 catalogue record lists cut-out: Ø75-80mm. Use the opening dimension separately from the outside body size when coordinating the finished surface.

The LBP2002 catalogue record lists colour temperature: 2700K, 3000K, 4000K, 5000K. Compare the listed colour choices with finishes, surrounding light and the intended atmosphere.

The LBP2002 catalogue record lists colour rendering: 80+/90+. Include this catalogue value in the material and display-lighting comparison for the project.

The LBP2002 catalogue record lists optical distribution: 15°/24°/36°/60°. Compare the listed option with target distance, spacing and the surface being illuminated.

The LBP2002 catalogue record lists enclosure rating: IP20. Coordinate this rating with the actual exposure, cleaning regime and installation conditions.

The LBP2002 catalogue record lists electrical requirement: 220-240VAC. Keep the stated unit alongside the driver and control specification; a current rating must not be treated as a mains voltage.

The LBP2002 catalogue record lists finish or material: White+Matt Black. Review the stated construction alongside adjoining architectural materials and sample approvals.

The LBP2002 catalogue record lists mounting: track-mounted. Check the fixing arrangement and access for installation before finalising the detail.

Accent lighting for retail, hospitality and residential interiors starts with the object or surface that needs emphasis. Compare the selected optic with the target size and mounting distance, and review colour appearance alongside surrounding finishes. A clear model and configuration reference helps the lighting schedule distinguish focused feature lighting from the general lighting elsewhere in the same space.

LBP2002 has 1 listed order-code configuration. The listed code is LBP2002.W.830.WWH+PBK.36.DR. Use the exact listed combination when selecting finishes, colour temperature or optical options; an option appearing elsewhere in the family is not automatically an orderable combination for this article.

For a LBP2002 project submission, retain this model reference with the drawings and the selected configuration. Include the relevant dimensions, optical information and installation requirements in the coordination review. Where a document or value is not available on the page, request the model-specific information from the specification team rather than copying a value from another DEEP article.

Main model page: LBP2002

Model specifications

Light SourcePhilips COB
Power7W
Input Voltage220-240VAC
Driver200mA/25-40VDC
CRI80+/90+
Colour Temperature2700K/3000K/4000K/5000K
Beam Angle15°/24°/36°/60°
Power Factor0.90
IP RatingIP20
LED Life Time50,000Hrs
DimensionsØ90*H76mm
Cut-OutØ75-80mm
Body FinishWhite+Matt Black
MaterialAluminum
HeatsinkDie cast aluminum
WarrantyWritten eligibility and policy confirmation required
Catalogue conformity claim (evidence not verified)CE
Luminous Efficacy85-95lm/W
