LBE2000 Spot Light
BASE: LBE2000ENDOR lighting solution with professional specifications
Specifications at a Glance
8W
Power
380lm
Lumen Output
2700K3000K4000K5000K
Available Colour Temperatures
CRI >90
Colour Rendering Index
IP20
Protection Rating
10° / 24° / 36°
Beam Angle
UGR<19
UGR / Optics
220-240VAC(With Driver)
Input
Ø45mm
Cutout Size
Ø53x65mm
Body Dimensions
White+Black
Available Finishes
Non-DimmableDALITriac0/1-10V
Dimming Options
ceiling-recessed, track-mounted
Mounting Type
LUMINUS COB
LED Chip
Die-Casting Aluminum
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
12 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
LBE2000.W.930.WWH+WBK.24.DR
CCT:
3000K
Power:8W
Lumen:380lm
Beam:
24°
Finish:
CRI >90IP20White+Black
LBE2000.C.950.WWH+WBK.36.DR
CCT:
5000K
Power:8W
Lumen:380lm
Beam:
36°
Finish:
CRI >90IP20White+Black
LBE2000.C.950.WWH+WBK.24.DR
CCT:
5000K
Power:8W
Lumen:380lm
Beam:
24°
Finish:
CRI >90IP20White+Black
LBE2000.C.950.WWH+WBK.10.DR
CCT:
5000K
Power:8W
Lumen:380lm
Beam:
10°
Finish:
CRI >90IP20White+Black
LBE2000.N.940.WWH+WBK.36.DR
CCT:
4000K
Power:8W
Lumen:380lm
Beam:
36°
Finish:
CRI >90IP20White+Black
LBE2000.N.940.WWH+WBK.24.DR
CCT:
4000K
Power:8W
Lumen:380lm
Beam:
24°
Finish:
CRI >90IP20White+Black
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- SPOT LIGHT
- Series:
- ENDOR
- Family:
- ENDOR
- Dimension:
- Ø53x65mm
- Input Voltage:
- 220-240VAC(With Driver)
- Light Source:
- LUMINUS COB
- Material:
- Die-Casting Aluminum
- Cut-Out:
- Ø45mm
Catalogue Specification
- Light Source:
- LUMINUS COB
- Power:
- 8W
- Input Voltage:
- 220-240VAC(With Driver)
- Driver:
- 250mA/36VDC
- Lumen Output:
- 380lm
- CRI:
- >90
- Colour Temperature:
- 2700K/3000K/4000K/5000K
- Beam Angle:
- 10°/24°/36°/50°
- Material:
- Die-Casting Aluminum
- Body Finish:
- White+Black
- IP Rating:
- IP20
- Dimensions:
- Ø53x65mm
- Cut-Out:
- Ø45mm
- Warranty:
- Written eligibility and policy confirmation required
- Catalogue conformity claim (evidence not verified):
- CE,RoHS
Dimension Drawing

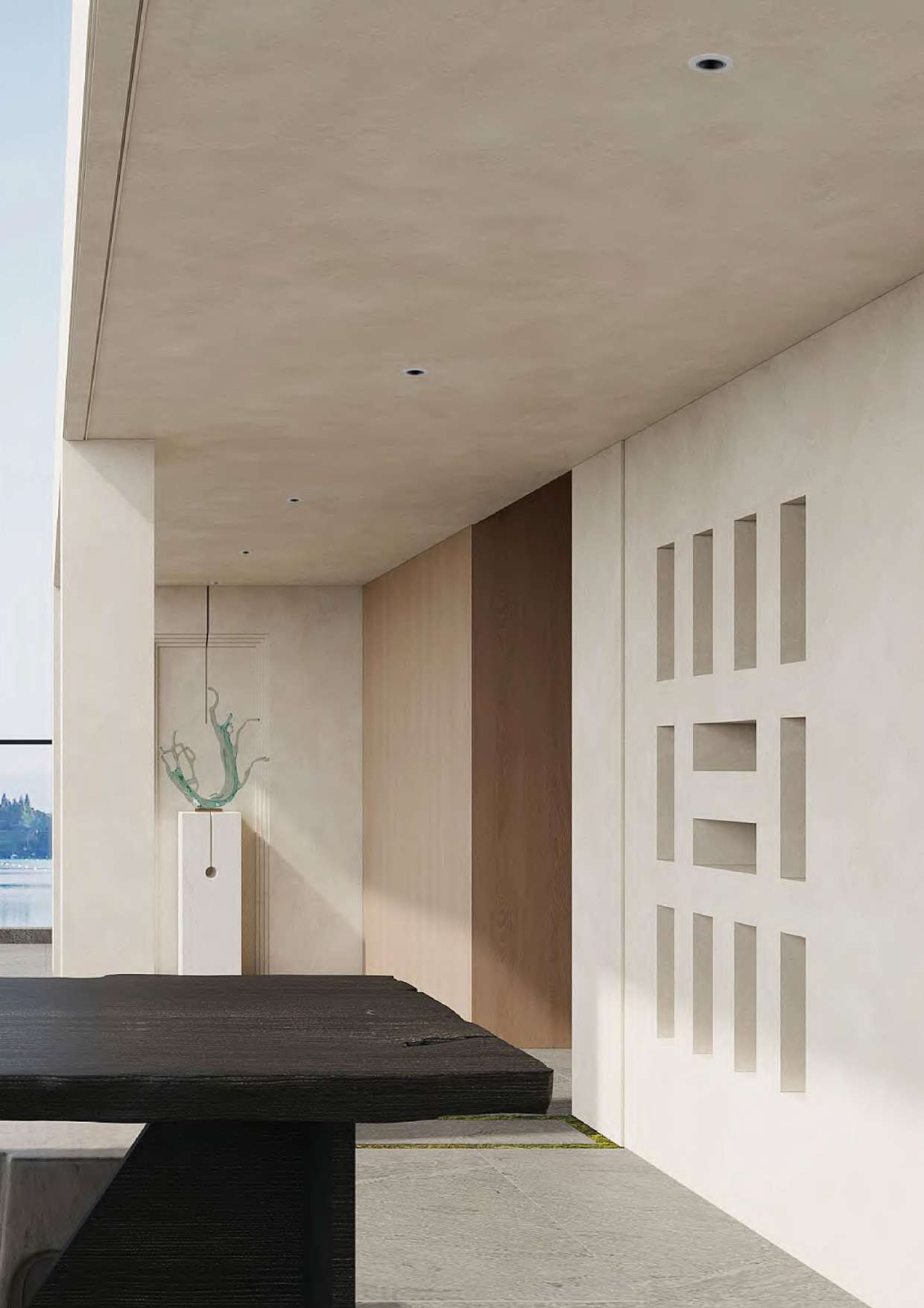

Applications
Jewellery Display
Retail
Configure your product
LBE2000
Order code
Listed configurationLBE2000.W.930.WWH+WBK.24.DR
12 listed configurations · availability requires confirmation
