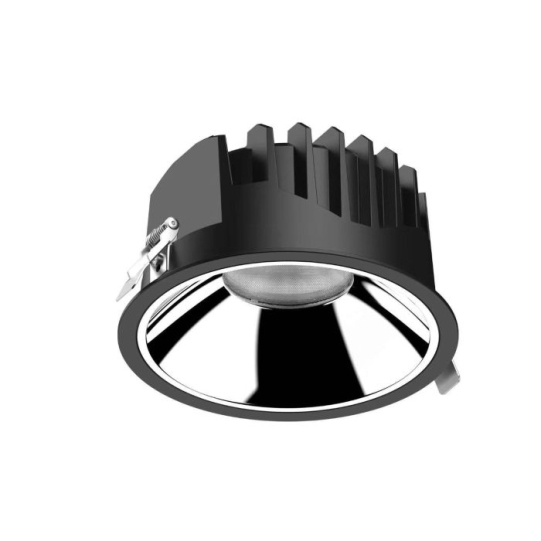

LB3299 Down Light
LB3299: specifications and applications
LB3299 is the ESPEJO LB3299 - DOWN LIGHT lighting model in the lumi indoor catalogue, listed under DOWN LIGHT. This page keeps the specifications, configuration choices and project notes for LB3299 together, so it can be compared with other ESPEJO models without substituting the dimensions or options of a neighbouring article.
The LB3299 catalogue record lists power: 30W. Coordinate this load with the circuit schedule and the selected control gear.
The LB3299 catalogue record lists body dimensions: Ø140x73mm. Check the housing against the architectural detail and the space reserved for installation.
The LB3299 catalogue record lists cut-out: Ø125mm. Use the opening dimension separately from the outside body size when coordinating the finished surface.
The LB3299 catalogue record lists colour temperature: 2700K, 3000K, 4000K, 5000K. Compare the listed colour choices with finishes, surrounding light and the intended atmosphere.
The LB3299 catalogue record lists colour rendering: > 90. Include this catalogue value in the material and display-lighting comparison for the project.
The LB3299 catalogue record lists optical distribution: 24°,38°,50°. Compare the listed option with target distance, spacing and the surface being illuminated.
The LB3299 catalogue record lists enclosure rating: IP20. Coordinate this rating with the actual exposure, cleaning regime and installation conditions.
The LB3299 catalogue record lists electrical requirement: 220-240V 50/60Hz. Keep the stated unit alongside the driver and control specification; a current rating must not be treated as a mains voltage.
The LB3299 catalogue record lists finish or material: White,Black. Review the stated construction alongside adjoining architectural materials and sample approvals.
The LB3299 catalogue record lists mounting: recessed. Check the fixing arrangement and access for installation before finalising the detail.
Compare LB3299 with the lighting brief for the room, feature or circulation area being designed. Review the available model data alongside the architectural layout, viewing positions and intended control scenes. Keep the article reference visible in the schedule so the design team can coordinate the selected product with its mounting detail and any associated equipment. Project-specific suitability depends on that complete selection.
LB3299 has 7 listed order-code configurations. Examples from this model are LB3299.W.930.WWH+MWH.38.DR, LB3299.N.940.PAB+MSR.38.DR, LB3299.W.927.PAB+MSR.38.DR. Use the exact listed combination when selecting finishes, colour temperature or optical options; an option appearing elsewhere in the family is not automatically an orderable combination for this article.
For a LB3299 project submission, retain this model reference with the drawings and the selected configuration. Include the relevant dimensions, optical information and installation requirements in the coordination review. Where a document or value is not available on the page, request the model-specific information from the specification team rather than copying a value from another ESPEJO article.
Model specifications
| Light Source | CREE COB |
|---|---|
| Power | 30W |
| Input Voltage | 220-240V 50/60Hz |
| Driver | Eaglerise 750mA/33-40VDC |
| Lumen Output | 2500lm |
| CRI | > 90 |
| Colour Temperature | 2700K/3000K/4000K/5000K |
| Material | Aluminum |
| Body Finish | White,Black |
| Beam Angle | 24°,38°,50° |
| Cut-Out | Ø125mm |
| Dimensions | Ø140x73mm |
| IP Rating | IP20 |
| Warranty | Written eligibility and policy confirmation required |
